Fire-Lite MBT-1 Manuale utente
1 of 5 Document 52033 Rev. C 02/19/08

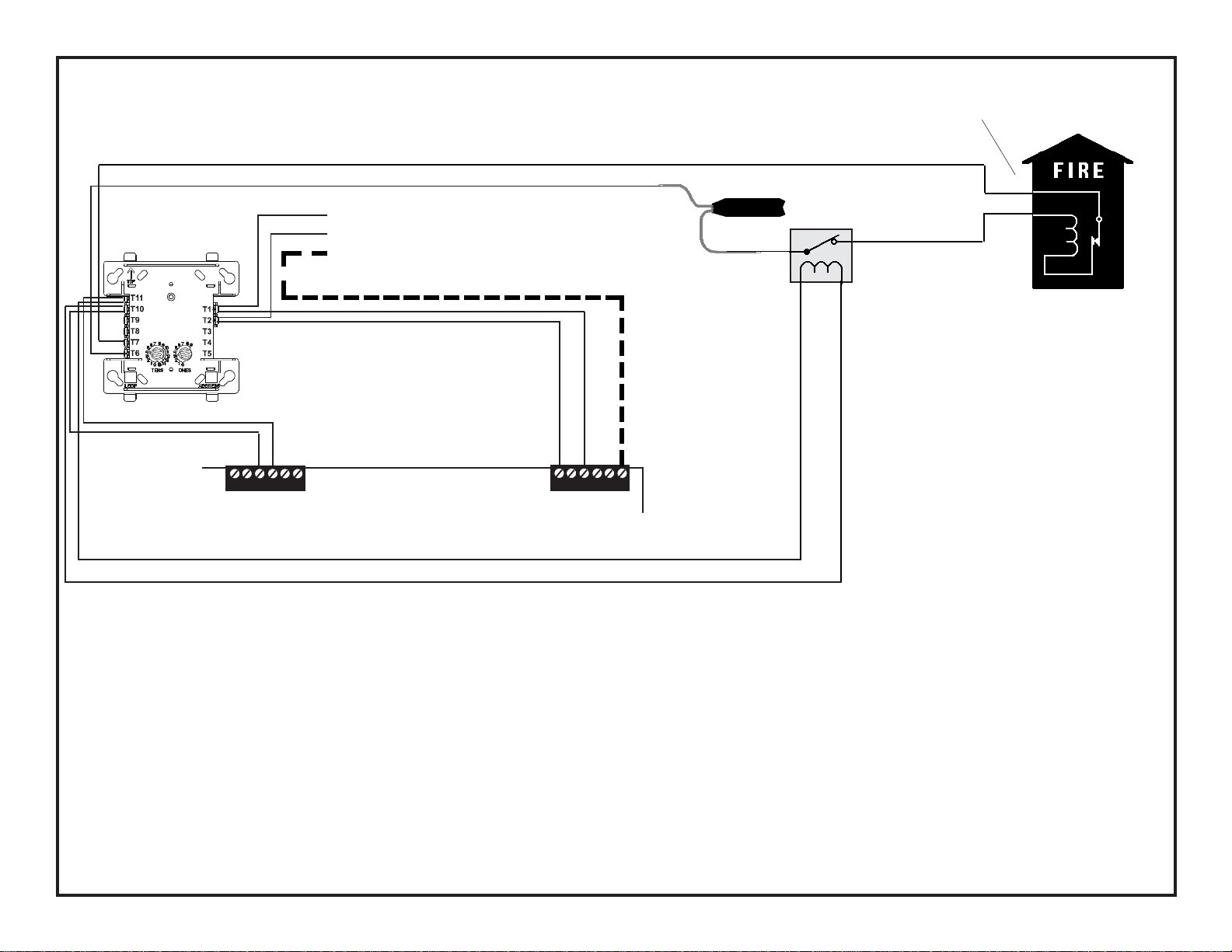

- To next device
+ on SLC Loop
Braided-shield/Drain Wire
Alarm polarity shown!
EOLR-1
Power Supervision Relay
White Wire
Brown Wire
CMF-300*
Connect wires to two
red terminals on box
Gamewell Model M34-56
Local Energy Municipal Box
Note: 10 ohms maximum loop re-
sistance due to wiring from power
supply to Municipal Box.
The CMF-300 must be programmed as
'Silenceable' and 'General Alarm.'
Red Black
MS-9200
NFPA 72 Auxiliary Protective Signaling System
(Alarm Signal Transmission)
For connection of initiating devices and modules in this system, refer to the MS-9200 Installation Manual, Document 51003.
This application is not suitable for separate transmission of sprinkler supervisory or trouble conditions.
B SLC LOOP
24VDC, Nonresettable
(Contacts shown in
energized position)
MBT-1 Municipal Box Trip
for Fire-Lite Fire Alarm Control Panels
Document 52033 Rev C 02/19/08 ECN 08-116
One Fire-Lite Place, Northford, CT 06472
TB4 TB6
+ - + -
MBT-1
-
+
-
+
+ -
MS-9200
Shield
B
* If the SLC device does not match the one in this figure, refer
to the SLC Manual (document #51309) wiring conversion
charts for legacy and newer versions of the modules.
2 of 5
Document 52033 Rev. C 02/19/08
MS-9200UD & MS-9200UDLS
NFPA 72 Auxiliary Protective Signaling System
(Alarm Signal Transmission)
For connection of initiating devices and modules in this system, refer to the MS-9200UD Installation Manual, Document 51906.
This application is not suitable for separate transmission of sprinkler supervisory or trouble conditions.
TB10
MS-9200UD
TB1
- To next device
+ on SLC Loop
Braided-shield/Drain Wire
Alarm polarity shown!
EOLR-1
Power Supervision Relay
White Wire
Brown Wire
CMF-300*
Connect wires to two
red terminals on box
Gamewell Model M34-56
Local Energy Municipal Box
Note: 10 ohms maximum loop re-
sistance due to wiring from power
supply to Municipal Box.
The CMF-300 must be programmed as
'Silenceable' and 'General Alarm.'
Red Black
SLC LOOP B
24VDC, Nonresettable
(Contacts shown in
energized position)
+ - + -
MBT-1
-
+
-
+
+ -
Shield
B
* If the SLC device does not match the one in this figure, refer
to the SLC Manual (document #51309) wiring conversion
charts for legacy and newer versions of the modules.
3 of 5 Document 52033 Rev. C 02/19/08
MS-9600, MS-9600LS & MS-9600UDLS
(Software Version 1.2 or Greater)
NFPA 72 Auxiliary Protective Signaling System
(AlarmSignalTransmission)
For connection of initiating devices and modules in this system, refer to the MS-9600 Installation Manual, Document 51335.
This application is not suitable for separate transmission of sprinkler supervisory or trouble conditions.
IMPORTANT! Thisapplication,utilizinganMBT-1andanMS-9600FACP,isonlypossiblewhentheMS-9600has
SoftwareVersion1.2orGreaterinstalled.
Note:MS-9600LSandMS-9600UDLSFireAlarmControlPanelsareFMApproved.
TB3 TB8
+ -
MS-9600
- To next device
+ on SLC Loop
Braided-shield/Drain Wire
Alarm polarity shown!
EOLR-1
Power Supervision Relay
White Wire
Brown Wire
CMF-300*
Connect wires to two
red terminals on box
Gamewell Model M34-56
Local Energy Municipal Box
Note: 10 ohms maximum loop re-
sistance due to wiring from power
supply to Municipal Box.
The CMF-300 must be programmed as
'Silenceable' and 'General Alarm.'
Red Black
SLC LOOP B
24VDC, Nonresettable
(Contacts shown in
energized position)
+ -
MBT-1
-
+
-
+
+ -
Shield
B
* If the SLC device does not match the one in
this figure, refer to the SLC Manual (docu-
ment #51309) wiring conversion charts for
legacy and newer versions of the modules.
4 of 5
Document 52033 Rev. C 02/19/08
MS-9050UD
NFPA 72 Auxiliary Protective Signaling System
Using ANN-BUS Power
(Alarm Signal Transmission)
For connection of initiating devices and modules in this system, refer to the MS-9050UD Installation Manual, Document 52413.
This application is not suitable for separate transmission of sprinkler supervisory or trouble conditions.
SLC LOOP ANN-BUS Power,
Nonresettable
- +
B+ - B
- To next device
+ on SLC Loop
Braided-shield/Drain Wire
Alarm polarity shown!
EOLR-1
Power Supervision Relay
White Wire
Brown Wire
CMF-300*
Connect wires to two
red terminals on box
Gamewell Model M34-56
Local Energy Municipal Box
Note: 10 ohms maximum loop re-
sistance due to wiring from power
supply to Municipal Box.
The CMF-300 must be programmed as
'Silenceable' and 'General Alarm.'
Red Black
(Contacts shown in
energized position)
MBT-1
-
+
-
+
+ -
Shield
TB2 MS-9050UD TB3
* If the SLC device does not match the one in this figure, refer
to the SLC Manual (document #51309) wiring conversion
charts for legacy and newer versions of the modules.
5 of 5 Document 52033 Rev. C 02/19/08
MS-9050UD
NFPA 72 Auxiliary Protective Signaling System
Using NAC Power*
(Alarm Signal Transmission)
For connection of initiating devices and modules in this system, refer to the MS-9050UD Installation Manual, Document 52413.
This application is not suitable for separate transmission of sprinkler supervisory or trouble conditions.
SLC
LOOP
NACPower*
TB2
+ - + -
MS-9050UD
Shield
TB1
B
*NAC 1 must be programmed
as a Non-Resettable Power type
- To next device
+ on SLC Loop
Braided-shield/Drain Wire
Alarm polarity shown!
EOLR-1
Power Supervision Relay
White Wire
Brown Wire
CMF-300*
Connect wires to two
red terminals on box
Gamewell Model M34-56
Local Energy Municipal Box
Note: 10 ohms maximum loop re-
sistance due to wiring from power
supply to Municipal Box.
The CMF-300 must be programmed as
'Silenceable' and 'General Alarm.'
Red Black
(Contacts shown in
energized position)
MBT-1
-
+
-
+
+ -
B
* If the SLC device does not match the one in this figure, refer
to the SLC Manual (document #51309) wiring conversion
charts for legacy and newer versions of the modules.
