FIRECLASS Fire Detection System EN54-23 Open Class—FC430LPBSB LP Loop Powered Beacon-Sounder Base

Product Information Doc. Version 2 1/14

EN54-23 Open Class—FC430LPBSB LP Loop

Powered Beacon-Sounder Base

Introduction

The EN54-23 Open Class—FC430LPBSB LP Loop Pow-

ered Beacon-Sounder Base is designed to be driven

from a FIRECLASS controller via the addressable loop.

The FC430LPBSB LP is designed to be fitted between

a detector and a 4" mounting flange.

A ‘Type A’ mounting flange is supplied with the base

and can be fixed to a flat surface or a suitable electrical

backbox with standard 50 mm, or 70 mm fixing centres.

Alternatively, a DAB3-4 mounting flange (to be ordered

separately, refer to “Order Information” on page 14)

can be used with surface mount trunking.

Fig. 1 shows a general view of the base.

The beacon-sounder base may be used without a detec-

tor by fitting a blanking cap (see “Order Information” on

page 14).

The detector or blanking cap must be locked onto the

beacon-sounder base by using a locking device (sup-

plied).

The sounder has four volume settings:

High (90 dB ±3),

Mid High (80 dB ±3),

Mid Low (70 dB ±3) and

Low (60 dB ±3).

The beacon emits a white flashing light and has two

flash rates:

Slow Flash (½ Hz), or

Fast Flash (1 Hz).

The FC430LPBSB LP Beacon-Sounder Base devices are

synchronised, but not synchronous with other sounders

(FC430SB/FC410SNM) and beacons (FC430SAB).

The first flash of the beacon is synchronised with the

start of the tone.

The FC430LPBSB LP Beacon-Sounder Base has a built

in two port isolator.

The FC430LPBSB LP Beacon-Sounder Base requires

two addresses, not including the associated detector.

Fig. 1: General View of EN54-23 Open Class—FC430LPBSB LP Beacon-Sounder Base

LOCKING DEVICE

FITS HERE

PROGRAMMING

PORT

2/14 Product Information Doc. Version 2

Technical Specification FIRECLASS Fire Detection System

Technical Specification

Mechanical Characteristics

The overall dimensions are shown in Fig. 2. All dimen-

sions are in mm.

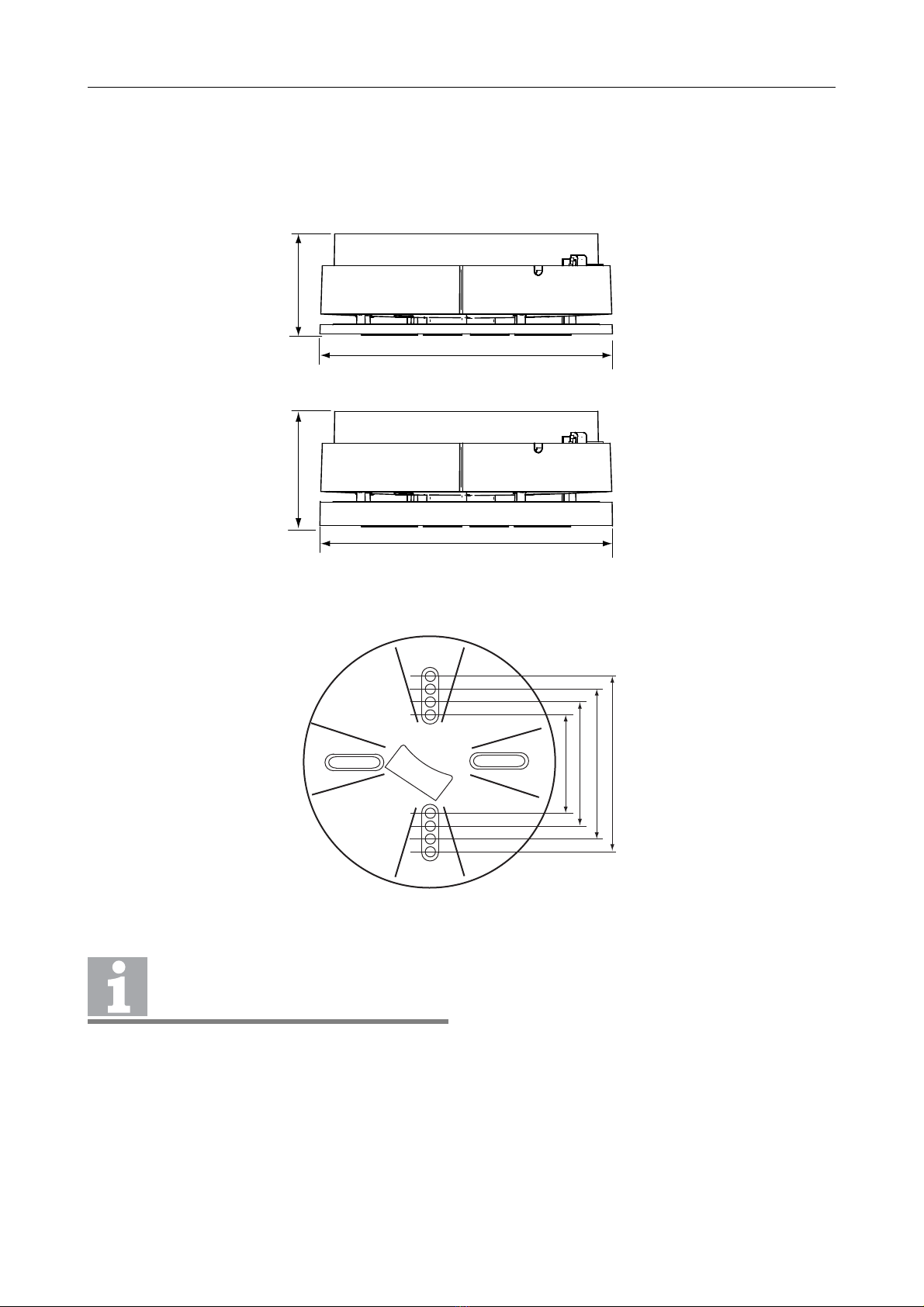

Fig. 2: FC430LPBSB LP Beacon-Sounder with Mounting Flange—Overall Dimensions

11

FC430LPBSB LP WITH TYPE ‘A’ MOUNTING FLANGE

FC430LPBSB LP WITH DAB3-4 MOUNTING

Fig. 3: Mounting Flange—Fixing Dimensions

Mounting Beacon-Sounder

The beacon-sounder body clips onto the

mounting flange.

FIRECLASS Fire Detection System Technical Specification

Product Information Doc. Version 2 3/14

Environmental Characteristics

Performance Characteristics

EMC:

The FC430LPBSB LP Beacon-Sounder Base complies

with the following:

Product family standard EN50130-4 in respect of:

– Conducted Disturbances,

– Radiated Immunity,

– Electrostatic Discharge,

– Fast Transients and

– Slow High Energy.

EN61000-6-3 for Emissions

Parameter Value

Weight:

Beacon-Sounder

Base

160 g

Materials:

Beacon-Sounder ABS/PC FR

Mounting Surface mount or conduit

mount

Table 1: Technical Specification

Parameter Value

Temperature:

Operating

Storage

-10C to +55C

-25C to +70C

Humidity Up to 95% RH 

(non-condensing)

Pressure Sounder output is quoted for

atmospheric pressure of

1000 mBar.

Vibration Meets the requirements of 

EN 54-3 and EN 54-23.

Shock Meets the requirements of 

EN 54-3 and EN 54-23*.

Corrosion Passes the SO2corrosion test

from EN 54-3 and EN 54-23.

IP Rating IP21C (EN 60529)

Table 2: Environmental Characteristics

*—The DAB3-4 mounting flange was not incorporated within

the scope of the EN 54-23 approval.

Parameter Value

Sound 

Performance

SPL at 90° at a

distance of 1m:

High:

Mid high:

Mid low:

Low:

Note: 

EN54-3:2001 does

not test at 90°.



90 dB±3

80 dB±3

70 dB±3

60 dB±3

Light 

Performance:

Light colour: 

Flash rate:



EN54-23 Category O: 

White flashing light 

Fast Flash 1 Hz, or 

Slow Flash ½ Hz

Table 3: Performance Characteristics

4/14 Product Information Doc. Version 2

Technical Specification FIRECLASS Fire Detection System

Electrical Characteristics Alarm Current

Sounder Tones

Table 6 details the tones available for selection in FIRE-

CLASS Express.

Approved Tones

The tones shown in Table 6 are approved at volumes

‘High’, ‘Mid-high’ and ‘Mid-low’ to EN54-3 with the

exception of the Alternating (NF-S 32.001) tone, which

is only approved at volumes ‘High’ and ‘Mid-High’. The

approved tones meet the specification as shown in

Tables 7 to 21. The data applies to both horizontal and

vertical planes.

Parameter Value

Addressable Loop Voltage 20 - 40 Vdc

DC Loop Loading:

Quiescent

Alarm

350 A

See Table 5: “Alarm

Current”

Isolator:

Maximum Loop Voltage 40 Vdc

Minimum Loop Voltage 20 Vdc

Maximum Rated Continuous

Current (Isolator Closed)

2 A

Maximum Rated Switching

Current (s/c)

2 A

Maximum Leakage Current

(Isolator Open)

6 mA into zone

(10 mA into Isolator)

Maximum Series Impedance

(Isolator Closed)

0.25

Isolator Switching Threshold

(Isolator Closed to Open)

20 V or below

Isolator Switching Threshold

(Isolator Open to Closed):

2.9 V to 3.5 V from 

s/c

Table 4: Electrical Characteristics

Parameter Low/

Mid-Low

Mid-High/

High

Unit

Sound Output 60/70 80/90 dB

Sounder Only 2.55 4.5 mA

Sounder and 

Beacon 0.5 Hz

8.2 10 mA

Sounder and 

Beacon 1 Hz

9.35 11.3 mA

Table 5: Alarm Current

NOTICE: Bell Tone

This is a simulated bell tone with a limited

bandwidth. It is not advisable to mix

conventional bells and electronic sounders

producing a simulated bell tone.

FIRECLASS Fire Detection System Technical Specification

Product Information Doc. Version 2 5/14

Device

Mode

Name Tone Description

Monitored

No pulsing in

FIRECLASS

Express

Monitored with

Pulse Pattern

Assigned in

FIRECLASS

Express

Pattern Frequency

(Hz)

Rate 60/

70db

80/

90db

60/

70db

80/

90db

1 Dutch Slow

Whoop

Sweep 500 to 1200 500 Hz rising to

1200 Hz over 3.5 s

silence 0.5s repeat

No Yes No No

2 7 Hz Fast

Sweep

Sweep 800 to 970 0.1428 s ramp @

7 Hz

No Yes No No

3BS1Hz

Sweep

Sweep 800 to 970 1 Hz No Yes No No

4 2 Tone Alternating 660 / 880 500 ms per tone No Yes No No

5 Temporal 4 Intermittent 880 500 ms on 

500 ms off x 4

followed by 1.5 s

silence

No Yes No No

6 Australian

Sound 

(AS 1670.4)

(Temporal 3

type tone)

Intermittent

+ Sweep

500 to 1200 500 ms on

500 ms off x 3 

followed by 1.5 s

silence, sweep 

during on periods

No Yes No No

7 March Time

Beep

Intermittent 880 500 ms on 

500 ms off

No Yes No No

8 Continuous Continuous 970 Steady No Yes No Yes

9 DIN 1 Hz

Sweep

Sweep 1200 to 500 1200 Hz falling to

500 Hz over 1 s and

repeat

No Yes No No

10 Banshee LF

Buzzer

Sweep 800 to 950 120 Hz No Yes No No

11 3 Hz 

Banshee Fast

Sweep

Sweep 800 to 950 3 Hz No Yes No No

12 9 Hz 

Banshee Fast

Sweep

Sweep 800 to 950 9 Hz No Yes No No

13 Alternating

(NF-S 32.001)

Alternating 554 / 440 554 Hz for 100 ms

and 440 Hz for

400 ms

No Yes No No

14 Yodalarm Alternating 800 / 1000 250 ms for each

frequency

No Yes No No

15 Conventional

Bell (Refer to

notice below)

continuous 1450 As per Banshee

Multi-Tone (MT)

Sounder, 

Tone No. 32

No Yes No Yes

Table 6: Sounder Tones

6/14 Product Information Doc. Version 2

Technical Specification FIRECLASS Fire Detection System

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 84.3 84.2 77.6 74.4 67.8 67.2

45° 82.7 82.1 76.5 75.5 66.6 65.1

75° 91.3 90.2 83.3 82.1 73.1 72.6

105° 89.1 87.7 79.8 78.7 69.0 68.2

135° 86.6 85.5 78.2 77.0 67.4 66.9

165° 88.6 87.4 80.2 79.1 69.6 69.0

Table 7: Dutch Slow Whoop Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 83.7 82.2 75.0 74.7 65.9 64.4

45° 82.3 82.1 73.8 73.2 63.5 65.4

75° 91.0 89.6 82.5 81.7 72.2 71.8

105° 87.6 86.6 78.8 78.3 68.1 67.8

135° 84.6 83.0 76.3 75.5 65.7 65.4

165° 86.9 85.5 78.4 77.6 67.9 67.6

Table 8: 7Hz Fast Sweep Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 84.3 82.6 76.4 74.8 66.0 65.4

45° 81.2 79.3 75.6 74.4 65.4 65.6

75° 90.4 89.0 83.3 81.8 73.1 72.3

105° 87.8 86.2 78.9 77.8 68.6 67.5

135° 84.8 83.4 76.7 75.7 65.8 65.6

165° 87.4 85.9 79.4 78.1 68.2 67.7

Table 9: BS 1Hz Sweep Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 83.0 81.5 74.6 73.8 63.5 63.1

45° 80.8 79.5 75.5 74.7 63.2 63.8

75° 89.4 85.5 82.0 81.5 71.9 70.8

105° 85.6 84.3 78.7 77.8 67.7 67.3

135° 85.2 83.8 77.2 77.0 66.6 66.2

165° 85.4 84.3 78.0 77.5 67.4 66.4

Table 10: 2 Tone Volume

FIRECLASS Fire Detection System Technical Specification

Product Information Doc. Version 2 7/14

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.9 81.5 74.2 73.8 63.5 63.4

45° 80.9 80.1 73.8 74.0 64.2 63.9

75° 89.2 87.9 81.8 81.2 71.8 71.1

105° 85.6 84.5 78.7 77.8 67.5 67.4

135° 85.1 83.4 77.5 76.5 66.5 66.0

165° 85.5 84.0 78.1 77.3 66.9 66.6

Table 11: Temporal 4 Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.8 81.4 75.4 74.9 65.7 64.9

45° 80.7 79.2 73.8 72.7 64.1 64.5

75° 89.6 88.3 81.8 81.0 71.9 71.1

105° 86.5 84.9 78.2 77.3 67.3 66.4

135° 83.6 82.1 76.2 75.4 66.1 65.4

165° 85.9 84.5 78.0 77.1 67.9 67.2

Table 12: Australian (AS 1670.4) (Temporal 3 Type) Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.1 80.2 74.4 73.8 63.6 63.3

45° 80.1 79.3 74.0 72.3 61.5 63.3

75° 88.8 87.8 82.0 81.3 71.0 70.6

105° 85.6 84.5 78.8 78.0 67.8 67.4

135° 85.5 83.8 76.8 77.1 66.9 66.5

165° 86.2 84.6 78.5 77.8 67.7 67.2

Table 13: March Time Beep Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 85.5 84.0 79.0 77.9 69.1 68.4

45° 80.4 78.7 73.7 72.0 62.6 63.0

75° 90.2 88.8 83.4 82.3 73.5 73.1

105° 83.7 83.2 77.8 76.8 67.3 67.9

135° 80.9 78.6 74.3 73.6 64.1 63.6

165° 82.0 80.6 76.0 75.0 65.8 65.6

Table 14: Continuous 970Hz Volume

8/14 Product Information Doc. Version 2

Technical Specification FIRECLASS Fire Detection System

Angle High Volume Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.9 81.4 76.4 75.3 66.2 65.9

45° 80.3 78.9 74.3 73.5 64.1 63.8

75° 89.6 88.2 82.4 81.3 72.1 71.8

105° 86.4 85.1 78.9 77.9 68.1 67.7

135° 83.7 82.2 76.9 75.9 66.1 65.7

165° 86.1 84.4 76.9 77.7 68.0 67.4

Table 15: DIN 1Hz Sweep Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.7 81.5 74.3 73.8 65.4 63.3

45° 80.1 79.5 73.6 72.4 61.9 61.6

75° 90.4 89.1 82.0 81.1 71.7 71.0

105° 87.5 86.4 79.0 78.0 69.5 67.3

135° 84.6 83.4 76.5 75.8 65.6 65.6

165° 86.5 85.5 78.6 77.7 67.7 67.1

Table 16: Banshee LF Buzzer Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.7 81.4 74.6 74.2 65.0 63.9

45° 81.3 79.9 75.4 75.3 62.5 62.4

75° 90.1 88.9 80.3 79.6 71.8 71.5

105° 87.2 85.9 78.8 78.8 68.6 68.2

135° 84.7 83.1 73.1 72.3 65.8 65.7

165° 86.9 85.3 76.8 76.0 67.9 67.5

Table 17: 3Hz Banshee Fast Sweep Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 82.4 81.6 74.2 73.6 65.0 64.7

45° 80.1 79.6 72.6 71.4 64.6 62.3

75° 90.1 89.2 82.0 80.8 71.4 71.3

105° 87.4 86.7 78.9 78.3 68.5 67.9

135° 84.4 83.4 76.4 75.9 66.2 65.4

165° 86.8 86.1 78.6 78.0 67.9 67.5

Table 18: 9Hz Banshee Fast Sweep Volume

FIRECLASS Fire Detection System Technical Specification

Product Information Doc. Version 2 9/14

Angle High Volume dB(A) Mid-High Volume dB(A)

40V 20V 40V 20V

15° 80.9 80.1 73.0 72.9

45° 82.1 79.6 73.4 72.7

75° 88.5 87.6 79.9 79.8

105° 85.7 84.7 76.5 76.7

135° 82.7 81.7 73.9 74.7

165° 83.7 83.0 75.3 75.4

Table 19: Alternating (NF-S 32.001) Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 83.9 82.5 79.0 77.7 68.6 68.2

45° 81.0 78.8 76.1 74.4 65.5 65.1

75° 88.5 87.0 83.0 81.8 71.9 71.8

105° 85.6 84.1 78.1 76.6 66.2 65.7

135° 84.3 82.8 77.9 76.9 66.8 66.0

165° 85.1 83.3 79.5 78.2 68.6 68.2

Table 20: Yodalarm Volume

Angle High Volume dB(A) Mid-High Volume dB(A) Mid_Low Volume dB(A)

40V 20V 40V 20V 40V 20V

15° 85.4 85.2 78.2 78.6 68.2 67.8

45° 81.0 78.5 76.5 76.7 62.5 62.0

75° 91.0 89.8 81.6 81.9 74.0 73.6

105° 84.8 84.0 74.6 75.2 66.7 68.5

135° 78.0 76.7 77.9 78.4 61.0 61.3

165° 80.7 79.0 78.8 78.3 63.3 62.8

Table 21: Conventional Bell Volume

10/14 Product Information Doc. Version 2

Technical Specification FIRECLASS Fire Detection System

Beacon Information

Category O - open class device (See Table 22 and

Fig. 4). The data applies to both the Slow Flash (1/2 Hz)

and the Fast Flash (1 Hz) while it is fitted with either a

detector or a blanking cap.

The light distribution is cylindrically symmetrical about

an axis at a right angle (Alpha of 90°) to the surface on

which the device is mounted, i.e. when the device is

mounted on a horizontal ceiling, the light distribution is

symmetrical about an axis extending vertically down-

wards through the centre of the device. The light distri-

bution in Fig. 4 represents a cross-section through the

volumetric shape using the values as indicated in

Table 22.

Alpha

[degrees]

Distance

[metres]

90 0

75 0

60 1

45 1.4

30 1.75

15 1.95

01.85

Table 22: FC430LPBSB LP Beacon-Sounder— 0.4 lm/m2



Illumination Distance

Fig. 4: FC430LPBSB LP Beacon-Sounder—Graphical Illustration of Ceiling Mount Light Distribution

0.5

011.5 2

DISTANCE [METRES]

LOCATION OF DEVICE

AXIS OFFF

SYMMETRY

ALPHA [DEGREES]

Indice

Altri manuali FireClass Sistema di sicurezza

FireClass

FireClass MCP200CS Manuale utente

FireClass

FireClass FC420CP Manuale utente

FireClass

FireClass FC421CP Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
