AddtheBeautyofaFireplaceinLessThanAnHour!
564EElectricFireplace
The most extraordinary feature of this 36” replace is the wood-like ame and glowing embers of the re through 564 square
inches of glass. With lights built into the log set and a pulsating ember bed, these ames simulate the look of a live wood
fire. TheFireplaceXtrordinair564Electricfireplacecanbeaddedtoanyroomyouchooseinaboutanhour.The564Efire-
placeisalsoidealifyouliveinanapartmentorcondominiumwherenogaslineorchimneyaccessisavailable.Tooperate
the 564 E, simply unbox and plug it into a standard wall outlet. A built-in 5,000 Btu heater with an air circulating fan pro-
videsgentleheatforyourroom. Thisfeaturemakesthe564Eidealforprovidingsupplementalheattobedrooms,offices
and other intimate spaces. The 564 E is also economical to operate. Cost to operate averages approximately 3 cents an hour
with the ame on for ambiance and 8 cents an hour when both ame and heater are on*.
* Based on average National residential electricity 11/07. Rates vary, heating cycle at 50% of time.
PersonalizeYourFireplace

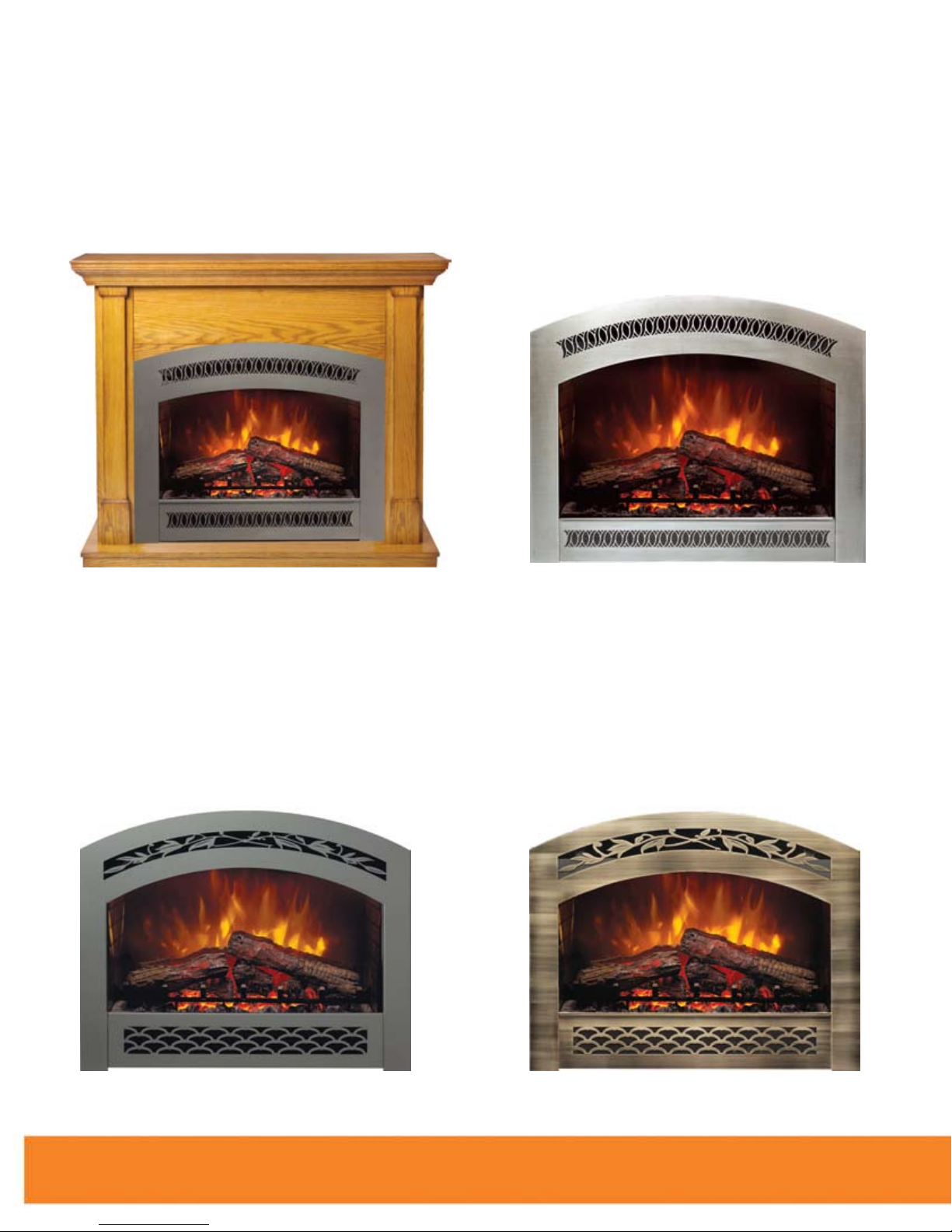

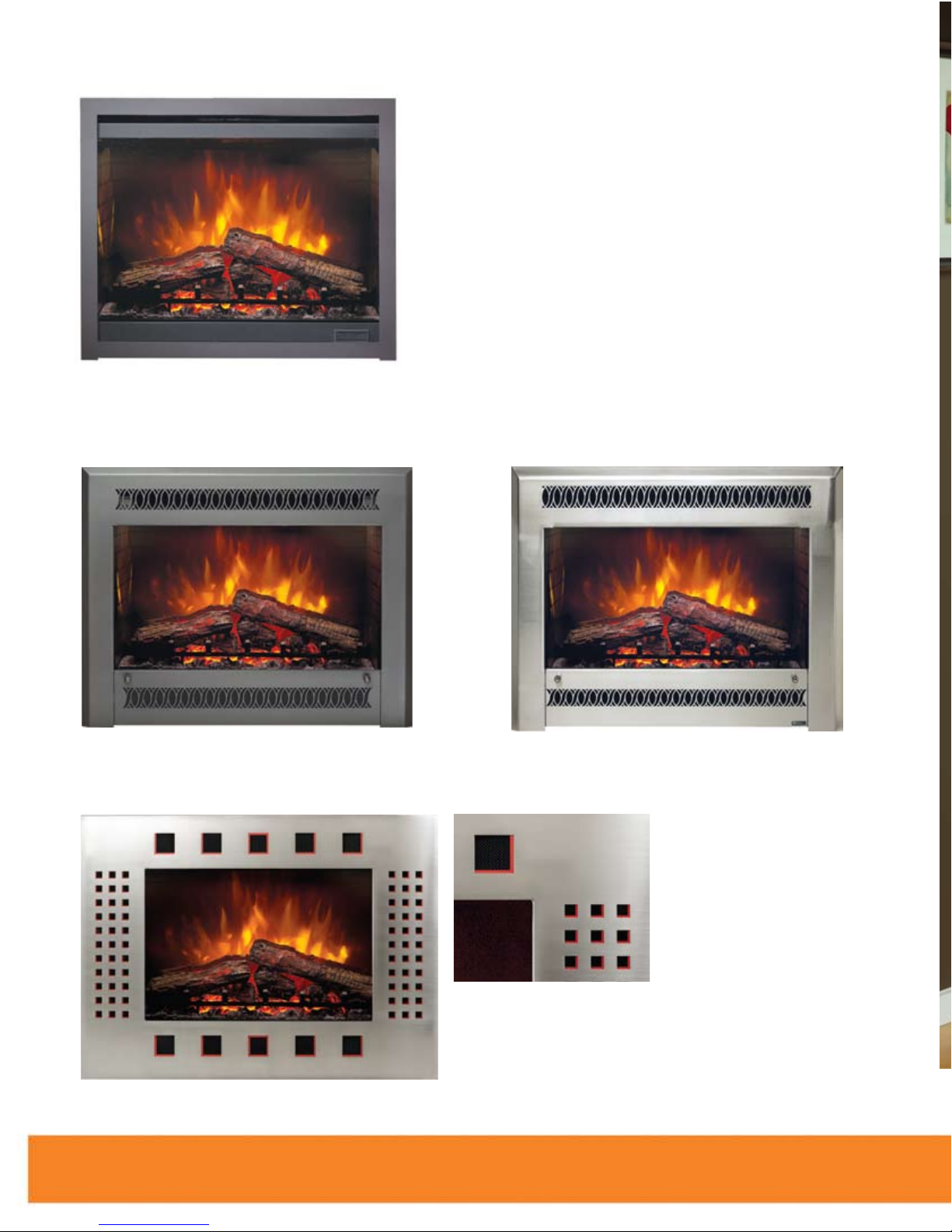

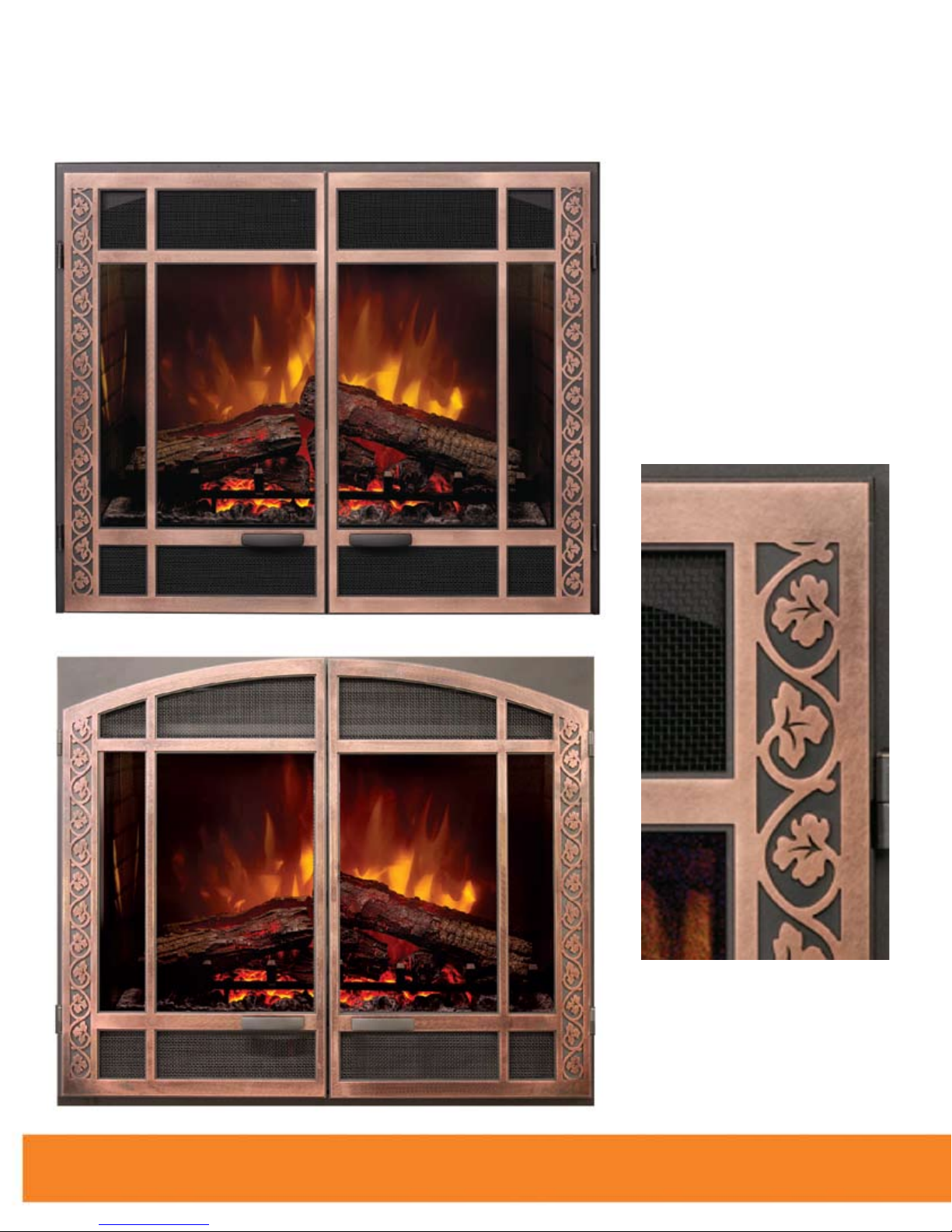

You can personalize the finished look of your fireplace with one of nineteen custom designer
faces in a wide variety of colors and nishes, or the Sterling Fireplace Cabinet in oak or wal-
nut. The quality and detail of these accessories and the realism of the ames makes Fireplace
Xtrordinair the most requested brand on the market.
Safe
Unlike a standard replace, the glass on the 564 E does not get so hot it is “untouchable”, reducing hazards for children
andincreasingsafetyallaround.
IndoorAirQuality
WhenyouselectourElectricFireplaceyouaddvaluetoyourhomewithoutsacrificingcleanindoorairquality.The
Purire®* clean air system is a standard feature on the 564 Electric replace. This system is designed to circulate, as well
ascleantheairinanaverageroom4timesperhour,removinganyimpurities,sporesanddustfromyourhome.Thisfilter
iseasilyremovedforcleaningandcontinualuse.
*Purire is a registered trademark of Dimplex™ N. A.
EasyToUse
The ame speed, accent light, sleep timer, room temperature, Purire®, and power canallbecontrolledbyasimpleto
usehand-heldremote.
YOUCONTROL
1. Flame & Heat On/Off 8. Purire® On/Off
2. Purire® Low Speed 9. Purire® High Speed
3. Sleep Timer Down 10. Sleep Timer Up
4. Flame Speed Down 11. Flame Speed Up
5. Dimmer Down 12. Dimmer Up
6. Temperature Down 13. Temperature Up
7. Room Temperature
2564EElectricFireplace www.fireplacex.com
InstallationWithoutAFireplaceCabinet
(A) Flush To Floor Framing - For Basic Black (A)
TrimandMetropolitanFace.
(C)RaisedFraming-Dependingonface
(C) used,usemeasurementsfrom
(C) illustrations (A) or (B).
11
1.
8.
2.
3. 4.
5. 6. 7.

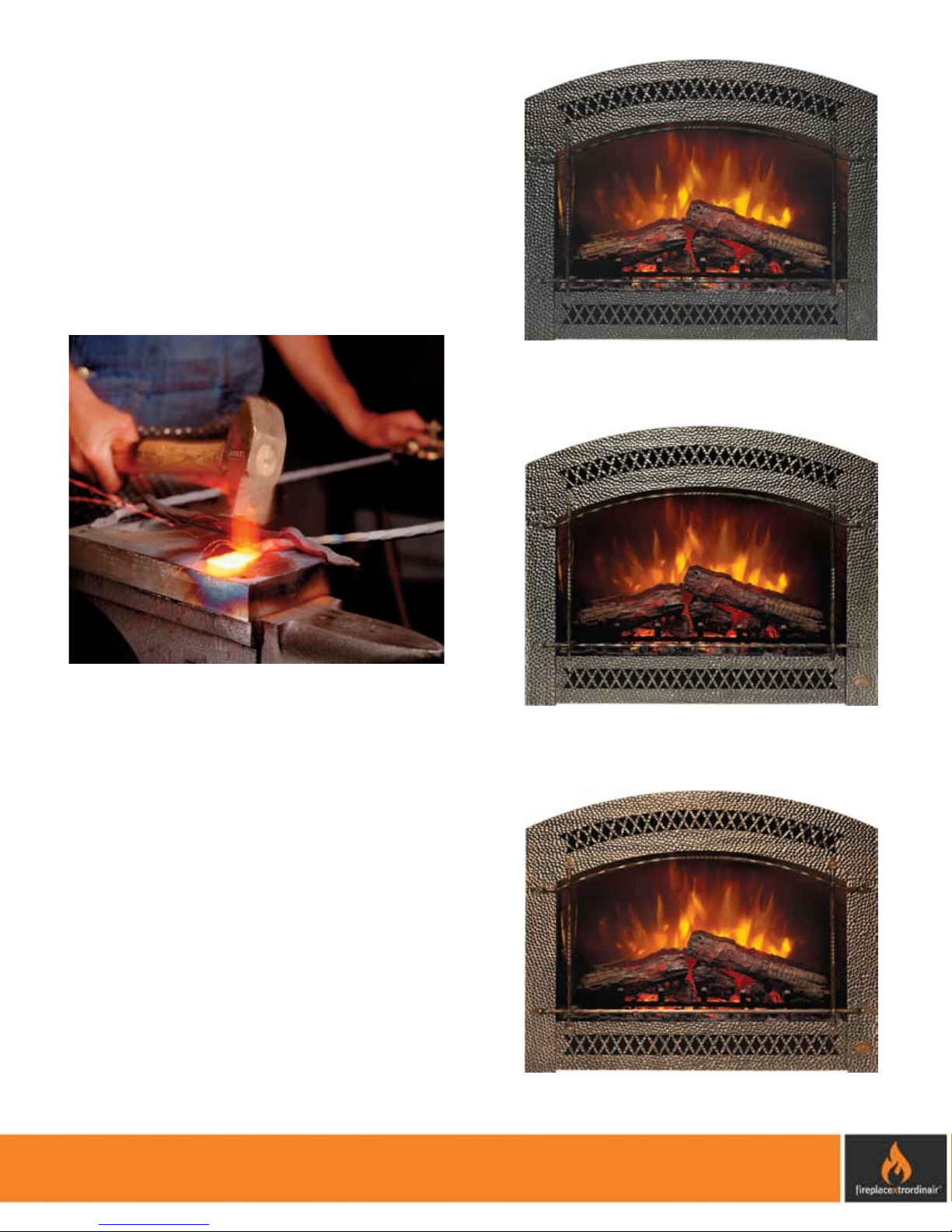

Cover: Classic Arch brushed nickel face with
Williamsburg A Mantel manufactured by J. C. Huffman Co.
CAUTION-Clearance for air circulation beneath the replace is critical. DO NOT INSTALL THE FIREPLACE DIRECTLY
ON CARPET, OR SIMILAR SURFACES WHICH MAY RESTRICT AIR CIRCULATION.
9.10.11.
12.
13.
(B) Flush To Floor Framing - For Classic Arch,
(B) French Country Arch, Artisan & Matrix Faces.
If you want a ush-to-the wall look for your replace, you have the option of building in or framing around your
564EFireplace.Whenframingthe564EenclosureyoumustfollowtheMINIMUMinternalopeningdimensionsshown
below. Before actually beginning the work, please consult with your dealer or go online to www.replacex.com for
completeinstructions.
The electric replace must be able to slide out for service. You must also provide a standard 15 AMP, 110 Volt wall outlet
ontheinsideoftheenclosure. Itispreferablethatthewalloutletbeonitsownbreaker. Thefireplacecannotbehard
wiredintothehouseelectricalsystem.Theelectricfireplacemustbepluggedintoawalloutlet.
Add 3/4” for
MatrixFace
StainlessSteel
MetroMantel
™Option
Introducing the new Metro Mantel™
cabinet for the 564 E Electric Fireplace. As
an alternative to wood cabinet mantels,
the new Metro Mantel is constructed of
brushed nickel sheet metal with a textured
black powder-coated hearth base. As
you can see the Metro Mantel is a striking
contemporary accessory. All Architectural
Double Door faces as well as the
rectangular Metropolitan™ beveled faces
will t this replace and mantel pairing.
Overall, the Metro Mantel measures
36-3/4” tall and is 50-1/8” wide by 18-3/8”
deep at the base. The fireplace easily
slides into the mantel and is rmly held to
the base with a bracket across the back.

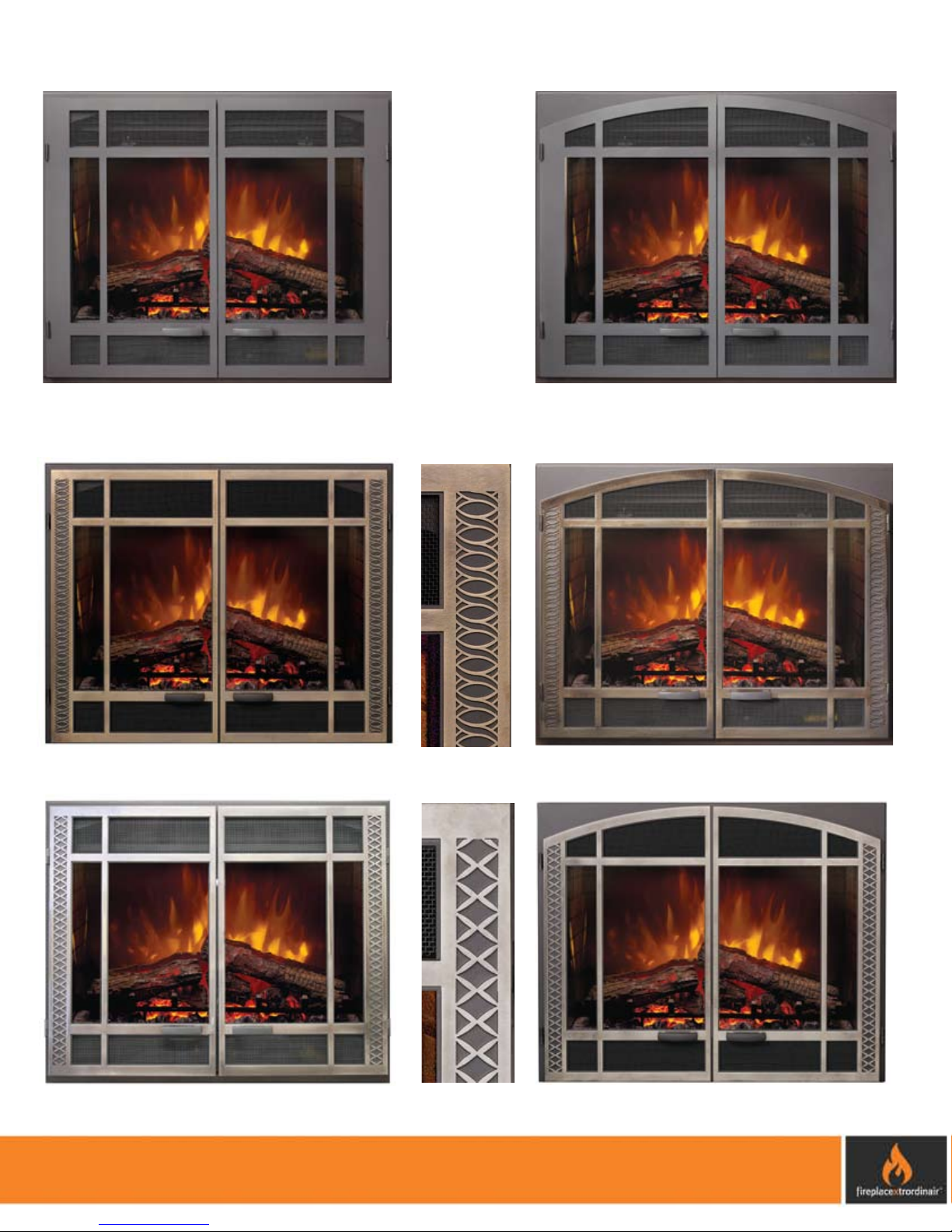

Metro Mantal shown with Architectural™Rectangular Double Door face with Artisan™
Antique Nickel Onlays.
