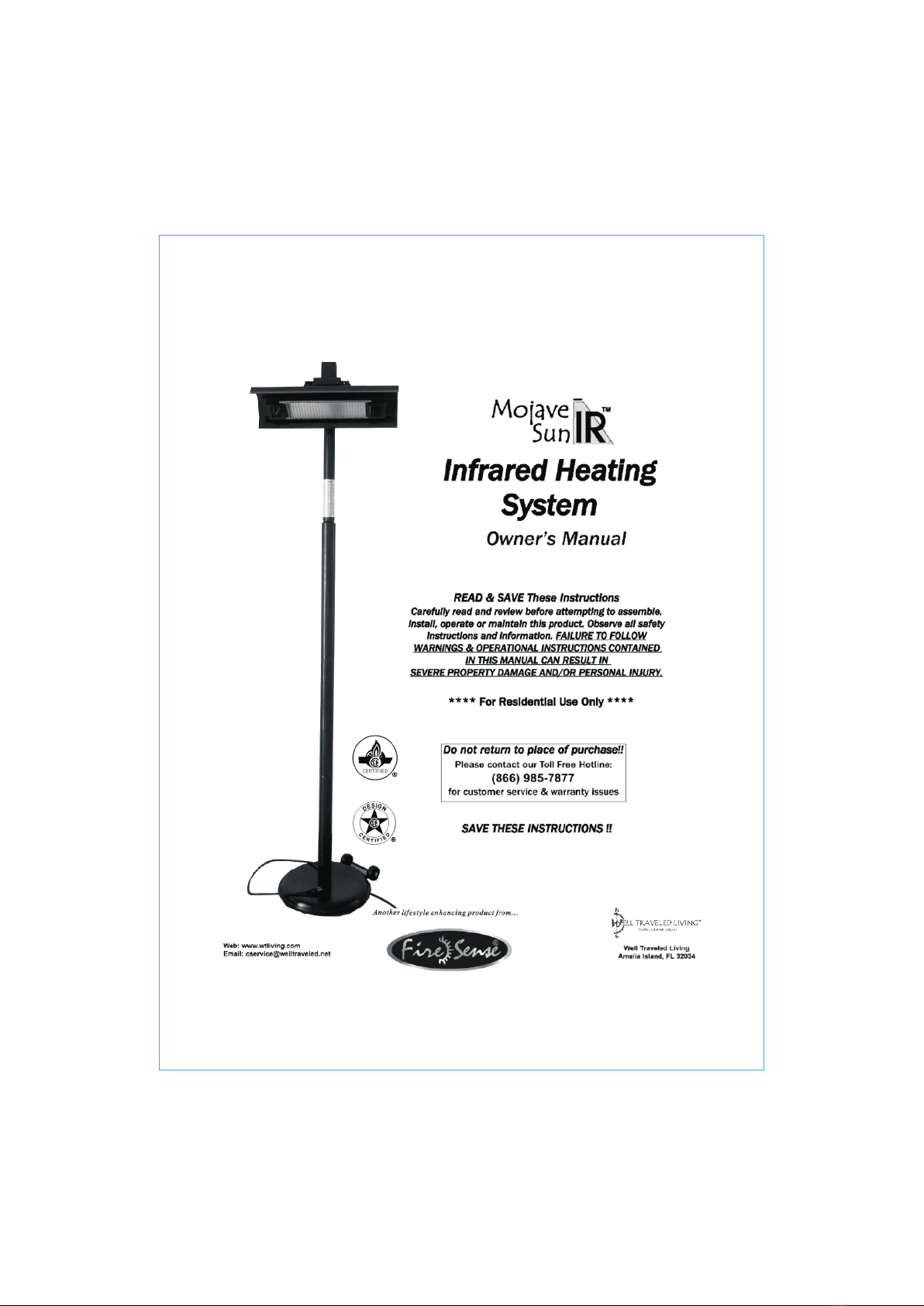

Firesense 60469 Manuale utente

Model #: 604 69

away from flammable liquids and materials.

stable and is placed on a level surface. Follow the above instructions and keep this unit at least

3 feet clear from any objects

Always be careful

when handling this unit, especially around the head of the unit.

Head Post Connect head unit and

base

Head Post

Center Post

Bottom Post

Bottom Post - supports the heater.Electrical

cord runs inside this pole.

Keep flammable

materials, such as furniture, pillows, bedding,

papers cloths, and curtains at least 3 feet

from the heater.

heater

is used near, children or disabled persons.

Always unplug heater when not in use.

Do not operate heater with a damaged cord

or plug. If the heater malfunctions, or has

been dropped or damaged in any manner,

return heater to authorized service facility for

repairs.

Heater can be used indoors or outdoors, but

must be operated at least 3 feet from people

or objects.

Never operate heater near water or where it

can be knocked over.

Do not run cord under carpeting. Do not cover

cord with throw rugs, runners, or similar

coverings. Arrange cord away from traffic area

and where it will not be tripped over.

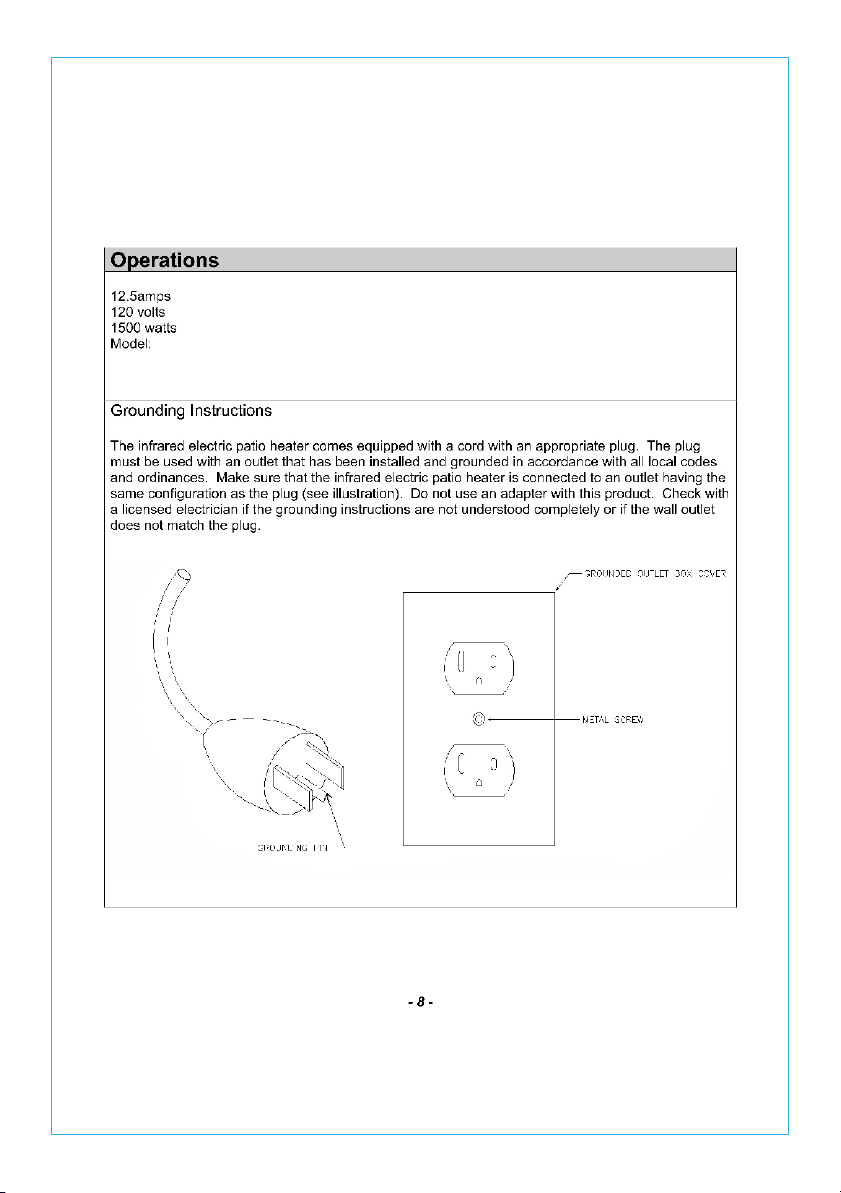

Connect to properly grounded outlets only.

is used near, children or disabled persons.

4.

5.

6.

7.

8.

9.

is suggested per

operated.

cord

cord

is 0-50 feet, but if a longer cord is reguired use

a 12 gauge longer then 100 feet.

4

Center Post

Bottom Post

Head Post

Base

1

Tilt Switch

2

3

Bracket

Head Post

to the head post. Keep pulling the cord through the bottom of the

affix tilt switch to bracket (diagram, reference 1).

Attach bracket with tilt switch to heating unit (diagram ref.2).

to

to the head post. Keep pulling the cord through the bottom of the

head post,(diagram ref.4).

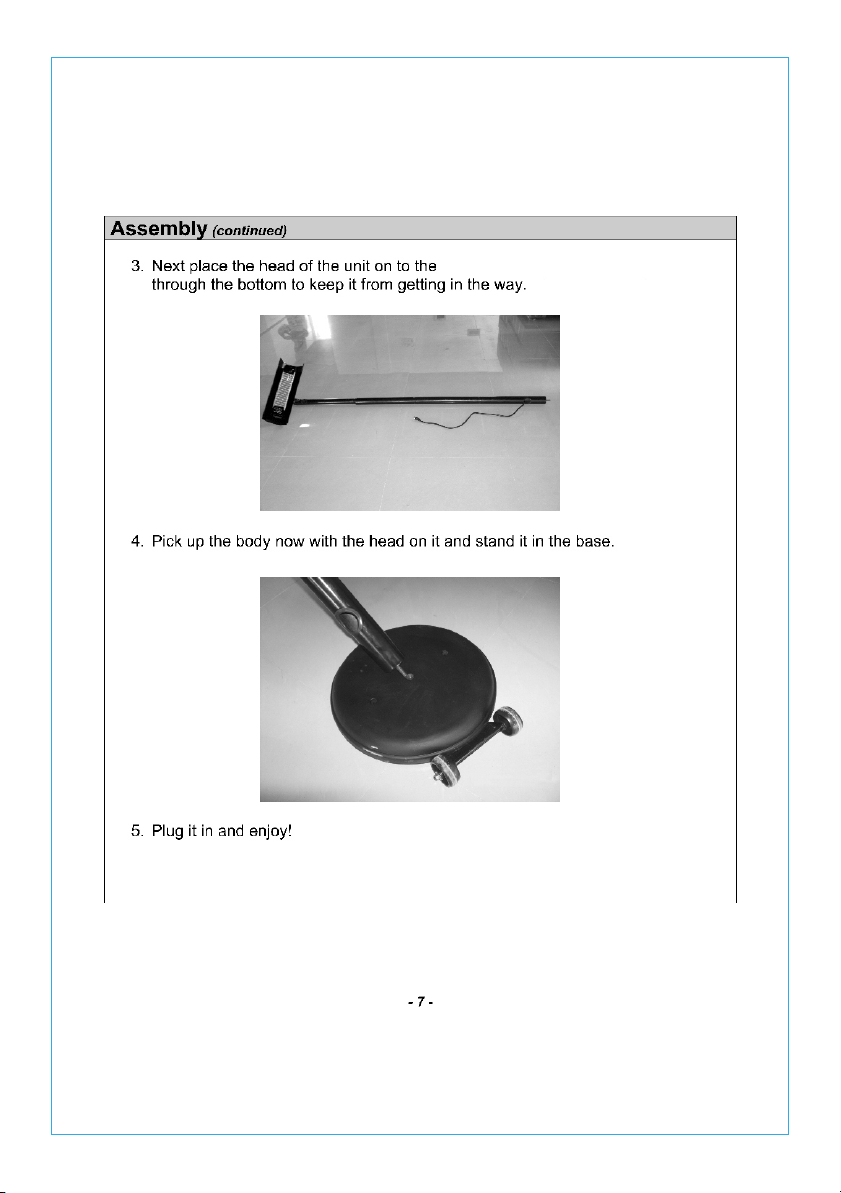

Take the head post and place the cord down the center of it and into the top of

the center post and through the bottom of the center post and into the bottom post.

Slide the cord all the way down to the bottom of the bottom post and pull it

out the hole on the side of the bottom post.

head post. Keep pulling the cord

circumgyrate the bottom post until the screw into the hole of the base.

Use four screws to concent

one post to another.

Distributed by:

Well Traveled Living, P.O.Box 4,Amelia lsland FL32035

E-mail:cservice@welltraveled.net

www.wtliving.com

60469

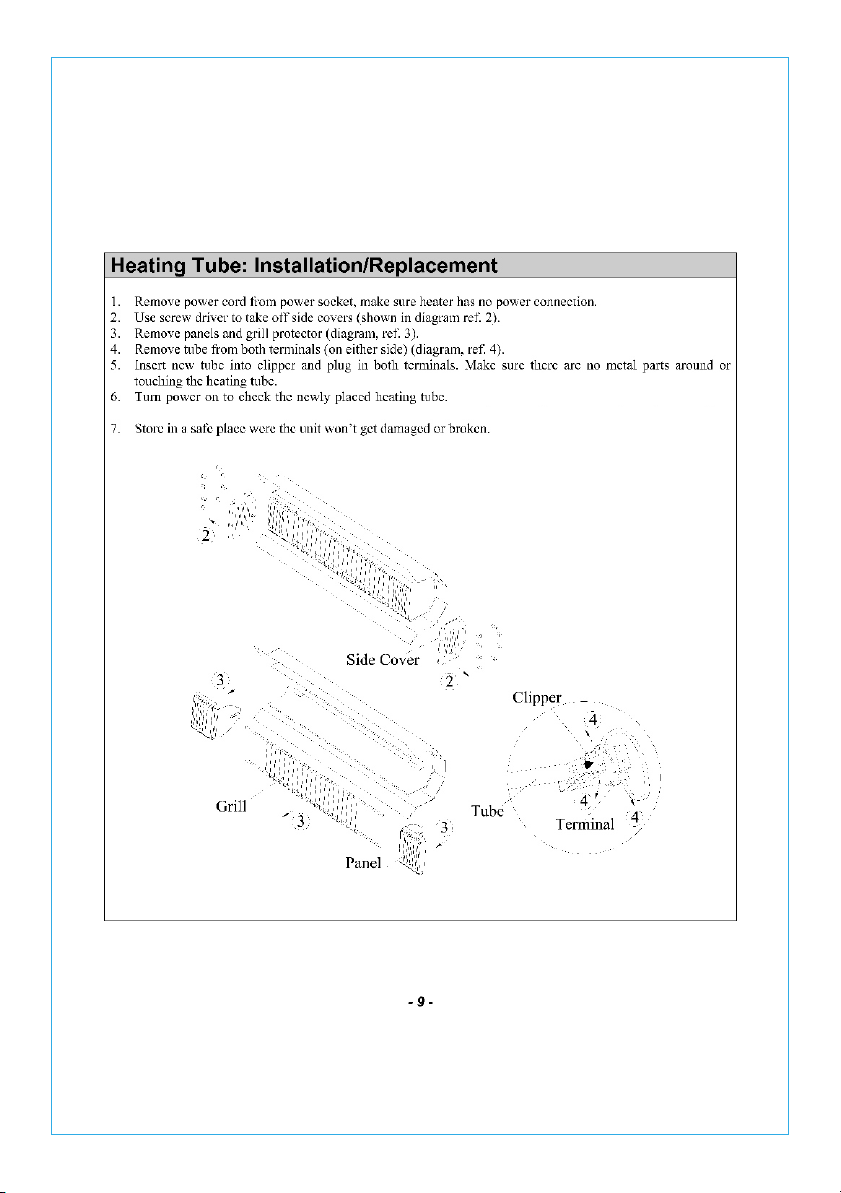

Turn power off,make sure heating head is

not hot. Then put back grill and both panels,screwing on both side covers.

Fire Sense a nd Well Traveled L iving are r egistere d trademar ks of We ll Traveled Imports, lnc . All assembly instruction pr esent ations ar e the property of Well

Tr av el ed Imports, lnc. and are protected by U.S. co py ri gh ts and trademarks. A ll r ights reserved.
