Firesense PH01-SS Manuale utente

Patio Heater

Model: PH01-S PH01-SS

Item number 60763

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance

2. Extinguish any open flame

3. If odor continues, immediately

call gas supplier.

PLEASE retain this manual for

future reference.

FOR YOUR SAFETY

Do not store or use gasoline or

other flammable vapors or liquids

in the vicinity of this or any other

liance.

Instruction Manual & Parts List

INSTALLER: Please leave this manual to the consumer.

CONSUMER: Please retain with this manual for future reference.

WARNING: For outdoor use only.

-1-

CERTIFICATE TO

ANSI 83.26a-2008

CONFORM TO CSA

2.37a-2008

Intertek

Manufacturer: Changzhou Wellife Furnace Co., Ltd.

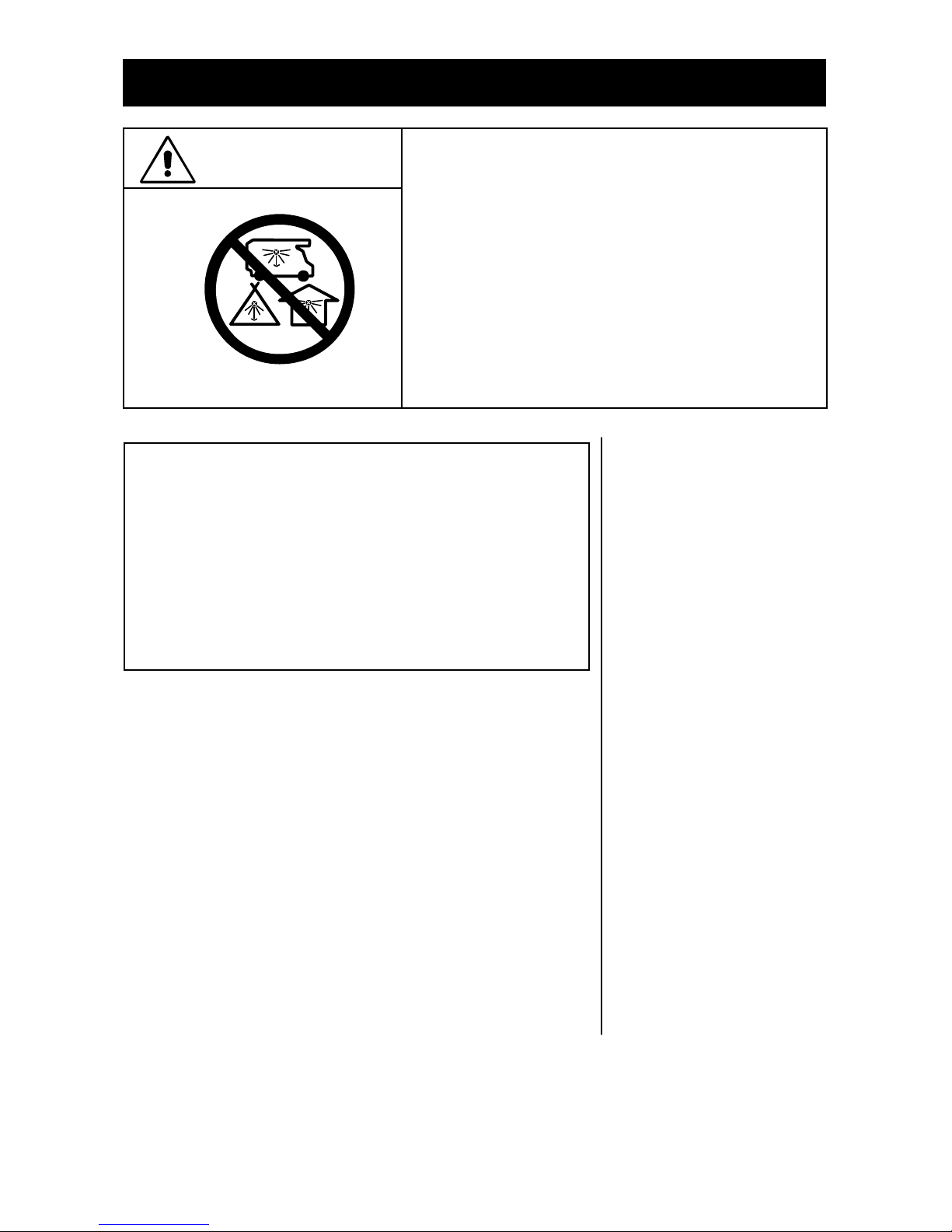

DANGER CARBON MONOXIDE HAZARD

This appliance can produce carbon

monoxide which has no odor.

Using it in an enclosed space can kill you.

Never use this appliance in an enclosed

space such as a camper, tent, car or

home.

WARNING :

For Outdoor Use Only

LPG cylinders to be used must be constructed and

marked in according with US DOT specifications.

Storage of the heater indoors is permissible only

if the LPG cylinder is turned off and removed.

NOTE:

Use only 20lb LPG tank with size of 18.1in/46cm

Height x 12.5in/32cm Width.

Do not use if the environment temperature is

below 40 degrees F / 4.4 degrees C.

WARNING: Improper installation,

adjustment, alteration, service or

maintenance can cause injury or

property damage. Read the

installation, operating and

maintenance instructions thoroughly

before installing or servicing this

equipment.

Tools needed:

●

NOT included:

●

Tools and parts needed for assembly

- 2 -

Open end wrench (10

& 13mm (included)

Adjustable opening

wrench 8’’ loang

Slip joint 9’’ long

Philips screwdriver

with medium blade

Spray bottle of soap

solution for leak

testing

NOTE: PLEASE READ THE FOLLOWING SAFETY RULES

WARNING:

This heater must only be used outdoors. Using this product in an enclosed

area may cause injury, death or property damage.

Only use in a well-ventilated space. Do not use in a building, garage, or

any other enclosed area.

Read the instructions before use. This heater must be installed in accordance

with local codes or, in the absence of local codes, with the National Fuel

Code, ANSI Z223.1. If applicable, the heater, when installed, must be

electrically grounded in accordance with local codes or, in the absence

of local codes, with The National Electrical Code, ANSI/NFPA70.

Do not use the heater in an explosive atmosphere. Keep the heater away

from areas where gasoline or other flammable liquids or vapors are stored.

Prior to use, check for damaged parts such as hoses, regulators, pilot or burner.

Turn off and disconnect the LPG cylinder before moving the heater.

Do not attempt to alter this heater in any manner. EXAMPLE: Using the

heater without the top canopy reflector or radiant screen.

Do not shorten the burner post assembly.

Do not use the heater in basements or below ground level. It must always

be placed on a solid and level surface.

Always ensure there is ample fresh air ventilation. This heater is for outdoor

use ONLY.

Never replace or substitute the regulator with any regulator other than

the factory suggested replacement.

Do not clean the heater with cleaners that are combustible or corrosive.

Do not paint radiant screen, control panel or top canopy reflector.

All leak tests should be done with a soapy solution. NEVER USE AN OPEN

FLAME TO CHECK FOR LEAKS.

The LPG cylinder should be turned off when the heater is not in use.

At least once a year, the unit should be inspected for the presence of

spiders, spider webs or other insects.

PRECAUTIONS

- 3 -

the control compartment, burner, and circulating passageways of the

heater are kept clean.

heater must be replaced prior to operating the heater.

CHECK THE HEATER IMMEDIATELY IF ANY OF THE FOLLOWING EXIST:

1. The smell of gas in conjunction with extreme yellow colored tips of the

burner flames.

2. The heater does not reach temperature.

3. The burner makes a popping noise during use (a slight popping noise is

normal when the burner is extinguished after using).

temperature and should stay away to avoid burns or clothing ignition.

Young children should be carefully supervised when they are in the area

of the heater.

Clothing or other flammable material should not be hung from the

heater or placed on or near the heater.

Any guard or other protective device removed for servicing the

Installation and repair should be done by a qualified service person.

Keep the heater area clear of combustible materials such as gasoline and

other flammable vapors and liquids.

Do not obstruct the flow of combustion and ventilation air.

Keep the ventilation opening of the LPG cylinder enclosure free and clear

of debris.

Storage of the heater indoors is permissible only if the LPG cylinder is turned

off, disconnected, and removed from the heater.

Cylinders must be stored outdoors in a well-ventilated area out of the

reach of children. Disconnected cylinders must have threaded valve

plugs tightly installed, and must not be stored in a building, garage, or any

PRECAUTIONS

- 4 -

Children and adults should be aware of the hazards of high surface

The heater should be inspected before use and cleaning may be

required at least once a year, or as necessary. It is imperative that

other enclosed area.

ASSEMBLY

- 5 -

ATTACHING WHEEL ASSEMBLY

Step 1

1-1. Locate Wheel Assembly (17) and 2 nuts/bolts contained in plastic bag

with Wheel Assembly (Fig. 1).

Step 2

2-1. Turn Base (15) so that holes for attachment of Wheel Assembly

are facing you (Fig. 2).

2-2. Align holes in Wheel Assembly (17) with holes on Base (15) (Fig. 3).

Insert bolts through both sets of holes and secure nuts on end of bolt

(Fig. 4).

Step 3

3-1. Wheel Assembly (17) should now be attached to Base (15) as shown

(Fig. 5).

Fig. 1

Fig. 2

Fig. 3 Fig. 4

Fig. 5

PRECAUTIONS

- 6 -

ASSEMBLY

- 7 -

ASSEMBLY

- 8 -

Next, align the sides of each outer piece and the center piece and

insert the next 3 bolts through both holes. Tighten castle nuts on

bolts.

Reflector (#2) is comprised of 3 – outer pieces and 1 – center

piece. Locate all 4 pieces of Reflector (#2) which are wrapped in

bubble wrap. Unwrap and remove all pieces and peel off the

protective blue plastic on each piece. Locate 9 bolts and 9 cap

nuts in the plastic bag. Align the 3 – outer pieces with the 1 –

center piece and place a bolt through the center hole on each

piece as shown below. Tighten castle nut on each bolt.

Finally, insert bolt through holes located at outside edge of

adjoining panels of the reflector side pieces (3 bolts required)

and tighten castle nuts on bolts.

PRECAUTIONS

- 9 -

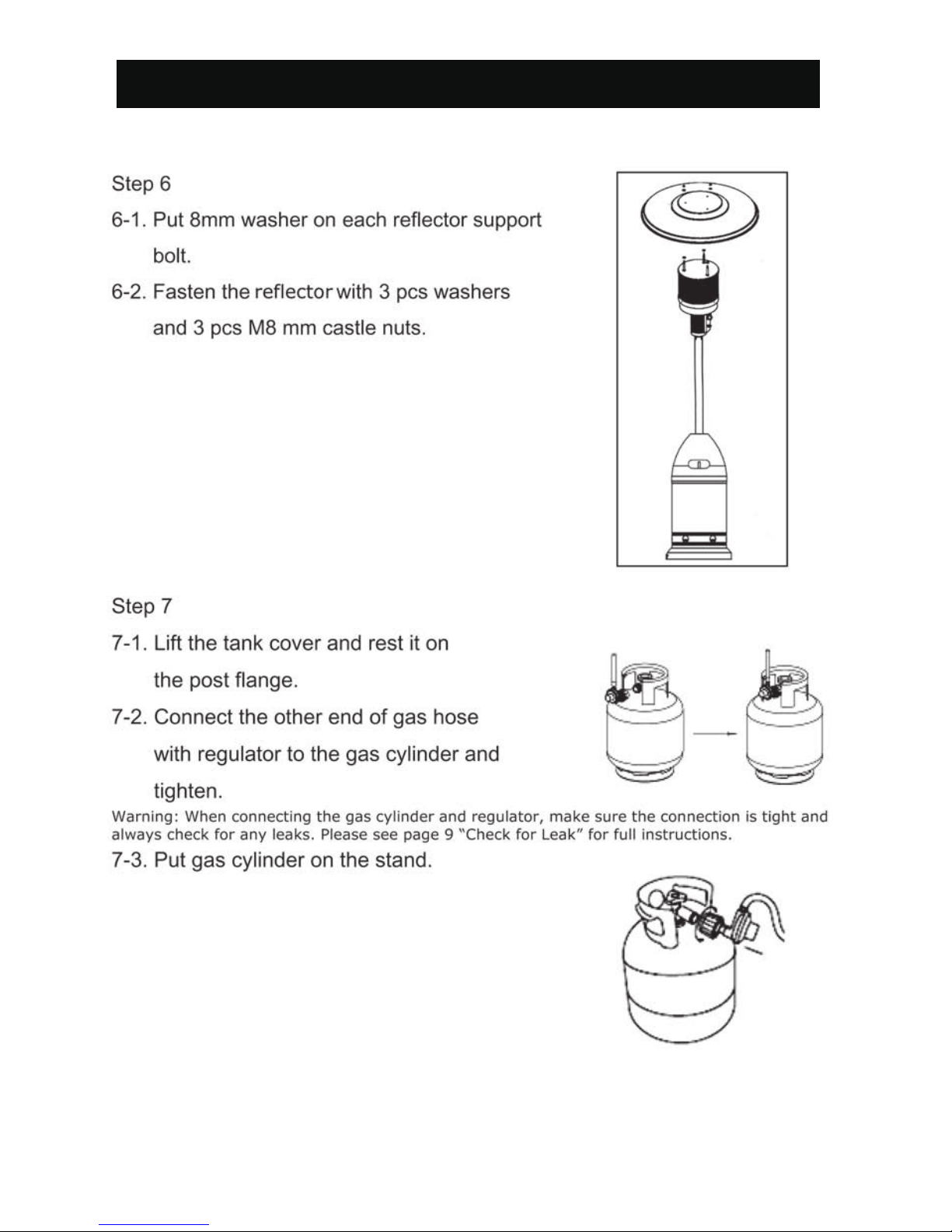

ASSEMBLY

- 10 -
