ActiveSmart operating instructions
Models: 635 mm wide E372B, E402B, RF372B, RF402B
680 mm wide E442B, RF442B
790 mm wide E522B, RF522A, RF522W, RF522B
900 mm wide RF610/RF540A
The control panel enables you to view and modify all the features and options on your refrigerator.
Temperature control (all models)
• When the refrigerator is first turned on, the powerful cooling system will automatically cool both refrigerator and
freezer compartments to their set temperatures. This will take between 2 – 3 hours.
• The two compartment temperatures are accurately and independently controlled and do not change with the
temperature or humidity of the surroundings; whether summer or winter.
• If you wish to alter the temperature of either the fresh food compartment or freezer compartment, this can be
easily done by using the internal control panel located at the front right of the refrigerator compartment.
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
1

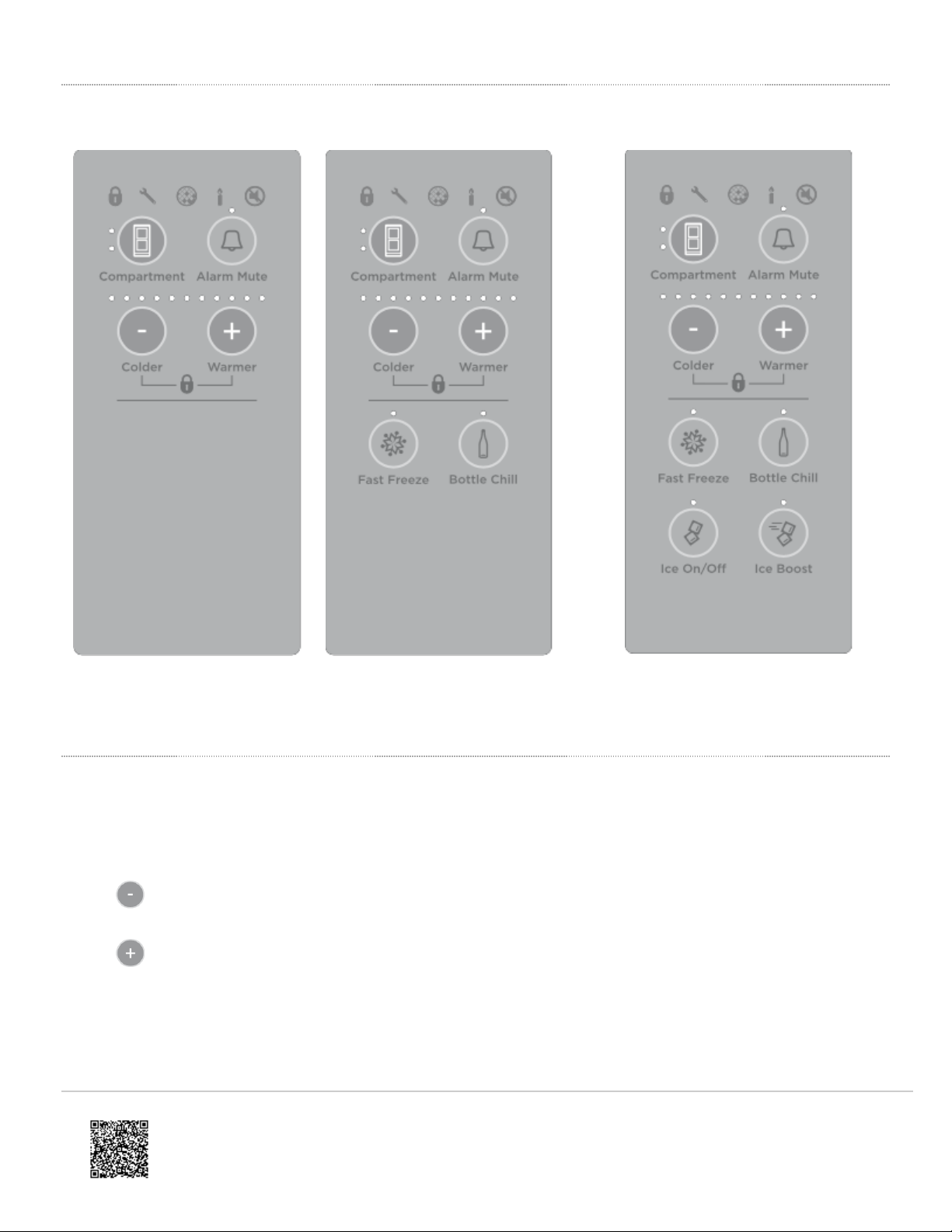

Internal control panel to adjust temperatures
Internal control panel for Tasman
models
Internal control panel for non-Ice &
Water models
Internal control panel for Ice &
Water models
Fresh food compartment (all models)
• The fresh food compartment light will automatically be illuminated. The temperature for this compartment will
show as a series of lights.
• The temperature may be altered by pressing the
or
buttons. One press on either of these buttons will reduce or increase the number of lights by one which
indicates a small change in temperature.
• Fewer lights illuminated means a cooler temperature for the compartment selected.
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
2
Freezer food compartment (all models)
• To adjust the freezer temperature press the
button once so the freezer compartment light is illuminated.
• The freezer temperature can be altered by pressing the
or
buttons.
• One press on either of these buttons will reduce or increase the number of lights illuminated which indicates a
small change in temperature.
• Fewer lights illuminated means a cooler temperature for the compartment selected.
Successively pressing the
button will automatically scroll between the compartments.
• When the door is re-opened the control panel will return automatically to the fresh food compartment setting.
Alarm Mute (all models)
For times when you require the door to be open longer than normal eg when cleaning the interior of your refrigerator
press the ALARM MUTE button to silence the door alarm for 20 minutes.
• To activate, press the
button once. The ALARM MUTE light will be illuminated when the function is activated.
• ALARM MUTE will deactivate after 20 minutes and the door alarms will return to normal.
• To deactivate ALARM MUTE manually, press the
button again. When ALARM MUTE is deactivated the light is off.
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
3
When the fresh food or freezer compartment door is left open for long periods of time food
quality and / or safety may be compromised.
Door alarms (all models)
• If the fresh food compartment door is left open the alarm will beep after 90 seconds and if the freezer door is left
open the alarm will beep after 60 seconds.
• While either door remains open, subsequent beeps will sound every 30 seconds for 5 minutes.
• A continuous alarm will sound if either of the doors have been left open for 5 minutes or longer and the interior
compartment light(s) will turn off. The alarm will stop only when the door(s) is closed.
If ALARM MUTE has been activated the door alarms will be silenced for 20 minutes. After
5 minutes of the doors being left open the compartment light will turn off however the
normal door alarms will be suspended. The ALARM MUTE light will be illuminated to
indicate that the appliance is in this mode.
Key Mute (all models)
KEY MUTE allows you to silence all button presses.
• To activate KEY MUTE and silence buttons, press and hold the
button for 4 seconds.
• The
icon on the internal control panel will be illuminated.
• The keys will be silenced when KEY MUTE is activated.
• Door alarms and BOTTLE CHILL alarm will still operate.
• KEY MUTE will not automatically deactivate. To manually deactivate, press and hold the
button for 4 seconds.
• The
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
4
icon will no longer be illuminated. Key Lock (all models)
Key Lock (all models)
KEY LOCK allows you to disable the buttons on the internal control panel. This is useful when cleaning your refrigerator.
• To activate KEY LOCK press and hold the
and
buttons for 4 seconds.
• The
icon on the internal control panel will be illuminated.
• Pressing any of the buttons will cause a raspberry beep to tell you that they are disabled.
• KEY LOCK will not automatically deactivate. To manually deactivate, press and hold the
and
buttons for 4 seconds
• The
icon will no longer be illuminated.
Sabbath mode activation (all models)
• To activate SABBATH MODE, open the door(s) of the fresh food compartment and freezer compartment and
then press and hold the
and
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
5
buttons on the internal control panel for 4 seconds.
• The candle icon will illuminate when SABBATH MODE has been activated.
When the product is in Sabbath mode:
• The
icon on the internal control panel will be illuminated.
• All lights on the internal control panel except for the candle icon will be off.
• The fresh food or freezer compartment lights will not operate when the door(s) is opened.
• The door alarms will not operate.
• The internal control panel will not function except to indicate SABBATH MODE is active as stated above.
• Opening the door(s) will not affect the compressor or fans.
• If the power to the refrigerator is turned off whilst in this mode, the product will continue in SABBATH MODE
when the power is restored.
• SABBATH MODE will automatically de-activate 80 hours after activation.
• To de-activate earlier than 80 hours press and hold the
and
buttons for 4 seconds. The candle icon will no longer illuminate on the internal control panel and functionality of
the internal control panel will return to normal.
Special Functions
Bottle Chill (selected models only)
This function allows you to chill your beverages more rapidly in the freezer without the worry of forgetting about them.
The timer is set for 15 minutes however the time taken to chill depends on the size of your beverage. If after 15 minutes
your beverage is not cold enough, simply place it back in the freezer and reset the BOTTLE CHILL function.
• To activate, press the
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
6
button on the internal control panel. The BOTTLE CHILL light will be illuminated when the function is activated.
The
icon will be illuminated on the external display (Ice & Water models only).
• An alarm will sound after the 15 minute time has elapsed.
For non-Ice & Water models: open the fresh food compartment door and press the
button on the internal control panel to silence the alarm.
For Ice & Water models: the
icon will flash on the external display. Press the
button on the external display to silence the alarm.
• Remember to remove your beverage from the freezer.
• To deactivate BOTTLE CHILL before 15 minutes has elapsed, press the
button again. When the function is deactivated the BOTTLE CHILL light is off on the internal control panel and
the
icon is not visible on the external display (Ice & Water models only).
Fast Freeze (selected models only)
We have created the FAST FREEZE feature to help you get the best possible results when freezing fresh food. FAST
FREEZE boosts the freezing speed by dropping the freezer to its coldest temperature for 12 hours, which helps to
ensure vital freshness, texture and taste are retained during the freezing process.
• To activate, press the
button on the internal control panel. The FAST FREEZE light will be illuminated when the function is activated.
• To deactivate before the 12 hours has elapsed, press the
button again. When FAST FREEZE is deactivated the light is off.
• For best results we recommend that you activate the function before it is required. Alternatively, activate it when
placing food into the freezer.
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
7
Ice boost function (Ice & Water models only)
This function is designed to be used for times when you require more ice eg when you are having a party. The ICE
BOOST function will increase ice production up to 30%* from standard ice making and deactivate automatically after 24
hours.
*Dependent on your current temperature settings.
• When you first turn your ice maker on, the ICE BOOST function will be off.
• To turn this function on, press the
button. The light above the
button will be illuminated when the ICE BOOST function is on.
• The ICE BOOST function is paused once your ice bin is full.
• To manually deactivate this feature press the
button again. The light above the
button will be off when the ICE BOOST function is off.
• Activating the ICE BOOST function will automatically turn ice making on.
• Deactivating ice making will automatically deactivate the ICE BOOST function.
https://producthelp.fisherpaykel.com/au/Cool/French_Door/With_Ice_and_Water/900mm/RF610ADUSX5/User_Guide_RF610…
Updated: Sun, 03 Apr 2022 10:02:55 GMT
Powered by
8
