Fisher & Paykel OR60 models Istruzioni per il montaggio

Freestanding cooker

Installation instructions

and User guide

NZ AU

OR60 models

Safety and warnings

Installation instructions

Using your oven for the first time

Using your oven

Cooking functions

Using your gas cooktop

Cooktop troubleshooting

Care and cleaning

Warranty and service

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please go to our website www.fisherpaykel.com or

contact your local Fisher & Paykel dealer.

Contents

2Safety and warnings

WARNING!

Electrical Shock Hazard

Always disconnect the cooker from the mains electricity supply before

carrying out any maintenance operations or repairs.

Failure to do so may result in death or electrical shock.

Important safety precautions

General

To avoid hazard, follow these instructions carefully before installing or using this product.

Please make this information available to the person installing the product as it could reduce

your installation costs.

Installation must comply with your local building and electricity regulations.

Failure to install the cooker correctly could invalidate any warranty or liability claims.

Some appliances have a protective film. Remove this film before using the cooker.

Electrical

This cooker is to be installed and connected to the electricity supply only by an authorised person.

If the installation requires alterations to the domestic electrical system call a qualified electrician.

He should also check that the electrical system is suitable for the electricity drawn by the cooker.

The appliance must be connected to the mains, checking that the voltage corresponds to the

value given in the rating plate and that the electrical cable sections can withstand the load

specified on the plate.

A suitable disconnection switch must be incorporated in the permanent wiring, mounted and

positioned to comply with the local wiring rules and regulations. The switch must be of an

approved type installed in the fixed wiring and provide a 3 mm air gap contact separation in all

poles in accordance with the local wiring rules.

In Australia and New Zealand, a switch of the approved type with a 3 mm air gap must be

installed in the active (phase) conductor of the fixed wiring.

Installation

WARNING!

Cut Hazard

Take care - panel edges are sharp.

Failure to use caution could result in injury or cuts.

The switch must always be accessible.

The power supply cable must not touch any hot parts and must be positioned so that it does not

exceed 75

C at any point.

To connect the cooker to the mains, do not use adapters, reducers or branching devices as they

can cause overheating and burning.

This cooker must be connected to a suitable double pole control unit adjacent to the cooker. No

diversity can be applied to this control unit.

If the electrical supply cord is damaged, it must only be replaced by an authorised person.

This cooker must be connected to electrical supply using V105 insulated cable.

The cooker must be earthed.

Safety and warnings

Operation

Your freestanding cooker has been carefully designed to operate safely during normal cooking

procedures. Please keep the following guidelines in mind when you are using it:

Safety and warnings

WARNING!

Hot Surface Hazard

Accessible parts will become hot when this cooker is in use.

To avoid burns and scalds keep children away.

Do not touch hot surfaces inside the oven.

Use oven mitts or other protection when handling hot surfaces such as oven

shelves or dishes.

Take care when opening the oven door.

Let hot air or steam escape before removing or replacing food.

Do not touch the cooktop components, burners, trivets/pan supports or the

base when hot.

Before cleaning, turn the cooker off and make sure it is cool.

Failure to do so could result in burns and scalds.

WARNING!

Electrical Shock Hazard

Switch the cooker off at the wall before replacing fuses or the oven lamp.

Failure to do so may result in death or electrical shock.

WARNING!

Explosion Hazard

Do not store flammable materials such as gasoline near the cooktop.

Do not store flammable material in the oven or drawer.

Do not spray aerosols near the cooktop during use.

Failure to do so may result in death or serious injury.

Safety and warnings

Important safety precautions

Isolating switch: make sure this cooker is connected to a circuit which incorporates an isolating

switch providing full disconnection from the power supply.

Household appliances are not intended to be played with by children.

Children, or persons with a disability which limits their ability to use the appliance, should have a

responsible person to instruct them in its use. The instructor should be satisfied that they can use

the appliance without danger to themselves or their surroundings.

Safe food handling: leave food in the oven for as short a time as possible before and after

cooking. This is to avoid contamination by organisms which may cause food poisoning. Take

particular care during warmer weather.

Do not place aluminium foil, dishes, trays, water or ice on the oven floor during cooking as this

will irreversibly damage the enamel.

Do not line the walls with aluminium foil.

Do not stand on the door, or place heavy objects on it.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since

they scratch the surface, which may result in shattering of the glass.

Do not use a steam cleaner to clean any part of the cooker.

Do not use an asbestos mat or decorative covers between the flame and the saucepan as this may

cause serious damage to your cooktop.

Do not place aluminium foil or plastic dishes on the cooktop burners.

Do not let large saucepans or frying pans overlap the bench as this can deflect heat onto your

benchtop and damage the surface.

Do not let large saucepans, frying pans or woks push any other pans aside. This could make them

unstable or deflect heat onto your benchtop and damage the surface.

Saucepan handles may be hot to touch. Ensure saucepan handles do not

overhang other gas burners that are on. Keep handles out of reach of children.

If the electrical supply cord is damaged, it must only be replaced by an authorised person.

This cooker is not to be used as a space heater, especially if it is installed in marine craft or in a

caravan.

The use of a gas cooking appliance results in the production of heat and moisture in the room in

which it is installed. Ensure the kitchen is well ventilated. Keep natural ventilation holes open or

install a mechanical ventilation device (mechanical extractor hood).

Prolonged intensive use of the appliance may call for additional ventilation, for example opening

of a window, or more effective ventilation, for example increasing the level of mechanical

ventilation where present.

750 mm

500 mm

105 mm

450 mm

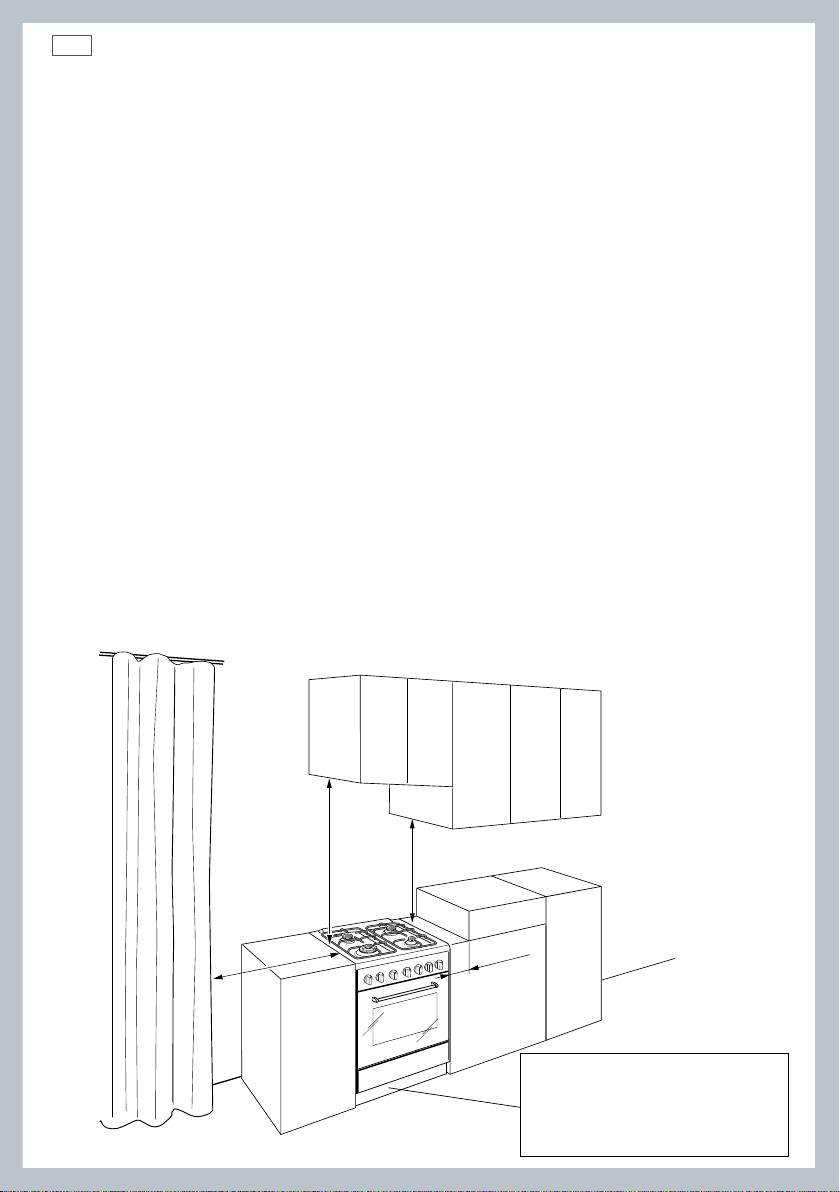

Clearances

Installation clearances and protection of combustible surfaces shall comply with the current

local regulations eg. AG 601 (AS 5601) Gas Installations code. Installation shall comply with the

dimension in Fig. 1 bearing in mind that:

Overhead Clearances

In no case shall the clearances between the highest part of the cooker be less than 600 mm or,

for an overhead exhaust fan, 750 mm. AII other downward facing combustible surfaces less than

600 mm above the cooker surface shall be protected for the full width of the cooking surface in

accordance with the standards noted above. In no case shall the clearance be less than 450 mm.

Rear and Side Clearances

Where the dimensions from the periphery of the nearest burner to any vertical combustible

surface is less than 200 mm, the surface shall be protected in accordance with the standards to

a height of not less than 150 mm above the cooking surface for the full width or depth of the

cooking surface.

Where the dimensions from the periphery of the nearest burner to any horizontal combustible

surface is less than 200 mm, the horizontal surface shall be greater than 10 mm below the

surface of the hob, or the horizontal surface requirement above.

Protection of combustible surfaces

The standards above specify that where required protection shall ensure that the surface

temperature of the combustible surface does not exceed 65°C above room temperature.

If you stand the cooker on a pedestal, make sure you provide safety measures to keep it in place.

Installation instructionsInstallation instructions

Cooker overall dimensions [mm]

• height: min 900 - max 915

• width: 600

• depth: 600

Figure 1 Dimensions and

distances from cooker

Installation instructions

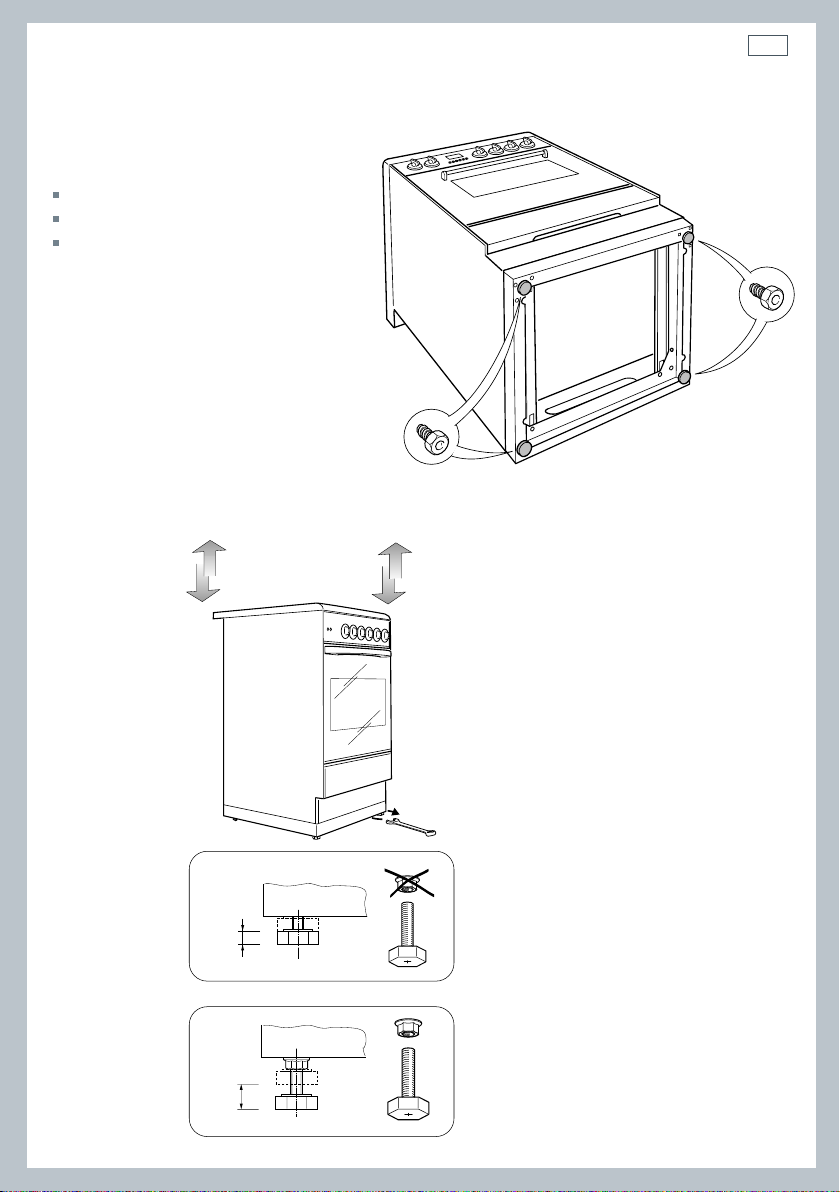

Levelling the cooker

To fit the adjustable feet:

Place the cooker on its back as shown.

Screw the four feet to the cooker.

Stand the cooker and level it by

screwing or unscrewing the feet

with a spanner.

Figure 2a Fitting the adjustable feet

+ 8 mm

+ 15 mm

Figure 2b Fitting the optional spacer

(supplied in a separate kit)

8Installation instructions

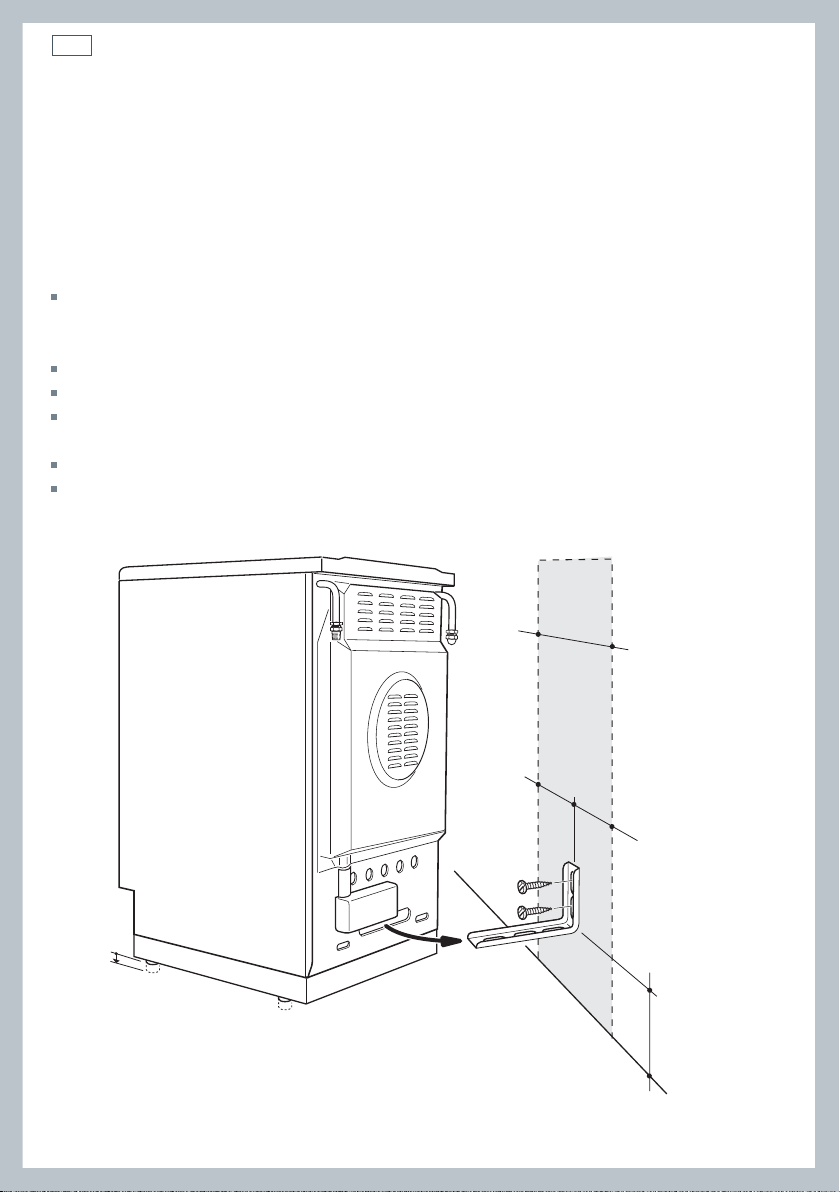

Anti-tilt bracket

Important!

This appliance must be restrained to prevent accidental tipping by fitting a bracket to the rear of the

appliance and securely fixing it to the wall.

To fix the anti-tilt bracket:

After you have located where the cooker is to be positioned mark, on the wall, the place where

the two screws of the anti-tilt bracket have to be fitted. Please follow the indications given in the

drawing below.

Make two 8 mm diameter holes on the wall and insert the plastic plugs.

Loosely attach the anti-tilt bracket with two screws.

Move the cooker to the wall and adjust the height of the anti-tilt bracket so that it can engage in

one slot of the cooker back.

Tightly attach the anti-tilt bracket.

Push the cooker against the wall so that the anti-tilt bracket is fully inserted in one slot of the

cooker back.

Figure 3 Fitting the anti-tilt bracket

365 235

600 mm

min 105

max 120

+ 15
