Fisher & Paykel CE302C Istruzioni per il montaggio

Ceramic glass cooktops

Installation instructions

and User guide

CE302C, CE604L, CE604C and CE905C models

NZ AU GB IE

Contents

Safety and warnings

Installation instructions

Introduction

Using your cooktop

Cooking guidelines

Care and cleaning

Troubleshooting

Warranty and service

Important!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

2Safety and warnings

Your safety is important to us. Please read this information before using your cooktop.

Installation

WARNING!

Electrical Shock Hazard

Disconnect the appliance from the mains electricity supply before carrying

out any work or maintenance on it.

Connection to a good earth wiring system is essential and mandatory.

Alterations to the domestic wiring system must only be made by a qualified

electrician.

Failure to follow this advice may result in electrical shock or death.

WARNING!

Cut Hazard

Take care – panel edges are sharp.

Failure to use caution could result in injury or cuts.

Safety and warnings

Important safety instructions

Read these instructions carefully before installing or using this appliance.

No combustible material or products should be placed on this appliance at any time.

Please make this information available to the person responsible for installing the appliance as it

could reduce your installation costs.

In order to avoid a hazard, this appliance must be installed according to these instructions for

installation.

This appliance is to be properly installed and earthed only by a suitably qualified person.

This appliance should be connected to a circuit which incorporates an isolating switch providing

full disconnection from the power supply.

Failure to install the appliance correctly could invalidate any warranty or liability claims.

4Safety and warnings

Operation and maintenance

WARNING!

Hot Surface Hazard

During use, accessible parts of this appliance will become hot enough to

cause burns.

Do not let body, clothing or any item other than suitable cookware contact

with the ceramic glass until the surface is cool.

Never leave metal objects on the cooktop as they can become hot very

quickly.

Keep children away.

Handles of saucepans may be hot to touch. Check saucepan handles do not

overhang other cooking zones that are on. Keep handles out of reach of

children.

Failure to follow this advice could result in burns and scalds.

WARNING!

Electrical Shock Hazard

Do not cook on a broken or cracked cooktop. If the cooktop surface should

break or crack, switch the appliance off immediately at the mains power

supply (wall switch) and contact a qualified technician.

Switch the cooktop off at the wall before cleaning or maintenance.

Failure to follow this advice may result in electrical shock or death.

WARNING!

Cut Hazard

The razor-sharp blade of a cooktop scraper is exposed when the safety

cover is retracted. Use with extreme care and always store safely and out

of reach of children.

Failure to use caution could result in injury or cuts.

WARNING!

Fire Hazard

Never leave the appliance unattended when in use. Boilover causes smoking

and greasy spillovers that may ignite.

Never use your appliance for warming or heating the room.

Failure to follow this advice may result in overheating, burning, and injury.

Important safety instructions

Never use your appliance as a work or storage surface.

Never leave any objects or utensils other than suitable cookware on the appliance.

Do not allow children to play with the appliance or sit, stand or climb on it.

Do not store items of interest to children in cabinets above the appliance. Children climbing on

the cooktop could be seriously injured.

Do not leave children alone or unattended in the area where the appliance is in use.

Children or persons with a disability which limits their ability to use the appliance should have a

responsible and competent person to instruct them in its use. The instructor should be satisfied

that they can use the appliance without danger to themselves or their surroundings.

Do not repair or replace any part of the appliance unless specifically recommended in the

manual. All other servicing should be done by a qualified technician.

Do not use a steam cleaner to clean your cooktop.

Do not place or drop heavy objects on your cooktop.

Do not stand on your cooktop.

Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can

scratch the glass.

Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop, as these

can scratch the ceramic glass.

If the power supply cable is damaged, it must only be replaced by a qualified technician.

Do not operate your cooktop by means of an external timer or separate remote-control system.

Safety and warnings

Installation instructions

Cooktop and cutout dimensions

Terminal block location:

CE604L, CE604C & CE905C models - Middle rear

CE302C models - Front left

CCI

Cooktop and cutout dimensions (mm)

CE302C

CE604L

CE604C

CE905C

Aoverall width of cooktop 300 600 600 900

Boverall depth of cooktop 530 530 530 530

Cheight of chassis (below top of bench) 45 45 45 45

CIheight of terminal block (below top of bench) 63 59 59 59

Dwidth of chassis 267 555 555 863

Edepth of chassis 483 483 483 485

Foverall width of cutout 270 560 560 870

Goverall depth of cutout 490 490 490 490

Drawings for illustration purposes only

Installation instructions

Clearances

Clearances (mm)

CE302C

CE604L

CE604C

CE905C

Aminimum clearance from rear edge of cutout to:

nearest combustible surface 55 55 55 55

Bminimum clearance from glass surface to:

rangehood 650 650 650 650

Cminimum clearance from side edges of cutout to:

nearest combustible surface 65 70 70 65

Dminimum clearance from benchtop to:

overhead cabinet not directly above the cooktop 450 450 450 450

Eminimum clearance below top of benchtop to:

thermal protection barrier 65 65 65 65

Drawings for illustration purposes only

Installation instructions

Before you install the cooktop, make sure that

the benchtop is square and level, and no structural members interfere with space requirements

the benchtop is made of a heat-resistant material

the cooktop will not be installed directly above a dishwasher, as the humidity may damage the

cooktop

the installation will comply with all clearance requirements and applicable standards and

regulations

a suitable isolating switch providing full disconnection from the mains power supply is

incorporated in the permanent wiring, mounted and positioned to comply with the local wiring

rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air

gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules

allow for this variation of the requirements)

the isolating switch will be easily accessible to the customer with the cooktop installed

you consult local building authorities and by-laws if in doubt regarding installation

you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces

surrounding the cooktop.

When you have installed the cooktop, make sure that

the power supply cable is not accessible through cupboard doors or drawers

there is adequate flow of fresh air from outside the cabinetry to the base of the cooktop

if the cooktop is installed directly above an oven or its base is accessible through a cupboard

or drawer space after installation, a thermal protection barrier is installed below the base of the

cooktop (see Fig.1)

the isolating switch is easily accessible by the customer

you complete the ‘Final checklist’ at the end of these installation instructions.

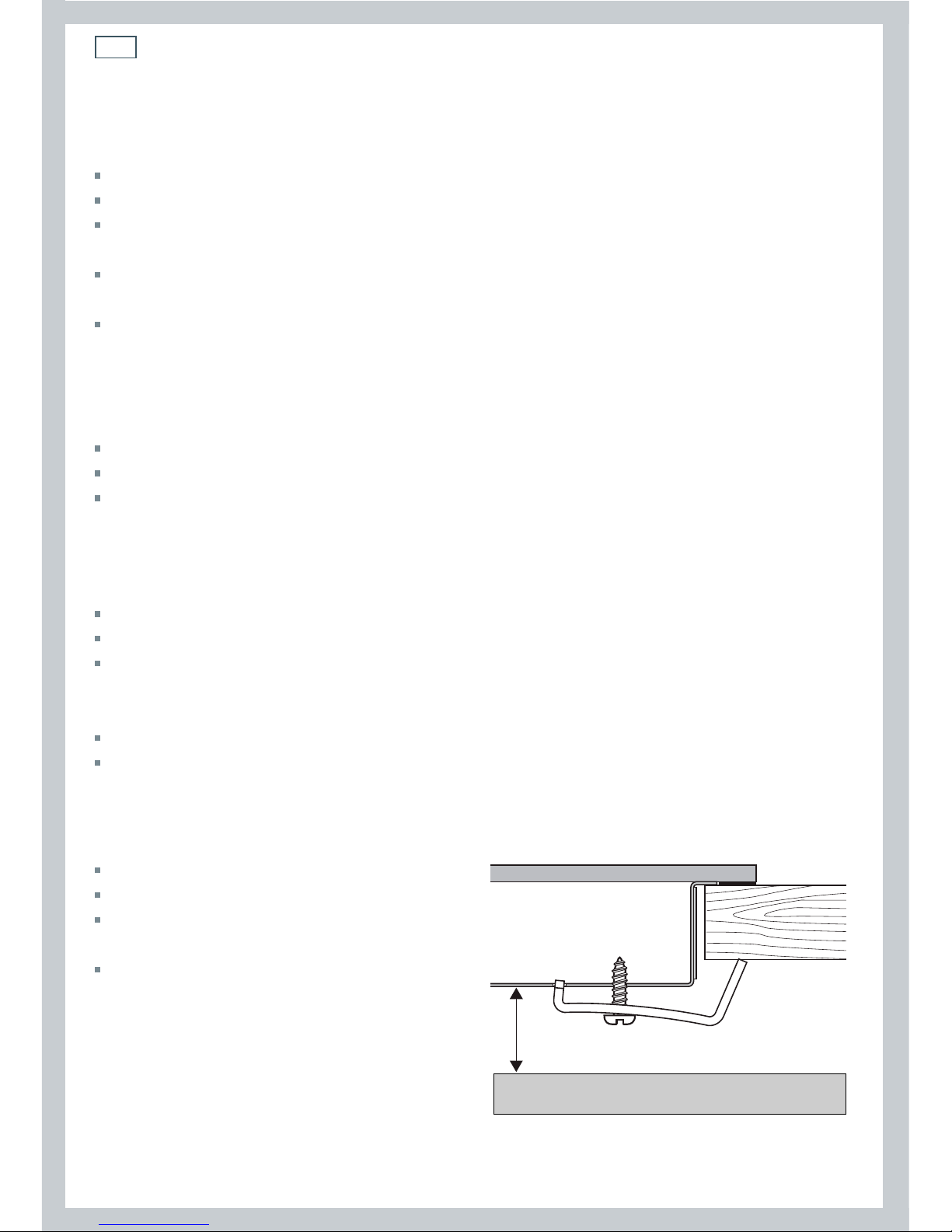

The thermal protection barrier must be:

removable

heat-resistant

made from low thermal conductivity

material

at least 20 mm below the base of the

cooktop to ensure adequate ventilation

20 mm min.

Fig. 1 Thermal protection barrier

< Fresh air from

outside the

cabinetry
