Using your gas cooktop

Details how to use the cooktop of your Seven-Function cooker.

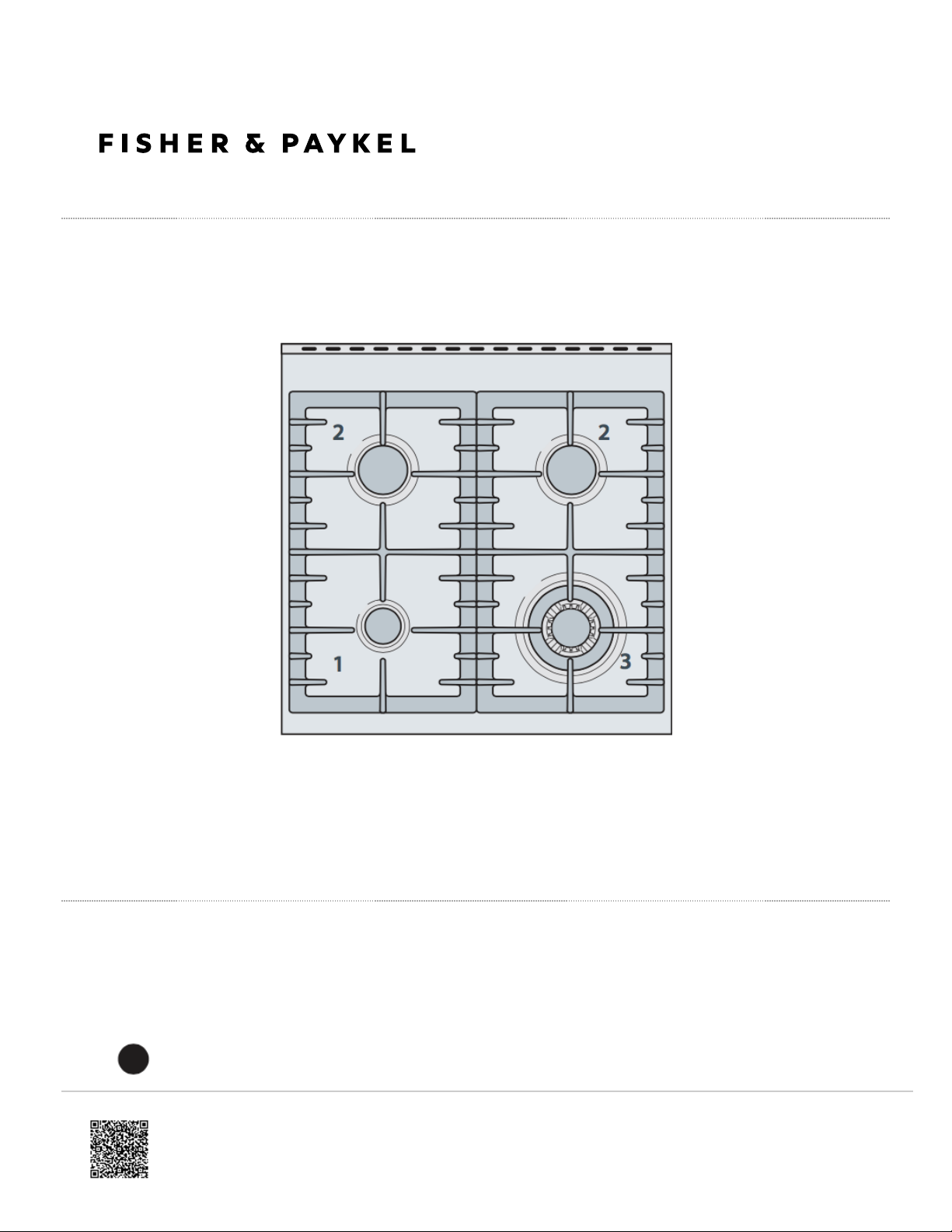

Fig. 44 Cooktop layout

1. Auxiliary burner

2. Semi-rapid burner

3. Triple-ring wok burner

Gas burners

The knob controls the flow of gas through the safety valve.

•0= closed valve (OFF)

•

https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59…

Updated: Mon, 20 Mar 2023 17:44:50 GMT

= maximum flow

• = minimum flow

You can choose to cook at any heat between

and

, but never between

and 0(OFF).

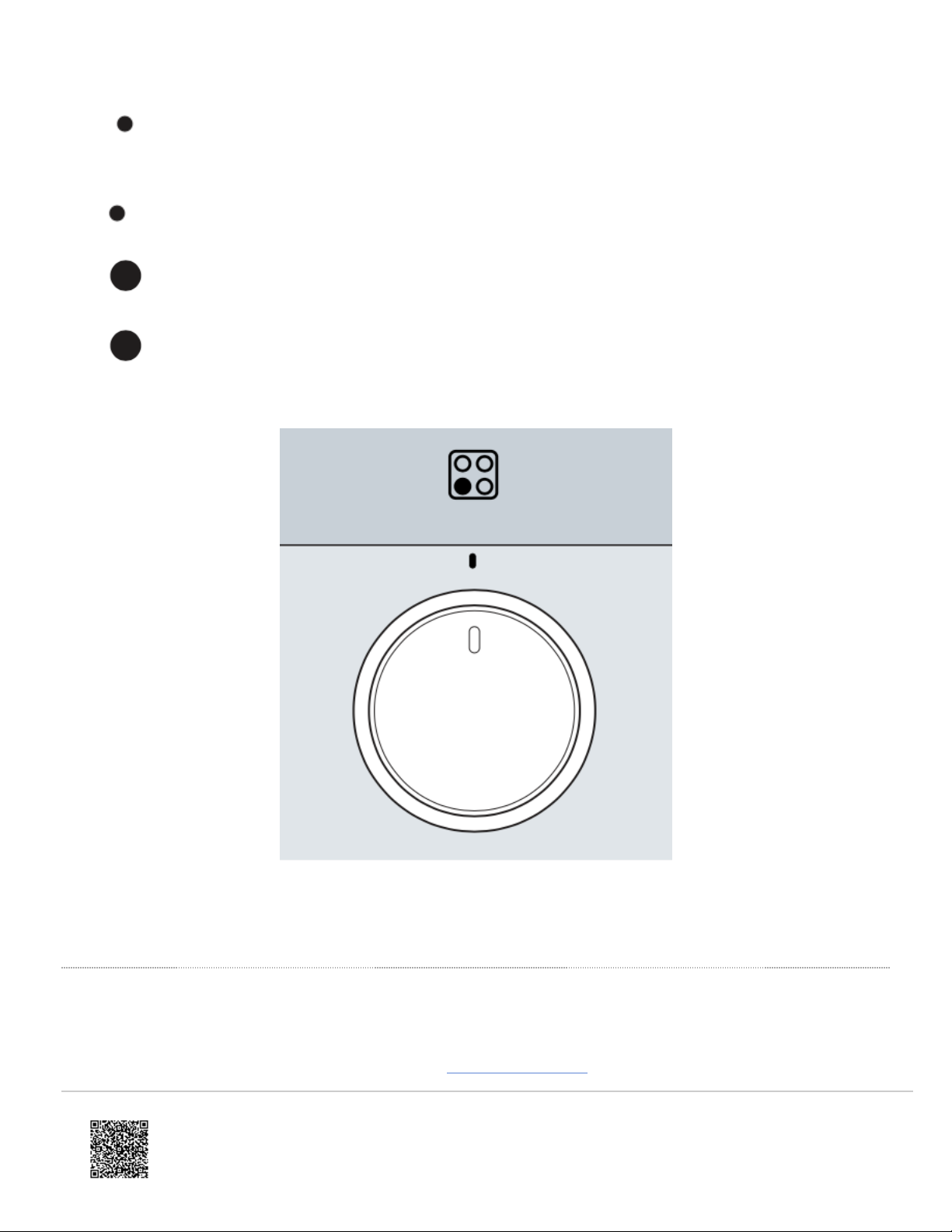

Fig. 45 Burner control knob

Before using your cooktop

Before using your new cooktop, please:

• Read this user guide, taking special note of the ‘Safety and warnings’ section.

https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59…

Updated: Mon, 20 Mar 2023 17:44:50 GMT

• Turn the power to the cooker on at the wall.

• Make sure all controls are turned off.

Using the gas burners

1. Choose the control knob for the burner you want to use.

2. Press the knob down gently and turn it anticlockwise to the

position. The ignitors on all the burners will spark.

3. Hold down the knob for approximately 10 seconds after the burner has lit. Releasing the knob too soon will

extinguish the flame.

4. Adjust the flame anywhere between the

and

positions. Do not adjust the flame between

and 0(OFF).

If the burner does not light within 15 seconds, turn the control knob off and wait at least one

minute before trying again.

5. To turn the burner off, turn the knob clockwise to 0(OFF) until you hear the safety click. After use, always turn

the knobs to the 0(OFF) position.

Flame failure safety feature

• The flame failure probe cuts off the gas supply to the burner if the flame is blown out.

• When lighting the burner on flame failure models, hold down the knob for approximately 10 seconds after the

burner has lit. Releasing the knob too soon will extinguish the flame.

• If the flames are accidentally extinguished, turn off the burner and do not try to light it again for at least one

minute (to allow the gas to disperse).

https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59…

Updated: Mon, 20 Mar 2023 17:44:50 GMT

If a burner does not light

Check that:

• The cooktop is plugged in and the electricity is switched on.

• The gas is turned on.

• The gas bottle is not empty (if you are using bottled gas).

• You have held down the knob for at least 10 seconds.

• The ignitors are sparking. If the ignitors are not sparking, they may be dirty or wet. Clean them with a toothbrush

and methylated spirits, as shown in Fig. 46.

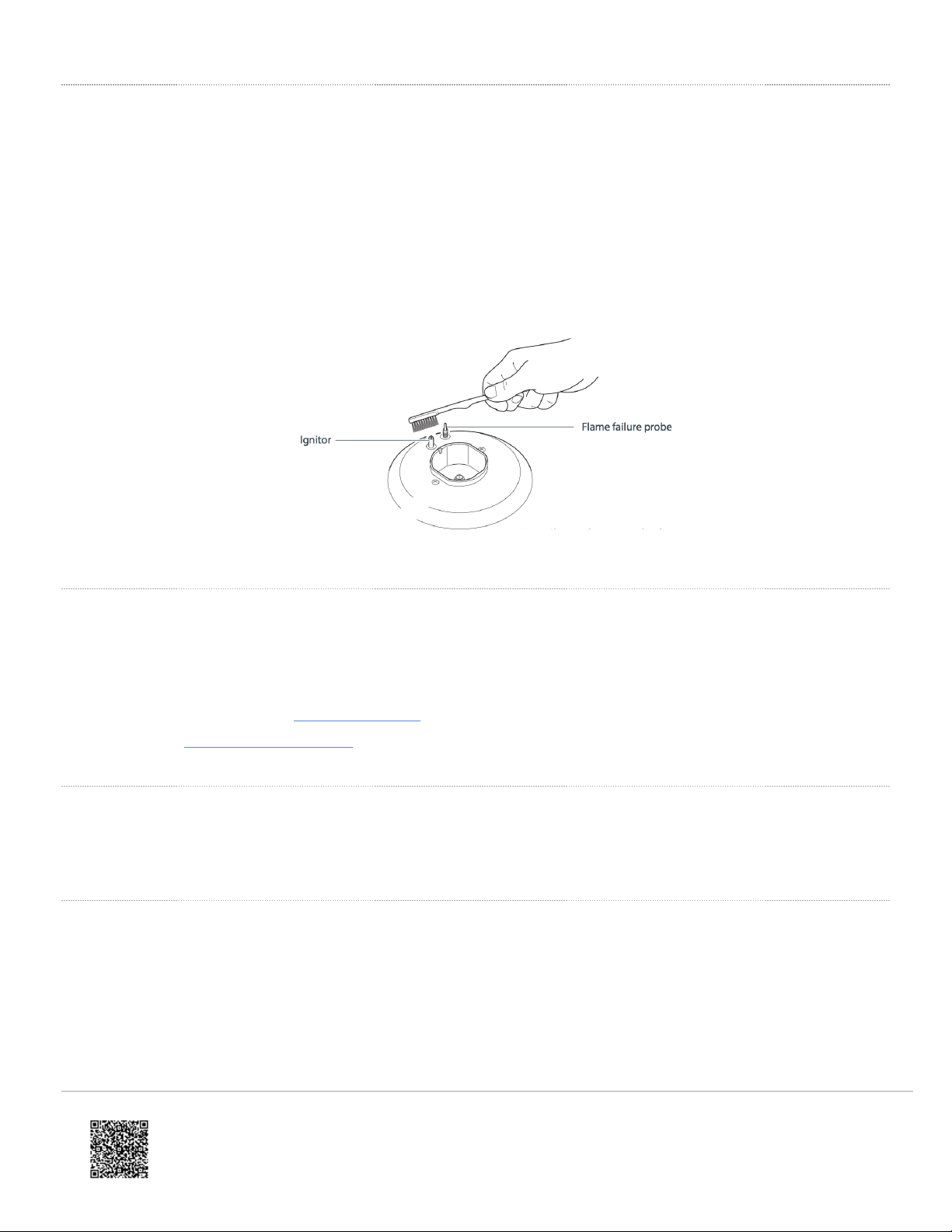

Fig. 46 Cleaning the ignitor and probe

If the flame is irregular

If the flame is yellow or irregular, check that the burner parts, including the burner cap, are:

• clean and dry.

• positioned correctly. See ‘Care and cleaning’.

• See also ‘Cooktop troubleshooting’.

Matching cookware to burner

Use flat-bottomed pans, and make sure they match the size of the burner, as shown in the following table. A

small pot on a large burner is not efficient.

Diameters of pans which may be used on the cooktop

Burners Minimum Maximum

Auxiliary 12 cm (6 cm with small pan support) 14 cm

https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59…

Updated: Mon, 20 Mar 2023 17:44:50 GMT

Burners Minimum Maximum

Semi-rapid 16 cm 24 cm

Triple-ring wok

26 cm 28 cm

Maximum diameter for woks 36 cm

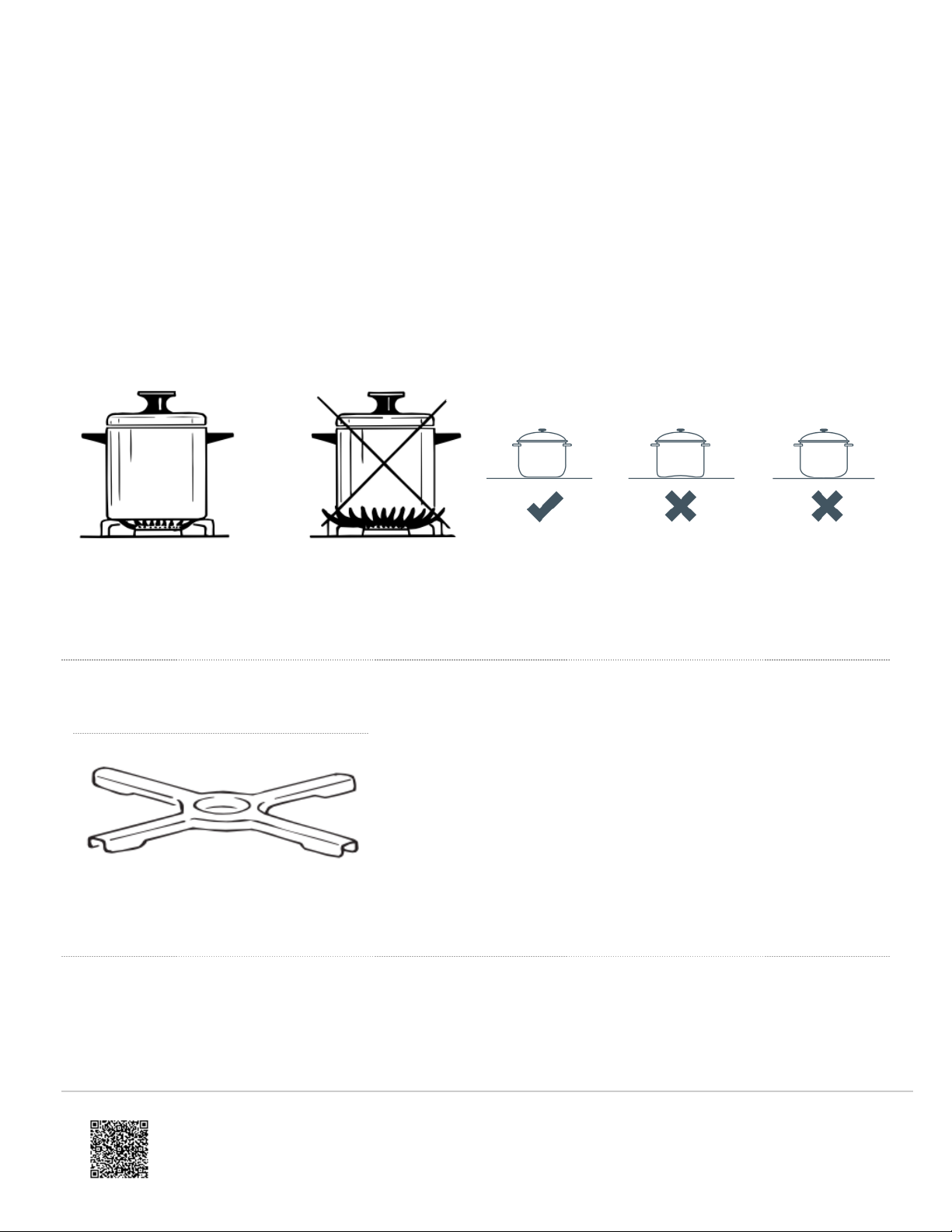

Fig. 47a Correct and incorrect matching of cookware

and burner size

Fig. 47b Efficient and inefficient saucepan bottoms

Small pan support

Fig. 48a Small pan support

This pan support is to be placed on top of the auxiliary burner when

using small diameter pans, in order to prevent them from tipping over.

Wok stand

The wok stand fits over the triple-ring wok burner trivet.

https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59…

Updated: Mon, 20 Mar 2023 17:44:50 GMT

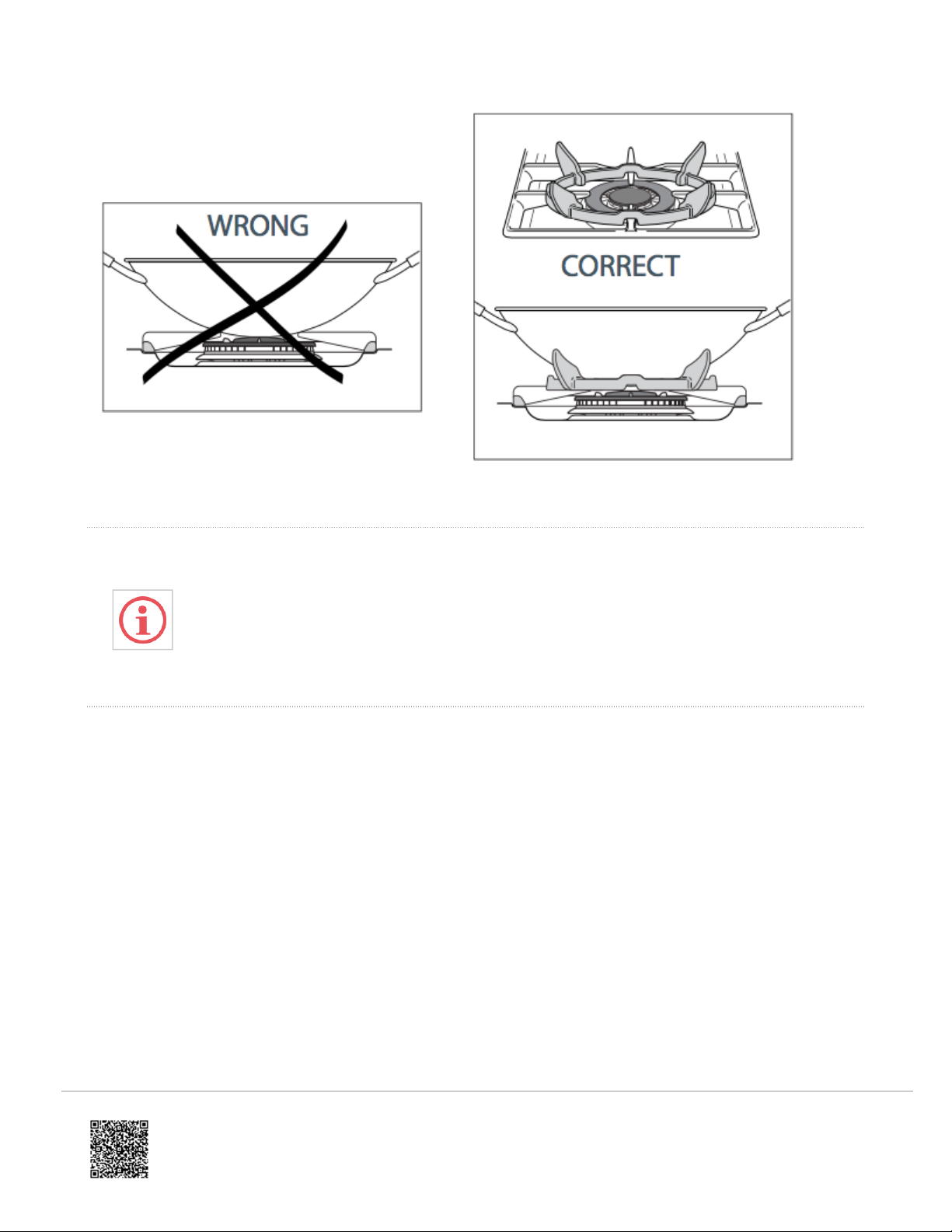

Fig. 48b Correct placement of wok stand

• Using a wok without the stand may cause the wok to tip or the wok burner to operate incorrectly.

Do not use the stand for ordinary, flat-bottomed saucepans.

• The wok stand MUST BE PLACED ONLY over the trivet for the triple-ring wok burner.

• The cooktop becomes very hot during operation. Keep children well out of reach.

https://producthelp.fisherpaykel.com/au/Cook/Freestanding_Cookers/Electric/OR60SDBSX2/User_Guide_OR60SDBSX2_(59…

Updated: Mon, 20 Mar 2023 17:44:50 GMT
