Installation instructions

and User guide

FabricSmart™ clothes washer

Intelligence working for you

The FabricSmart™ washer is born from 75 years of Fisher and Paykel laundry innovation. With

sophisticated electronics and a revolutionary direct drive motor, it cleans and cares for your

clothes as never before.

Unlike conventional machines, FabricSmart™ clothes washers use intelligence to continually

adapt the wash action and water levels to save on water and electricity use; making it kinder on

your wallet and the environment.

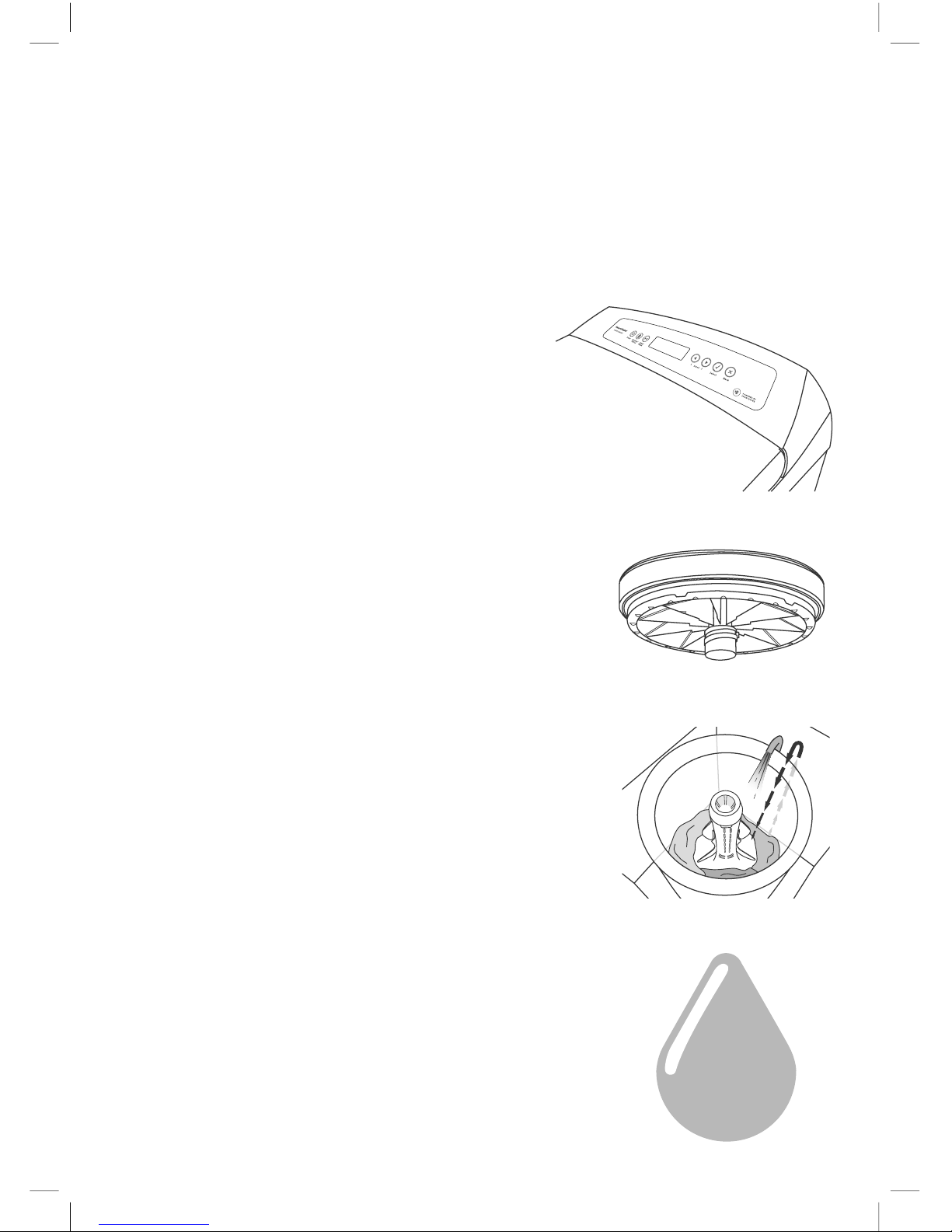

Intelligent electronics

Two powerful microprocessors control every aspect of the

FabricSmart™ washer, allowing it to continually monitor and

respond to each wash. This intelligence is the result of many

years of testing and fine-tuning, giving you the best possible

performance.

Energy conservation

The unique wash action means a typical load uses only the same

amount of electricity as a 100-watt light bulb left on for an hour.

Direct drive motor

Our revolutionary direct drive motor is capable of infinite wash

actions, continuously adjusting its speed to the movement of

your clothes, removing dirt while caring for the fabric, delivering

the ultimate wash.

Reliability

FabricSmart™ has no mechanical brake, pulleys or gears,

which means fewer moving parts and greater reliability.

Eco Active

™

wash system

The FabricSmart™ washing method uses a combination of front

loader and top loader washing technologies – boosting dirt and

soil removal while conserving energy.

Agitator

Flexible fins on the agitator work in conjunction with the motor

to understand your wash. Delicate fabrics will slither around

the fins, whereas heavy fabrics will move with more resistance.

Sensors in the motor measure this resistance to effectively “feel”

the load, sensing the type of fabric in the load.

The Eco (Save Water++) option

Designed to make every drop count, using up to 25% less water

than the traditional Water Saver rinse, without compromising on

wash performance.

Installation instructions 2

Before you do your first wash 5

Getting started quickly 6

Wash options

How Dirty, Washer feedback 8

Eco Active™ wash 9

Lid lock 10

Water consumption 11

The Lifestyles/Options button

Selecting, Customising 12

Options

Temperature, Water Level 13

Wash Advance, Spin, How Dirty, Delay Start, Drip Dry, Soak, Save Time 14

Save Water, Traditional Wash, Settings 15

Adjusting the wash settings

Wash Temp, Auto Water Level 16

Default Rinse, Easy Iron Spin Speed, Out Of Balance Recovery 17

End of Cycle Beeps, Re-set Defaults, Display 18

Lifestyles cycles 19

Wash Advance and Temperature 22

Sorting and loading 23

Washing difficult items 24

Detergent 25

Fabric softener 27

Caring for your clothes washer 28

Machine information 29

If your FabricSmart™ beeps for help 30

Operating problems 32

All about wash problems 33

Manufacturer’s Warranty 34

Customer Care 36

Contents

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

2Installation instructions

Unpacking

To ensure the best performance from your new

FabricSmart™ washer please follow the instructions below.

Removing the packaging

Remove the outer packaging.

Tilt the machine backwards and walk it off the bottom

packer one foot at a time.

Remove the bottom packer from under the machine by

pulling it out the front.

Lift the lid and remove the bowl packer from the bowl.

Remove the hoses and accessories.

Keep the bottom packer and bowl packer in case they

are required for future transit.

Important!

Please ensure that the bottom packer has been removed before operating your machine.

Installation

Your washer must be installed on a level surface, and not on any textured floor coverings

(eg carpet, rugs) to ensure that the opening at the bottom of the machine is not obstructed.

In your clothes washer you will find:



1 hose guide.



2 inlet hoses.

Drain hose

Carefully pull the grey drain hose out from the

back of the machine by pulling the exposed

part of the hose downwards and outwards.

To guide the drain hose over the tub or

standpipe the hose guide MUST be fitted to the

drain hose.

To prevent siphoning:

The drain hose should not extend more than

20 mm from the end of the guide.

The height of the standpipe or tub should be

between 850 – 1200 mm.

The drain hose can be trimmed to length.

Place the drain hose in the tub or standpipe.

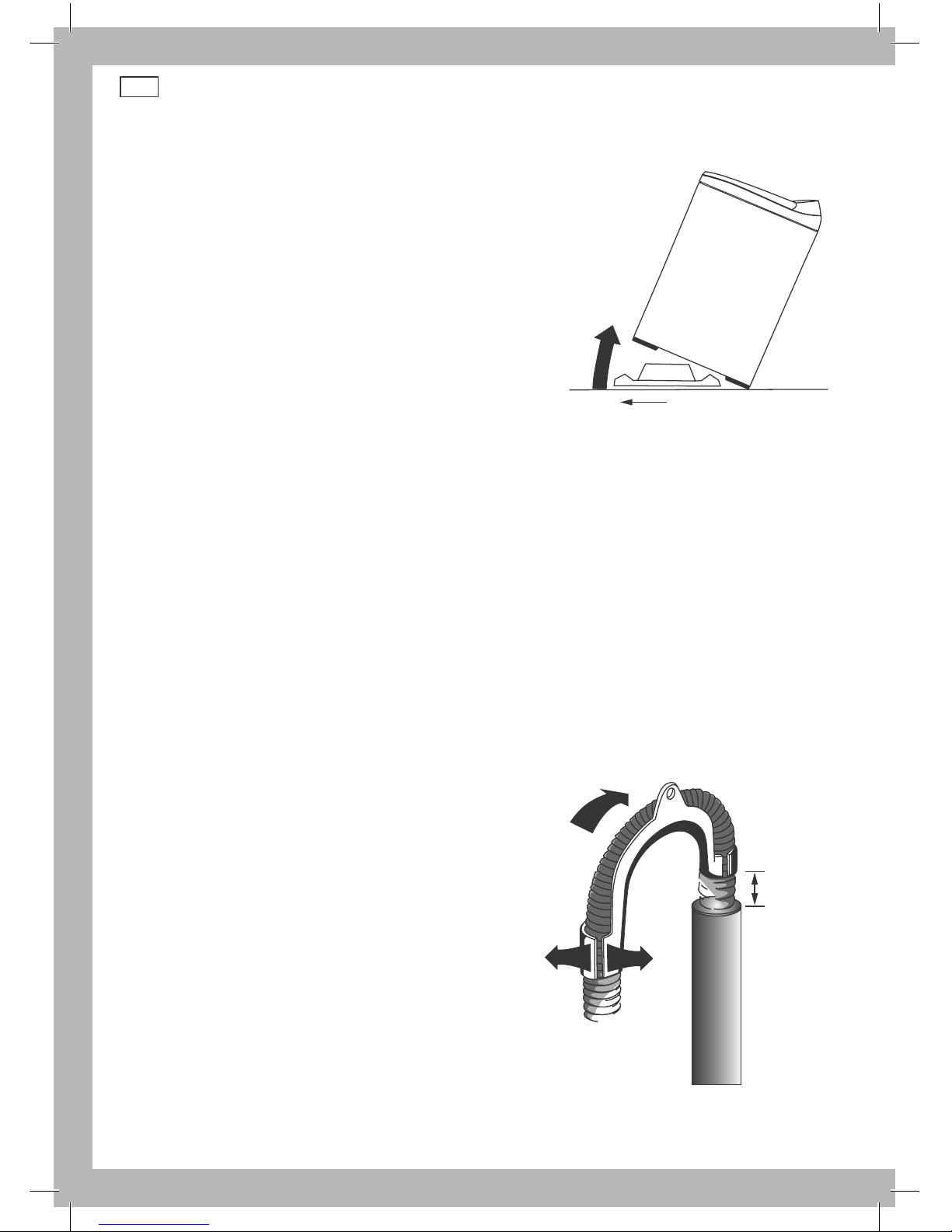

Fig.1 Tilt washer backwards to

remove bottom packer

Pull hose

through guide

(20 mm)

maximum

Flex hose

guide apart

Standpipe 850 – 1200 mm

Fig.2 Fitting the drain hose guide

Installation instructions 3

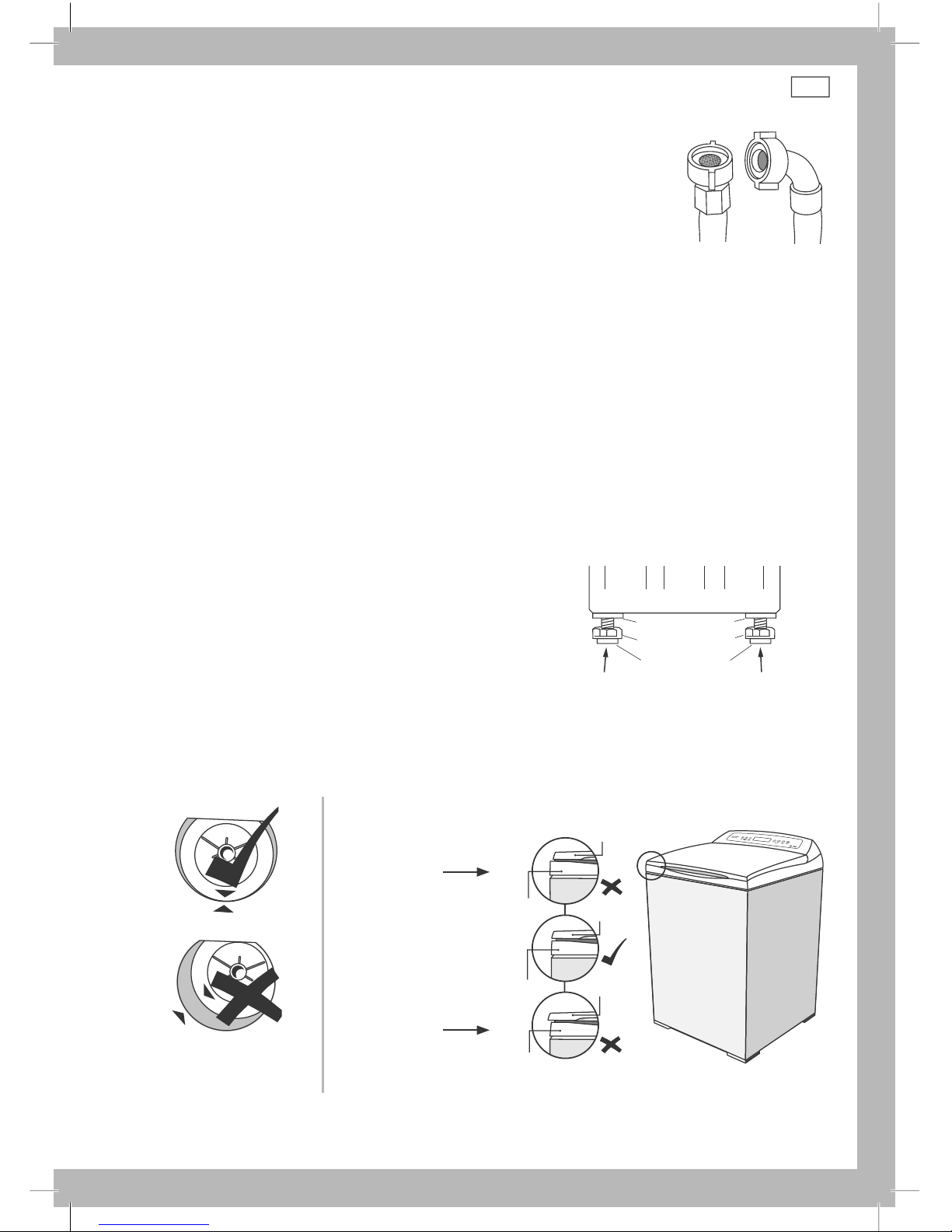

Fig.3 Inlet hose ends

Machine end

Tap end

Inlet hoses

Note: new hose sets provided with the machine are to be used to connect

the washer to the water mains. Old hose sets should not be re-used.

Connect the straight ends of the inlet hoses to the taps (there are washers

fitted in both ends). Connect the red connector hose to hot, and blue

connector hose to cold (if your hoses are colour-coded).

Connect the elbow ends of the inlet hoses to the corresponding machine

inlet valves.

Inlet valves are marked on the back of the machine.

H = Hot C = Cold

Minimum height of taps to clear the top of the machine is 1150 mm.

Cold supply only:

If you only have a cold water supply, an inlet valve cap (blanking cap) MUST be connected to

the hot inlet valve. The cap prevents water leaking out of the hot valve. The cap is available from

your Fisher & Paykel Dealer or Authorised Repairer, Part No. 388491p. This appliance incorporates

backflow protection complying with AS3500.1. No further backflow protection is required for

connection to the water supply.

Note: your washer does not have an internal heater to heat water.

Inlet hose replacement

We recommend replacing the inlet hoses every 5 years. Hoses should be checked from time to

time and replaced if any wear, cuts, bulges or kinks are identified, or leaks are found.

Levelling your machine

It is IMPORTANT to level the machine to ensure

even spin performance.

Move the machine to its final position (we suggest

a minimum clearance of 20 mm each side).

Adjust the feet (by winding down or up to suit)

so the machine is level and does not rock.

To check if your machine is level:

Look down on the wash bowl and make sure it sits slightly forward of centre (see Diagram 1).

Close the lid. Visually check that the lid fits evenly on both sides. If it does not look like the

diagram in the middle, adjust one of the feet slightly until it matches. The diagram on the top

and bottom are not correct (see Diagram 2).

Correct

To check levelling look

down on the wash bowl

Incorrect

Fig.5 To assess levelling, check lid alignment

Lid alignment

Lid

Topdeck Lid

Lid

Topdeck

Wind right foot down

(out) to correct

Wind left foot down

(out) to correct

Diagram 1 Diagram 2

Turn on the water and check all hose connections for leaks. Check for leaks again after 24 hours.

Make sure there are no kinks in the hoses.

Uncoil the power cord, remove and discard the plastic pin cover, and plug into the wall socket.

Fig.4 Adjusting the levelling feet

Adjustable feet

Corner cabinets

Rubber insert

Installation instructions

Water supply



For best operating conditions your hot water should be approximately 65°C. Your hot water

should not exceed 75°C or your cold water exceed 35°C. Temperatures above these may cause

the machine to fault or cause damage to the machine.



If you have an uncontrolled water-heating source (eg a wet back or solar heating) you should

have a tempering device fitted. This will ensure the hot water temperature remains within

safe limits. For the most suitable type of tempering device we recommend you contact a local

plumber or plumbing supply merchant.



Inlet water pressure: Max. 1MPa (150 psi) Min. 34Pa (5 psi)



Inlet water flow rate: Min. 3 litres/min



Minimum height of taps to clear the top of the machine is 1150 mm.

Draining



Regularly check that your standpipe or tub is free from lint or other obstructions, which may

affect how your machine works or may cause flooding.



In multi-storey apartments or any upper floor, the machine should be installed on a drained floor.



Draining must comply with local by-laws.

Clothes washer safety



This clothes washer is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or those lacking experience and knowledge, unless they have been

given supervision or instruction about use of the washer by a person responsible for their safety.



Your FabricSmart™ can be opened while it is filling and agitating. Once agitation is complete, the

lid will be locked. Please supervise young children around the washer.



Supervise children at all times to ensure they do not play with the washer.

WARNING!

Electrical Shock Hazard

If you are using an extension cord or a portable electrical outlet device

(eg multi-socket outlet box), ensure that it is positioned so that it does not

come into contact with water or moisture.

Failure to do so may result in death or electrical shock.

Accessories and spare parts

Available from your Fisher & Paykel Dealer or Authorised Repairer.

Inlet Valve Cap Part No. 388491p

Hose Inlet Long (2 m) Part No. 422680p

Hose Inlet Large Bore Part No. 426123p

Drain Hose Extension Part No. 425627p

Power Cord If the power cord of your clothes washer is damaged it must be

replaced by a Fisher & Paykel Authorised Repairer, in order to avoid a

hazard, as it is not a standard power cord.

Before you do your first wash

Thank you for buying a Fisher & Paykel FabricSmart™ washing machine. We are very proud of this

washer and trust it will serve you well for many years.

At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and

energy efficient. Thousands of tonnes of washing and 75 years of laundry experience have been

programmed into your washing machine to help give you the best possible performance.

We hope you enjoy your new washing machine, we have certainly enjoyed designing it.

Before you do your first wash

You owe it to yourself and your FabricSmart™ to have it installed correctly by a technician from a

Fisher & Paykel Authorised Repairer.

Before you start, it is a good idea to go through the following checklist:

Has the basepacker been removed?

Is the hot hose connected to the hot valve marked ‘H’?

Is the cold hose connected to the cold valve marked ‘C’?

Is the drain hose threaded through the ‘U bend‘ (with no more than 20 mm extended) and onto

your standpipe?

Are the rubber inserts secured into the feet on the base of your machine and is the machine

levelled? Refer to Installation Instructions, page 3.

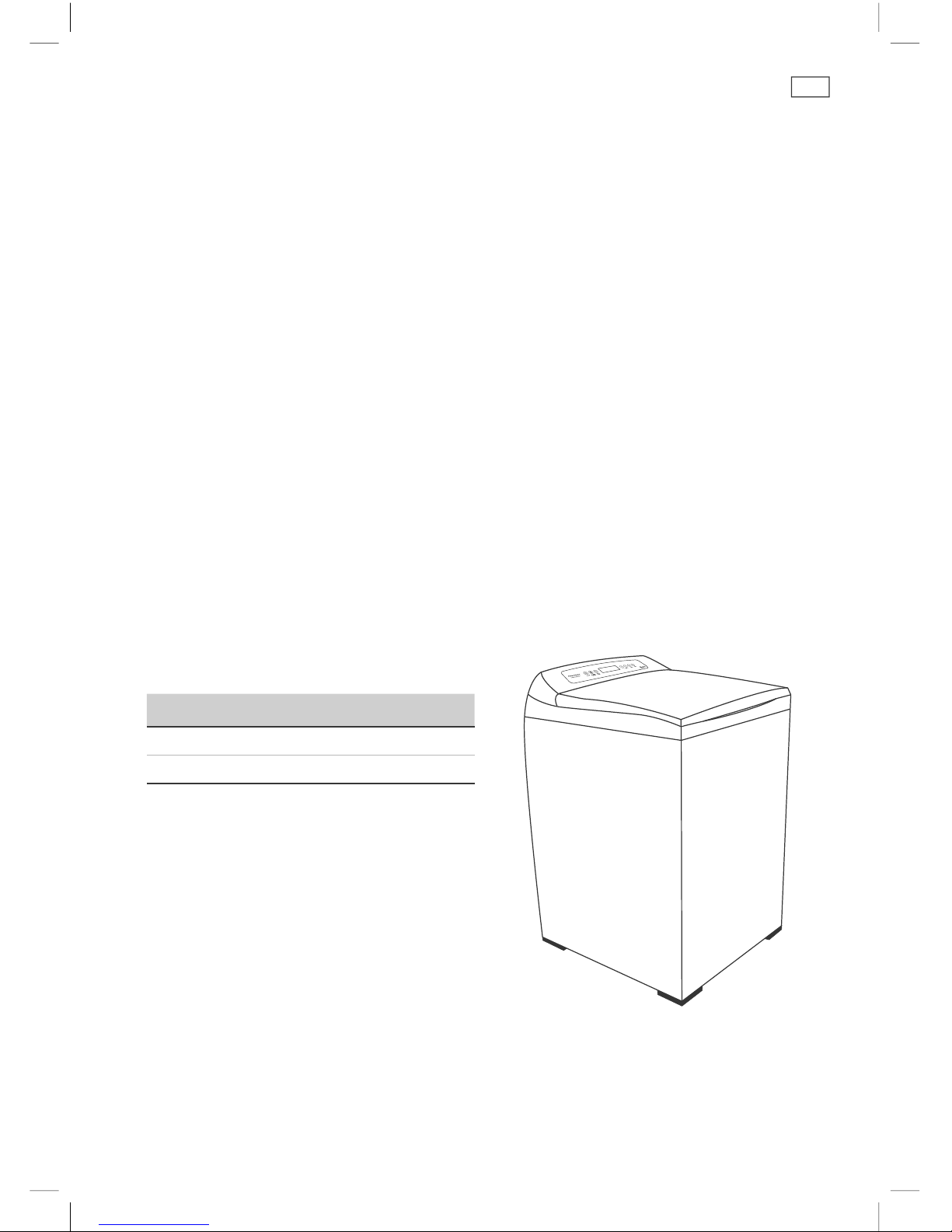

Washer capacities

Machine Size Capacity (dry weight)

Large 8 kg

Medium 7 kg

Note: WA10T65F/WA85T60F models have

different capacity specifications based on

country standards. Refer to the serial plate

on back of the product.

To check what size your washer is look on

the back of the topdeck. The word “Large” or

“Medium” will be embossed.

Fig.6 FabricSmart™ washer



Place load evenly around the agitator (refer to Sorting and Loading, page 23).



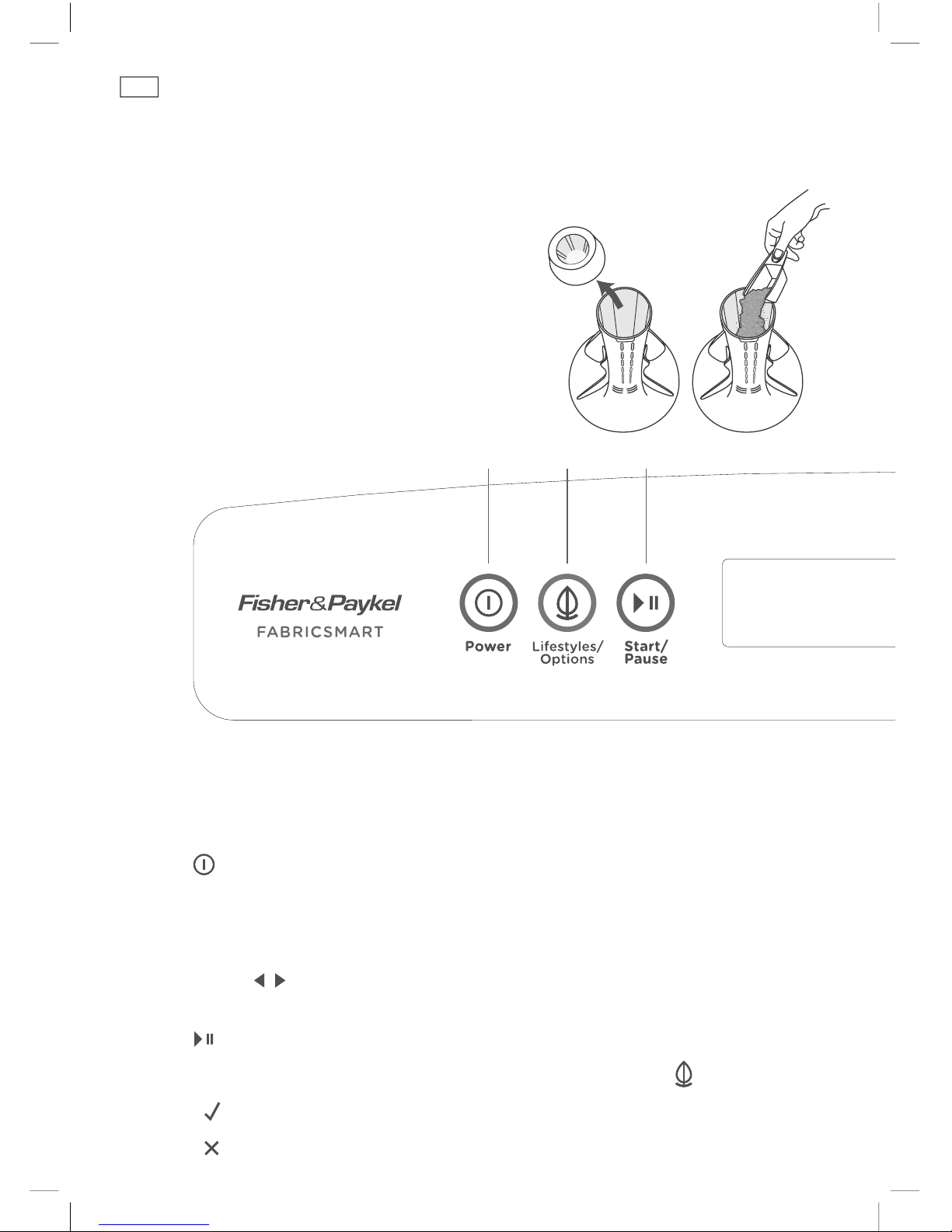

Remove the fabric softener dispenser.

Detergent



Follow the instructions on the detergent package.



Use the mark on the agitator nearest to the top of the

clothes as a guide to the correct amount of detergent

to use.



Pour the detergent down the centre of the agitator stem.



Replace the fabric softener dispenser (this stops small

articles falling down the centre of the agitator). Refer to

Detergent, page 25.

Getting started quickly

Touch to activate your FabricSmart™ washer.

The screen in the middle of the panel will display the wash cycles and options available, your

wash selections, wash progress during the cycle, and how long the wash has to go.

The first screen to appear after the Welcome screen is “How Dirty?”

Use the scroll ( ) buttons to select the soil level that best suits your load.

Note: these buttons are also used to navigate through the wash cycle and option menus.

Touch and let FabricSmart™ do the rest for you.

To choose a cycle other than the default, and/or any wash options, use the button.

Use the button to confirm your selection.

Use the button to go back to the previous step.

265

Wash progress

As the washer progresses through the cycle the following symbols will be shown on the display

screen to indicate progression

Filling Eco

Active

Wash

Sensing

Water

Level

Sensing

Fabric

Type

Wash Spray

Rinse

Deep

Rinse

Spin Delay

Start

Getting started quickly

3 7 84

Fig.7 FabricSmart™ clothes washer control panel

Wash cycles

There are four Fabric Care cycles and 13 specially designed Lifestyles cycles to make washing

simpler and easier.

Fabric Care Lifestyles

Favourite Family Sports Stains Extras

Auto Sensing Save your

favourite wash

settings to

create your

ideal cycle

Nappy Rinse Sweaty Chocolate Bowl Clean

Easy Iron Duvet/Doona Muddy Tomato Max Wash

Wool Allergy Sports Shoes Blood/Grass

Handwash Beach Gear Fruit/Wine

Refer to pages 19 – 22 for more information about these cycles.

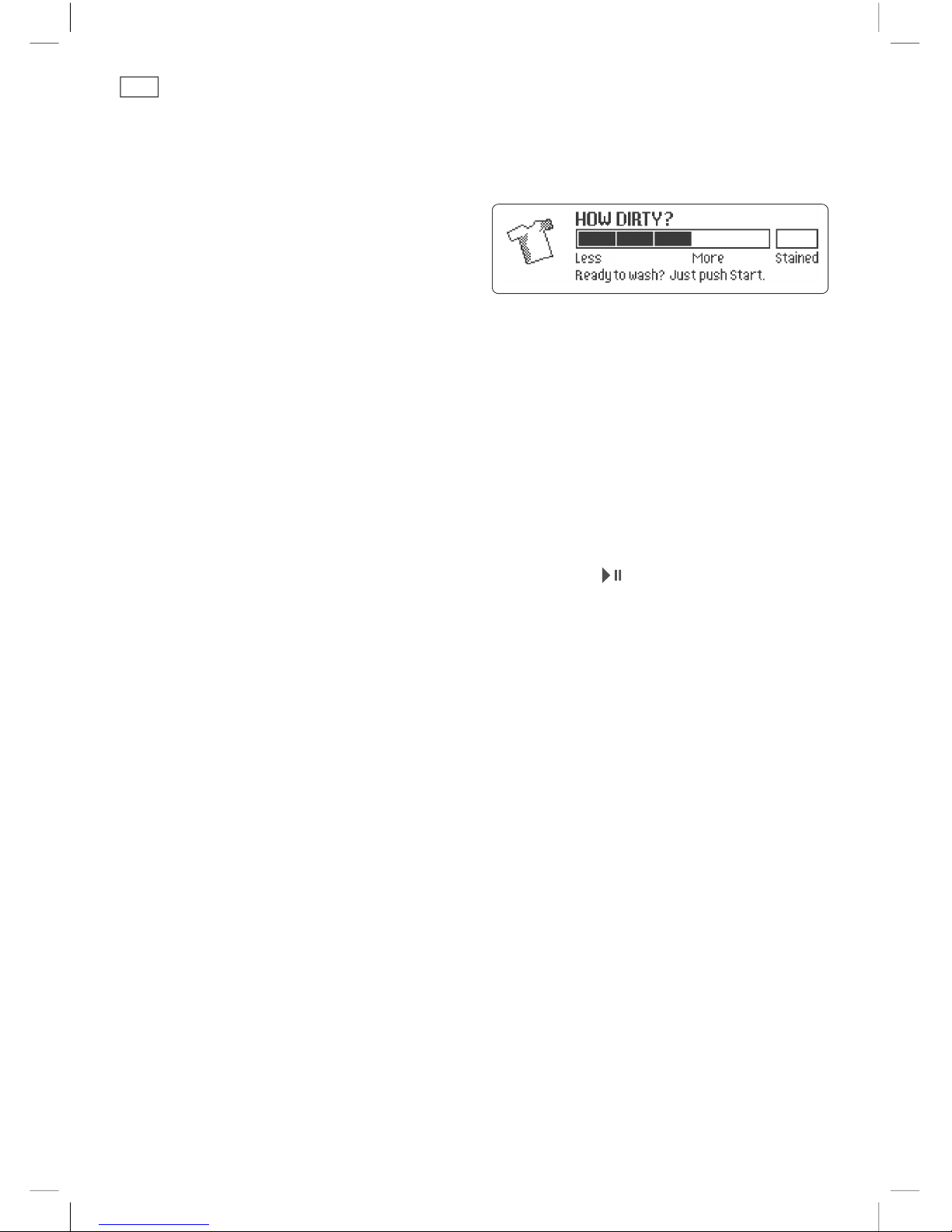

How Dirty?

Your FabricSmart™ washer will automatically

choose the medium soil level (three HOW DIRTY

bars). This setting has been designed for your

average, everyday load. However, some loads

may need more or less washing depending on

the amount of soil on the clothes. For example,

a load of dirty jeans will need the soil level

increased while a bath towel used only once

will only need a low soil level.

Stained

This is a special wash action that alternates washing with four short soaks to help remove stains

from your garments (eg three minutes agitation, four minutes soak, three minutes agitation, etc).

STAINED will use a medium soil level agitation.

Note: this cycle is for general stains, if you have a specific stain (ie blood, grass, fruit, wine,

chocolate or tomato) use one of the STAINS cycles (refer to pages 21 and 22).

Once you have selected the soil level all you need to do is touch to begin the wash. The

machine will automatically sense the correct water level and wash action for your load (the

default cycle is AUTO SENSING). We recommend letting the machine do the thinking for you!

However, if you wish to customise some wash options, please refer to pages 12 – 15.

Washer feedback

Your FabricSmart™ washer will display which stage of the cycle the machine is at and how many

minutes the wash cycle has to go, so you can tell at a glance when your washing will be finished.

The number of minutes to go is displayed from the beginning of the agitation wash, as the load

size and fabric type have to be determined before the cycle time can be calculated.

A series of symbols are also displayed on the screen to indicate where in the cycle the washer is

up to (refer to page 7).

Wash options

Fig.8 Choosing the soil level

Indice

Altri manuali Fisher & Paykel Rondella

Fisher & Paykel

Fisher & Paykel WA3927G2 Istruzioni operative

Fisher & Paykel

Fisher & Paykel Ecosmart GWL15-US-96200 Manuale utente

Fisher & Paykel

Fisher & Paykel WH2424P Manuale utente

Fisher & Paykel

Fisher & Paykel PHASE 7 INTUITIVE ECO IWL16-US Manuale utente

Fisher & Paykel

Fisher & Paykel WH2424F Manuale utente

Fisher & Paykel

Fisher & Paykel GWL08US Manuale utente

Fisher & Paykel

Fisher & Paykel customcare FabricSmart Manuale utente

Fisher & Paykel

Fisher & Paykel AquaSmart WL37T26C Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel 11 Series Manuale utente

Fisher & Paykel

Fisher & Paykel AWF 60 MD Manuale utente

Fisher & Paykel

Fisher & Paykel 9 Series Manuale utente

Fisher & Paykel

Fisher & Paykel IWL-15 Manuale di servizio

Fisher & Paykel

Fisher & Paykel CleanSmart WL8060P1 Manuale utente

Fisher & Paykel

Fisher & Paykel WA3927G1 Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel SmartDrive Manuale utente

Fisher & Paykel

Fisher & Paykel WH8060J Manuale utente

Fisher & Paykel

Fisher & Paykel WASHSMART WA1060E Manuale utente

Fisher & Paykel

Fisher & Paykel WH8060P Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel WH9060J Manuale utente

Fisher & Paykel

Fisher & Paykel CLEANSMART 7 Series Manuale utente

Fisher & Paykel

Fisher & Paykel WL4027G1 Manuale utente

Fisher & Paykel

Fisher & Paykel WA75T65GW1 Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel AquaSmart WL37T26KW2 Istruzioni per il montaggio

Fisher & Paykel

Fisher & Paykel excellence GW512 Istruzioni per il montaggio

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
