Fishman SONITONE Manuale utente

www.ﬁshman.com

Read Me First!

Installation of this product is a straightforward

procedure, but we recommend this job only if you

are an experienced repair technician.

Saddle Slot:

Maximum string spacing at saddle: 2.0” (50.8mm)

Control mounting surface

The control module for this system was designed

to ﬁt in most ukuleles without modiﬁcation, but we

cannot guarantee a drop-in ﬁt with all instruments.

Before you begin installation, pre-ﬁt the control

module in the soundhole, but do not permanently

install at this time. Ideally, the controls should lie ﬂat

with the housing ﬂush to the edge of the soundhole.

Preliminary

Drill a 1⁄8” hole (3.2mm) in the saddle slot for the

pickup wire, no less than .100” (2.5mm) from nearest

string (ﬁgures 1, 2).

Seal the control module mounting surface

To ensure a strong and reliable bond, you must now

sand, clean and seal the underside of the soundhole

where the preamp will mount.

1. Sand the underside of the soundhole down to

bare wood. Take care to remove all residual lacquer,

polish and dirt.

2. Use mineral spirits to clean the sanded area.

Remove any excess oil, resin and dust from the

exposed wood. Let the area dry before proceeding

to the next step.

3. Seal the exposed wood with an appropriate

coating. Use only a coating that will bond the wood

ﬁbers and present a hard, uniform surface for the

adhesive. We recommend any of the following:

• Hide glue

• All purpose two-part epoxy

• Cyanoacrylate glue (higher viscosity,

non-instant type)

• Carpenter’s glue

Let the area dry before proceeding to the next step.

SONITONE for UKULELE

INSTALLATION GUIDE

Figure 1.

Figure 2.

Installation

Output jack/battery box installation

1. Once you select the mounting location, afﬁx the

output jack/battery box template and cut out the

cavity.

2. Drill a pilot hole for the screw holes.

3. Feed the output and battery wires through the

cavity.

4. Install the output jack/battery box using the four

mounting screws.

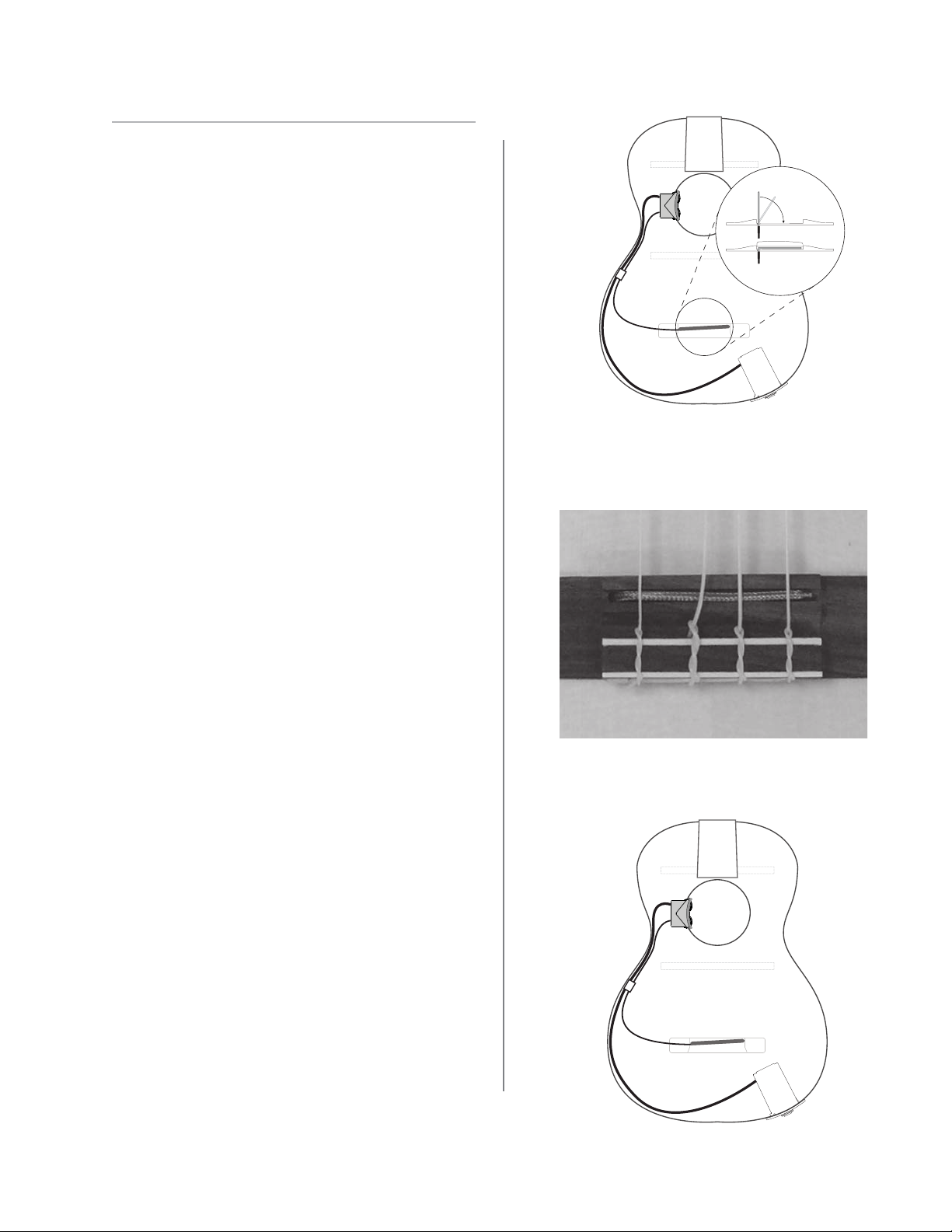

Sonicore installation

insert the stripped and tinned ends of the pickup

wire down through the hole in the saddle slot. Bring

the tip of the pickup to the opposite end of the slot

and lay it down ﬂat (ﬁgures 3 and 4). Install saddle

after reducing its height by .040” (1.0mm).

NOTE: Do not trim the end of the pickup; it will

become susceptible to hum and it may short out.

Fasten the pickup wires to the terminal block on the

control module. The signal wire goes to the terminal

marked “IN” and the shield wire goes to the “GND”

terminal. Tighten the screws on the terminal block to

secure the wires. Do not shorten the pickup wire.

Control module installation

1. Before mounting the control module, connect the

output jack/battery wires to the control module.

• Connect the output jack by inserting the

3-pin connector into the 3-pin receptacle on

the preamp.

• Connect the battery box by by inserting the

red & black 2-pin connector into the 2-pin

receptacle on the preamp.

2. We recommend securing the wires inside the

instrument with adhesive-backed clips (ﬁgure 5).

3. Peel back the release ﬁlm on the bottom of the

mounting bracket and fasten the control module to

the underside of the soundhole. Apply even, steady

pressure to the preamp to set the adhesive. The

adhesive gains maximum hold after 24 hours.

Figure 4.

Figure 5.

514-300-119 Rev A 5-09

Figure 3.
