3. Steps

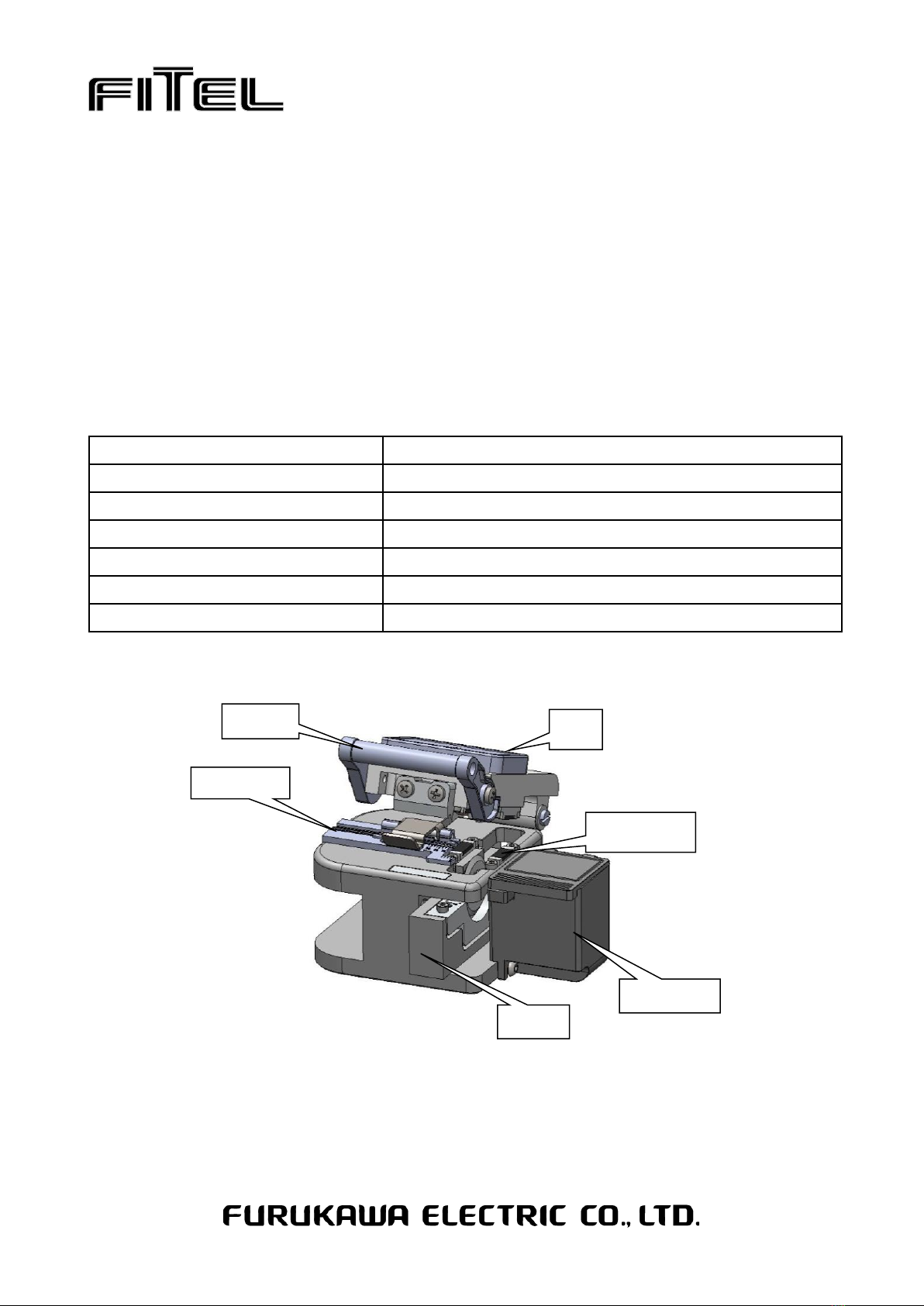

1. Please lift the lever, open the body lid of the cleaver, and make sure that the slider is in front of you.
Use a stripper to strip 20-30 mm of the optical fiber's coating, then clean the optical fiber with a fiber wipe
dipped in alcohol and wipe it clean.
2. After the edge of the optical fiber coating is aligned to the scale on the cutter scale, set the optical fiber straight
up the fiber clamp along the V-groove.
3. Closing the holder cover and body lid, push the slide block with the blade to cut the optical fiber.Slide to the
end to cut the fiber.
4. Hold the cutter and open the body lid, and remove the fiber debris, place debris into the waste box.
5. Open the holder cover with the fiber held. Carefully remove the fiber with the cut end.
6. Troubleshooting, resulting in poor cutting;
A. Fiber is not straight on the fiber clamp.
B. Blade height is too high or low.
C. There is dust on the blade or fiber clamp.
4. Maintenance
1. For daily cleaning, please clean fiber clamp and edge of the blade with alcohol-stained cotton swabs.
The groove of the fiber holder also needs to be cleaned.

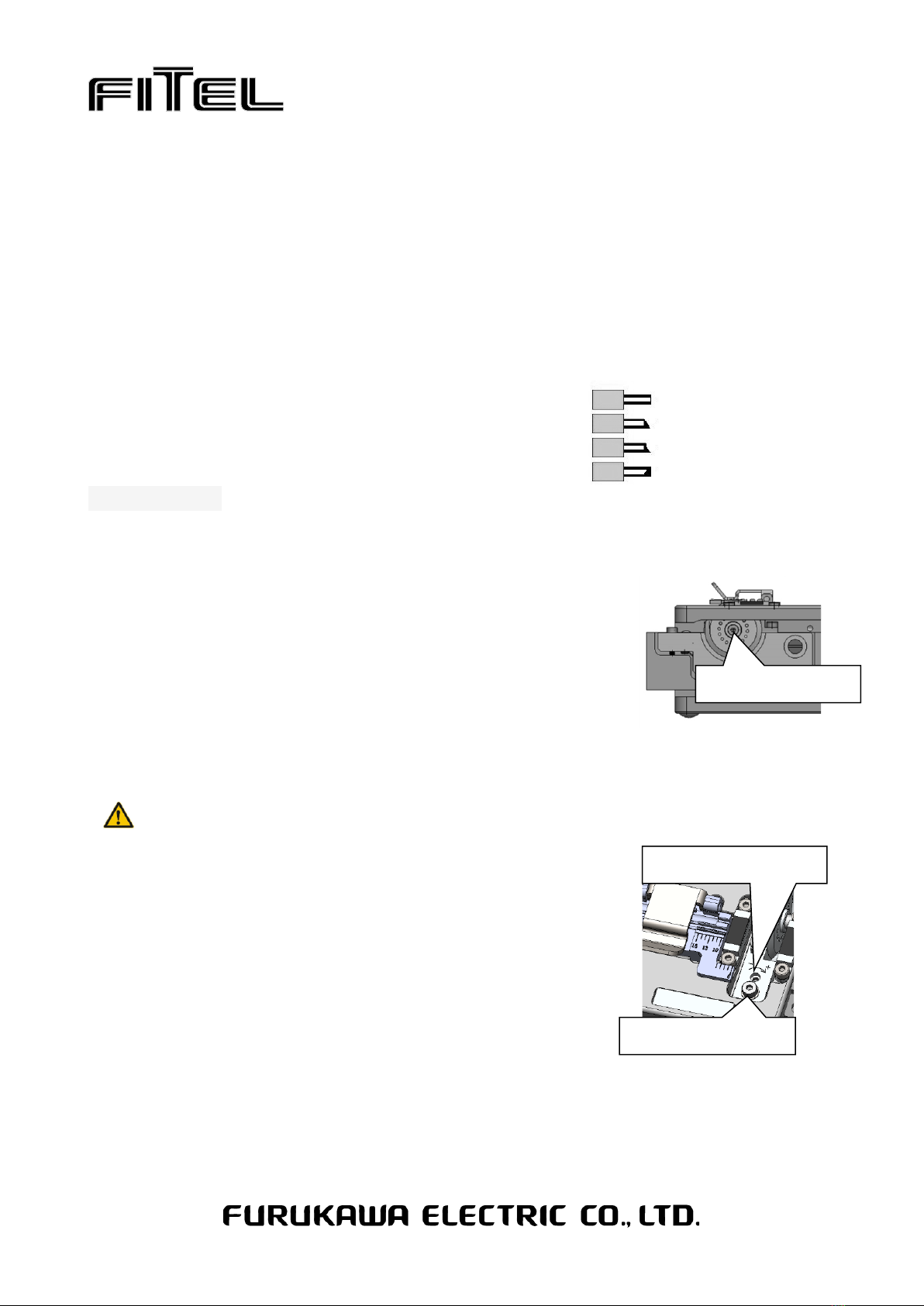

2. The blade adjustment method;
Repeated cutting will wear out the blade and result in a poor cutting surface.
In this case, the height of the blade must be adjusted.
A. Loosen (without removing) the blade locking screw with a wrench.
B. Put a cotton swab against the blade, and rotate the blade to the next new
blade;
C, Tighten the blade locking screw with a wrench.
D, Try to cut fiber a few times, with the splicer screen to see fiber cutting end face. If end face resembles ‘bad’
image above, please adjust the height of the blade again.
When adjusting the position of the blade, do not use your hand, tweezer, or other metal items to rotate the
blade directly to prevent injury.
3. Blade Height adjustment;
A. Push the slide block to the position when cutting is finished and loosen the
high locking screw.
B. Turn the height adjusting screw a little in the desired direction and re-lock
as needed. Turn it up clockwise and down counterclockwise.
4. Easy problems and adjustment methods;
A. Unable to cut optical fiber, Angle NG
According to the above-mentioned method of fully adjusted blade, this
problem may be caused by a low blade; please adjust the blade height
according to the above-mentioned method.
B. Cracked fiber, fiber end shadow appears, fiber angle is large.
Blade height may be too high, please adjust the blade height according to the above method.
