Fixstars GigaAccel 180 Manuale utente

IBM PowerXCell™8i Accelerator Board

GigaAccel 180

User’s Manual

Thank you for purchasing GigaAccel 180.

This “GigaAccel 180 User’s Manual” describes how to set up, configure, and

start up the GigaAccel 180.

Included accessories

Please confirm that the following items are included in the package.

(1) GigaAccel 180

(2) Serial cable

(3) Ethernet crossover cable

(4) Yellow Dog Enterprise Linux Install DVD

(For customers who bought the license)

Table of Contents

1 Introduction........................................................................ 1

2 Names of Each Parts ......................................................... 2

2.1 Interfaces...........................................................................................................................2

2.2 LED descriptions...............................................................................................................4

3 Connection of GigaAccel 180 ............................................. 5

3.1 Preparations......................................................................................................................5

3.2 Directions of connection....................................................................................................5

4 Installation of GigaAccel 180 (NFS) ............................... 8

4.1 Preparations......................................................................................................................8

4.2 Disable services.................................................................................................................8

4.3 Network settings...............................................................................................................9

4.4 Prepare to create boot image and disk image..................................................................9

4.5 Installation of necessary services.....................................................................................9

4.6 NFS service settings........................................................................................................10

4.7 DHCP service settings.....................................................................................................10

4.8 TFTP service settings......................................................................................................10

4.9 Restart GigaAccel 180.....................................................................................................11

4.10 Installation of Yellow Dog Enterprise Linux ...............................................................11

4.11 Start up GigaAccel 180 .................................................................................................12

4.12 Network installation of additional packages ...............................................................13

4.13 DVD installation of additional packages .....................................................................15

5 Installing GigaAccel 180 (CIFS)...................................... 17

5.1 Preparations....................................................................................................................17

5.2 Creating new account .....................................................................................................17

5.3 Network settings.............................................................................................................18

5.4 Firewall settings .............................................................................................................20

5.5 Create boot file and file system ......................................................................................20

5.6 Configuration of Folder Sharing ....................................................................................21

5.7 Installation of TFTP Service ..........................................................................................24

5.8 TFTP Service settings.....................................................................................................24

5.9 Installation of Terminal Software ..................................................................................26

5.10 Start up Terminal Software..........................................................................................26

5.11 Start up GigaAccel 180 .................................................................................................27

5.12 Network installation of additional packages ...............................................................28

5.13 DVD installation of additional packages .....................................................................30

6 Upgrading YDEL ............................................................. 31

7 Start Up PCI Express Driver (for Linux host)................ 32

7.1 PCI Express driver overview..........................................................................................32

7.2 Host machine set up......................................................................................................32

7.3 Start up PCI Express......................................................................................................33

7.4 Stop PCI Express driver .................................................................................................33

7.5 Reset PCI Express driver ...............................................................................................33

Appendix A – Installing GigaAccel 180 (Fedora7)................ 34

A.1 Preparations ...................................................................................................................34

A.2 Host settings...................................................................................................................34

A.3 Network settings ............................................................................................................35

A.4 Installation of necessary services ..................................................................................35

A.5 Prepare disk image.........................................................................................................35

A.6 NFS service settings .......................................................................................................36

A.7 Prepare the boot image ..................................................................................................36

A.8 DHCP service settings ....................................................................................................36

A.9 TFTP service settings .....................................................................................................37

A.10 Start up GigaAccel 180 ................................................................................................38

Appendix B – GigaAccel 180 Specifications ......................... 39

Appendix C – Using Serial Console ...................................... 41

Appendix D – Common Console Commands ........................ 42

Appendix E – Troubleshooting.............................................. 43

E.1 Connection troubleshooting ...........................................................................................43

E.2 Start up troubleshooting ................................................................................................43

E.3 Operational troubleshooting ..........................................................................................44

E.4 Console screen errors .....................................................................................................44

1 Introduction

GigaAccel 180 is an accelerator board based on IBM’s PowerXCell 8i

processor. The board has 4GB of DDR2 SDRAM, two 1 Gigabit Ethernet Ports,

one x16 PCI Express interface, and it can run Linux. This makes it possible to

put the vastly superior floating-point calculation capabilities of PowerXCell 8i

on a standard workstation. Since this accelerator board does not have a hard

disk drive, it network boots by obtaining the boot image from the boot server

through a TCP/IP network.

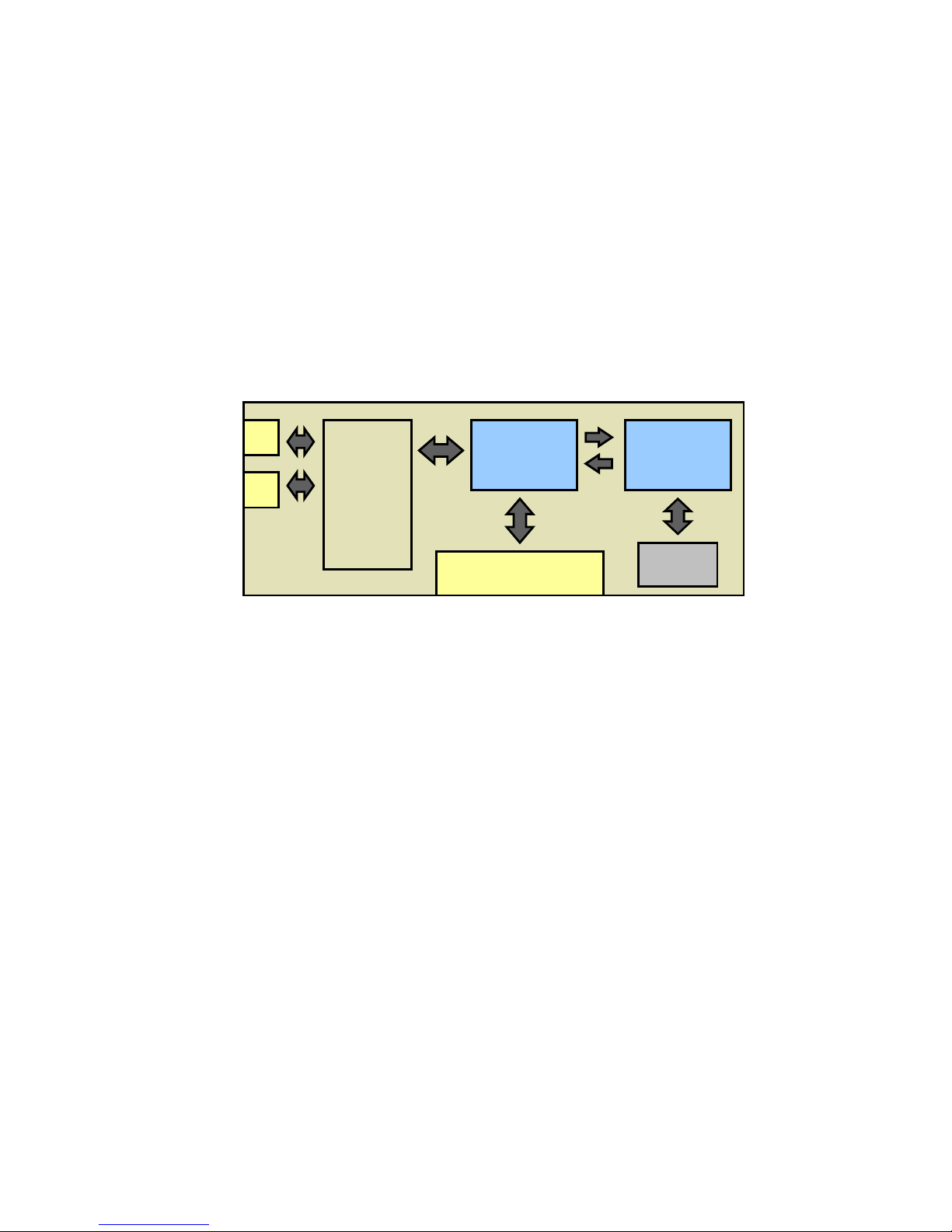

GigaAccel 180 System Block Diagram

GbE

Broadcom

BCM5704

IBM

South bridge

IBM

PowerXCell 8i

PCI-X

DDR2

SDRAM

x16 PCI Express

GbE

Broadcom

BCM5704

IBM

South bridge

IBM

PowerXCell 8i

PCI-X

DDR2

SDRAM

x16 PCI Express

2 Names of Each Parts

2.1 Interfaces

Main interfaces are as follows.

(1) x16 PCI Express: Connector to host machine

eth1

eth0

x16 PCI Express

Power port

Serial Port

eth1

eth0

x16 PCI Express

Power port

Serial Port

(2) eth0, eth1: Network interfaces

eth0 is used for network booting and hard disk mounting.

(3) Power port: Connector for AUX 12V 8-pin

This board is also compatible with 2x3 power connectors, please use the pins

outlined in blue when using a 2x3 connector.

eth1（T2）eth0（T1）eth1（T2）eth0（T1）

Power port (2x4pin)Power port (2x3pin) Power port (2x4pin)Power port (2x3pin)

(4) Serial port (3 pin): RS232C cable connector part

Pins are “T2OUT”, “GND”, and “R2IN” from top to bottom in the picture below.

2.2 LED descriptions

Various LEDs light up on the side of the board with Ethernet ports when

GigaAccel 180 is powered on. These LEDs indicate the current status of GigaAccel

180.

①②③④⑤⑥⑦

(1) eth1 activity light: Turns on or flashes when there is activity.

(2) eth2 link light: Turns on when cable is connected.

(3) eth0 activity light: Turns on or flashes when there is activity.

(4) eth0 link light: Turns on when cable is connected.

(5) Error light (orange light): Turns on when there is hardware error. Check

cable and other parts for interference.

(6) Normal status light (green light)

(7) Normal status light (green light)

Serial portSerial port

3 Connection of GigaAccel 180

This section explains the instructions for connecting GigaAccel 180 onto

the host machine. The target host machine must have a x16 PCI Express

interface (2 slots), and an AUX 12V 6-pin power connector for PCI Express.

3.1 Preparations

Prepare the following cables which are included in the packaging.

ySerial cable

yEthernet crossover cable

If possible, please work by using "Static electricity prevention wristband (SANWA

SUPPLY TK-SE6)" etc. to prevent damage due to static electricity when connecting

GigaAccel 180.

3.2 Directions of connection

(1) Connect the 3-pin end of the serial cable to the board’ serial port. 9-pin side

is put out from an empty slot to the outside of the host machine.

Serial connector(3-pin)

* Connect the marked end to the outside

Serial connector(9-pin)

[Note] If the host machine has no serial port(9-pin side), please connect the serial cable

to the USB port by using USB-serial conversion cable.

(2) Open the computer case, confirm that an x16 PCI Express slot is available,

then remove that slot cover and the slot cover below it.

(3) Insert GigaAccel 180 into the empty x16 PCI Express slot.

x16 PCI Express slot

[Note] PCI-express connectors must be handled with care. If the connector is not

installed firmly on the slot, GigaAccel180 may not function correctly.

(4) Attach the PCI Express AUX 12V 6-pin power connector to GigaAccel 180.

AUX12V 6-pin power connector
