FlexTech X1 Manuale utente

USER’S GUIDE

Preface ...............................................3

Important Information..........................4

Assembly Instructions

Assembly of the Hand Protectors .................5

Assembly of the back wheel cover .................5

Assembly of the Top Case .......................6

First Steps with your new Vehicle ..................7

Guarantee Conditions ...........................5

Engine and Frame Numbers. . . . . . . . . . . . . . . . . . . . . . . 8

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operating Elements

Brake Lever Rear-Wheel Brake ..................10

Left-Hand Combi Switch ....................... 10

Instrument Reading and Indicator Display .........10

Brake Lever Front-Wheel Brake.................. 11

Right-Hand Combi Switch...................... 11

Ignition Lock ............................... 11

Steering Column............................. 11

Gas Handle ................................. 11

Kick Starter ................................12

Fuel Tank ..................................12

Starting the Engine

Starting with Elektric Starter ...................13

Starting with Kick Starter......................13

Reference for Operation, Maintenance and Driving Safety

Running in .................................14

Brakes ....................................14

Tires......................................14

Exhaust ...................................14

Protective Clothing...........................14

Cleaning and Maintenance .....................15

Carburettor, Idling Adjustment..................16

Air Filter...................................16

Battery.................................... 16

Spark Plug ................................. 17

Fuel ...................................... 17

Check Engine Oil............................. 17

Brakes ....................................18

Tires......................................18

Troubleshooting..............................19

Technical Specifications . . . . . . . . . . . . . . . . . . . . .20 - 21

Electric Scheme ..............................22

Inspection and Maintenance Plan .................25

Service Intervals .............................26

Table of Contents

Flex Tech X1 – USER’S GUIDE

Preface

Welcome to the Club of FlexTech X1 drivers. We are sure that you will have a lot of fun with and enjoy your new engine

scooter.

This manual provides you with an overview on the function, maintenance, servicing and operation of your new vehicle.

Please read it carefully. Please follow the instructions exactly, in order to guarantee a long service life to your engine scooter

and enable you a safe way of driving.

Absolutely observe the running in instructions, as they help you avoid damages to your vehicle and considerably increase

the service life of your vehicle.

All specifications are based on the technical status at the time of printing. Modifications and additions can have been

carried out since then and do not find any mention therefore.

You will find a current version at our website under www.flex-tech.info.

You will find a list of the authorized repair shops in your proximity in the accompanying document “Spare Parts Overview /

Authorized Repair Shops” or at our website.

We would like to assist you in case of questions or problems.

Telephone: 0 180 5 / 88 08 08

(per minute 0.14 Euro from the network of the Dt. Telekom AG)

Email: service@flex-tech.info

Internet: www.flex-tech.info

Status: 08-2007

Competition!

Please send us back the filled in full guarantee coupon immediately after purchase! Among all replies, which reach us 14

days after the purchase date, valuable prizes will be drawn every month. Helmets, scooter garages, free inspections and

many other fantastic prizes area waiting for you. With a little luck, you are the winner!

The winners are informed in writing. Legal action is excluded.

Flex Tech X1 – USER’S GUIDE

• The road traffic regulations must be carefully followed at

any time.

• When using this vehicle, make sure you carry the follow-

ing cards and documents with yourself:

- identity card

- third-party insurance

- number plate

- registration book

• The scooter is designed for the operation with driver and

co-driver for use in road traffic.

• The vehicle is permitted for the general road traffic and

may be moved with the driving licences of the classes B,

M, A1, A, in the official road traffic.

• The not-as-agreed use of the vehicle results in the expira-

tion of the guarantee.

• All interventions for increase of the cubic capacity, the

performance, speed and which in general lead to the

modification of the scooter characteristics, are punish-

able and are pursued by law. They lead to the expiration

of the guarantee. To the punishments belong the collec-

tion of the scooter, a new driving test by the responsible

authorities and/or the new-car registration.

• The change or modification of the number plate carrier,

the illumination sets, acoustic displays and of the rear

mirror are punishable and lead to the expiration of the

guarantee and the insurance coverage.

• The modification of the vehicle frame number is punish-

able in the criminal and administrative sector, and the

owner will be made liable.

• The basic vehicle numbers of the scooter are

the following:

- frame number

- engine number

- number plate

• Please note down at once the basic vehicle numbers in

the accompanying document "Spare Parts Overview / Au-

thorized Repair Shops" and in this manual on page 8, as

well as on the rear page of the cover. Then you may be

looked after faster in the case of service.

Important Information

Flex Tech X1 – USER’S GUIDE

Hand Protectors

Please take hand protectors carefully out of the packing and

assign via the form of the correct scooter side. (The longer

edge is above. Seen from inside, the upper recession shows a

little bit further to the outside).

Carefully insert the protectors into the corresponding groove

and tighten with two screws enclosed (do not fasten too

tightly – risk of fracture). Finished!

Rear Mirror

Please take rear mirrors carefully out of the packing and

assign via the designation on the rear mirror side to the

correct scooter side.

NOTE:

• L = left mirror / R = right mirror

• Both rear mirrors have a right-hand thread!

Carefully screw in clockwise the rear mirrors and adjust the

position. Then fix the lower locknut with the 14 open-end

wrench located in the toolkit and pull down the rubber cover.

Finished!

Back Wheel Cover

1) If necessary, unscrew already screwed in sheet steel recess

head screws (3 mm x 10 mm) on the rear side of the upper

back wheel cover.

2) Insert the lower back wheel cover in an angle of about 45

degrees with the groove in the seat of the upper wheel

cover.

3) Push the end of the lower wheel cover down, until it locks

into place.

4) Then fix on the rear side with the two unscrewed or

enclosed sheet steel recess head screws, the lower part

into the rough-drilled borings. (Do not fasten too tight –

risk of fracture). Finished!

Assembly Instruction

4Insert screws

1If necessary,

remove screws

2Place skirt in an angle

of 45 degrees

3Push down, until it

locks into place lower wheel cover

upper wheel

cover

Flex Tech X1 – USER’S GUIDE

Top Case

Parts list:

1) Place the retaining plate on the rack and fix it with the 3

enclosed screws M6x20 and the nuts M6 at the rack.

2) Fix the 4 rubber shock absorbers at the positions provided

of the retaining plate.

3) Place the top case on the retaining plate and fix it with

the remaining 4 screws M6x20 at the retaining plate.

4) Insert the rubber stoppers into the remaining holes at the

top case, in order to prevent humidity to penetrate into

the top case.

5) Place the rubber mat on the floor of the top case.

ATTENTION:

The maximum load on the top case amounts to 3 kg.

rubber stoppers

top case

rack

nut M6

retaining plate

rubber stoppers

washers

screw M6x20

Assembly Instruction

1 x top case

1 x rubber plate

1 x retaining plate

3 x nuts M6

4 x rubber shock absorbers

7 x screws M6x20

4 x rubber stoppers

4 x washers

Flex Tech X1 – USER’S GUIDE

First Steps with your new Vehicle

Before the first operation of your vehicle, please

observe the following steps:

1) The vehicle may only be started with completely up-

ward tilted side stand.

2) Check the tire pressure:

in front 2.0 – at the rear 2.2 bar.

3) Tank only Premium unleaded.

4) Check the vehicle lighting (before each trip)

5) Only drive with an adequate protective clothing. In

Germany, the wearing of a helmet is compulsory for

this vehicle!

6) Observe the inspection intervals on page 26. These

must be met, in order to guarantee a safe way of driv-

ing. Apart from that, they are a basic prerequisite for

the reception of the guarantee.

7) This vehicle is tax-free. You merely need a third-party

insurance for the registration. You will acquire the

latter against production of the vehicle documents at

many banks and insurances.

8) Only use this vehicle on public roads. This vehicle is not

designed for racing or area activities.

Warranty Conditions

• The warranty period is 24 months from the purchase

date.

• In case of commercial use, the warranty period is 12

months from the purchase date.

• The warranty does not include all defects, which can be

explained by outer influences, incorrect use or lacking

maintenance. This incorporates among others defects

caused by falling rocks, oxidation, corrosion, etc.

• Excluded from the warranty are the following items:

- starter worm gear

- driving belt

- exhaust

- battery

- illumination lamps

- brake and gas pull bar

- filter elements

- main stand

- bearings

- friction linings

- tires

- starter pinion Variomatic

- shock absorber

- speedometer drive

- spark plugs

• If you raise guarantee claims, the purchase voucher is to

be produced and the prescribed inspections are to be evi-

denced.

Flex Tech X1 – USER’S GUIDE

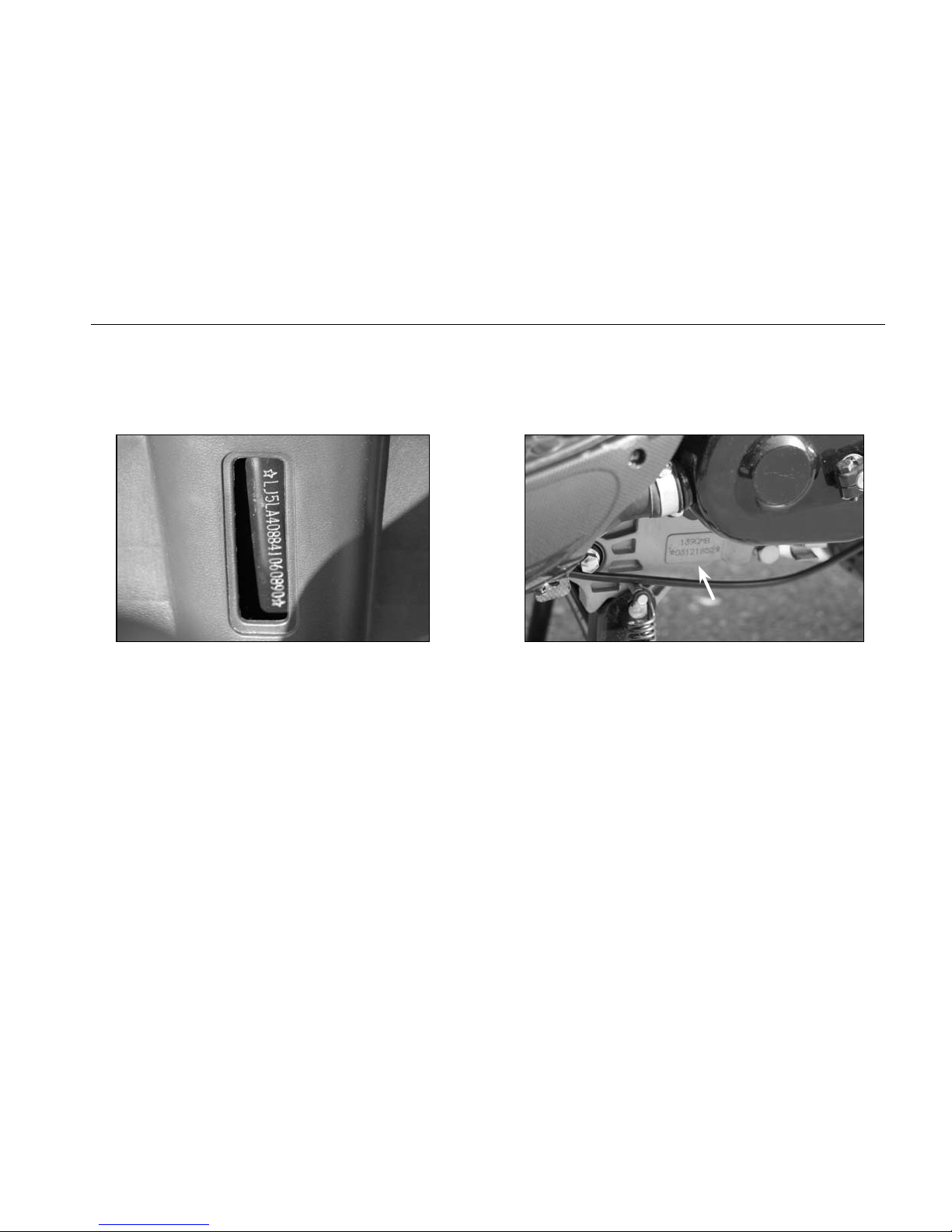

Engine and Frame Numbers

The engine number and frame number is located at the engine or at the frame of your engine scooters according to the fig-

ures. These are required, in order to register your vehicle.

Frame number: ............................................................

Engine number: ...........................................................

Engine number

Flex Tech X1 – USER’S GUIDE

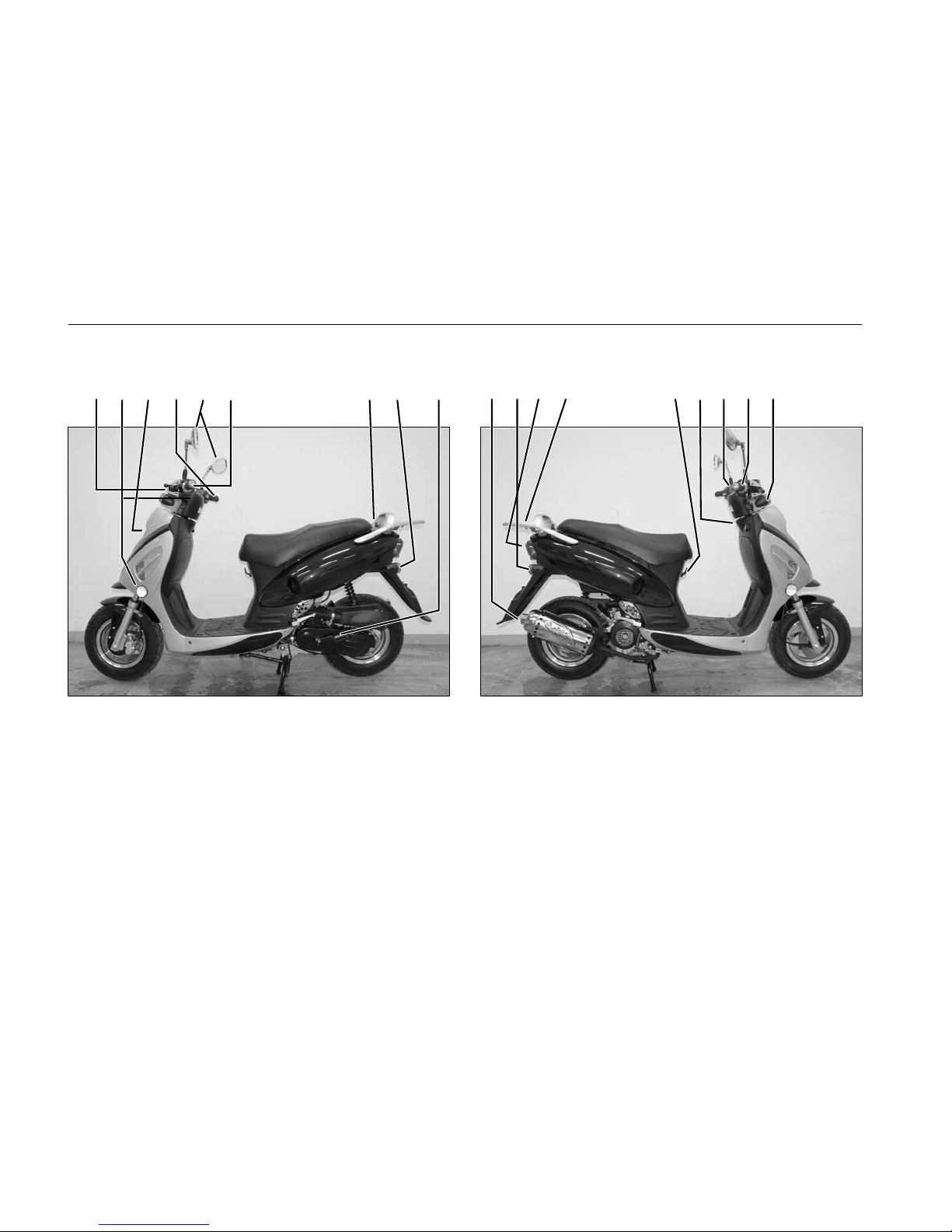

Overview

1 marker light in front

2 side spot

3 headlight

4 brake lever at the rear

5 rear mirror

6 brake lever in front

7 seat lock

8 indicator at the rear left

9 kick starter

10 exhaust

11 indicator at the rear right

12 tail light (stop light)

13 top case sustainer

14 helmet sustainer

15 ignition lock

16 instruments

17 gas handle

18 indicator in front right

 1 2 3 4       

Flex Tech X1 – USER’S GUIDE

Operating Elements

Brake Lever Rear-Wheel Brake

Pull constantly, in order to acti-

vate rear-wheel brake

Left-hand Switch Combination

Ahooter

Bindicator switch left and right

Chigh beam and low beam

Instrument Reading and

Indicator Display

Afuel display

Bspeedometer displays speed in

kilometres per hour

Ckilometres display

Dindicator display

Emain beam display

Ftachometer

F D E C B ABA C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali FlexTech Scooter

FlexTech

FlexTech Topspeed Manuale utente

Manuali Scooter popolari di altre marche

TEKTRO

TEKTRO CHEETAH Manuale utente

Douglas

Douglas Vespa Sprint Guida all'installazione

PLAYTIVE

PLAYTIVE AS-2448 Manuale utente

Ebinger

Ebinger DONKEY XL Manuale utente

Flyer

Flyer Mountain Guida utente

BackCountry eBikes

BackCountry eBikes Storm Manuale utente

equipmed

equipmed FreeRoam II Manuale utente

Yoto

Yoto Lion Manuale utente

WESTHILL BIKES

WESTHILL BIKES LINK Manuale utente

BAnff

BAnff eProdigy series Manuale utente

Winther

Winther 475 Manuale utente

Jetson

Jetson JBZL17 Manuale utente

First Choice Mobility

First Choice Mobility Roma Medical Corella S741 Manuale utente

Carrera

Carrera impel Manuale utente

Afikim

Afikim Superlight SL-3 Manuale utente

CareCo

CareCo ZOOM Manuale utente

Douglas

Douglas Vespa G.S. Manuale utente

Gazelle

Gazelle with BOSCH System Manuale utente
