flexvision LCM641CS Manuale utente
LCM641CS
6.4” Active Matrix Color
TFT-LCD Video Monitor
Audiovox Specialized Applications, LLC
23319 Cooper Dr.
Elkhart, IN 46514
(219) 264-3135
P/N 8033655
Rev.D Nov. 00
Features
Wide Viewing Angle
High Resolution (640 x 480)
High Brightness (300 nit)
Slim Line Housing (1” Deep)
Flat Rear Housing for Easy Surface Mounting
Automatic Video Signal Sensing Turn-On Circuit
Designed and Tested for Automotive use
1
Physical Features
Front View
Rear
2
Power/Video
Connector Recess
Power/Video
Harness Cable
Recess
000001
SN:
QC'd:
LCM-641-CS
Mounting Holes
Typ. (#10 Screw)
6.66"
Viewing Area
Brightness
Control
Switch
5.22"
Package Contents
6.4” TFT LCD Panel 1
Power Connection Harness 1
Power/Video Harness 1
#10 – 5/16” Mounting Screw 4
3
Quantity

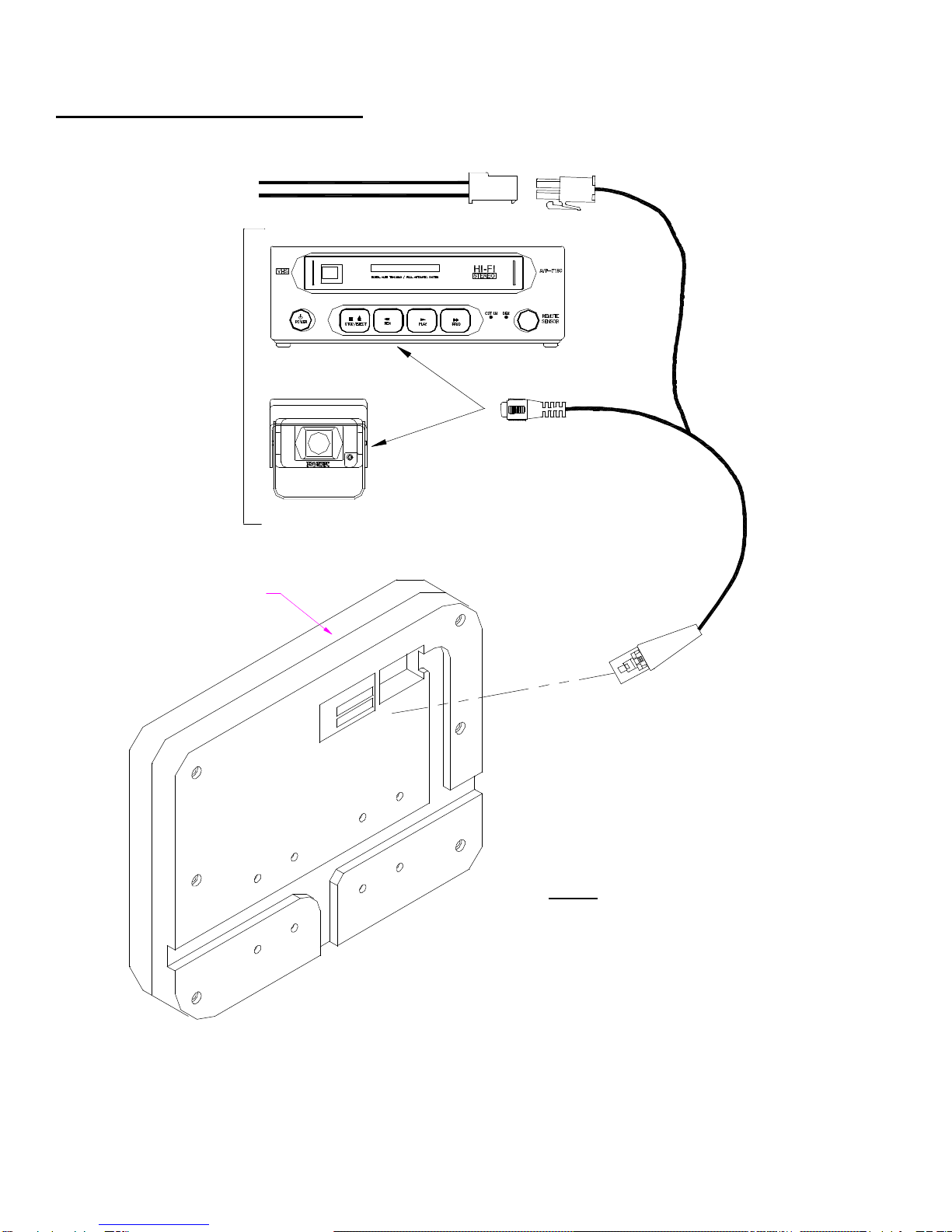

Electrical Connections
4
Video
LCM-641-CS
Camera Model # AOC75
000001
QC'd:
SN:
LCD Assembly
(ISO View)
Separately)
(Available
Accessories
Harness
Power/Video
Video Source
Connect to
VCP Model # AVP7000
Optional
+12V
Ground Power Pigtail
Note: Mounting an on/off switch in
line with the power line is not
necessary. The LCD panel
automatically turns on when a video
signal is supplied and automatically
turns off when the video signal is no
longer supplied.
Mounting Screw Length
A
B
LCM640CS
Housing
Mounting
Surface
Warning
In situations where the included #10 x 5/16”
mounting screws are too short, and other screws
must be used to fasten the LCM640CS housing
to a mounting surface or bracket, the following
formula should be used to determine the proper
screw length.
A= Mounting Surface Thickness
B= 5/16” = Max Screw depth into LCM640CS
Housing
L= Maximum Screw Length
Example: A = Material Thickness = ½”
L = Maximum Screw Length = 5/16” +
½” = 13/16”
Failure to check the screw length using this
method may result in permanent damage to this
product and will not be covered under warranty.
L
≤
5/16” + A
5
L
Mounting
Option #1 – Flat Surface (Stick On)
Option #2 – Flat Surface (Screw Mount)
Option #3 – Cell Phone Mount
Not Included
Self Adhesive Velcro or
Double Sided Tape (Hi –
Strength or Automotive
Grade recommended)
Clean mounting surface
with alcohol prior to
mounting.
(Sold Separately)
Multi- Axis Cell Phone Mount
LCM640CS
Assembly
LCM-641-CS
000001
QC'd:
SN:
#10 X 5/16" Screw
(Qty. 4- Included)
QC'd:
(Rear of LCM641CS Housing)
(Common Cell Phone/Screw Mount)
Mounting Hole Detail
.80 1.47 .80
0.140
Typ.8
1.33
SN:
LCM-641-CS
000001
6
Hole for Cable Routing
(7/16" Dia. Recommended)
LCM641CS
Assembly
Mounting Surface
Power Video
Harness
LCM641CS
Assembly
Hole for Cable Routing
(7/16" Dia. Recommended)
#10 x 5/16"
Screws
(Provided)
Mounting Surface
Power Video
Harness
Optional Accessories – (Available separately)
AOC75 CCD Camera (Black and White)
AVP7000 12 Volt Automotive VCP
Sunshield
HI-FI
STEREO
#10 x 5/16" Screws
(Provided)
LCM640CS
Assembly
Sunshield
P/N 1080641
7
Accessory List
Description Part Number Price
AVT-988 9” Color Television with Remote (12V) AVT988 $320.00
AVT-597 5” Color Television with Remote (12V) AVT597 $320.00
AVT-1498 13” Color Television with Remote (12V) AVT1498 $350.00
AVP-7000 Video Cassette Player (12V) AVP7000 $270.00
BPA-501-12 4 Amp Adapter for use with AVT-988 9” and
AVT-1498 13” Televisions 0891412 $45.00
AC2A- 2 Amp Adapter for use with AVT-597 5” TV and
AVP-7000 Video Cassette Player 0891436 $35.00
Unified Remote Control 0892325 $45.00
VAC-21- 12 Volt Corded Vacuum VAC21 $35.00
AVF-1 12 Volt Rechargeable Flashlight AVF1 $25.00
HP-175 Headphones with Pivoting Ear Cup HP175 $11.75
HP-275 Headphones with Volume Control on Cord HP275 $16.00
HP-375 Studio Quality Headphones HP375 $14.00
Unlike household electronics, all of our products have been specifically designed and tested for the
mobile environment and are only available through ASA. To order any of these products, please
contact Audiovox Specialized Applications at www.asaelectronics.com or 800-688-3135.
*Prices subject to change
