FLINQ GEMINI SET Manuale utente
FLINQ SOLAR LANTERN SET GEMINI
USER MANUAL FQC8207
V1
Thanks for purchasing this FlinQ product!
To ensure continuous operation and accuracy, please read these operating instructions
carefully before use and save this manual for future use. To skip certain procedures may
result in incorrect reading and use. We hope that you will enjoy using your new product!
If by any chance the item is damaged, defective or broken, you are covered with warranty!
Please do not hesitate to contact us for any questions, concerns or suggestions at the email
address as mentioned in this manual.
Safety Information:
Please read this manual thoroughly before using the product! Keep it in hand for future
reference. Warnings alert the user to potential serious outcomes, such as injury or adverse
events to the user. Cautions alert the user to exercise care necessary for the safe and
effective use of the product. Notes contain important information that may be overlooked
or missed.
This solar light is suitable for outdoor use only.
This appliance may be used by children aged 12 and over, and by persons with reduced
physical, sensory or mental capacities or a lack of sufficient experience and/or
knowledge, provided they are supervised or have been trained in the safe use of the
appliance and understand the potential dangers.
Cleaning and maintenance must not be carried out by children without supervision.
Children must not be allowed to play with the appliance.
Keep the packaging material away from children. There is a risk of suffocation!
SPECIFICATIONS:
• Automatic light sensor: Low Lux ON and OFF
• Automatic light ON/OFF: Yes by light sensor
• Work time: 6 ~ 8 Hours max wireless use
• ON/OFF button
• Durable rattan housing: completely corrosion free
• No power needed
• Easy use for table, hanging and ground use
• IP44 waterproof
• High efficiency crystalline solar panel
• Green power
• Battery replacement possible
• Solar charging: Max 8 hrs.
• Protect function: yes, hardware & software
• Kelvin: 3000 °K Warm White
• Lumen: +/- 20Lm
• Power: 2V 40mA solar panel
• Color: Dark Grey/Black
• HP LED: SMD high power LED
• Lifespan: < 25.000 hours
• Solar panel: 2V / 40mA Polycrystalline cells
• Battery: HP Ni-Mh rechargeable battery 1.2V 600mAh AA (replaceable type)
• Dimensions: 165x210mm large size and 150x158mm normal size
• Materials: PE Plastic rattan + PP Plastic keel + ABS plastic candle
• Weight: 460Gr large and 300Gr normal
Read and follow the instructions contained in this manual carefully. Keep these
instructions at a safe place for future reference.
IP 44: Protected against solid objects of 1mm or higher. Protected against splashing
water from all directions. Never immerse this light under water.
The operating life of the product will be less if the ambient temperature is higher than
45°C or lower than -10°C.
MAIN INSTALLATION AND BEST LOCATION POSITION:
NOTE:
During the first use of the product, place the product in a place with sufficient direct sunlight
for first charging at a minimum time for 2 ~ 3 days in the OFF switch position!
When the lamp is in a location that receives less sunlight, it will operate for fewer hours per
night. Night lighting time can also vary depending on how bright the sky is on any given day.
Insufficient charging of the battery will affect performance and may result in the fact that
the lamp goes off before dawn because the battery was not fully charged.
The solar panel is best directed as much as possible towards the south in order to maximize
exposure to direct sunlight. Please note that the four different seasons (and the lightangle in
these 4 different seasons) can affect the lighting time of the lamp. Winter time will make the
solar panel charge the internal battery less than during summer time.
Select a location that is not located close to other light sources, such as for example street
lighting, because this enables the lamp to be switched off automatically.
Maximum lighting time depends on sunlight and daytime charging. Minimum charging time
is 6~8 hours in direct sunlight.
NOTE:
During winter time or when the sunshine duration is short, it is suggested to switch to power
OFF and charge when sunlight is available before power ON again.
• Choose a stable, solid and supportive surface and make sure the lamp is used and faced
towards the direction of the sun (most south location).
• This lamp is intended only for outside use.
Ps. you can try other ways to install it depending on the actual condition. But do not keep the solar
panel upside down in anyway, otherwise it will affect the effect of solar charging at daylight.
NOTE:
If there's sunlight or other lights on the solar panel, the lamp will not be ON even if the
ON/OFF switch has been turned ON. During testing, other object (hand or arm) should be
used to cover the complete solar panel, then the lamp will be ON after turning on the
ON/OFF switch.
OPERATION AND BUTTON MODE USE:
The solar lamp can be turned on or off by the ON/OFF button:
1. LIGHT ON:
Press the ON/OFF button 1x to activate the lamp. The lamp will turn ON automatically at
sunset/night and will go OFF during sunrise/day.
2. LIGHT OFF:
If you press the ON/OFF button again, the lamp is turned OFF completely. The solar cells will
charge the battery without activating the lamp. Leave the lamp in this position for at least 2
or 3 sunny days so the battery can be fully charged before using it or when not in use for
longer period of time’s to protect the battery.
NOTE/WARNINGS:
l When the product will not be used for a long time, please place the product in a place with
sufficient sunlight, with a charging time for at least 1 – 3 days in OFF position. For keeping the
function of the battery, you'd better comprehensively charge the product in a place with sufficient
sunlight every month.
l The charging time and charging efficiency of the solar panel may be affected by the weather and
the installation position. Considering the conversion rate of solar power generation, if the product
is used with good sunny weather conditions, it will gain higher charging efficiency and
effectiveness by the solar panel and its battery.
l When the sun shines or any other lights will be switched on and if the power switch of the solar
lamp is OFF, the LED lamp will not be lightened in day and night time.
l The solar lamp should be installed in the place with sufficient sun light to ensure the solar panel
will absorb sunlight sufficiently, so that the working hours of the solar lamp will be prolonged.
l If snow is on top of the solar panel please remove it at all time’s so the battery can be
charged correctly by the panel.
l This solar light is only used for private use.
SECURITY AND IMPORTANT SAFETY INSTRUCTIONS:
When using electrical products, certain precautions must be followed, including the
following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
This IP44 product is suitable for outdoor use.
Do not install near a gas station or other sources with a similar heating process.
Do not use the product outside its intended use.
Read and follow all instructions that are indicated on the product or supplied with it.
Keep this manual for future reference.
INSTRUCTIONS FOR USE AND MAINTENANCE:
When the product is installed in or to a tree, make sure that it is installed on stable and
maintained branches and sunlight can be received by the solar panel at all times.
When disassembling, carefully remove the product from its location (trees, bushes, etc.) to
avoid any pressure on the Solar Light that could damage the component elements.
In case of non-use, store the product in a cool and dry place away from direct sunlight and
switch to the OFF position.
If snow is on top of the solar panel please remove it at all time’s so the battery can be
charged correctly by the panel.
CAUTION:
• NON-Replaceable LED lights!
TROUBLESHOOTING - TIPS IF THE LIGHT DOES NOT WORK:
Light does not turn on?
• The solar panel is clean (if not, please clean it).
• The solar cell was mounted so that it is able to receive as much as possible direct sunlight
during the day.
• The battery is sufficiently charged (if not, leave for 1~2 sunny days charging in the OFF
position).
Light flashes or low light?
• Weak battery: Let the lamp charge again for 1~2 sunny days (or 3~4 “Ordinary” days) in the
OFF position.

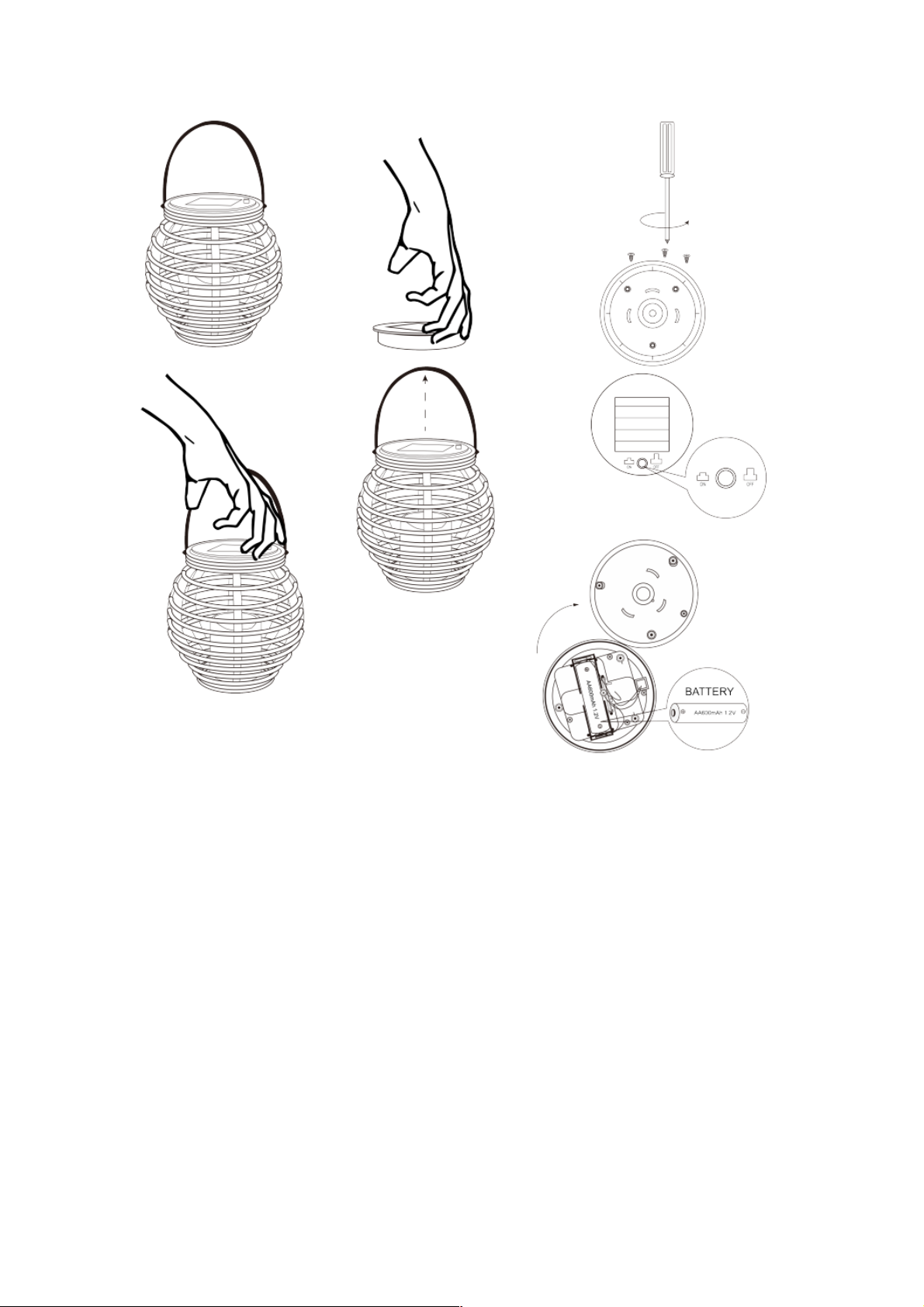

For best results, you need to replace the battery every 24 months. Remove the battery
compartment cover on the top of the housing using a screw driver to remove the screws.
Delete the old battery. Make sure the new battery is rechargeable and is an 1x 3.7V Li-Ion
2200 mAh rechargeable battery also available at www.flinqproducts.nl.
Install the new battery and take care of the proper connection. Close the battery
compartment with the screws and make sure the sealing is done properly.
CLEANING THE LAMP ITSSELF:
※ Make sure the solar panel is kept dust free and clean. Clean it regularly with a dry cloth
and with warm, soapy water. Dirty solar panels may not fully charge the battery. This can
lead to premature aging of the battery and may result in unreliable operation of the device.
※Please do not immerse the main unit in water, it is not waterproof!
※ Wipe gently with a clean soft cloth (microfiber) dampened with water or a mild
detergent.
※ Do not use a strong irritant lotion such as gasoline, alcohol or rubber water.
WASTE ELETRICAL & ELECTRONIC EQUIPMENT:
Disposal Information
Separate collection.
This symbol means the product must not be discarded
with the general household waste. There is a separate
collection system for these products.
WEEE, the waste electrical and electronic equipment directive
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of material
resources. Household user should contact either the retailer where they purchased this
product or their local government office for details of where and how they can take this item
for environmentally safe recycling. Business users should contact their supplier and check
the terms and conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal. Do not dispose of batteries in your household waste.
Dispose of batteries by taking them to your local recycling store or station, contact your local
government office for more details.
DISCLAIMER
Information in this document is subject to change without notice. The manufacturer does
not make any representations or warranties (implied or otherwise) regarding the accuracy
and completeness of this document and shall in no event be liable for any loss of profit or
any commercial damage, including but not limited to special, incidental, consequential or
other damage. No part of this document may be reproduced or transmitted in any form by
any means, electronic or mechanical, including photocopying, recording or information
recording and retrieval systems without the expressed written permission of the
manufacturer. Our company owns all right to this unpublished work and intends to maintain
this work as confidential. Our company may also seek to maintain this work as an
unpublished copyright. This publication is to be used solely for the purpose of reference,
operation, maintenance or repair of our equipment. No part of this can be disseminated for
other purposes. In the event of inadvertent or deliberate publication, our company intends
to enforce its right to this work under copyright laws as a published work. Those having
access to this manual may not copy, disseminate or disclose the information in this work
unless expressly authorized by our company. All information contained in this manual is
believed to be correct. Our company shall not be liable for errors contained herein nor for
incidental or consequential damages in connection with the furnishing, performance, or use
of this material. This publication may refer to information and protected by copyrights or
patents and does not convey any license under the patent rights of our company, nor the
rights of others. Our company does not assume any liability arising out of any infringements
of patents or other rights of third parties described at any time without notice or obligation.
Also, content of the manual is subject to change without prior notice.
Warranty
The warranty begins on the date of purchase and expires after 24 months. The warranty
period is considered to have started three months after the date of manufacturing indicated
on the product or as derived from the serial number of the product. If any defect due to
faulty materials and/or workmanship occurs within the warranty period, we will make
arrangements for service. Where a repair is not possible or is deemed uneconomical we may
agree to replace the product. Replacement will be offered at our discretion and the warranty
will continue from the date of original purchase. The warranty applies provided the product
has been handled properly for its intended use and in accordance with the operating
instructions.
Support, warranty and questions information: [email protected]
Questo manuale è adatto per i seguenti modelli
1
Indice
Lingue:
Altri manuali FLINQ Lanterna
