How to upgrade your FLIR E40 to E60 (Resolution hack)

Step-by-Step Guide:

1Download Flir Tools or drivers from www.flir.com

2Install FLIR Tools on to your computer (If this applies)

3Turn on your Flir E30, E40 or E50 Camera

4Connect your Flir camera to your computer using the USB-Cable, and let windows install the

needed drivers.

5After windows has completed installing all drivers, disconnect your camera from the USB-Cable

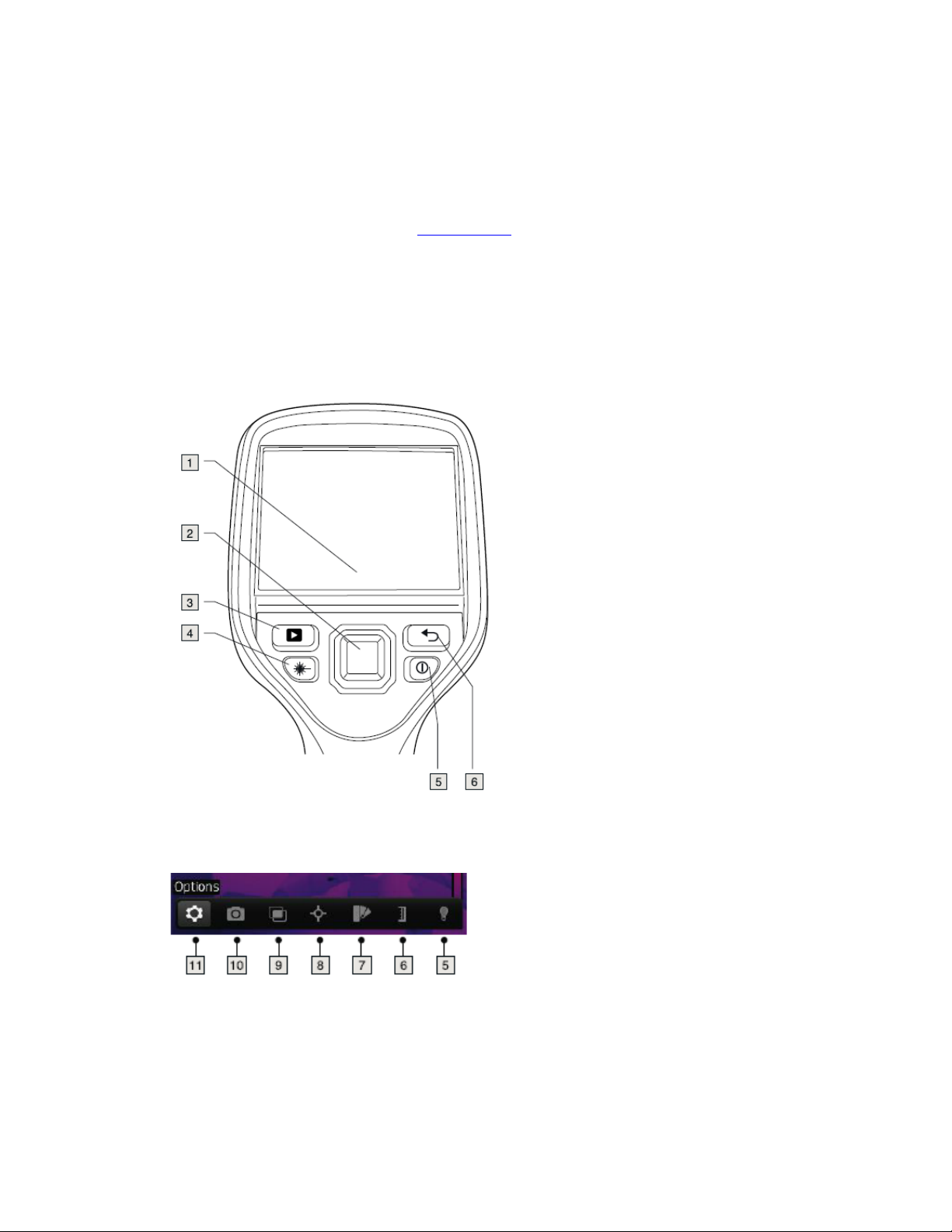

6Press navigation pad/button (2) with a push in the center “The menu system bar will appear”

7From the menu system bar select push left on the navigation pad to toggle to Settings/Options

(11)

8Press navigation pad/button (2) with a push down to enter “ Settings”

9Press navigation pad/button (2) with a push down to scroll down to “ Device settings”

10 Press navigation pad/button (2) with a push right to enter “ Device settings menu”

11 Press navigation pad/button (2) with a push down to scroll down to “ Camera Information”

12 Press navigation pad/button (2) with a push right to enter “ Camera Information menu”

13 Press navigation pad/button (2) with a 10 second push in the center to enter “Hidden menu”

14 Press navigation pad/button (2) with a push right to enter “ USB Mode ”

15 Press navigation pad/button (2) with a push down to scroll down to “RNDIS”

16 Press navigation pad/button (2) with a push down to lock down the selected mode “ RNDIS”
