FLOS F1583006 Manuale utente
REV. 1
DATE 26/07/2021
1

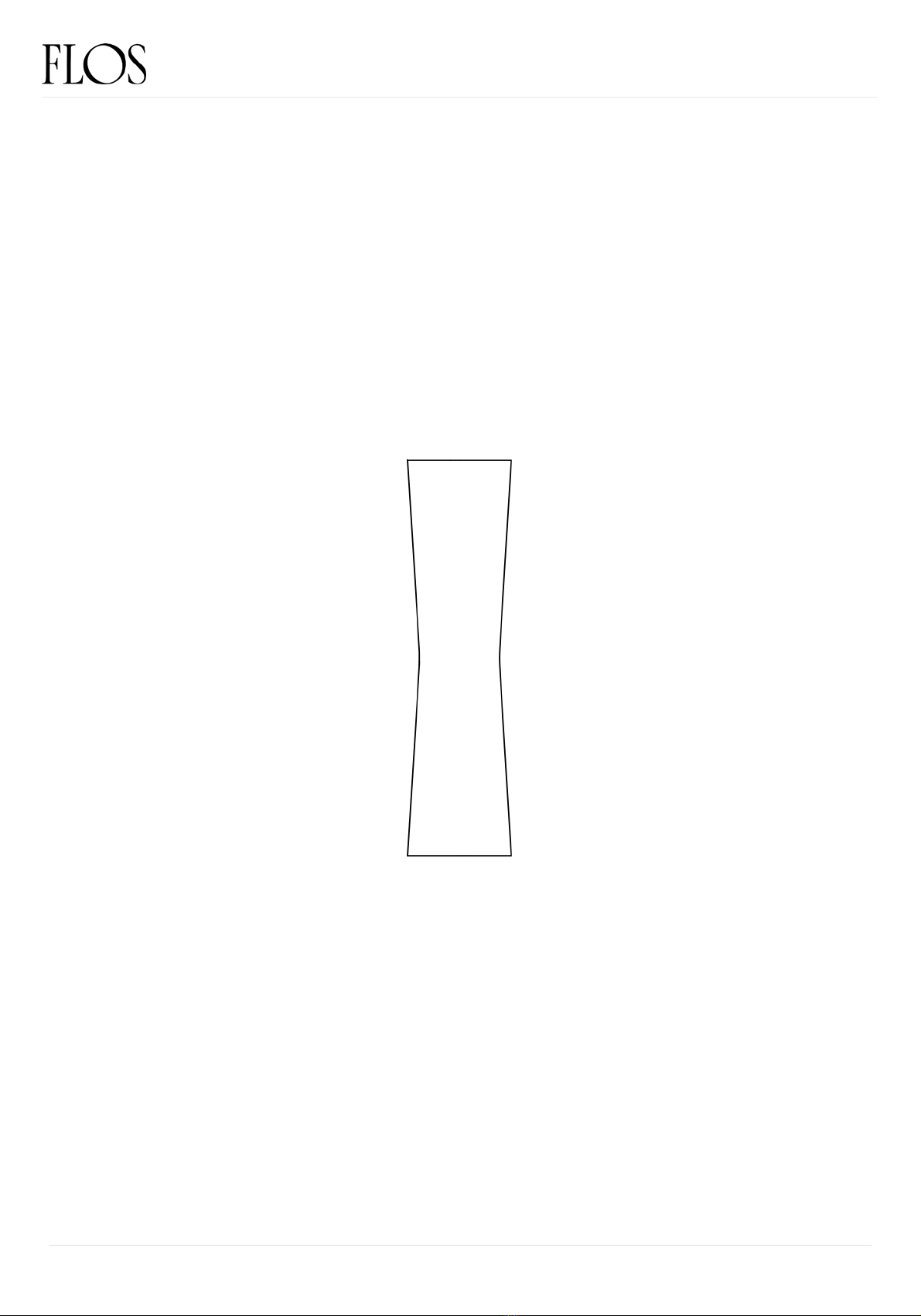

CLESSIDRA OUTDOOR/INDOOR
Designed by Antonio Citterio, 2011
F1583006
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
2
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
01.F1581030
–Wall attachment and internal lamp body 20°+20°
02. F1580006
–Grey external Clessidra lamp body
03. RF1580100
–Screw and tool kit for Clessidra external lamp body
CLESSIDRA OUTDOOR/INDOOR
F1583006
REV. 1
DATE 26/07/2021
EN
3
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
F1581030
WALL ATTACHMENT AND INTERNAL LAMP BODY 20°+20°
CLESSIDRA OUTDOOR/INDOOR
F1583006
REV. 1
DATE 26/07/2021
EN
4
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 26/07/2021
Dismantle the cover (A) unscrewing the screws (B) with the allen key
included.
Fig.1
B
A
F1581030
WALL ATTACHMENT AND INTERNAL LAMP BODY 20°+20°
CLESSIDRA OUTDOOR/INDOOR
F1583006
EN
5
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 26/07/2021
Separate the wall attachment from the (C) body (D) unscrewing the screws
(E).
Fig.2
D
E
F1581030
WALL ATTACHMENT AND INTERNAL LAMP BODY 20°+20°
C
CLESSIDRA OUTDOOR/INDOOR
F1583006
EN
6
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 26/07/2021

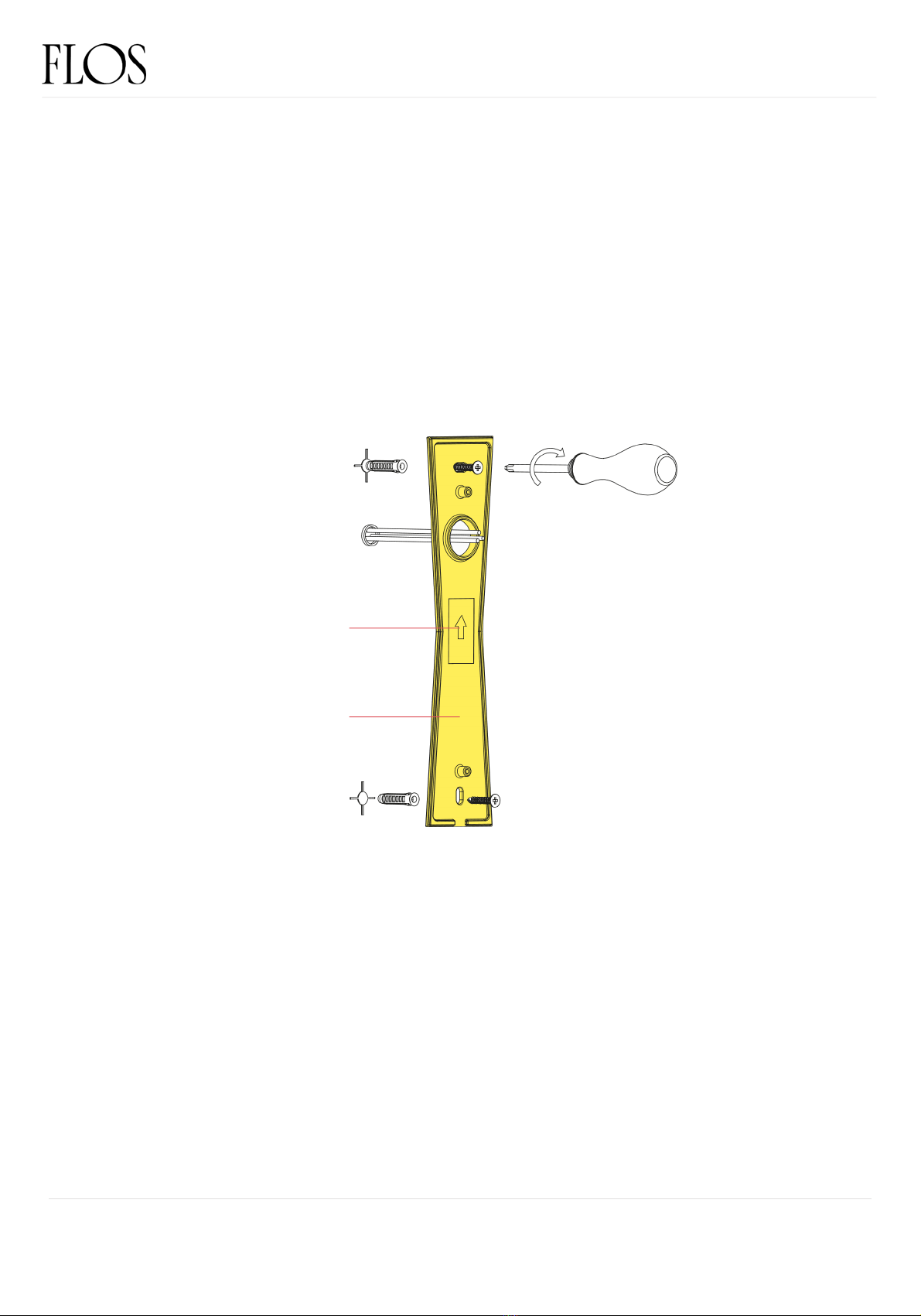

Fix the wall attachment (C) with screws and rawl plugs taking care to put it
the correct way up as indicated by the arrow (F) and passing the power
cables through the correct hole.
NOTE
: Choose screw anchors that are suitable for the surface which shall
be assembled upon.
Fig.3
F
F1581030
WALL ATTACHMENT AND INTERNAL LAMP BODY 20°+20°
C
CLESSIDRA OUTDOOR/INDOOR
F1583006
EN
7
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 26/07/2021
Remount the body (D) onto the wall attachment taking care to pass the
supply cables through the fairlead (G), then make the electrical connections
in the terminal box(H) and to the earth terminal (I).
Fig.4
G
F1581030
WALL ATTACHMENT AND INTERNAL LAMP BODY 20°+20°
HI
D
CLESSIDRA OUTDOOR/INDOOR
F1583006
EN
8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 26/07/2021

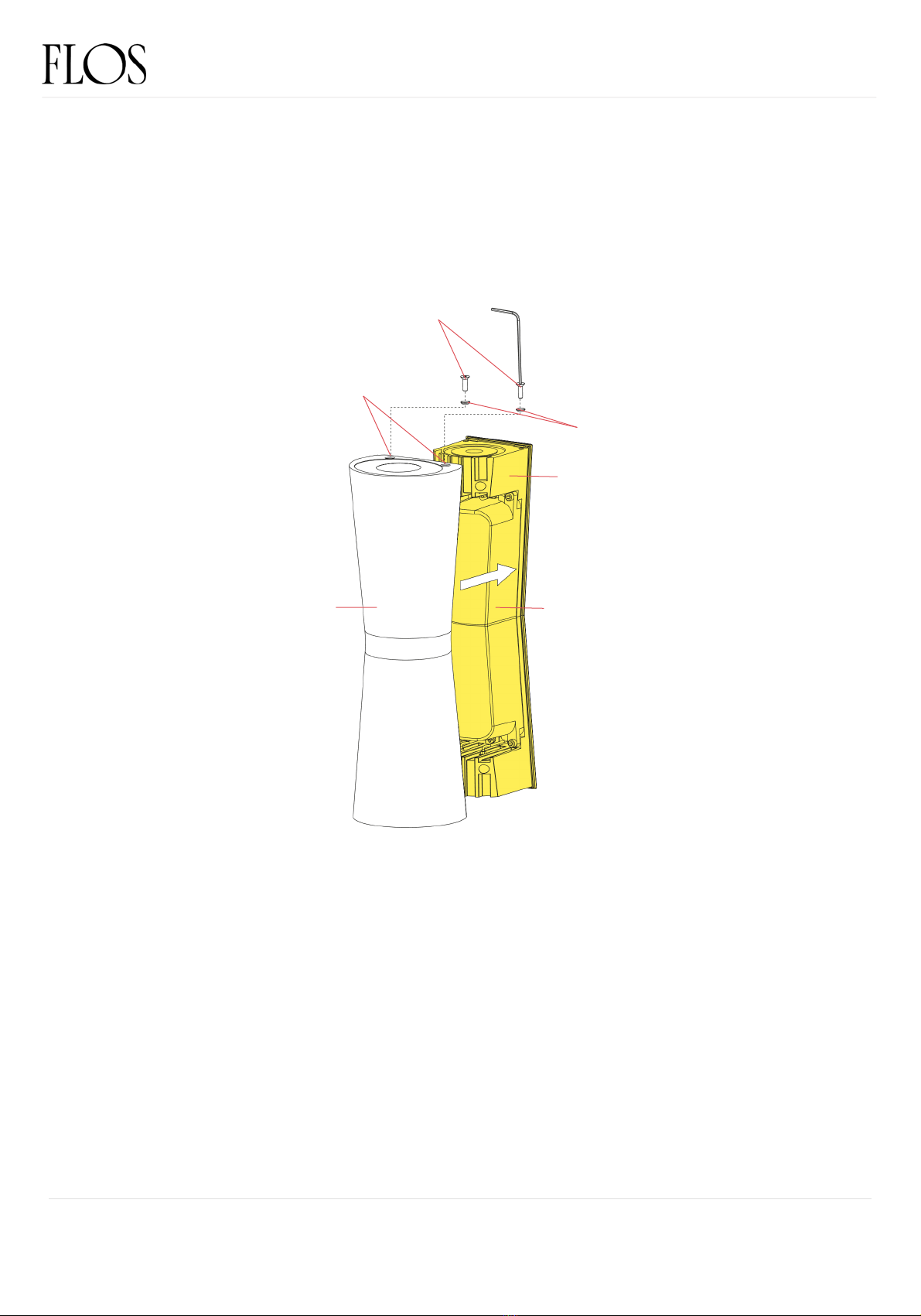

Remount the cover (A); mount the external body (L) onto the internal body
(D) with the screws (M) included taking care to put the washers (N) in the
correct positions. (O).
Fig.5
F1581030
WALL ATTACHMENT AND INTERNAL LAMP BODY 20°+20°
O
L A
D
M
N
CLESSIDRA OUTDOOR/INDOOR
F1583006
9
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN

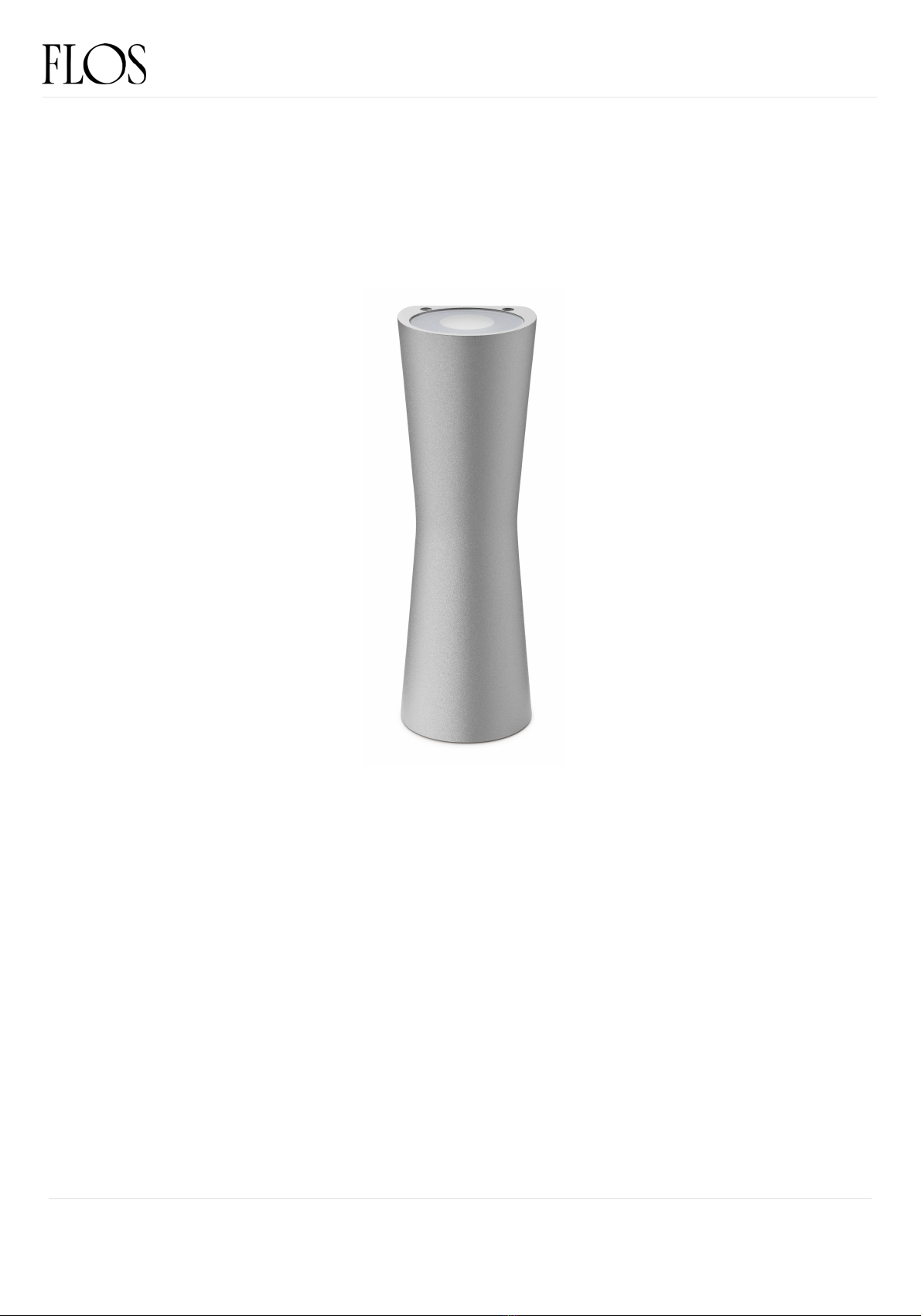

F1580006
GREY EXTERNAL CLESSIDRA LAMP BODY
REV. 1
DATE 26/07/2021
CLESSIDRA OUTDOOR/INDOOR
F1583006
EN
10
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
F1580006
GREY EXTERNAL CLESSIDRA LAMP BODY
REV. 1
DATE 26/07/2021
Assemble the external body (L) onto the internal body (D) with the screws
(M) included ensuring to position the washers (N) in the correct positions
(O).
Fig.1
O
L A
D
M
N
CLESSIDRA OUTDOOR/INDOOR
F1583006
