FlowLine DataView LI55 Manuale utente
Flowline, Inc. | 10500 Humbolt Street, Los Alamitos, CA 90720 LIM6000FL_BX11
p562.598.3015 f562.431.8507 wflowline.com QS301033 Rev C1
LI55 Series Quick Start
DataView™))
Level)Controller
DataView™ LI55 Level Controller Quick Start
|
2QS301033 Rev C1
DISCLAIMER
The information contained in this document is subject to change without notice.
Flowline makes no representations or warranties with respect to the contents
hereof and specifically disclaims any implied warranties of merchantability or
fitness for a particular purpose.
Warning
This product is not recommended for life support applications or
applications where malfunctioning could result in personal injury
or property loss. Anyone using this product for such applications
does so at his/her own risk. Flowline, Inc. shall not be held liable
for damages resulting from such improper use.
REGISTERED TRADEMARKS
All trademarks in this document are the property of its respective owners.
© 2016 Flowline, Inc. All rights reserved. flowline.com
CAUTION: Please read complete
instructions prior to installation and
operation of the controller.
WARNING: Risk of electric shock or
personal injury.
!
WELCOME TO THE DATAVIEW™ QUICK START
The DataView™ Quick Start provides basic setup and use instructions for getting
the LI55 up and running quickly. If you have a non-standard installation or setup
requirement that is not addressed here, please refer to the DataView™ manual or
support documentation at flowline.com.
DataView™ LI55 Level Controller Quick Start
|
QS301033 Rev C13
WE DO YOUR LEVEL BEST™
Thank you for purchasing Dataview™ which is offered in twelve models. The AC
or DC powered general purpose level controller displays level in engineering units
with one 4-20 mA input, and is available with optional 2 or 4 relays, and an
isolated 4-20 mA repeater. Note: Verify the part number of your controller and
follow the instructions accordingly.
Models
85-265 VAC
Part Number
12/24 VDC
Part Number
Options
Installed
Replacement
Part Number•
LI55-1001
LI55-8001
No options
N/A
LI55-1201
LI55-8201
2 relays
LI56-1201
LI55-1011
LI55-8011
4-20 mA repeater
LI56-1011
LI55-1401
LI55-8401
4 relays
LI56-1401
LI55-1211
LI55-8211
2 relays & 4-20 mA repeater
LI56-1211
LI55-1411
LI55-8411
4 relays & 4-20 mA repeater
LI56-1411
* Part number for replacement / expansion cards.
Accessories
Part Number
Description
LI56-1400
4 SPST (Form A) relays
LI56-1000
Controller copy cable
LM91-1002
Single indicator NEMA enclosure
LM91-2002
Two indicator NEMA enclosure
DataView™ LI55 Level Controller Quick Start
|
4QS301033 Rev C1
UNPACKING DATAVIEW™
When unpacking DataView™, inspect for any damage that may have occurred
during shipment. Report any damage, missing parts or malfunctions to your
distributor. Installation is normally done without opening the enclosure that’s
only required when changing the input from current to voltage.
MOUNTING DATAVIEW™
DataView™ is designed for panel installations, located within an instrument panel
or NEMA box enclosure. Follow the below steps to mount the controller.
1. To maintain the NEMA rating, select a panel with a thickness of 0.06”-
0.25” (1.5mm-6.4mm). The minimum thickness for steel panel is 0.06”
(1.5mm) or a plastic panel is 0.16” (4.1mm).
2. Prepare a standard 1/8” DIN cutout of 3.622” (92mm) W x 1.772”
(45mm) H in the panel at the desired mounting location with a minimum
of 6.0” (152mm) of clearance behind the panel for wiring.
3. Remove the two mounting brackets from the controller. To do so, back
off the mounting screws so they protrude ¼” (6.4mm) or less through
the bracket. Then, slide each bracket toward the front of the case and
remove them.
4. From the front side of the panel, insert the controller through the panel
cutout.
5. From the rear side of the panel, reinstall the two mounting brackets on
the controller and tighten the screws against the panel. Note: For a
proper seal, tighten the two mounting screws evenly against the panel
until they are snug. Be careful to not over tighten the brackets.
DataView™ LI55 Level Controller Quick Start
|
QS301033 Rev C15
12 OR 24 VDC SUPPLY VOLTAGE
If you purchased a 12/24 VDC model controller, it was configured for 24 VDC
supply as the factory default. Note: Do not exceed the controller supply voltage
rating. If you wish to reconfigure the controller for 12 VDC supply, follow the
below steps.
1. Remove all connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch to expose the board.
4. Configure the J9 jumper, located behind the power connector for the
desired voltage as shown below.
J9 Configuration
Note: Flowline transmitters require 24 VDC.
DataView™ LI55 Level Controller Quick Start
|
6QS301033 Rev C1
TRANSMITTER SUPPLY VOLTAGE (P+, P-)
DataView™ is factory configured to provide 24 VDC power to the sensor. If your
sensor requires 5 or 10 VDC excitation, follow the below steps to reconfigure the
J4 internal jumper accordingly.
1. Remove all connectors.
2. Unscrew the back cover.
3. Slide the back cover about 1 inch to expose the board.
4. Configure the J4 jumper, located behind the input signal connector for the
desired voltage as shown below.
Note: Flowline transmitters require 24 VDC.
DataView™ LI55 Level Controller Quick Start
|
QS301033 Rev C17
WIRING DATAVIEW™
All wiring connections are made by attaching wires onto removable screw
terminal connectors located at the rear of DataView™. Note: Copper wire with
60°C or 60/75°C insulation should be used for all line voltage connections, while
observing all safety regulations. Electrical wiring should be performed in
accordance with all applicable national, state, and local codes to prevent
damage to the controller and ensure personnel safety.
The connector label shows the function of each of the connections, such as
POWER, RELAY and SIGNAL. The RJ-45 M-LINK connection is intended for
Flowline expansion modules, cables and meters only. Any other use of the RJ-45
connection may damage DataView™ and connected equipment. The different
types of connections are explained on the following pages.
DataView™ LI55 Level Controller Quick Start
|
8QS301033 Rev C1
Power Connection
The power source is connected to DataView™ through the two-terminal
connector labeled POWER. DataView™ will operate regardless of the polarity
connection. The + and - symbols are only a suggested wiring convention.
Signal Connections
The sensor is connected to DataView™ through the six-terminal connector
labeled SIGNAL. The COM (common) terminal is the return for the 4-20 mA and
the ±10V input signals. Note: Most Flowline level sensors require 2 or 3-wire, 4-
20 mA signal connections.
!
Refer to the part number on the product label and
confirm the power requirements for your model.
●
LI55-1_ _1 operates on 95 to 265 VAC, 50-60 Hz.
●
LI55-8_ _1 operates on 12 to 24 VDC.
DataView™ LI55 Level Controller Quick Start
|
QS301033 Rev C19
Current Input Connection
Below are examples of typical wiring connections for current sensor inputs. There
are no switches or jumpers to set for current inputs. Note: The input is protected
against overload by a resettable fuse. The display may or may not show a fault
condition depending on the nature of the overload. The fuse limits the current
to a safe level when it detects a fault condition, and automatically resets itself
when the fault condition is removed.
INPUT SIGNAL
INPUT SIGNAL
2-Wire
Sensor Connection
3-Wire
Sensor Connection
INPUT SIGNAL
INPUT SIGNAL
Externally-Powered
2-Wire Sensor Connection
Self-Powered
2-Wire Sensor Connection
DataView™ LI55 Level Controller Quick Start
|
10 QS301033 Rev C1

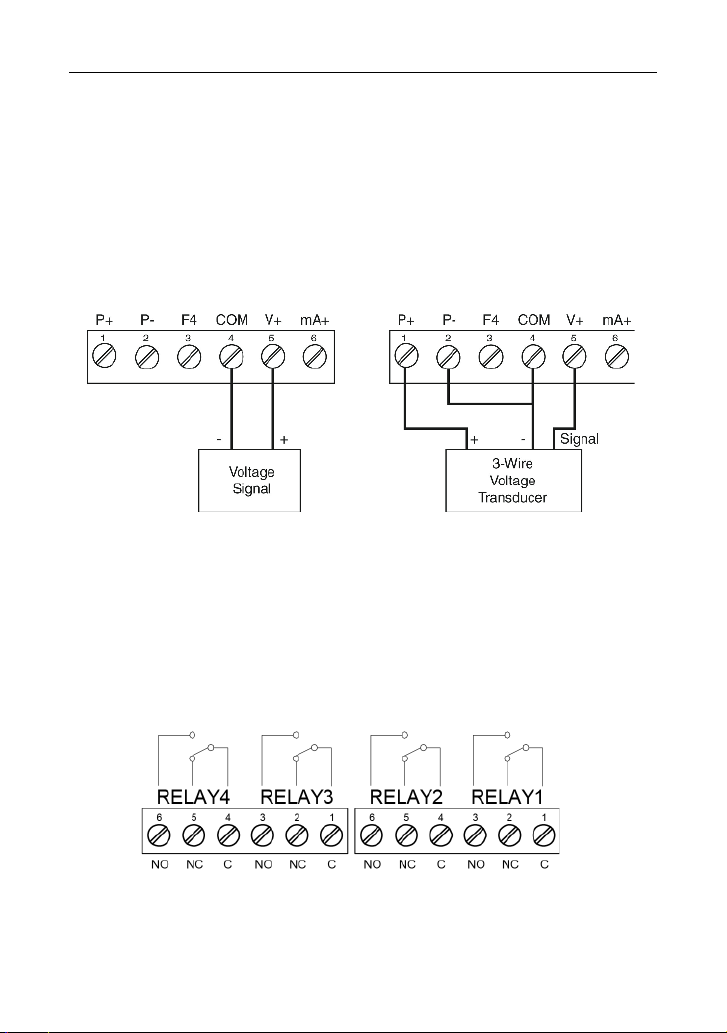

Voltage Input Connection
Below are examples of typical wiring connections for voltage sensor inputs.
Note: See the Transmitter Supply Voltage section for optional jumper settings
associated with voltage inputs. The input is protected against overload by a
resettable fuse. The display may or may not show a fault condition depending
on the nature of the overload. The fuse limits the voltage to a safe level when it
detects a fault condition, and automatically resets itself when the fault
condition is removed.
INPUT SIGNAL
INPUT SIGNAL
Relay Connection
Relay connections are made through two six-terminal connectors labeled
RELAY1-RELAY4. Each relay "C" terminal is common only to the normally
open ("NO") and normally closed ("NC") contacts of the corresponding relay.
Note: The relay "C" terminals should not be confused with the COM
(common) terminal of the INPUT SIGNAL connector.
