SimpliFiber®Pro

Singlemode Optical Power Source

Instruction Sheet

The SimpliFiber®Pro Singlemode Optical Power Source provides

optical power at 1310 nm and 1550 nm. The source is used with an

optical power meter for testing singlemode fiber optic cable.

The source comes with the following:

•

2 AA alkaline batteries

•

Instruction Sheet

If something is damaged or missing, contact the place of

purchase immediately.

Safety Information

WWarning: Class 1 Laser*

To avoid possible eye damage caused by hazardous

radiation:

•

Never look directly into optical connectors. Some

sources produce invisible radiation that can

permanently damage your eyes.

•

Never turn on the source unless a fiber is attached to

the port.

•

Do not use magnification to view the optical outputs

without proper filtering.

•

Use of controls, adjustments, or procedures not

stated herein might result in hazardous radiation

exposure.

WCaution

To avoid damaging fiber connectors, to avoid data

loss, and to ensure maximum accuracy of test results:

•

Use proper cleaning procedures to clean all fiber

connectors before every use. Neglecting this step or

using improper procedures can cause unreliable test

results and may permanently damage the

connectors.

•

Cover all connectors with protective caps when not

in use.

•

Never connect the source to an active network.

Doing so can disrupt network operations.

•

After you turn on the source, let it warm up for 10

minutes before use. Allow additional time if the

source has been stored above or below ambient

temperature.

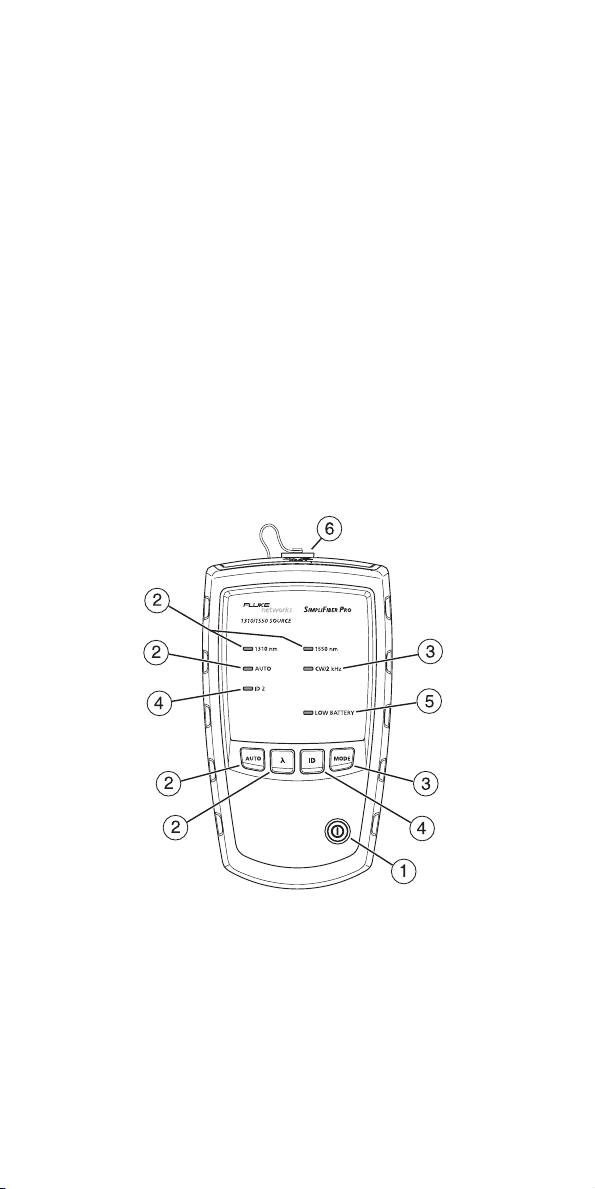

Features

fft01.eps

X: On/off key.

A: Selects auto wavelength mode, which is used with a

SimpliFiber Pro meter. The AUTO LED lights. The source’s

signal includes an identifier that tells the SimpliFiber Pro

meter which wavelength to measure.

Press Zto change the wavelength. The wavelength LEDs

indicate the wavelength.

M: Switches between continuous wave and 2 kHz modulated

output signals.

•

Use continuous wave mode (CW/2 kHz LED on steady) for

making loss or power measurements with a meter other

than a SimpliFiber Pro meter.

•

Use the 2 kHz modulated output mode (CW/2 kHz LED

blinking) if locating fibers with a meter other than a

SimpliFiber Pro meter.

Also enables or disables auto power-off. See "Auto Power-

Off".

I: Selects FindFiber mode, which is used with a SimpliFiber

Pro meter to help you quickly identify link connections at

patch panels. The ID 2 LED lights if the source is in FindFiber

mode.

The LOW BATTERY LED blinks continuously if the battery is

low. The LED blinks occasionally if auto power-off is disabled.

See "Auto Power-Off".

Output port with SC adapter.

Battery Installation, Life, and Status

fft02.eps

•

The batteries last for about 30 hours of typical use. See the

specifications.

•

Replace the batteries if the LOW BATTERY LED blinks

continuously. The LED blinks occasionally if auto power-off is

disabled. See "Auto Power-Off".

IEC LR6

NEDA 15A

Note: Fluke Networks recommends alkaline batteries.

Auto Power-Off

If auto power-off is enabled, the source turns off after 30 minutes

if no keys are pressed.

To disable or enable auto power-off, hold down Mfor 4 seconds.

•

If auto power-off is enabled, all LEDs turn on for 3 seconds.

•

If auto power-off is disabled, all LEDs blink for 3 seconds and

the LOW BATTERY LED blinks occasionally.

Registration

Registering your product with Fluke Networks gives you access to

valuable information on product updates, troubleshooting tips,

and other support services. To register, fill out the online

registration form on the Fluke Networks website at

www.flukenetworks.com/registration.

Contacting Fluke Networks

www.flukenetworks.com

[email protected]

+1-425-446-4519

•

Australia: 61 (2) 8850-3333 or 61 (3) 9329-0244

•

Beijing: 86 (10) 6512-3435

•

Brazil: 11 3759 7600

•

Canada: 1-800-363-5853

•

Europe: +44-(0)1923-281-300

•

Hong Kong: 852 2721-3228

•

Japan: 03-3434-0510

•

Korea: 82 2 539-6311

•

Singapore: 65 6799-5566

•

Taiwan: (886) 2-227-83199

•

USA: 1-800-283-5853

Visit our website for a complete list of phone numbers.

Accessories

Visit the Fluke Networks website at www.flukenetworks.com for

a complete list of fiber test equipment and accessories.

Specifications

Operating temperature -10ºC to +50ºC

Storage temperature -20ºC to +50ºC

Emitter type FP laser: dual 1310 nm/1550 nm

Central wavelength 1310 nm, 1550 nm

Wavelength accuracy 1310 nm: ±20 nm

1550 nm: ±30 nm

Spectral bandwidth (RMS) 1310 nm: 2 nm (maximum)

1550 nm: 3 nm (maximum)

Minimum output power 1310/1550 nm: ≥ -7 dB (typical)

Power output stability1±0.25 dB over 8 hours

Auto dual-wavelength

switching

Yes. Can be enabled or disabled

by the user.

Optical connector Fixed SC

FindFiber ID generation Yes. Fixed at ID 2.

Output modes CW (continuous wave), 2 kHz

modulated, auto-wavelength

Power requirement 2 AA alkaline batteries

Battery life230 hours (typical)

Automatic power-off 30 minutes (can be disabled by

the user)

Low battery warning Blinking LED

Size 5.6inx3.2inx1.6in

(14.2 cm x 8.1 cm x 4.1 cm)

Weight 9.8 oz (278 g)

1. 23°C ±2°C, after 5 minutes of warm-up time.

2. In auto-wavelength mode. Battery life depends on the condition

and type of batteries used. Fluke Networks recommends alkaline

batteries.

LIMITED WARRANTY AND LIMITATION OF LIABILITY

Fluke Networks mainframe products will be free from defects in

material and workmanship for one year from the date of

purchase. Parts, accessories, product repairs and services are

warranted for 90 days, unless otherwise stated. Ni-Cad, Ni-MH and

Li-Ion batteries, cables or other peripherals are all considered parts

or accessories.

This warranty does not cover damage from accident, neglect,

misuse, alteration, contamination, or abnormal conditions of

operation or handling. Resellers are not authorized to extend any

other warranty on Fluke Networks’ behalf. To obtain service

during the warranty period, contact your nearest Fluke Networks

authorized service center to obtain return authorization

information, then send your defective product to that Service

Center with a description of the problem.

THIS WARRANTY IS YOUR ONLY REMEDY. NO OTHER

WARRANTIES, SUCH AS FITNESS FOR A PARTICULAR PURPOSE,

ARE EXPRESSED OR IMPLIED. FLUKE NETWORKS IS NOT LIABLE

FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES OR LOSSES, ARISING FROM ANY CAUSE OR THEORY.

Since some states or countries do not allow the exclusion or

limitation of an implied warranty or of incidental or consequential

damages, this limitation of liability may not apply to you.

4/04

PListed by the Canadian Standards Association

;Conforms to relevant Australian standards

)Conforms to relevant European Union directives

Laser

safety

Complies with 21CFR.1040.10,11, and EN60825-1,

2:2007 (Class 1, Hazard Level 1)

Fluke Networks

PO Box 777

Everett, WA 98206-0777

USA
