Fly Fly Hobby VIPER JET FF-J005 Guida all'installazione
Flyfly hobby New VIPER JET FF-J005
86” 12kg ViperjetARF
Assembly instructions manual
______________________________________________________________________________________________________
Length: 78.5" (2000mm)
Wingspan: 86"(2200mm)included winglets
Dry weight: 10kg to 12kg
Power: 8 to 12kg thrust
Radio: min. 8 ~ 12 Servos required
Section 1:
Assembling the Fin & Rudder

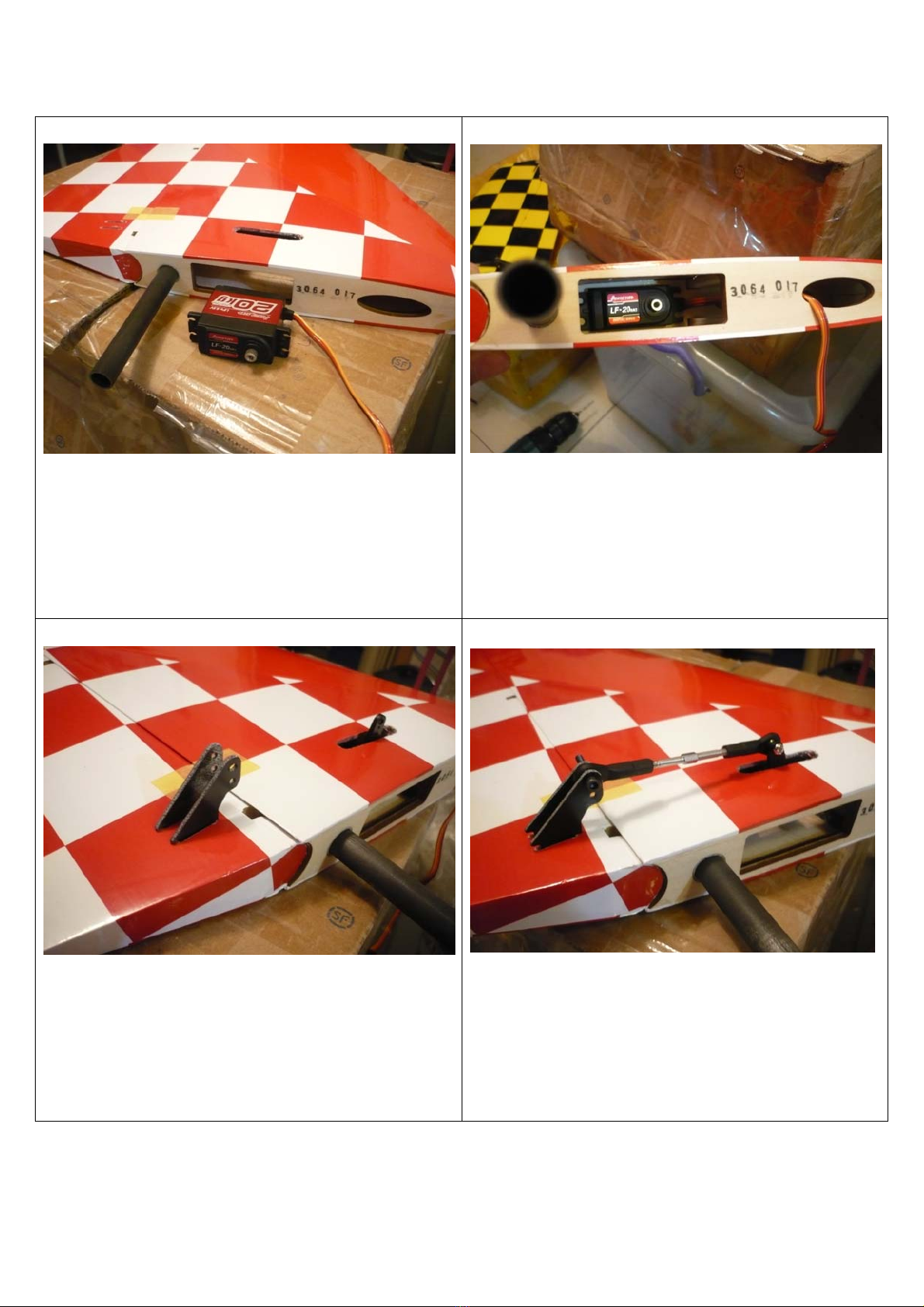

Install the servo for rudder
Highly recommended use a 17kg or above
high torque metal gear servo
Use epoxy to glue the rudder control horns
Connect the linkage with servo horn
Use 3mm screw with lock nut
Section 2:

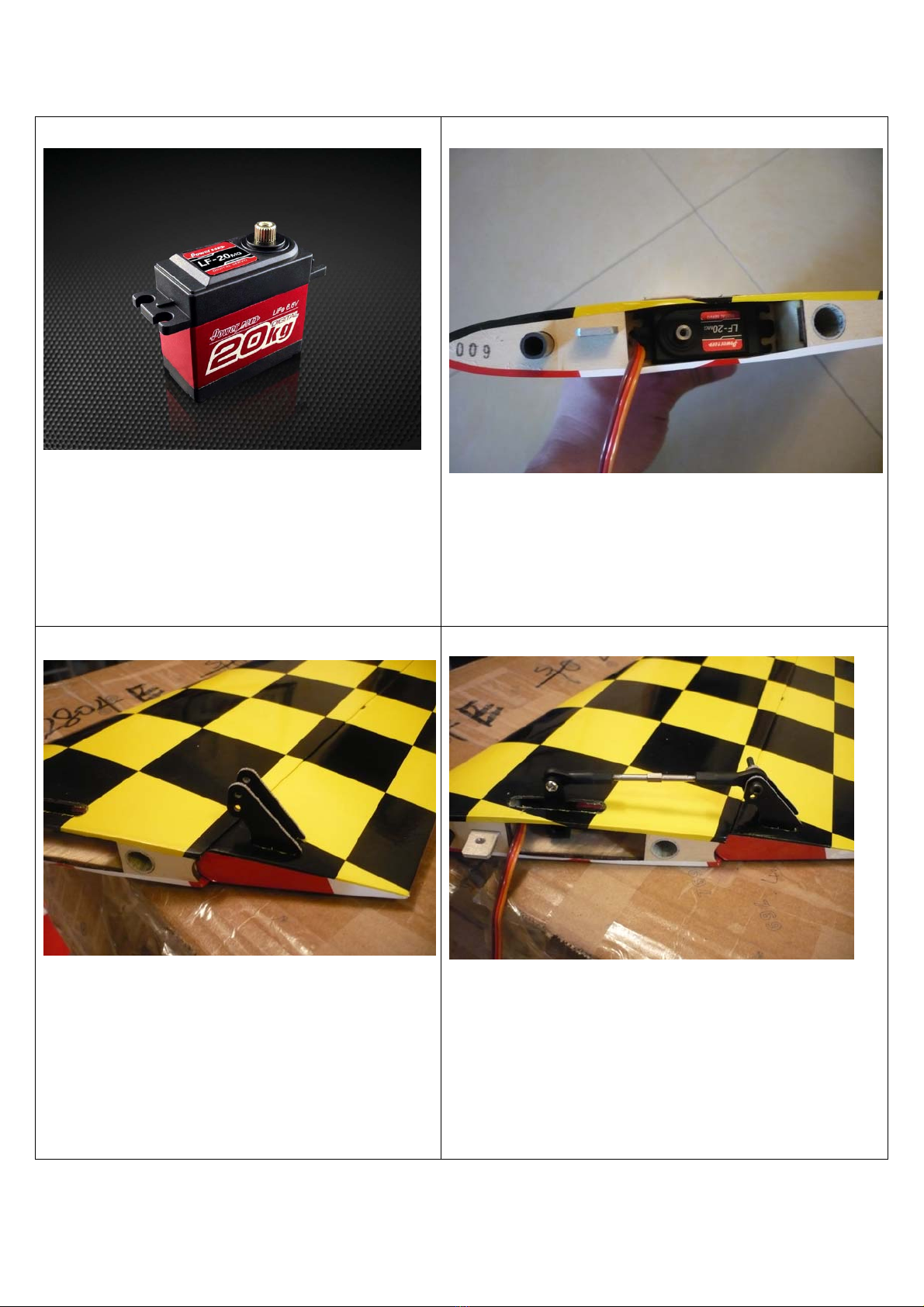

Assembling the elevators
Install the servo for elevators
Highly recommended use a 17kg or above
high torque metal gear servo
Use epoxy to glue the elevator control horns
Connect the linkage with servo horn
Use 3mm screw with lock nut
Section 3:

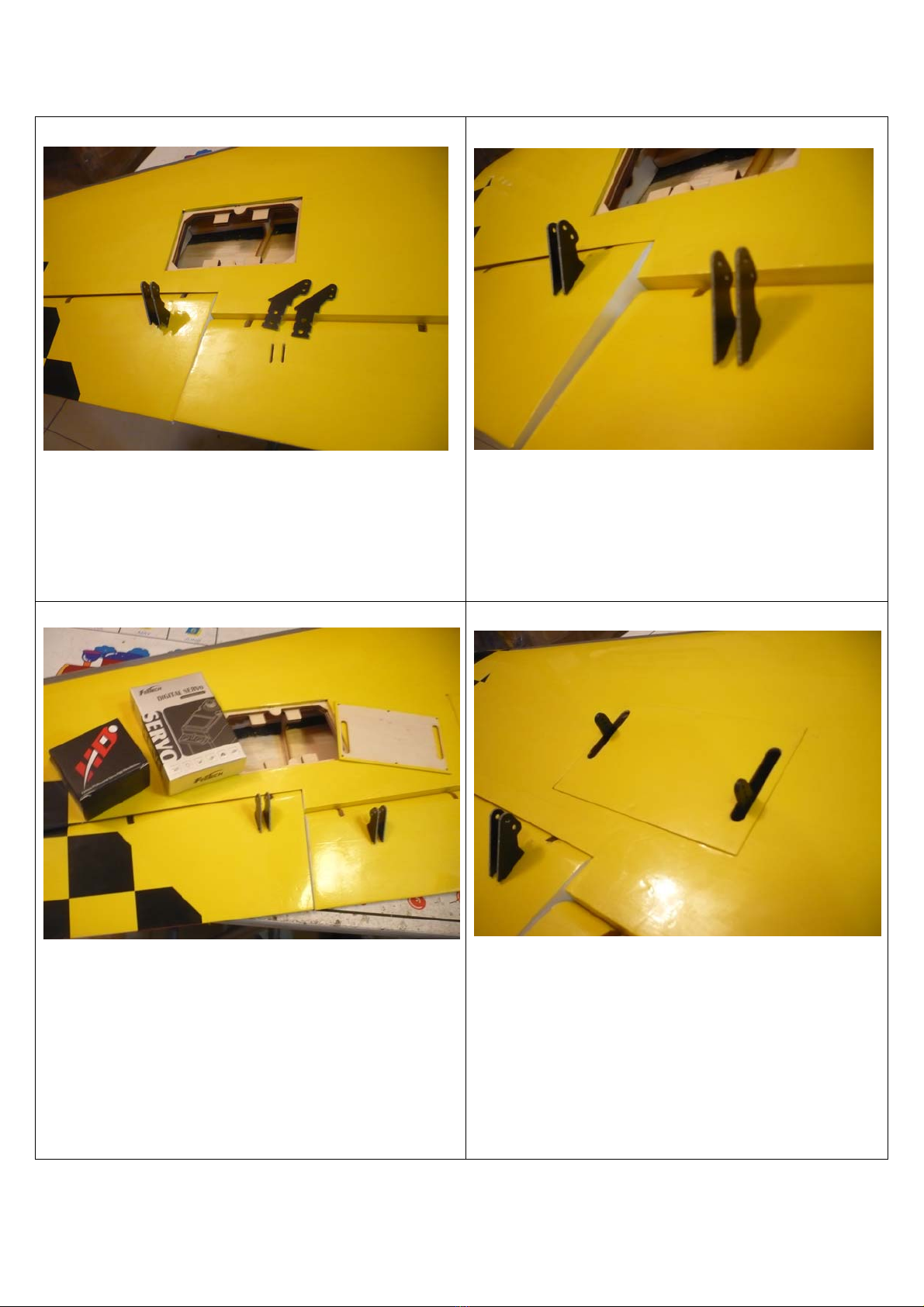

Assembling the Main Wings(Flaps &Aileron)

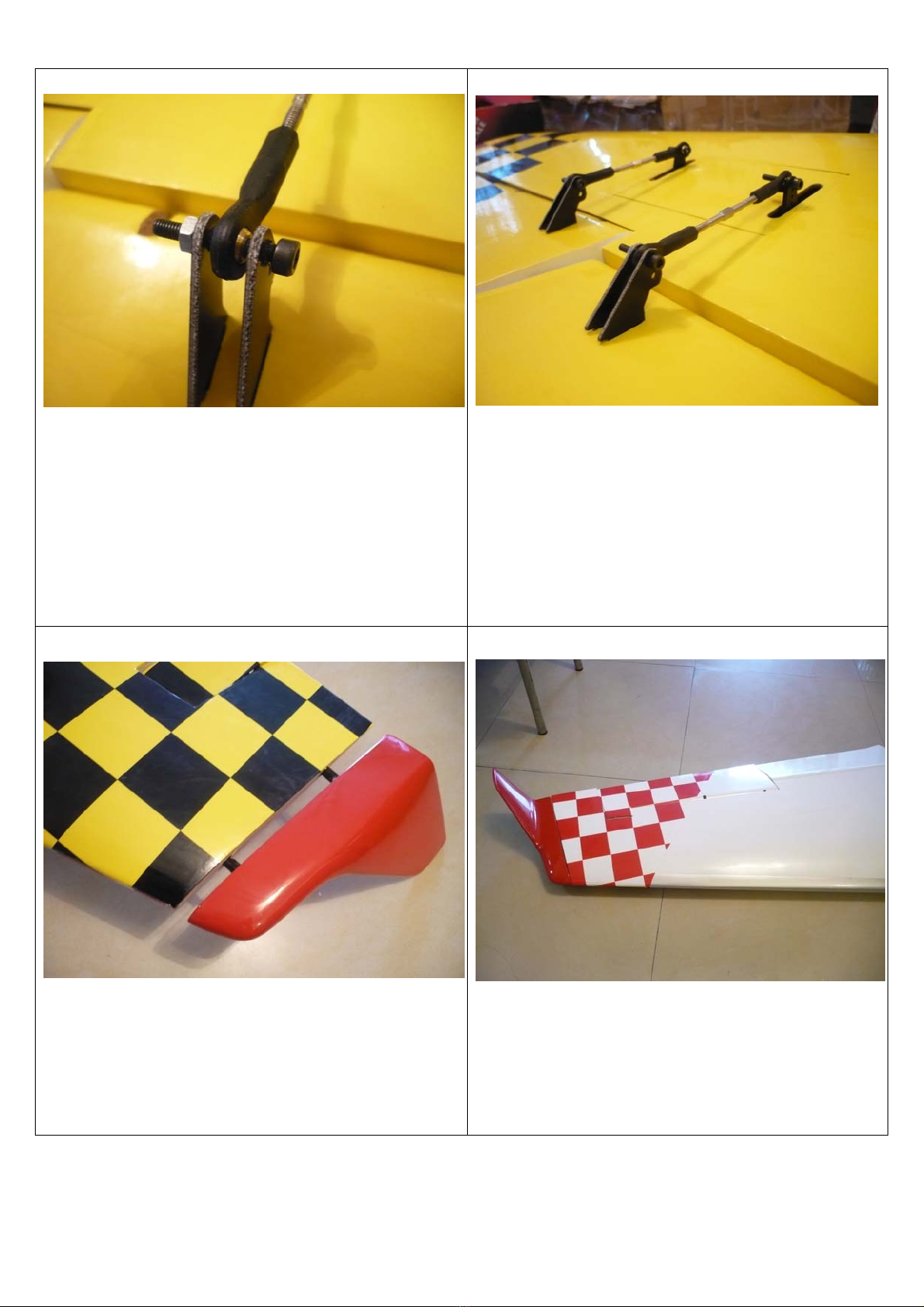

Use epoxy to glue the Flaps & Aileron control horns
Install the servo for Flaps & Aileron
Highly recommended use a 17kg or above for Flaps
9kg or above for Aileron
high torque metal gear servo
Connect the linkage with servo horn
Use 3mm screw with lock nut
Use epoxy
Fitandgluewingletstowingtips(candothisatlast)
Section 4:

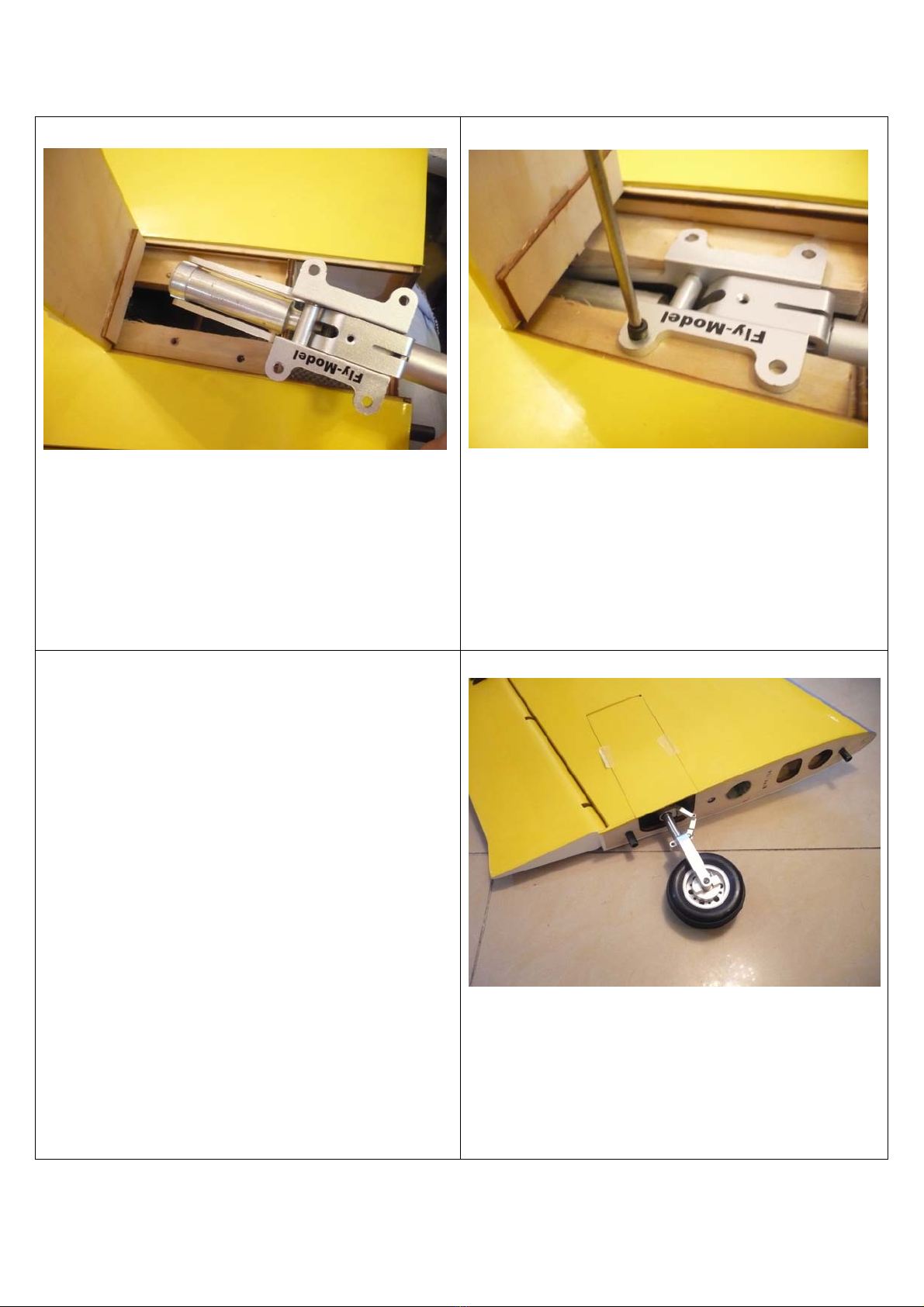

Assembling the retracts and steering
Notice: please connect all air tubes before
Install the retracts.
Use 4mm screws to fix the retracts
Main retracts finished
Use 4mm screws to fix the nose retracts
Notice: please connect all air tubes before
Install the nose retract.
Install steering servo
Highly recommended use a high torque metal gear servo
for steering.
Connect the cable on the nose gear
Connect the cable on the servo horn
Section 5:

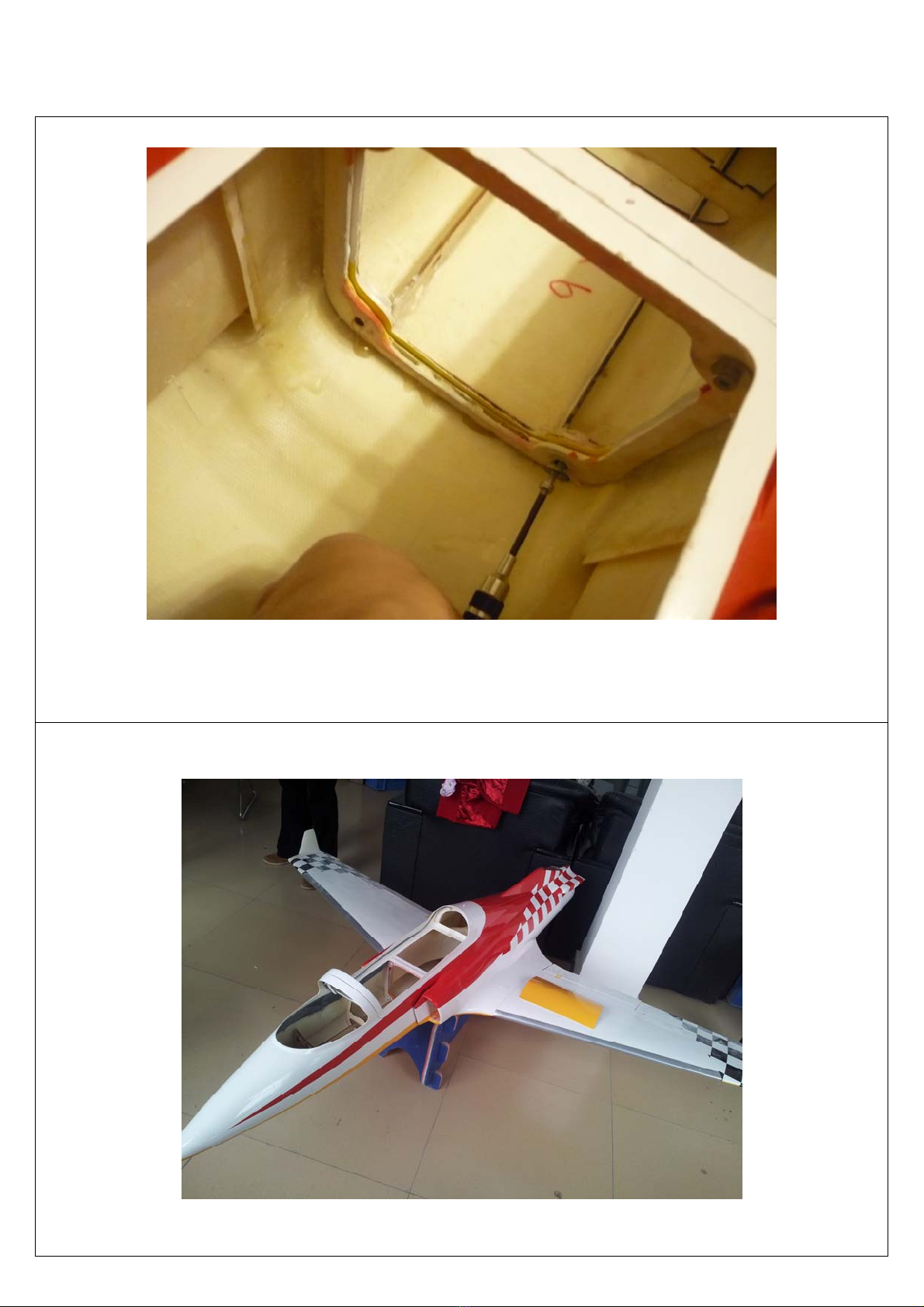

Assembling the fuselage
Use 4mm screws to connect the nose part with the fuselage
Section 6:

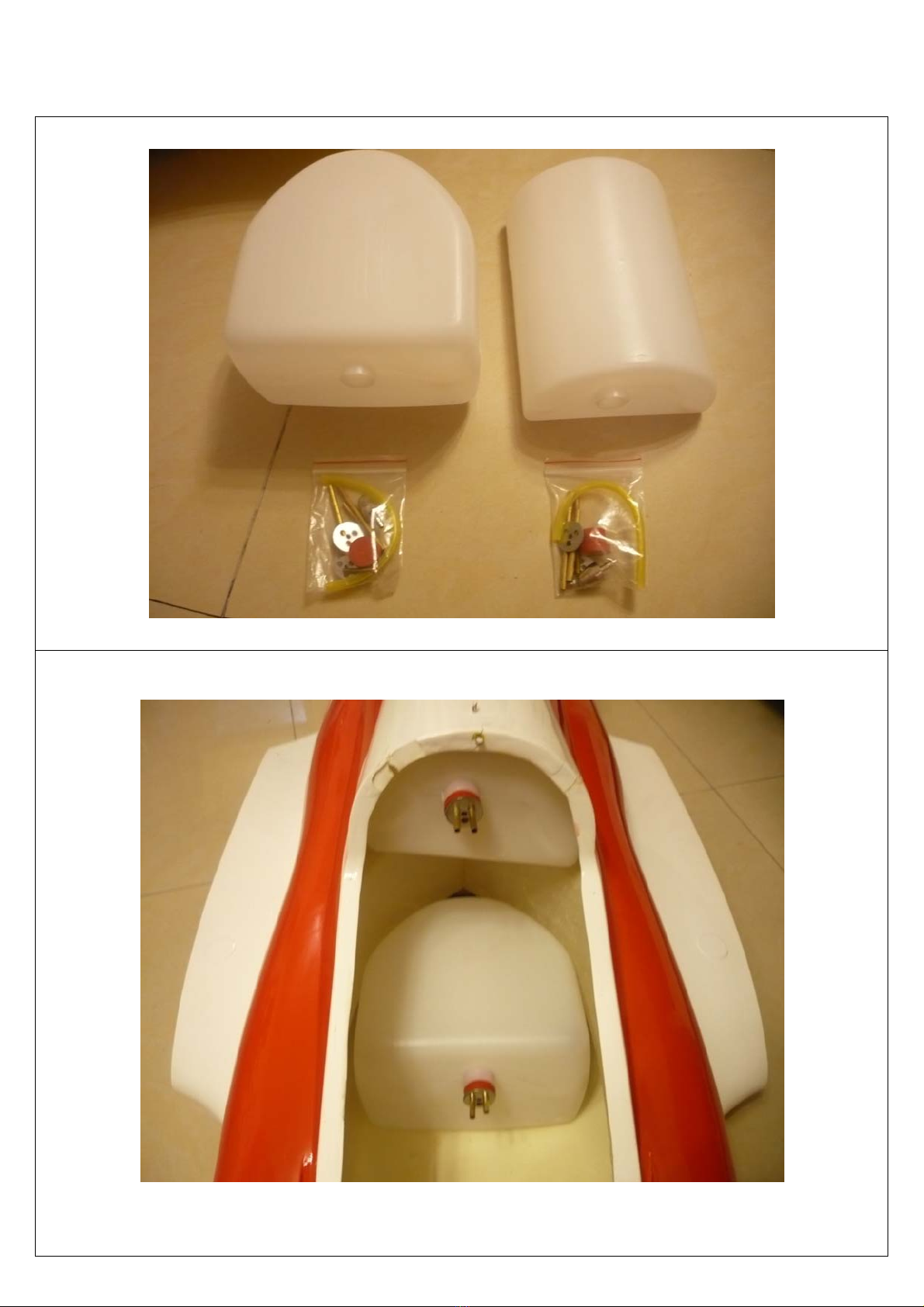

Assembling the fuel tanks
Locate the two fuel tanks as the picture
(can use Silicone glue to fix the fuel tanks)
Section 7:
Assembling the turbine and tail pipe
Use epoxy to glue the engine mount
Please do the adjustment with your turbine first
can move forward or backward to fit your turbine.

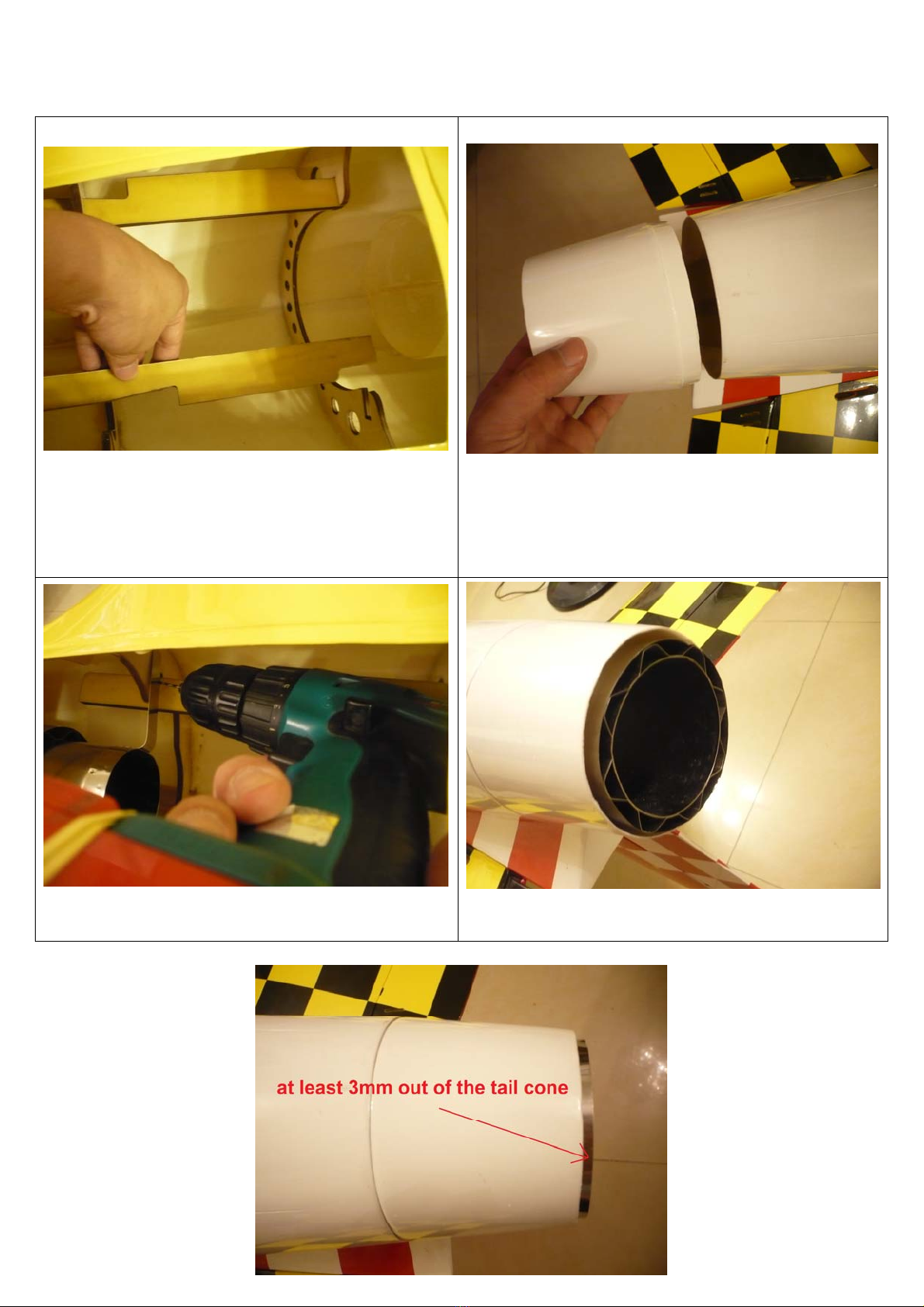

Use epoxy to glue the tail cone.
Use 3mm screws to fix the tail pipe
Finished
