FMI 36R Series Guida rapida

For more information, visit www.fmiproducts.com

SAVE THIS BOOK

This book is valuable. In addition to instructing you

on how to install and maintain your appliance, it also

contains information that will enable you to obtain re-

placementpartsoraccessoryitemswhenneeded.Keep

it with your other important papers.

This ﬁreplace is approved for use as a wood burning

ﬁreplace or for use with a vented gas log approved to

ANSZ21.60,Z21.84standardsorforusewithavent-free

gaslogheaterapprovedtoANSZ21.11.2standard.AFMI

PRODUCTS, LLC hood must be installed when using a

vent-free gas log set (see Accessories, page 16).

This wood burning ﬁreplace complies with UL127-

CAN/ULS-S610-M87 standard as a FACTORY BUILT

APPLIANCE and is listed and tested by the PFS Cor-

poration.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

36" OPEN CORNER CIRCULATING (LOUVERED)

WOOD BURNING FIREPLACE

OWNER’S OPERATION AND INSTALLATION MANUAL

OPEN CORNER WOOD BURNING FIREPLACE

(V)36R(S) Right Side Opening; (V)I36R(S) Right Side Opening (Fully Insulated)

(V)36L(S) Left Side Opening; (V)I36L(S) Left Side Opening (Fully Insulated)

ICC-ES #ESR-2542

PFS

USC

www.fmiproducts.com 54010F2

WARNING: Improper installation, adjustment, altera-

tion, service or maintenance can cause injury, property

damage or loss of life. Refer to this manual for assis-

tance or additional information. Consult a qualiﬁed

installer or local distributor.

TABLE OF CONTENTS

Safety .................................................................. 2

Product Dimensions ............................................ 3

Fireplace Installation............................................ 4

Venting Installation .............................................. 6

Optional Gas Line Installation............................ 12

Operation and Maintenance Guidelines............ 14

Technical Service............................................... 16

Replacement Parts............................................ 16

Accessories..................................................17-18

SAFETY

WARNING: Do not install a

ﬁreplaceinsertinthisﬁreboxun-

lessthemanufacturer'sinstruc-

tionswiththe insertspeciﬁcally

state this ﬁreplace has been

tested for use with the insert.

Thisﬁreplaceisnotintendedtobe

usedasasubstituteforafurnace

to heat an entire home. Use for

supplemental heat only.

This model is not for use in

manufactured housing (mobile

homes).

FOR YOUR SAFETY

• Do not store or use gasoline

oranyotherﬂammablevapors

orliquids inthe vicinityofthis

or any other appliance.

• Due to high temperatures, the

appliance should be located

out of trafﬁc and away from

furniture and draperies.

• Do not place clothing or other

ﬂammablematerialsonornear

the appliance.

• Never leave children unat-

tended when a ﬁre is burning

in the ﬁreplace.

IMPORTANT: Check local codes

before installing this ﬁreplace.

Thisﬁreplacemodelisawoodburningﬁreplace

intendedandapprovedforinstallationineither

residential homes or buildings of standard

construction. This ﬁreplace system requires

the utilization of FMI PRODUCTS, LLC’s 8",

double-wall, and snap lock ﬂue pipe system.

Optional glass doors in several ﬁnishes are

available for this ﬁreplace (see Replacement

Parts and Accessories on page 16).

Before beginning the installation of the

fireplace, read these instructions through

completely.

• This FMI PRODUCTS, LLC ﬁreplace and

its components are safe when installed

according to this installation manual. Use

of any components that have not been

designed and tested for this fireplace

system may cause a ﬁre hazard.

• TheFMI PRODUCTS, LLC warranty will

be voided by and FMI PRODUCTS, LLC

disclaimsany responsibility for the follow-

ing actions.

a. Modiﬁcation of the ﬁreplace, compo-

nents,doors,chimneysystem,air inlet

system, damper control, etc..

b. Use of any component part not manu-

factured or approved by FMI PROD-

UCTS, LLC in combination with a FMI

PRODUCTS, LLC ﬁreplace system.

Proper installation is the most important step

in ensuring safe and continuous operation of

the ﬁreplace.

www.fmiproducts.com

54010F 3

20" 20"

12"

42 1/2"

39 1/8"

22 3/4"

40"

36"

31"

22"

18 7/8"

39 1/8"

13"

8 3/4"

101/2"

161/4"

PRODUCT DIMENSIONS

SAFETY

Continued

WARNING: Use solid wood

or processed solid fuel ﬁre logs

only. When processed wood

fuel ﬁre logs are used, do not

poke or stir the logs while they

are burning. Use only ﬁre logs

that have been evaluated for

the application in ﬁreplace and

refer to ﬁre log warnings and

caution markings on packaging

prior to use.

WARNING:Alwaysleaveglass

doorsfullyopenedorfullyclosed

when operating ﬁreplace.

WARNING: Children and

adults should be alerted to the

hazardsofhighsurfacetempera-

tures and to stay away to avoid

burnsorclothingignition.Young

children should be carefully su-

pervised when in the same room

as ﬁreplace.

Figure 1 - Dimensions

www.fmiproducts.com 54010F4

FIREPLACE INSTALLATION

WARNING: Do not pack air

spaces with insulation or any

other material. Do not obstruct

ﬁreplace openings (ie. louvers,

etc.) with any type of facing

material. Combustible material

mustnotbeincontactwithback

of front face of ﬁreplace.

FRAMING

1. Frameopening for ﬁreplace usingdimen-

sions shown in Figures 2 and 3.

2. If ﬁreplace is to be installed directly on

carpeting, tile (other than ceramic) or any

combustible material other than wood

ﬂooring; ﬁreplace must be installed on a

metal or wood panel extending full width

and depth of ﬁreplace.

3. Set ﬁreplace directly in front of opening

and slide unit back until nailing ﬂanges

touch side framing.

4. Check level of ﬁreplace and shim with

sheet metal if necessary.

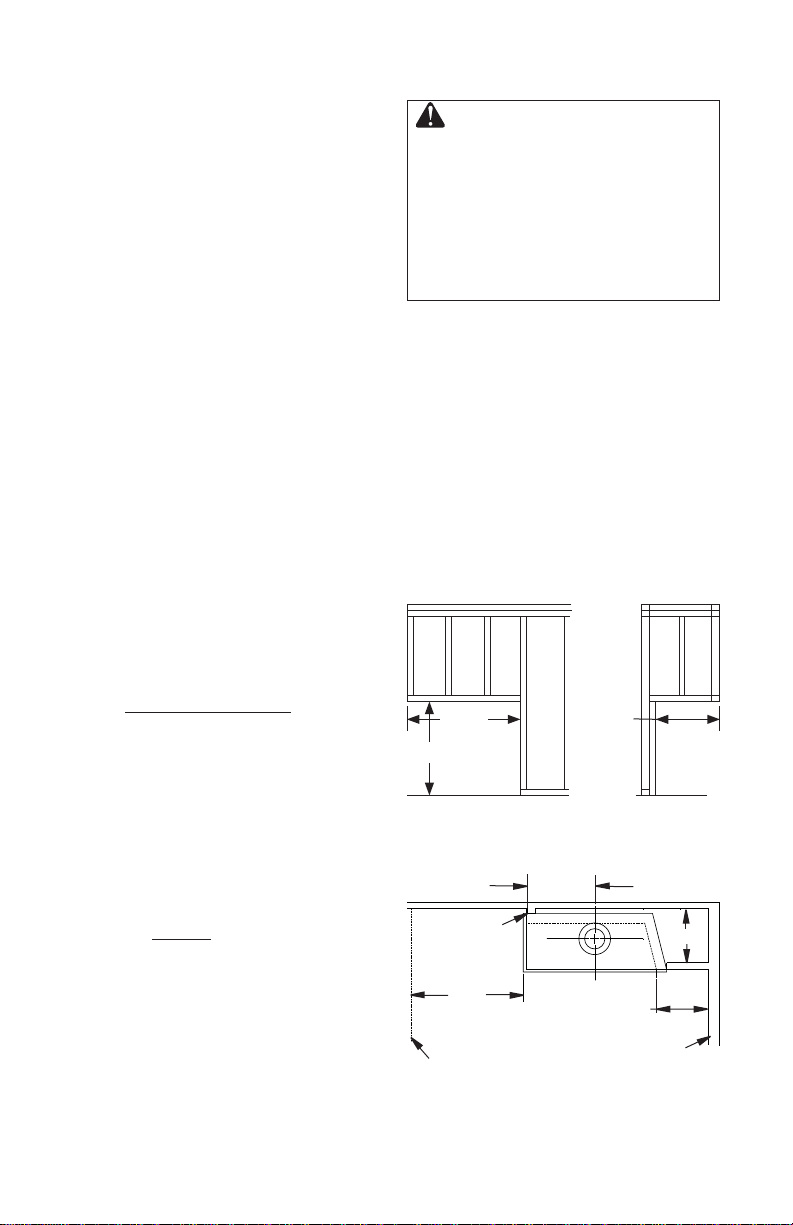

Figure 2 - Framing Dimensions

Figure 3 - Corner Installation

38 5/8"

43"

21 1/2"

FRONT VIEW SIDE VIEW

52"

Minimum

2x4 Stud for

Nailing Flange

Back and Side

16 1/2"

Perpendicular

Wall Combustible

Wall

24" Min. to

Unprotected

Wall

107/8"

GLOSSARY

Flush Installation - type of installation

where front face of ﬁreplace is even or level

with wall.

ChaseInstallation-typeofinstallationwhere

chimney is enclosed.

Perpendicular Side Wall - applies to

minimum clearance between side wall and

ﬁreplace opening.

Nailing Flange - extended part on both

sides of ﬁreplace face that secures ﬁreplace

to wall.

Termination - cap that is placed at end of

chimney pipe.

SELECTING LOCATION

To determine the safest and most efﬁcient

location for the ﬁreplace, consider the follow-

ing guidelines:

• The location must allow for proper clear-

ances (see below).

• Considera location where the ﬁreplacewill

not be affected by drafts, air conditioning

ducts, windows or doors.

• Alocationthat avoids the cutting of joistsor

roof rafters will make installation easier.

• If an outside air kit is to be installed, ac-

cessibility to outside combustion air must

be considered. This can also be achieved

throughaventedcrawlspaceinsomecases

(see Optional Outside Air Kit on page 6).

• Ifgaslineis to beinstalled,considerlocation

of gas supply.

MINIMUM CLEARANCE TO

COMBUSTIBLES

Back and sides of ﬁreplace 3/4" min.

Top Spacers 0"

Perpendicular side wall to

opening of unit 14" min.

Bottom of ﬁreplace to ﬂoor

(step 2 of Framing)

0" min.

Mantel clearances see page 5

Chimney outer pipe surfaces 2" min.

Chase inside dimension 16 1/2" min.

www.fmiproducts.com

54010F 5

FIREPLACE INSTALLATION

Continued

5. Before securing fireplace to prepared

framing,ember protector (provided) must

be placed between hearth extension (not

supplied) and under bottom front edge

of ﬁreplace to protect against glowing

embers falling through. If ﬁreplace is to

beinstalled on a raisedplatform,aZ-type

ember protector (not supplied) must be

fabricated to ﬁt your required platform

height. Ember protector should extend

under ﬁreplace a minimum of 1". Ember

protector should be made of galvanized

sheet metal (28 gauge minimum) to pre-

vent corrosion (see Figure 5).

6. Using screws or nails, secure ﬁreplace to

the framing through ﬂanges located on

sides of the ﬁreplace (see Figure 4).

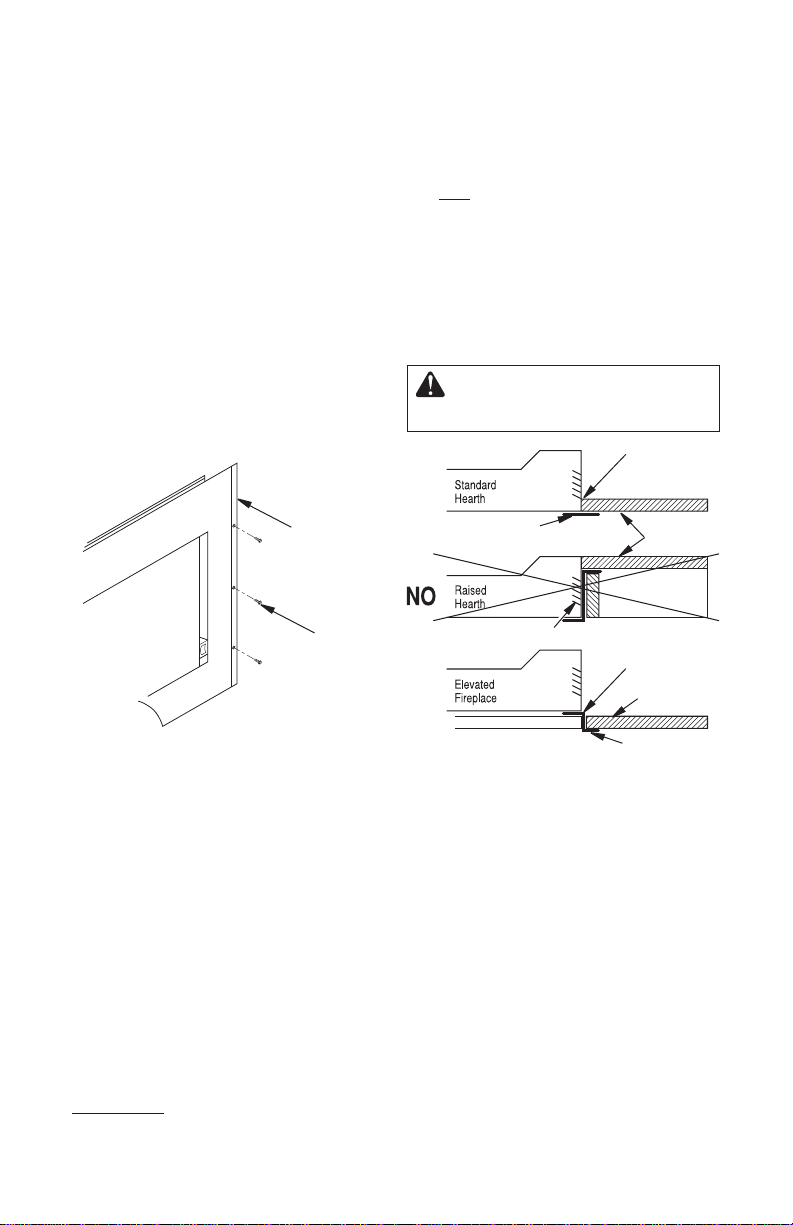

Figure 5 - Hearth Extensions

Figure 4 - Nailing Flanges

HEARTH EXTENSION

Ahearthextension is required to protectcom-

bustible ﬂoor constructed in front of ﬁreplace.

Thehearthextensionisnotincludedandmust

be fabricated, The hearth extension must

projectat lease 12" onesideand20"on other

side of ﬁreplace opening.

Hearth extension must be made of noncom-

bustible,inorganicmaterialhavinganeffective

thermal conductivity of K=0.84 BTU IN/FT,

HR. F (or less) at 1" thick.

Thermal conductivity "K" of materials can

be obtained from manufacturer or supplier

of noncombustible material. The minimum

required thickness ofr any material could be

obtained by the following formula:

K factor at 1" = thickness required

0.84

For example, if the material selected has a K

factorof0.25,suchasglassﬁber, the following

formula would apply:

0.25 x 1.0" = 0.30" thickness required

0.84

If hearth extension is to be covered, use non-

combustiblematerial such as tile, slate,brick,

concrete, metal, glass, marble, stone, etc.

Provide a means to prevent hearth extension

from shifting and seal gap between ﬁreplace

frameandhearthextensionwithnon-combus-

tible material (see Figure 5).

WARNING:Hearthextensionis

to be installed only as described.

MANTEL CLEARANCES

Woodwork such as wood trims, mantels or

any other combustible material must not be

placed at least 9" above opening of ﬁreplace

(see Figure 6, page 6).

Combustiblematerialsabove9" and projecting

more than 1 1/2" from the ﬁreplace front face

mustnotbeatleast 12"aboveﬁreplaceopening

(NFPASTD 211, Sec. 7-3.3.3).

Mantels or any other combustible material

may also come up to the side edge of the

black metal face of the ﬁreplace. Clearances

from side of ﬁreplace to any combustible

material and wall should fall within the limits

show in Figure 7, page 6.

Nailing

Flange

Nail or

Screw

Seal Cap

Do Not Block Louver Seal Cap

Ember

Protector

Ember Protector Hearth

Extension

Hearth

Extension

www.fmiproducts.com 54010F6

FIREPLACE INSTALLATION

Continued

VENTING INSTALLATION

Figure 8 - Air Kit Installation

Secure to Collars with

Duct Tape or Screws

Air Inlet

Location

Must Allow

For Bushes

or Snow

Vent Hood

Required for

Wall Installation

Air Inlet

Termination

Vented Crawl Space

(Check Local Codes

Before Installing in a

Vented Crawl Space)

Example 1: The face of a mantel, bookshelf,

etc. is made of combustible material and pro-

trudes23/4"fromthewallon whichtheﬁreplace

isinstalled.Thecombustiblematerialmustbea

minimum of 4" from side of ﬁreplace opening.

Example 2: The face of a mantel, bookshelf,

etc. is made of combustible material and

protrudes 11/16" from the wall on which the

ﬁreplaceisinstalled.The combustiblematerial

can butt up against side of ﬁreplace (i.e. 1"

from ﬁreplace opening.

Figure 6 - Mantel Clearances

Figure 7 - Minimum Side Clearances

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14

11/16

1 3/8

2 1/16

2 3/4

3 7/16

4 1/8

4 13/16

5 1/2

6 3/16

6 7/8

7 9/16

8 1/4

8 15/16

9 5/8

No Combustible

Material on Face

of Firebox

Fireplace

Opening

Example 1

Example 2

1" Both

Sides

Minimum 14" from Perpendicular Side Wall

OPTIONAL OUTSIDE AIR KIT

(Models AK4 or AK4F)

The installation of an outside air kit should be

performed during the rough framing of the ﬁre-

place due to the nature of it’s location. Outside

combustionairisaccessedthrough andexterior

wall(AK4)oraventedcrawlspace(AK4F).See

Figure 8 and Accessories on page 16.

Avoid installing outside air eyebrow in areas

whereinlet opening may be blockedbysnow,

bushes or other obstacles. It should also be

located beyond the reach of children.

CAUTION: Air ducts must

not terminate in attic space or

garage.

The maximum height for the

air vent can not exceed 3 feet

below the ﬂue gas outlet of the

termination.

For further details on installation of outside air

kit, please refer to instructions included with

air kit. For operating instructions, please refer

to your owner’s manual.

Outsideairhandleis located on left-hand side

of ﬁreplace refractory (see Figure 9 on page

7, Model 36R shown). To close, pull done; to

open,pushup.Alwaysopen mechanismwhen

starting a ﬁre to provide adequate outside

combustionair. Close mechanism when not in

use to prevent cold air from entering room.

12 1/4" Ref.

Ref.

12" Min.

9" Min.

11/2" Max.

3" Nom.

33°

Combustible

Material

Safe

Zone for

Projection of

Combustible

Materials

Fireplace Opening

Upper

Section of

Fireplace

www.fmiproducts.com

54010F 7

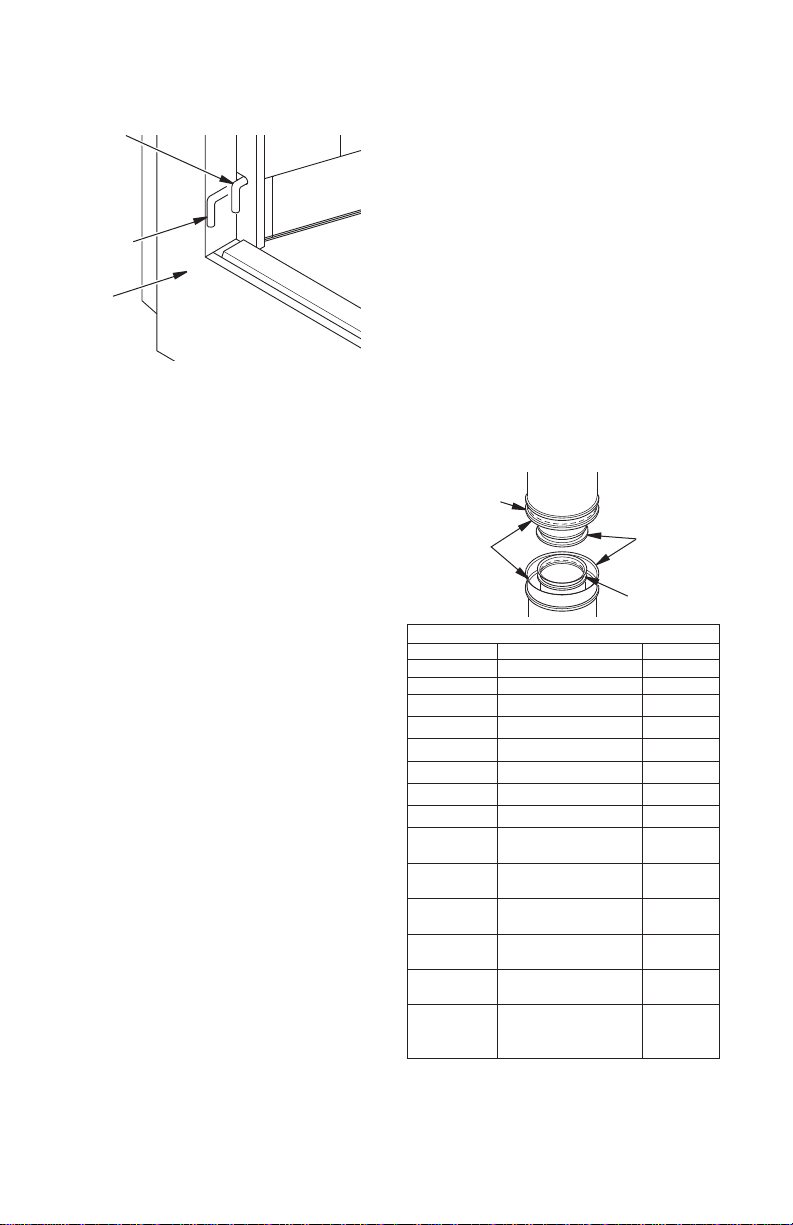

Figure 10 - Pipe Connection

LINEAL GAIN

PART NO. DESCRIPTION GAIN

36L/R Fireplace 42

12-8DM Pipe Section 10 5/8

18-8DM Pipe Section 16 5/8

24-8DM Pipe Section 23 5/8

36-8DM Pipe Section 34 5/8

48-8DM Pipe Section 46 5/8

RT-8DM Round Termination 6 7/8

RTL-8DM Round Termination 7 3/4

RTT-8DM Round Termination

with Slip Section 6 7/8" to

23 1/8"*

RTTL-8DM Round Termination

with Slip Section 7 3/4" to

21 1/2"*

ET-8DM Square Chase

Termination 12"*

ETL-8DM Square Chase with

Slip Section 7" to 15"*

ETO-8DM Square Chase

with Mesh 12"*

ETLO-8DM Square Chase

with Mesh and Slip

Section 12" to

21 1/2"*

Hemmed

Ends

(Female)

8" Stainless

Inner Pipe

12 3/8"

Galvanized

Outer Pipe

VENTING INSTALLATION

Continued

CHIMNEY SYSTEM

Chimney Height

Minimum chimney height measured fro

bottom of ﬁreplace to ﬂue gas outlet-end of

termination is:

Straight run 14 feet

Run with one elbow set 15 feet

Run with two elbow sets 24 feet

An elbow set consists of one starter elbow

and one return elbow. Uncommon circum-

stances such as neighboring hills, tall trees,

orstrong wind areas can causedowndraftsin

chimneysystem.Insuchcases,goingbeyond

minimum recommended height would be

preferable to provide a better draw.

Maximum height approved for any chimney

run with this ﬁreplace system is 60 feet as

measured from ﬁreplace bottom to ﬂue outlet

end of termination.

Double Wall Chimney System

The FMI PRODUCTS, LLC chimney system

consistsof12",18", 24" 36" and 48" snap lock

doublewall pipe segments, planned formaxi-

mum adaptability to individual site require-

ments.Actuallinealgainforeachismeasured

after each section is fully connected. Lineal

gain is the actual measurable length of a part

after two or more parts are connected.

Each double wall chimney section consists

of a galvanized outer pipe, a stainless steal

inner ﬂue pipe and a wire spacer. Pipe sec-

tions must be assembled independently as

chimney is installed. When connecting chim-

neydirectlytoﬁreplace,innerﬂuepipesection

must be installed ﬁrst with lanced (female)

side up (see Figure 10). Outer pipe section

can then be installed over ﬂue pipe section

with hemmed (male) end up. Press down on

eachpipesectionuntillances securely engage

hem on ﬁreplace starter. The wire will assure

proper spacing between inner and outer pipe

sections.

Continue to assemble chimney sections as

outlined above, making sure both inner and

outer pipe sections are locked together.

When installing double wall snap-lock chim-

ney together, it is important to assure the

joint between chimney sections is locked.

Check by pulling chimney upward after lock-

ing. Chimney will not come apart if properly

locked. It is not necessary to add screws to

keep chimney together. However, if desired,

use screws per directions provided on page

8, Figure 11.

Lanced

Ends

(Male)

*Lineal Gain for Terminations is measured to

Flue Gas Outlet Height.

Figure 9 - Air Kit Damper Rod

Air Kit

Damper

Rod-

Closed

Position

Open

Position

Lower

Left

Side of

Fireplace

Opening

www.fmiproducts.com 54010F8

Return

Elbow

Return

Elbow

Return

Elbow

Return

Elbow

Offset

Elbow

Offset

Elbow

Offset

Elbow

Offset

Elbow

Offset

Elbow

Return

Elbow 6' Max

6' Max 6' Max

6' Max

Ceiling

Support

Pipe

12S-8DM

6' Max

AB C

VENTING INSTALLATION

Continued

OFFSET

RISE CHIMNEY LENGTH

A B 48" 36" 24" 18" 12"

" 16

ELBOW SET ONLY

" 25

" 30

15" 34

18" 40"

" 46

" 49

" 56

30" 60

33" 66"

36" 71"

" 75"

" 80

111

45" 86

" 89

111

51" 97"

" 101"

" 106

" 111

11 1

" 115

" 120

" 127"

70" 130"

" 137

12 1

" 141

12 1

" 146

Figure 11 - Rise and Offset

Screws

Figure 12 - Typical Offset Installations

WARNING: The opening in the

collar around the chimney at the

top of the ﬁreplace must not be

obstructed.Neveruseblowninsula-

tion to ﬁll the chimney enclosure.

USING CHIMNEY OFFSET

To achieve desired offset, you may install

combinations of 12", 18", 36" and 48" length

of double wall pipe (see offset chart and

Figure 11 and 12).

Chimney weight above offset rests on return

elbow. Straps must be securely nailed to

rafters or joists (see Figure 13, details A &

B, page 9).

Maximum length of pipe between supports

(return elbow or chimney support V12S-8-

DM) is 6' of angled run. Maximum of two 6'

angled run sections per chimney system.

www.fmiproducts.com

54010F 9

Figure 13 - Chimney Supports

Straps

VENTING INSTALLATION

Continued

Figure 14 - Firestop Spacer with Living

Space Above Ceiling

Figure 15 - Firestop Spacer with Attic

Space Above Ceiling

Existing

Ceiling

Frame

Firestop

Spacer

Screws or

Staples

(Min. of 8)

Firestop

Spacer

Screws or Staples

(Min. of 8)

Existing

Ceiling Frame

Angle

Firestop

Ceiling

Support Pipe

12S-8DM

Return

Elbow

FIRESTOP SPACERS (FS-8DM)

Firestop spacers are required at each point

where the chimney penetrates a ﬂoor or ceiling

joist space. Their purpose is to establish and

maintain the required clearance between the

chimney and the combustible materials.

When the pipe passes through a framed open-

ing into a living space above, the ﬁrestop must

beplacedontothe ceilingfrombelowasshown

in Figure 14. When the pipe passes through a

framed opening into an attic space above, the

ﬁrestop must be placed on the attic ﬂoor as

shown in Figure 15.

SUPPORT SECTIONS (12S-8DM)

The chimney support section is a 4-strap 12"

length of pipe. A chimney support is required

at the 30' level above ﬁreplace after a straight

chimneyrun(seeFigure16).Thissupportis de-

signed to relieve extra weight load on ﬁreplace

and elbows when high chimneys are installed.

Straps

DETAIL B

DETAILA

See

DETAIL B

See

DETAILA

30 FT.

Figure 16 - Support Sections

12S-8DM

Support

Return

Elbow

www.fmiproducts.com 54010F10

Effective Height of

Termination Cap

Effective Height of

Termination Cap

Effective Height of

Termination Cap

RT-8DM RT-8DM

RT-8DM

14' Min.

Height

Standard Installation Alternate Installation

15' Min.

Height

2' Max

Pipe Length

30E-8DM

Maximum

Height

60'

VENTING INSTALLATION

Continued

PENETRATING ROOF

Tomaintaina 1"clearancetopipe onaroofwith

a pitch, a rectangular opening must be cut.

1. Determinethe center point through which

pipe will penetrate roof.

2. Determinecenterpointof roof. Pitch is the

distancetheroofdropsover a given span,

usually 12". A 6/12 pitch means that the

roof drops 6" for each 12" one measure

horizontally down from roof rafters.

3. Use roof opening chart (Figure 18) to

determine correct opening length and

ﬂashing required.

4. Remove shingles around opening mea-

sured. Cut out this section.

Figure 17 - Typical Installation

Pitch Slope Opening

"A" Max. Used Flashing

Model No.

Flat 0° 17" V6F-8DM

0-6/12 26.6° 19.125" V6F-8DM

6/12-

12/12 45.0° 24.25" V12F-8DM

Figure 18 - Roof Opening Measurements

Opening

“A”

19" Min.

(48.26cm)

30" Min

(76.2cm

2" Min.

(5.08cm)

2" Min.

(5.08cm)

2" Min.

(5.08cm)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali FMI Camino da interno

Manuali Camino da interno popolari di altre marche

Brigantia

Brigantia 35-DVRS31N-2 Manuale del proprietario

Nordpeis

Nordpeis Bergen Manuale utente

Superior

Superior BCT2536TMN Manuale utente

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuale utente

Renaissance

Renaissance RUMFORD 1000 Manuale utente

Lacunza

Lacunza IV-800 Manuale utente

Baxi

Baxi 940 Istruzioni per l’uso

Dru

Dru Maestro 60/2 Tall RCH Manuale utente

Diamond Fireglass

Diamond Fireglass SS-O22 Manuale utente

HearthStone

HearthStone Windsor Bay 8830 Manuale di programmazione

Napoleon

Napoleon ASCENT B42 Manuale utente

Enviro

Enviro E33GI Manuale utente

Smeg

Smeg L30 FABE Istruzioni di montaggio

KEDDY

KEDDY K700 Manuale utente

Godin

Godin 3451 Manuale utente

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuale utente

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuale utente

Desa

Desa CCFPDFT Manuale operativo
