Focal UNIVERSAL ISN Manuale utente

UNIVERSAL ISN

User manual / Manuel d’utilisation

English page 3

Français page 10

UNIVERSAL ISN

User manual

Thank you for choosing Focal and for sharing our passion for the “Spirit of Sound”. Designed using the latest

technology, these speakers integrate Focal’s perfectionist believes, developing products with high power handling,

and unrivalled sound quality. To obtain the best results from this product, we recommend that you follow carefully

all the information contained in this user’s manual. If not correctly followed, any fault observed may not be covered

by the guarantee.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can

damage your hearing permanently.

Important recommendations

Before attempting any installation work, it is very important to check how much space is available to fit the speakers

into the vehicle.

Key points:

• Ensure the speaker is clean from debris and metallic particles that maybe attached (especially after drilling).

• Clean before mounting the speakers.

The Focal guarantee only applies if the enclosed guarantee card

is returned to us within 10 days of purchase.

English version

Tweeter

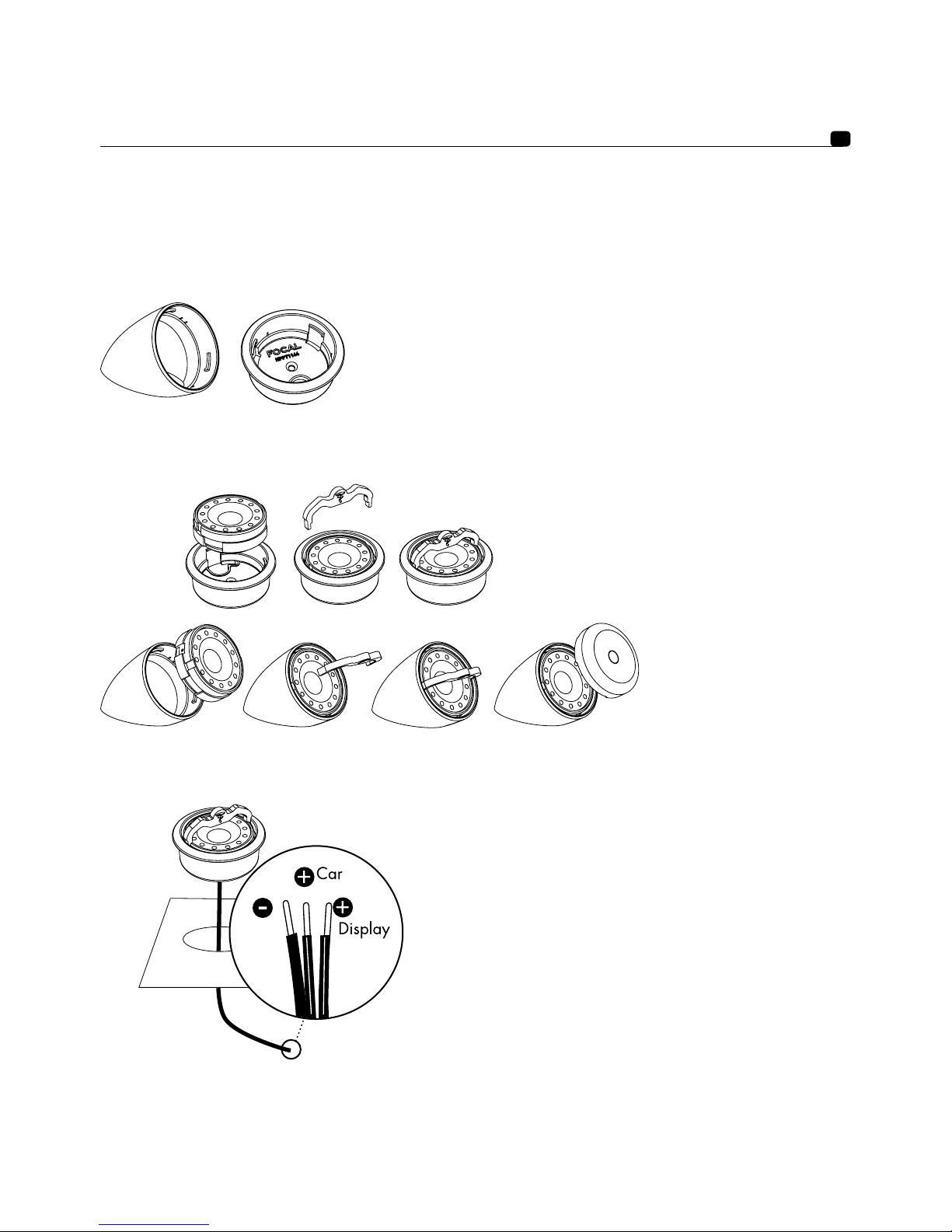

1/ Tweeter accessories (tilted and flush mounting)

2/ Assembling the tweeters to the mounts

3/ Connecting the tweeters

When installing on a demonstration display, connect the “display” wire.

When installing in a vehicle: connect the "car" wire.

The unmarked wire is the earth wire with both connection options.

UNIVERSAL ISN

User manual 3

UNIVERSAL ISN

User manual 4

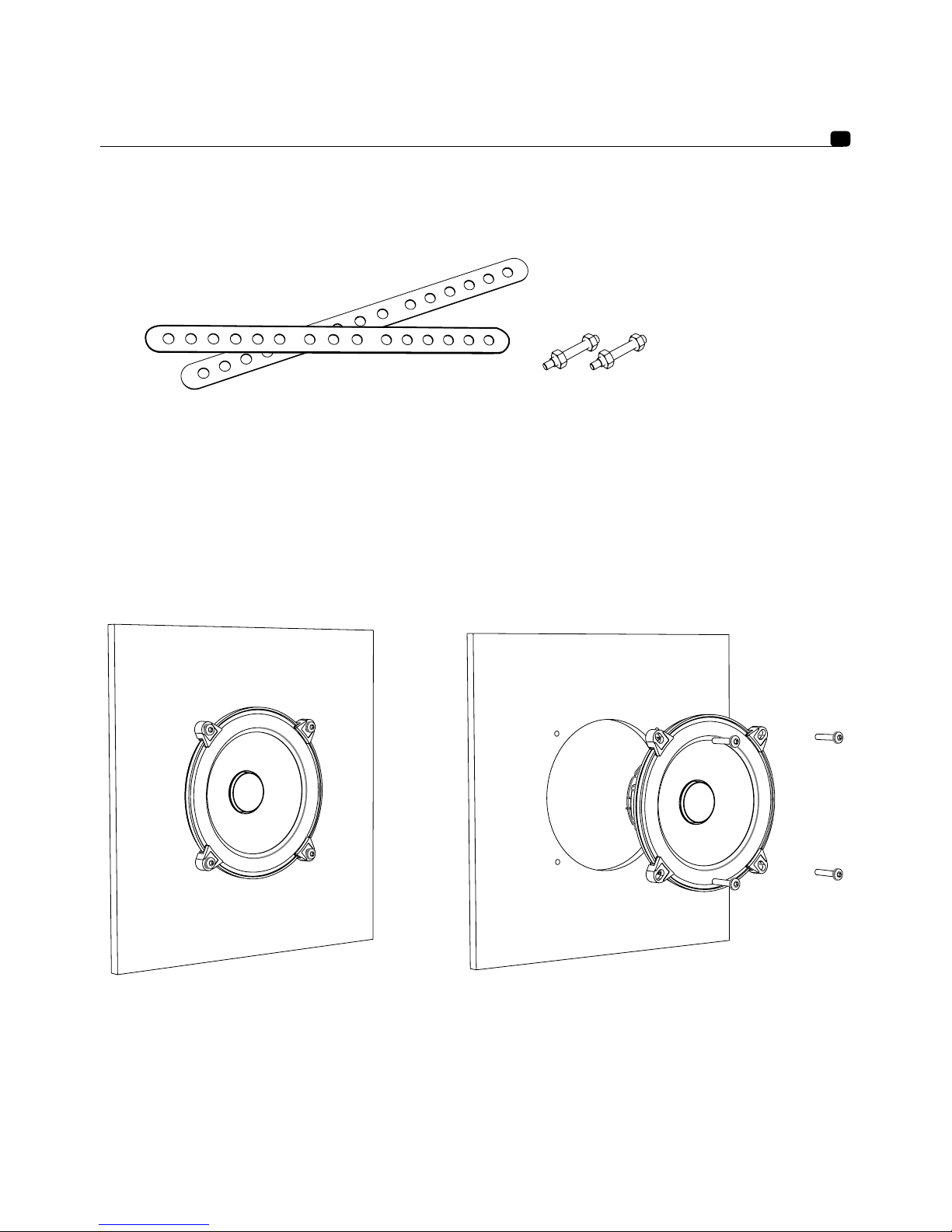

4/ Accessories to facilitate installation of the tweeters in their original location

1/ Mounting the woofer into place (without grill)

Woofer ISN 100/130/165

2/ Rear view of the terminal block (marked “+” and “-”)

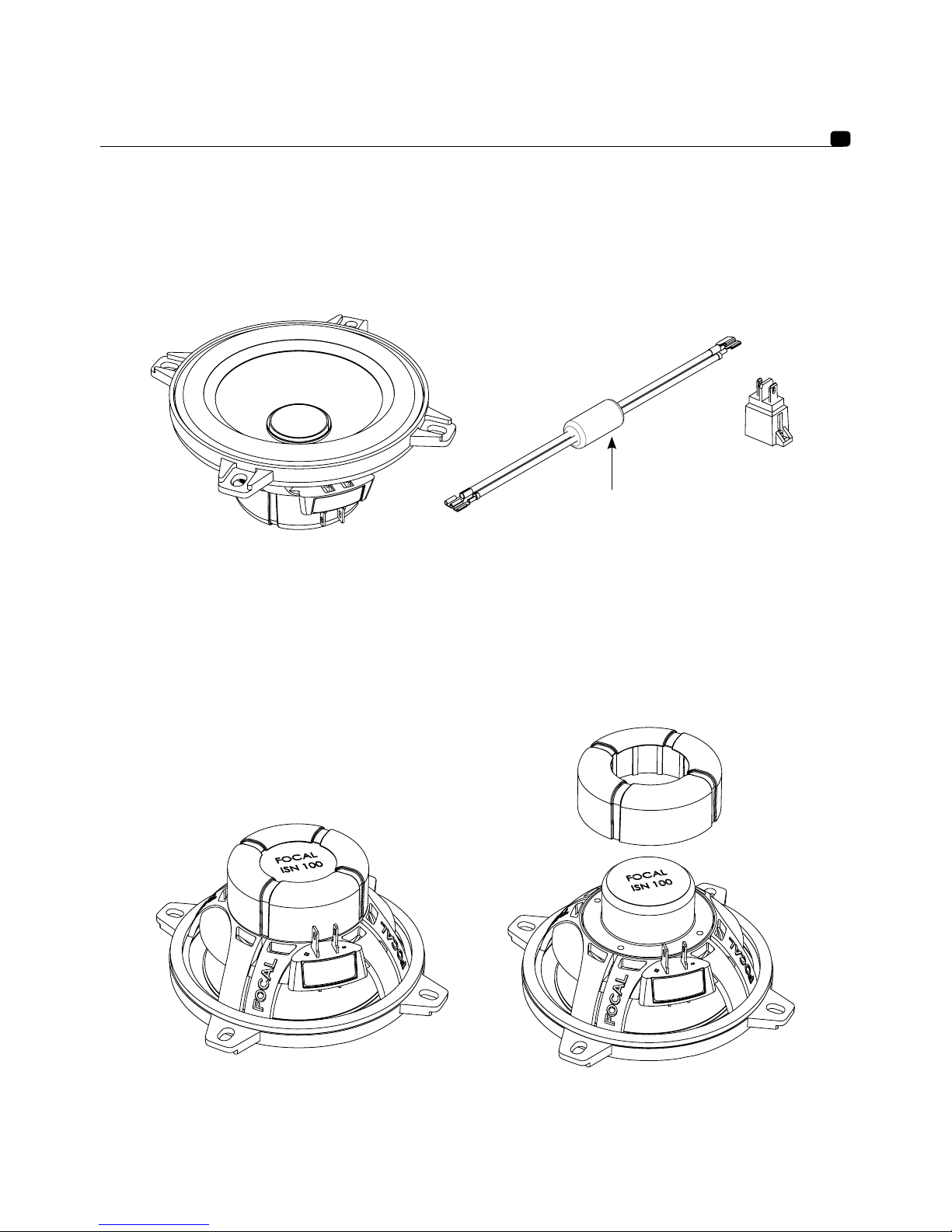

3/ Mounting the woofer + wire / crossover: 2 mounting options

Option 1 (woofer + cable).

integrated crossover

UNIVERSAL ISN

User manual 5

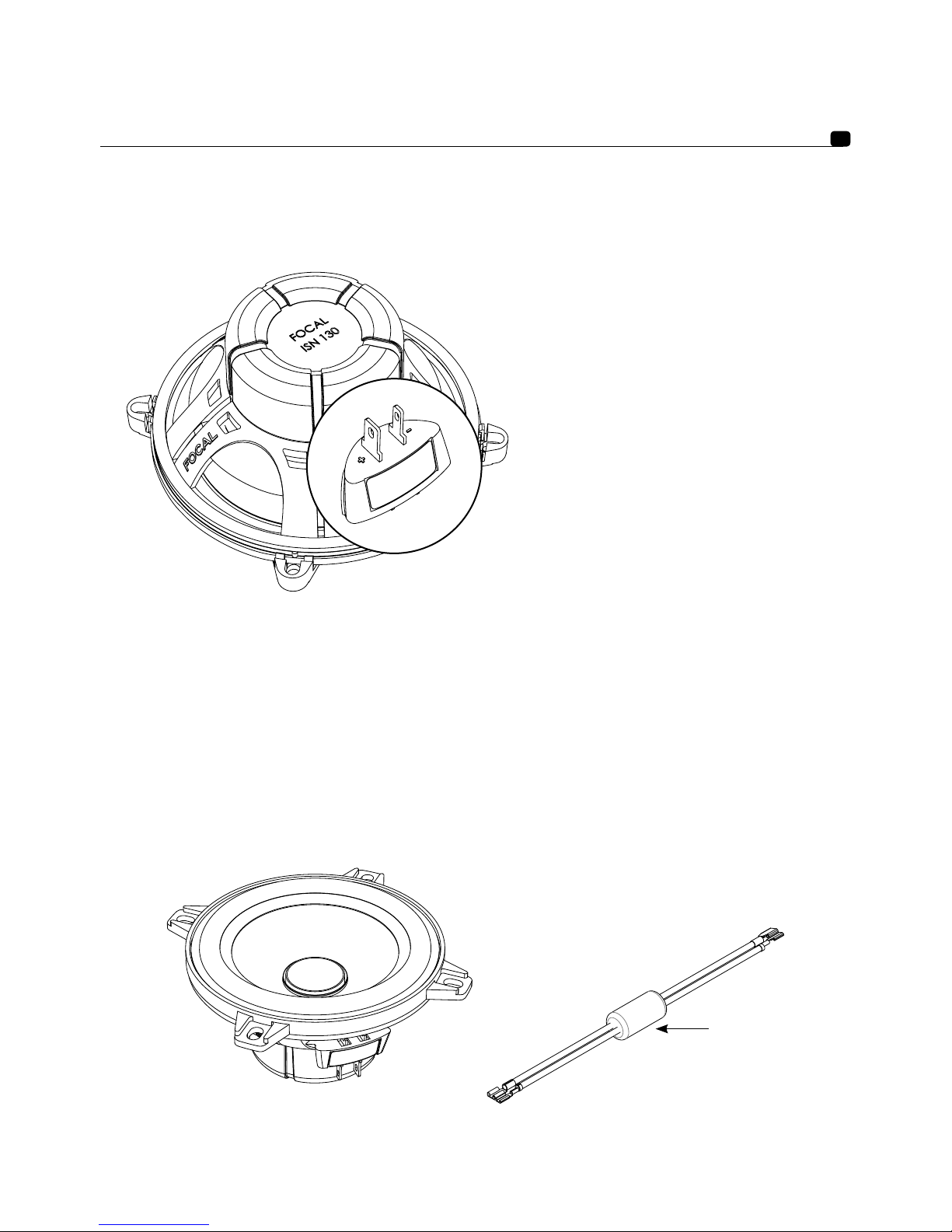

Option 2 (woofer + cable + ISO connector to ensure compatibility with certain brands of vehicles)

4/ Rear view of the driver with and without rubber cover

If mounting in very confined spaces, you can remove the molded rubber surround suspension in order to obtain the

best fit for the woofer in the original place.

integrated crossover

UNIVERSAL ISN

User manual 6

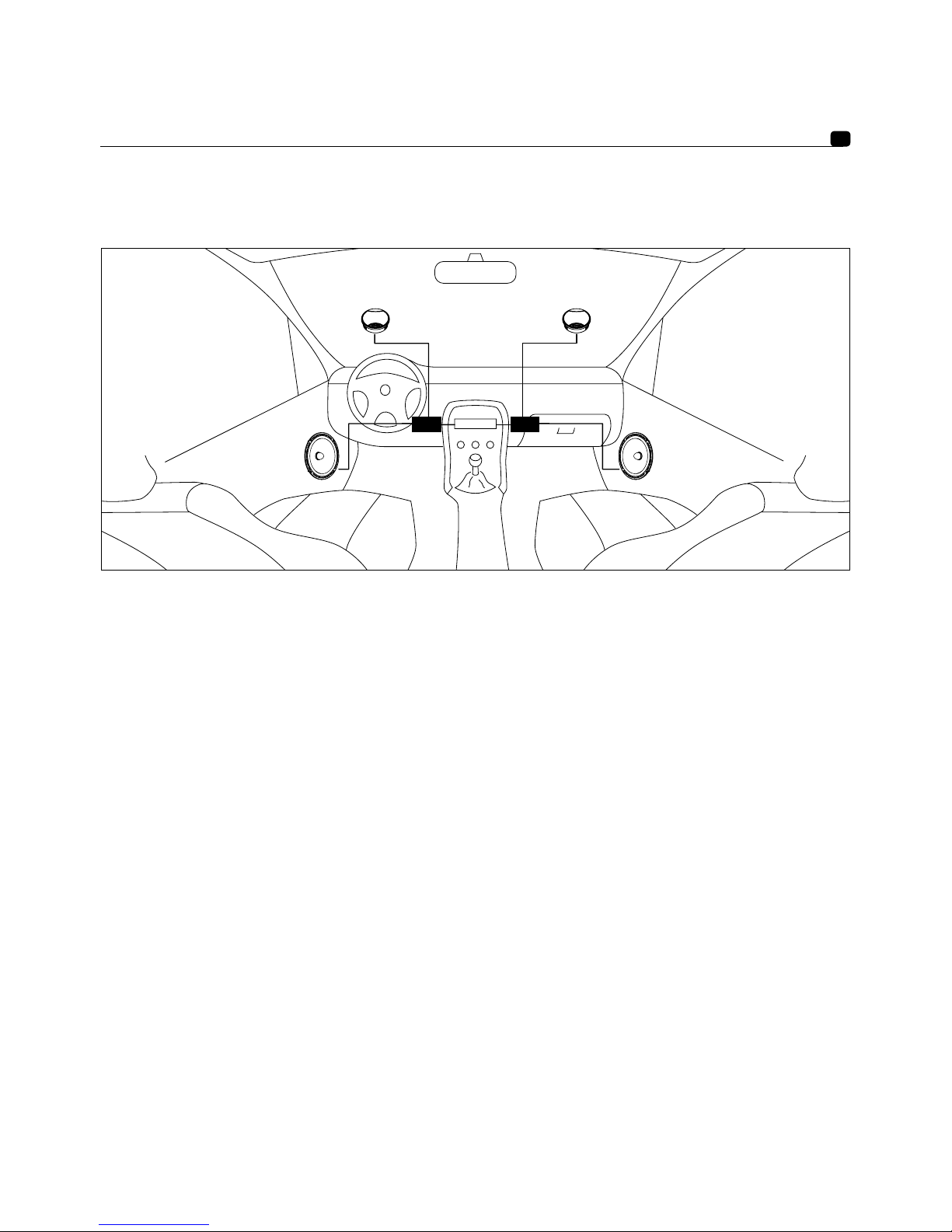

5/ View of the full installation in the vehicle

UNIVERSAL ISN

User manual 7

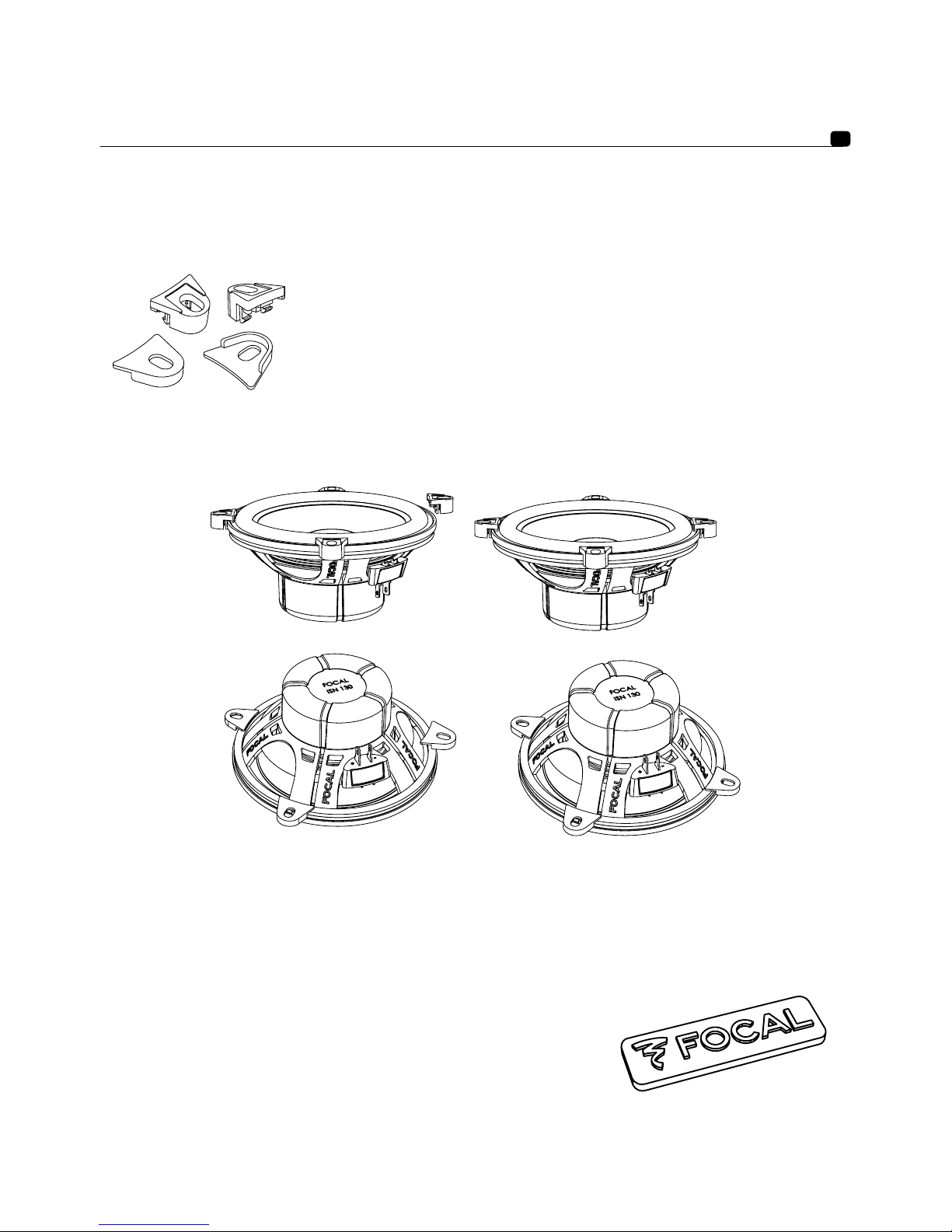

3/ Accessories

2/ Mounting fixing clips

The ISN 130 woofer comes with clips for front or rear mounting.

It some cases 2/3 fixing clips can be used (for example 2 clips at 180° on Renault® vehicles).

These kits are made to fit into the original locations more easily and are

sold without grills (mounting n the door).

A Focal signature is included in each kit (diamond-cut aluminum

support + adhesive). This signature can be fixed inside the door of your

vehicle for example.

1/ Fixing clips

Installing the ISN 130

UNIVERSAL ISN

User manual 8

UNIVERSAL ISN

User manual 9

Your Focal-JMlab product was developed and manufactured with high-quality materials and components

which can be recycled and/or re-used. This symbol indicates that electrical and electronic equipment

must be disposed of separately from normal garbage at the end of its operational lifetime.Please dispose

of this product by bringing it to your local collection point or recycling centre for such equipment. This will

help to protect the environment in which we all live.

Conditions de garantie

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country.

Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to

that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Nous vous remercions d’avoir choisi les kits Intégration Séparés et de partager avec nous notre philosophie "the

Spirit of Sound". Ces haut-parleurs de haute technicité intègrent les ultimes perfectionnements Focal en matière

de conception de haut-parleurs pour l’obtention d’un son puissant et de très haute qualité. Afin d’exploiter toutes

leurs performances, nous vous conseillons de lire ce livret, puis de le conserver avec précaution pour pouvoir vous

y référer ultérieurement. Tout problème dû au non-respect des règles d’utilisation peut entraîner l’invalidation

de la garantie.

Avertissement

L’écoute prolongée à fort niveau au-delà de 110 dB peut détériorer durablement l’audition. Des écoutes même

brèves à plus de 130 dB peuvent provoquer des lésions auditives irrémédiables.

Pour validation de la garantie Focal,

merci de nous retourner la garantie jointe dans les 10 jours.

Recommandations importantes

Avant tout, vérifiez l’espace disponible pour l’encastrement des haut-parleurs (se reporter aux plans sur l’emballage)

puis procédez aux découpes. Dans le cas d’un montage en emplacement d’origine, vérifiez qu’il y ait un espace

suffisant entre le haut-parleur et la grille de protection.

• Tenir les haut-parleurs à l’écart des copeaux métalliques et des poussières.

• Procédez à un nettoyage soigneux avant de monter les haut-parleurs.

UNIVERSAL ISN

Manuel d'installation Version française
