Fohrenbach RCY21210 Manuale utente
InstructionmanualRCY21210www.foehrenbach.be
Date:18-07-2007 Documentrev. :1Page:2/4

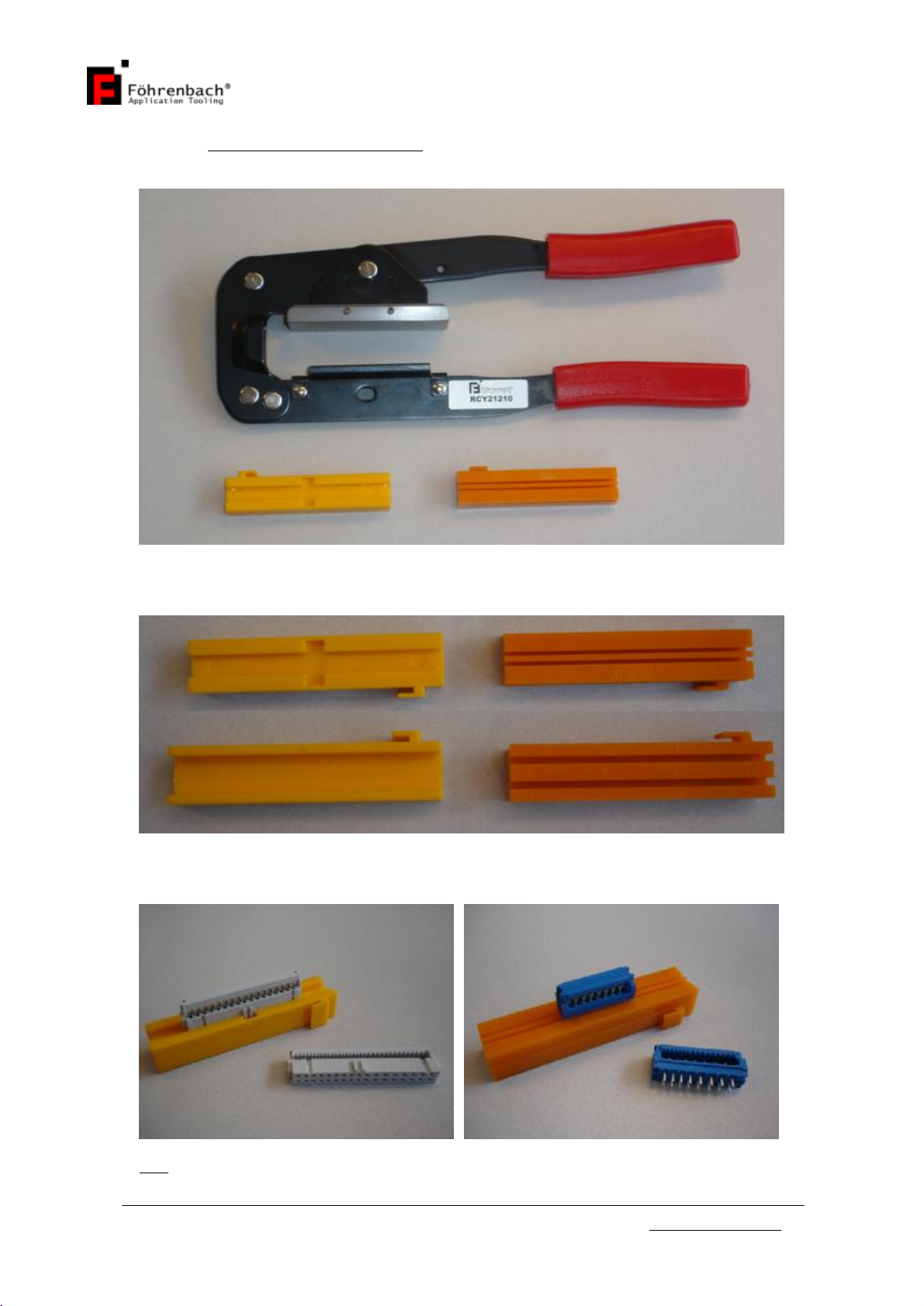

1.DESCRIPTION -PURPOSE
TheQuickieAssemblyhandtoolRCY21210isakit consistsofahandtoolandtwoconnectoradaptors.
Eachadaptorisfeaturingtwosides. Dependingontheappliedadaptorandselectedside,youcan
accommodateaparticularconnectorintothetool.
Finally, ifthecorrectcombinationof connectorandadaptorisselected, theQuickieconnectorcanbe
attachedtoaflat cablewhichissuitedfortheappliedconnector. Themaximumlengthoftheapplied
connectorisequaltothelengthoftheadaptor.
Note:TheRCY21210 issuitabletoterminateQuickiesin“DaisyChain”applicators.
InstructionmanualRCY21210www.foehrenbach.be
Date:18-07-2007 Documentrev. :1Page:3/4
2.OPERATINGINSTRUCTIONS
Positiontheconnectorinthededicatedadaptor.
Slidetheadaptorintothetoolasshownonthepicture.
Positiontheflat cableandclosethetoolbypushingtheredleverstogether. Thetoolisnot
equippedwithahardstop.As such, stop pushingwhentheIDCterminationisproperlymade.
Dependingonyour convenience, theflatcablecanbeinstalledintotheconnectorbeforesliding
theadaptorplusconnectorintothetool.
3.PROCESSOUTPUT
-Duetothemanual process, theoutputcapacityishighlydependedontheskillsof theoperator.
InstructionmanualRCY21210www.foehrenbach.be
Date:18-07-2007 Documentrev. :1Page:4/4
4.SAFETYAND ERGONOMICS
-Applythetoolonlyforthetarget asmentionedinchapter1.Description-Purpose.
-Foroperatorsafety, it’snecessarytoapplyeyeprotection.
-Applythetoolonlyinadryandcleanenvironment.
-Applythetoolonlyinawell lightedenvironment(1000Lux).
-OnlyskilfuloperatorswhoaretrainedbyFöhrenbachApplicationToolingengineersare
allowedtoapplythetool.
5.WARRANTY
PleaserefertoourTermsandConditionsof Sale.
6.CONTACT
FöhrenbachApplicationTooling
Krijgsbaan128
B-2640 Mortsel
Belgium
Tel: +3232161998
Fax:+3232161507
E-mail: Application.tooling@foehrenbach.be
