Follett Ice Pro EDB1000 Manuale

Installation and Service Manual

Serial numbers E00006 and above

Ice Pro™EDB1000 230V, 50 Hz Automatic

Ice Bagging and Dispensing System

00127357R05

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

Order parts online

www.follettice.com

Manual de Instalación y Servicio del Dispensador y Embolsador Automático de Hielo Ice Pro

Manuel d'Installation et de Dépannage du Distributeur et Ensacheur Automatique de Glace Ice Pro

Ice Pro Automatisches Eisabfüll- und -ausgabesystem – Installations- und Wartungshandbuch

Table of contents

Operation and cleaning instructions can be found in manual 00127886.

Las instrucciones de uso y limpieza se encuentran en el Manual 00127886.

Les instructions d'exploitation et de nettoyage sont disponibles dans le manuel 00127886.

Bedienungs- und Reinigungsanweisungen entnehmen Sie bitte dem Handbuch 00127886.

Welcome to Follett Corporation

Specications

Installation

Service

Bienvenido a Follett Corporation

Especicaciones

Instalación

Servicio

Bienvenue à Follett Corporation

Caractéristiques techniques

Installation

Dépannage

Willkommen bei der Follett Corporation

Spezikationen

Installation

Wartung

Replacement parts

Piezas de repuesto

Pièces de rechange

Ersatzteile

Storage area of dispenser contains mechanical, moving parts. Keep hands and arms clear of this area at all times.

If access to this area is required, power to unit must be disconnected rst.

Access to service areas is restricted to persons having knowledge and practical experience of the appliance, in

particular as far as safety and hygiene are concerned.

Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.

Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

Should local codes require a hard-wired connection and/or shielded wiring, eliminate the cord(s) and plug(s) and

follow the appropriate wiring diagram.

Dispenser can accommodate most cube/cubelet ices up to 1” square or Chewblet®ice (made by Horizon ice

machines). Use of these ices can jam dispenser and void warranty. For questions about ice compatibility, call

customer service at (610) 252-7301.

Always disconnect power before cleaning or servicing the dispenser.

Failure to remove all sanitizer may result in health hazard.

Important Cautions

Welcome to Follett

Follett ice dispensers enjoy a well-deserved reputation for excellent performance, long-term reliability and outstanding

after-the-sale support. To ensure that this dispenser delivers that same degree of service, we ask that you take a moment

to review this manual before beginning the installation of the dispenser. Should you have any questions or require

technical help at any point, please call technical service at (610) 252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage

is found, notify the shipper immediately and contact Follett Corporation so that we can help in the ling of a claim, if

necessary.

Specications

Electrical

Each icemaker and dispenser requires separate circuit. Equipment

ground required.

Standard electrical – 230V, 50 Hz, 1 phase, Max. fuse – 5 amps,

15 amp circuit. Cord provided.

Plumbing

Drain 1" PVC FPT for hopper drain

Note: Drains should be hard piped and insulated. Maintain

at least 1cm per 31cm (1/4" per foot) run slope on

drain line run.

Temperature

Ambient temperature range: 10˚C (50˚F) minimum; 38˚C (100˚F)

maximum.

Clearance, installation and access information

The dispenser must be level in both directions. The dispenser is to

be installed in a location where use and maintenance is restricted to

trained personnel. The supply cord plug must be accessible.

Door entry Installation sites must have an unobstructed path to

installation location with door openings no less than

870mm (34.25").

Service clearance A minimum of 305mm (12") to left of unit is

necessary for service.

Ice type

Dispenser can accommodate most cube/cubelet ices up to 26mm

(1") square. Crushed, ake, or nugget ice cannot be used. Use of

these ices can jam dispenser and void warranty. For questions about

ice compatibility, call technical service at (610) 252-7301.

Icemaker weight limit

Icemaker(s) mounted on thin top may not exceed 272kg (600 lbs).

Icemaker(s) mounted on thick top may not exceed 590kg (1300 lbs).

Container sizes

Standard unit accommodates bag sizes up to 9kg (20 lbs)/

696mm (27.35").

Standard dispense chute compatible with carts and containers up to

750mm (29.5") high.

Optional 166mm (6.5") leg extension kit may be purchased to allow

for up to 915mm (36") high carts and bags up to 18kg (40 lbs) and

860mm (33.85") high.

Bag pins

Bag pins may be adjusted to accommodate bag hole centers from

127mm (5") to 254mm (10").

* Special top required for icemakers weighing more than 272kg

(600 lbs). Add an additional 54mm (2.125") to height. Contact

factory.

** Add 51mm (2") to depth and 4.5kg (10 lbs) to shipping weight

when drain pan accessory is used.

Dimensions and clearances

572mm (22.5")

26mm (1") FPT drain

*1823mm

(71.75")

1188mm

(46.75")

864mm

(34")

788mm

(31")

max. cart

695mm

(27.35")

max. bag

242mm

(9.5")

26mm (1")

FPT

drain

3121mm

(52.0")

**1156mm

(45.5")

305mm (12")

Service

Clearance

572mm (22.5")

26mm (1") FPT drain

*1823mm

(71.75")

1188mm

(46.75")

864mm

(34")

788mm

(31")

max. cart

695mm

(27.35")

max. bag

242mm

(9.5")

26mm (1")

FPT

drain

3121mm

(52.0")

**1156mm

(45.5")

305mm (12")

Service

Clearance

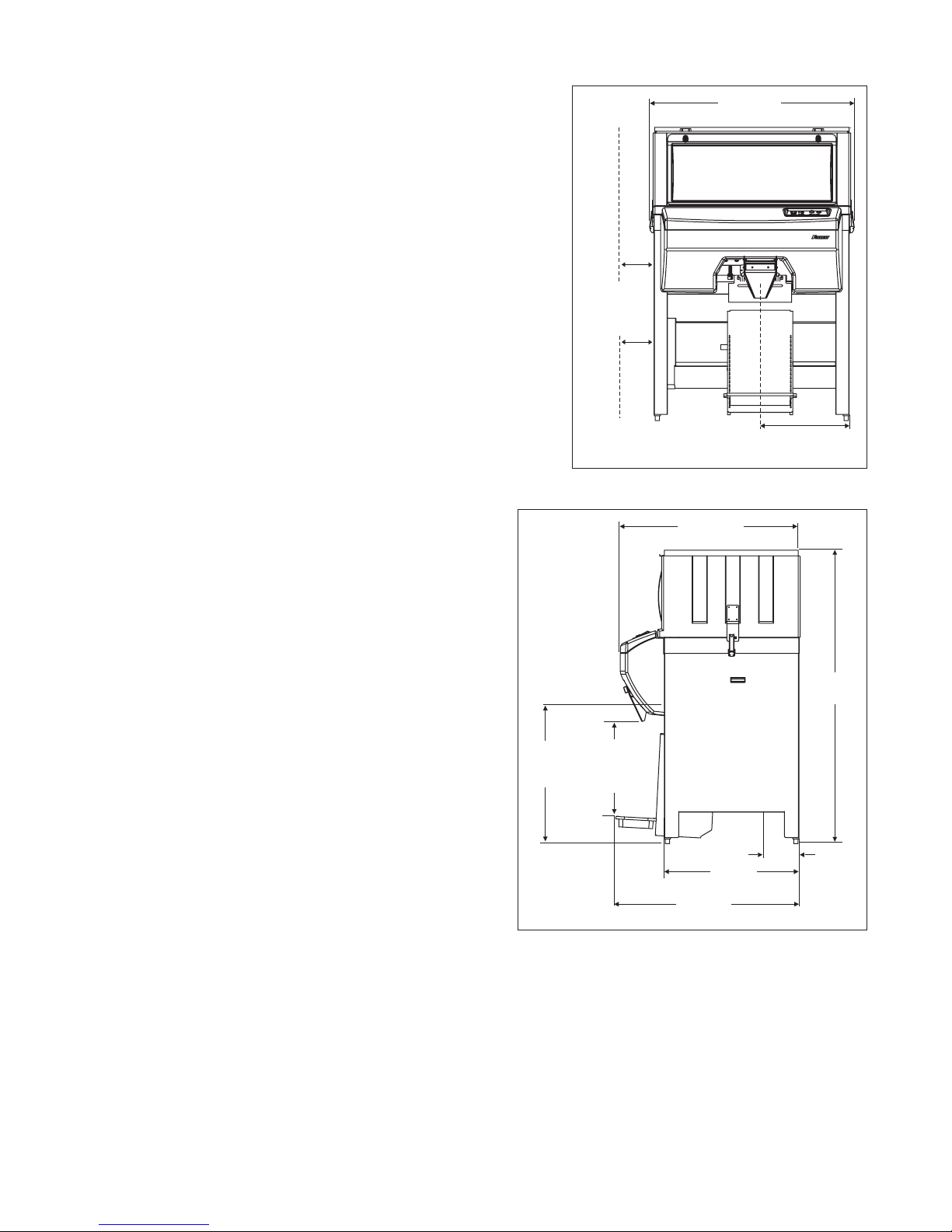

Fig. 1

Fig. 2

Installation

Door Entry

Some disassembly may be necessary to gain access through door

openings with a width of 850mm (34.25") to 1156mm (45.5").

Note: Disassembly is NOT necessary for gaining entry through

door openings larger than 1156mm (45.5'')

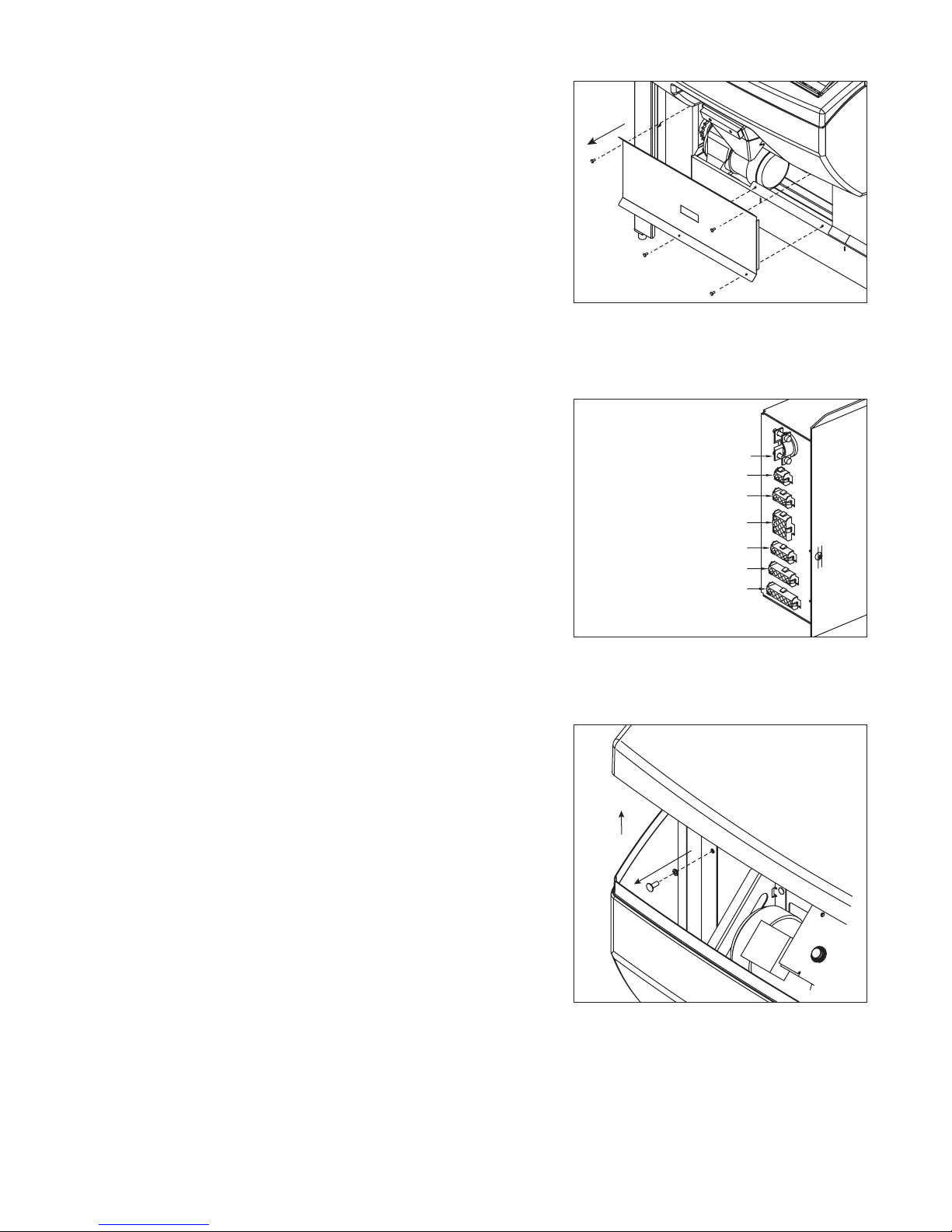

1. Remove lower splash panel with four screws (Fig. 3.1).

Fig. 3

Fig. 5

2. Detach the following plugs from the left side of control box:

Window interlock J26 (Fig. 4.1)

Control J21 (Fig. 4.2)

PCB power J22 (Fig. 4.3)

Auger motor J24 (Fig. 4.4)

3. Remove control panel cover by lifting and detaching hook

and loop tape (Fig. 5.1).

4. Remove lower cover with two thumbscrews, one from each

side (Fig. 5.2).

3 – PCB power J22

Agitation motor J23

4 – Auger motor J24

2 – Control J21

1 – Window interlock J26

Footswitch J27

Input power

Fig. 4

Fig. 6

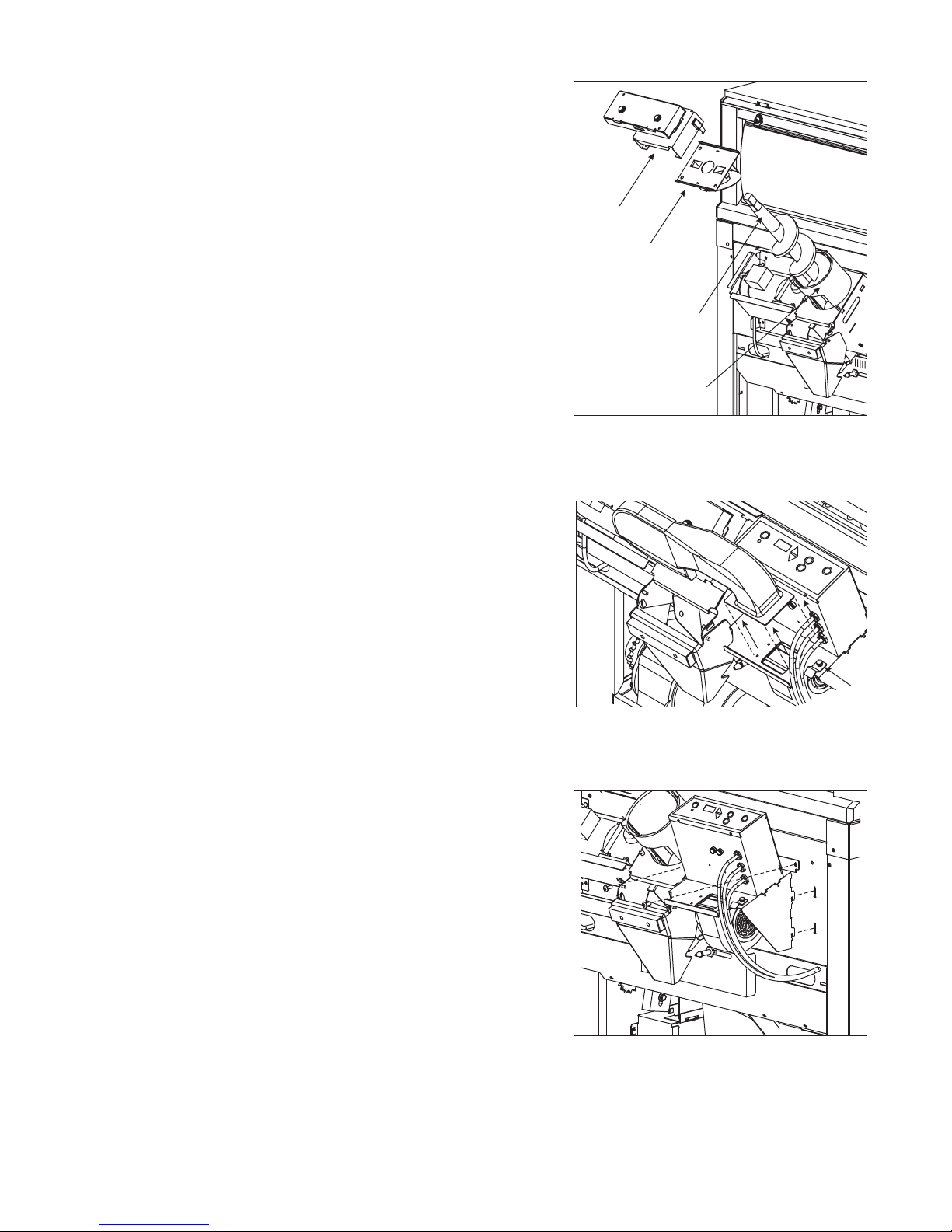

5. Remove transfer case with two latches (Fig. 6.1).

6. Remove ice deection plate by lifting up (Fig. 6.2).

7. Remove auger by lifting up (Fig. 6.3).

8. Remove auger tube by lifting up. Note position of locating

slot on lower end for reinstallation (Fig. 6.4).

9. Remove blower duct by loosening thumb screw, rotating

clip (Fig. 7.1) and lifting up (Fig. 7.2).

Fig. 7

10. Remove control box/fan motor mounting assembly with

two screws (Fig. 8).

Fig. 8

11. Remove auger motor bracket with 8 screws (Fig. 9).

12. Remove bag pin bracket with two thumbscrews (Fig. 9).

Fig. 9

13. The units width may be further reduced by removing the

upper ice storage section (Fig. 10). This reduces unit width

by 45mm (1.75") to an overall width of 864mm (34").

a) Remove window.

b) Pull window interlock switch cable through wire trough in

upper right corner of base (Fig. 10.1).

c) Cut tie wrap.

d) Release latch from each side of ice storage section

(Fig. 10.2).

e) Lift upper ice storage section from base.

Note: Reinstallation of auger tube requires locating slot be in

the 7 o’clock position and upper end of auger be ush to

auger motor bracket.

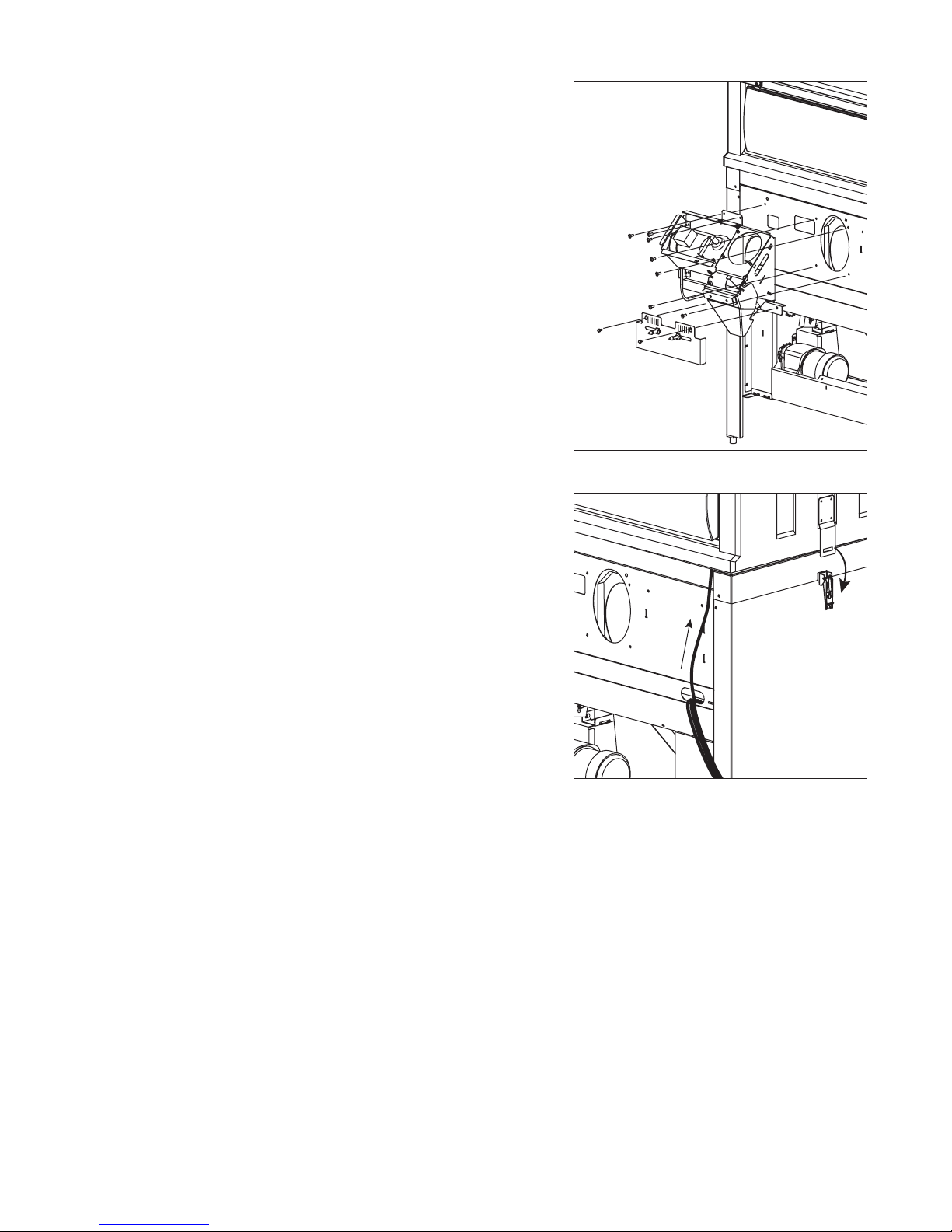

Fig. 10
