FONESTAR STS-4264N Manuale utente
STS-4264N
ADJUSTABLE STAND FOR
FLAT SCREENS
INSTRUCTION MANUAL
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 1
EN
-2-
DESCRIPTION
Adjustable stand for 37" to 70" (94 to 178 cm) TV.
DVD/digital TV and camera trays (included).
Wheels with brakes.
Cable management tube.
Compatible with curved TVs.
-10º/+10º vertical tilt.
90º swivel.
Supplied unassembled with instructions and mounting accessories.
- Dimensions: Width adjustable from 20 to 60 cm x 40 cm maximum height
Compatible with VESA 600 x 400 maximum
With wheels: adjustable height 129-160 cm
Base: 91 x 68 cm depth
Wheels: 50 mm
DVD/digital TV tray: 43 x 34 cm depth
Metal camera tray: 29 x 15 cm depth
- Colour: black
ASSEMBLY INSTRUCTIONS
CAUTION: make sure that the surface where the stand is going to be installed is strong enough and totally
flat.
ACCESSORIES INCLUDED
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 2
EN
-3-
M accessories
1.- Insert the right-hand base in the central base. Align the holes on the right-hand base with the holes on the central
base. Secure with the connection plate and the screws. Repeat this step for the left-hand base.
2.- Lock the wheel brakes to avoid movement during installation. Each wheel can be adjusted independently with fine
adjustment. Gently turn the nut to lower or raise the base.
3.- Attach the columns to the base with the screws and the washer.
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 3
EN
- 4-
4.- Pull the pin outwards and at the same time lift the inside column, until the inside column is at the height required
and release the pin to secure it.
5.- Fix the universal plate to the column with the appropriate screws
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 4

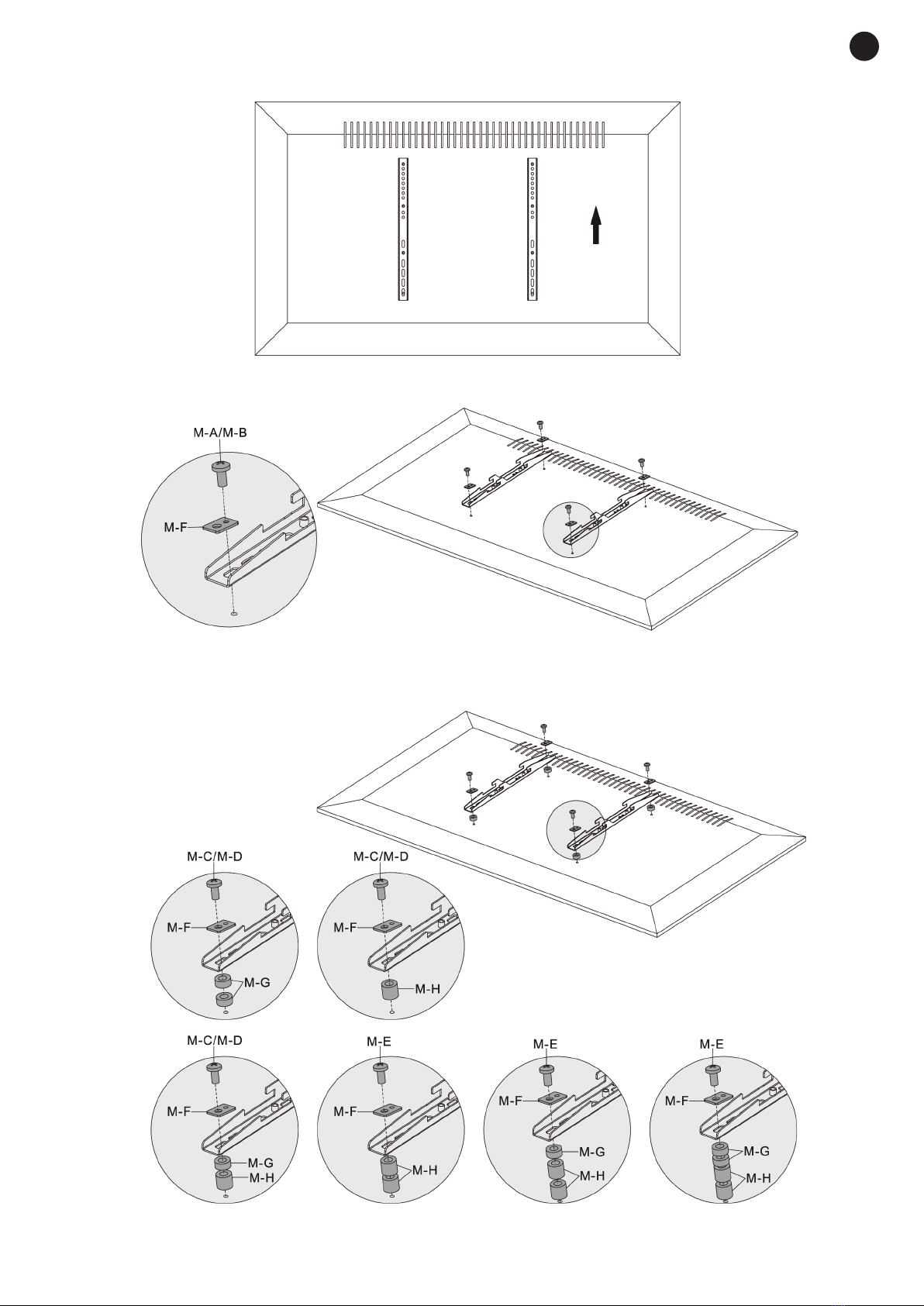

6.-
7.-
8.-
EN
-5-
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 5
9.- Attach the screen to the universal plate.
Tighten the four screws to attach it.
Impo tant: make sure that the screen is correctly mounted and that the screws are well tightened before letting go
of the screen.
10.- Ve tical tilt:
Remove the two screws to turn the screen 90º in a clockwise direction. Then, tighten the two screws again to
secure the screen.
-6-
EN
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 6

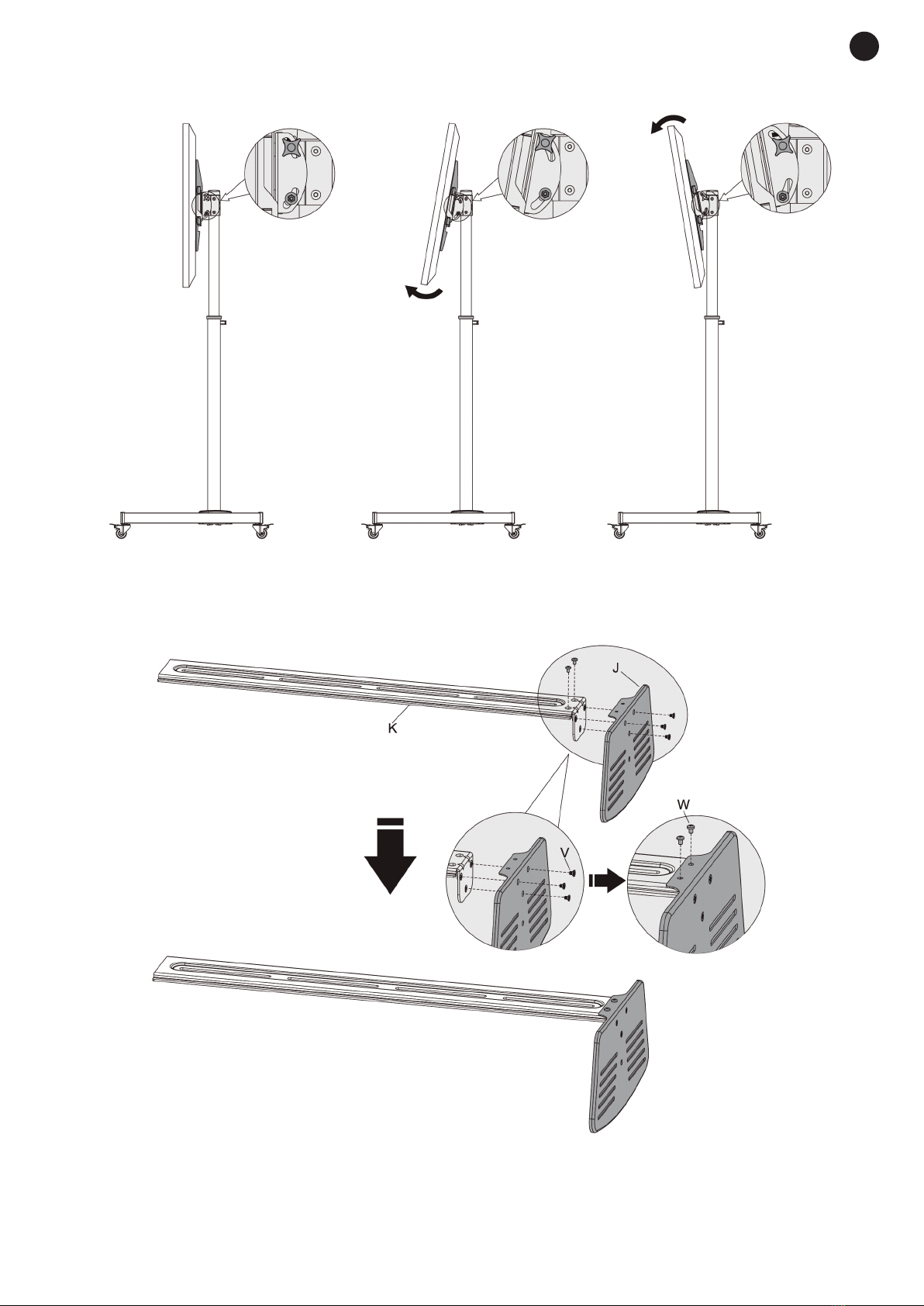

11.- Loosen the knob to adjust the screen to the required angle and then tighten the knob to secure it.
12.- Attach the camera tray to the connection plate with the appropriate screws.
Tighten all the screws using an appropriate screwdriver.
-7-
EN
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 7
13.- Attach the connection plate to the universal plate with the appropriate screws and washers. Tighten all the
screws with an Allen key.
14.- Connect the DVD tray to the holder, using the appropriate screws.
-8-
EN
Remove the screws
and nuts.
Attach the holder to the column with the screws and nuts.
Note: with the assembly holes facing the front.
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:00 Página 8
15.-
16.- Pass the cables through the cable management tube.
Maintenance:
Check that the stand is secure and check it before use at regular intervals (at least once every three
months).
Please contact your supplier if you have any questions.
-9-
EN
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:01 Página 9
17.-
IMPORTANT
1.- The installation surface must be totally flat.
2.- In order to adjust the position of the screen, loosen the corresponding screws, place it in the required
position and tighten the screws. ever force the position of the screen with the screws tightened to avoid
breakage.
3.- It is essential that the stand is firmly in place on the floor to make sure that it supports the maximum
weight. FONESTAR will not under any circumstances be held responsible for any damage or breakages
that could occur due to the stand falling on the floor because of faults in the floor or incorrect handling.
- 10 -
EN
STS-4264N_MANUAL_(EN)_20171113_Maqu tación 1 13/11/17 15:01 Página 10
