G3-V2
OWNERS MANUAL | F-G3-V2
1
TABLE OF CONTENTS
Parts List 2-6
Parts Drawing 7-11
Assembly Step 1 12-15
Assembly Step 2 16-20
Assembly Step 3 21-24
Assembly Step 4 25-28
Assembly Step 5 29-34
Assembly Step 6 35-38
Assembly Step 7 39-40
Assembly Step 8 41-44
Assembly Step 9 45-51
Attachment Drawing 52-53
2
KEY NUMBER DESCRIPTION OF PART QUANTITY
1 Ground Tube-Right Assembly Part 1
2 Ground Tube-Left Assembly Part 1
3 Back Standing Tube-Right 1
4 Back Standing Tube-Left 1
5 Back Down Link Tube 1
6 Back Up Link Tube 1
7 Hexagon Bolt M10*25 10
8 Flat Washer Φ10 118
9 Spring Washer Φ10 14
10 Hexagon Bolt M10*70 24
11 Big Flat Washer Φ30*Φ10*3 30
12 Lock Nut M10 66
13 Hexagon Bolt M10*90 18
14 Link Tube Assembly Part 2
15 Front Standing Tube-Right 1
16 Front Standing Tube-Left 1
17 Sliding Frame-Right Assembly Part 1
18 Sliding Frame-Left Assembly Part 1
19 Side Up Link Tube Assembly Part 2
20 Fixing Plate 4
21 Chin Up Frame Assembly Part 1
22 Hexagon Bolt M10*95 6
23 Middle Standing Tube 2
24 Standing Frame Assembly Part 2
25 Lift Frame Assembly Part 2
26 Safety Hook-Right Assembly Part 1
27 Rubber Block Φ60*Φ26*25 2
28 Sliding Sleeve Assembly Part 2
PARTS LIST
3
KEY NUMBER DESCRIPTION OF PART QUANTITY
29 Barbell Bar Assembly Part 1
30 Rubber Block Φ60*Φ27*42 2
31 Safety Hook-Left Assembly Part 1
32 Guide Rod Φ25*1850 2
33 Guide Rod Lock Sleeve Φ40*35 2
34 Headless Hexagon Socket Bolt M8*10 2
35 Lift Rod Assembly Part 4
36 Snap Collar Φ50 10
37 Barbell Rod Sleeve 2
38 Clamp Collar 2
39 Hexagon Socket Button Head Screws M12*40 2
40 Spring Washer Φ12 4
41 Headless Hexagon Socket Bolt M8*10 4
42 Cable 2
43 Barbell Rod Cup 1
44 Hook Assembly Part 4
45 Barbell Plate Holder Assembly Part 6
46 Hexagon Bolt M10*20 6
47 Flat Washer Φ8 6
48 Lock Nut M8 6
49 Right Safety Assembly Part 1
50 Left Safety Assembly Part 1
51 Core Trainer Assembly Part 1
52 Right J-Hook Assembly Part 1
53 Left J-Hook Assembly Part 1
54 Band Peg Φ17*250*77l 4
55 Long Straight Bar 1
56 Short Straight Bar 1
PARTS LIST
4
KEY NUMBER DESCRIPTION OF PART QUANTITY
57 Tricep Rope 1
58 Plastic Handle 2
59 Lift Handle Assembly Part 1
60 Carabiner 4
61 Ground Tube-Right 1
62 Pulley Φ92 16
63 Hexagon Bolt M10*45 16
64 Ground Tube-Left 1
65 Link Tube 2
66 Square Rubber Block Φ50*50*30 2
67 Countersunk Hexagon Rivet Nut M10 2
68 Hexagon Socket Button Head Screws M10*35 2
69 Sliding Frame-Left 1
70 Reduction Sleeve 50-60 4
71 Aluminum Pull Pin 2
72 Pulley Holder 2
73 Alex Sleeve 4
74 Alex 2
75 Sliding Frame-Right 1
76 Tube Plug Φ50*70*1.5 4
77 Side Up Link Tube 2
78 Chin Up Frame 1
79 Bar Cover Φ38*Φ32*130 2
80 U Shape Hook 1
81 Round Tube Plug Φ32*1.5 8
82 Two Layer Spring Nut 2
83 Cross Recessed Countersunk Head Screw M10*25 2
84 Retaining Ring Φ38*32*32 2
PARTS LIST
5
KEY NUMBER DESCRIPTION OF PART QUANTITY
85 FORCEUSA LOGO Plate 1 1
86 Flat Round Head Blind Rivet 4*10 4 4
87 Standing Frame 2 2
88 Hexagon Bolt M12*25 26 26
89 Barbell Bar Holder Rod 24 24
90 Flat Washer Φ12 42 42
91 U Shape Frame 2 2
92 Tube Plug Φ50*50*2 2 2
93 50 Tube Roller 8 8
94 Hexagon Bolt M12*90 8 8
95 Lock Nut M12 8 8
96 Barbell Bar 1 1
97 Hexagon Socket Button Head Screws M6*16 4 4
98 Hook Right 1 1
99 Barbell Bar Inner Rod Φ25*1857 1 1
100 Spring Washer Φ6 4 4
101 Hook Left 1 1
102 Sliding Sleeve 1 1
103 Rubber Cover 1 1
104 Linear Bearing 2 2
105 Bearing 6005 6 6
106 Snap Ring 4 4
107 Safety Hook-Left 8 8
108 Safety Hook-Right 1 1
109 Retaining Ring Φ60*27 1 1
110 Outer Sleeve Φ49.5*0.6 2 2
111 End Cap Φ50*37 2 2
112 Inner Sleeve Φ48*2.5 2 2
PARTS LIST
6
KEY NUMBER DESCRIPTION OF PART QUANTITY
113 Rubber Ring Φ70*Φ50*Φ10 2
114 Lift Rod 4
115 210 Sleeve 10
116 Barbell Plate Holder 6
117 Four Shrapnel Nut Φ23-M10 Four Shrapnel 6
118 Hook 4
119 Hook Cover Φ8*100 4
120 J-Hook Rubber Cover 2
121 Right J-Hook 1
122 Left J-Hook 1
123 Right Safety 1
124 Safety Rubber Cover 2
125 Left Safety 1
126 Core Trainer Holder 1
127 Powder Metallurgy Φ50*Φ47*Φ25*15 2
128 Round Tube End Cap Φ25*2 1
129 Core Trainer Tube 1
130 Internal Thread Axle Φ25*77*M12 1
131 Axle Φ25*86 1
132 Limit Shaft Φ22*39.5 1
133 Limit Right Φ25*Φ20*5 1
134 Lift Handle 1
PARTS LIST
Bolt Length Gauge
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15cm
7
NUMBER NUMBER PART DESCRIPTION QTY PART PICTURE
61 BK-3103-0100 Ground Tube-Right 1
64 BK-3103-0200 Ground Tube-Left 1
3 BK-3103-0300 Back Standing
Tube-Right 1
4 BK-3103-0400 Back Standing Tube-Left 1
5 BK-3103-0500 Back Down Link Tube 1
6 BK-3103-0600 Back Up Link Tube 1
14 BK-3103-07 Link Tube Assembly Part 2
15 BK-3103-0800 Front Standing
Tube-Right 1
16 BK-3103-0900 Front Standing
Tube-Left 1
17 BK-3102-10 Sliding Frame-Right
Assembly Part 1
PARTS DRAWING
8

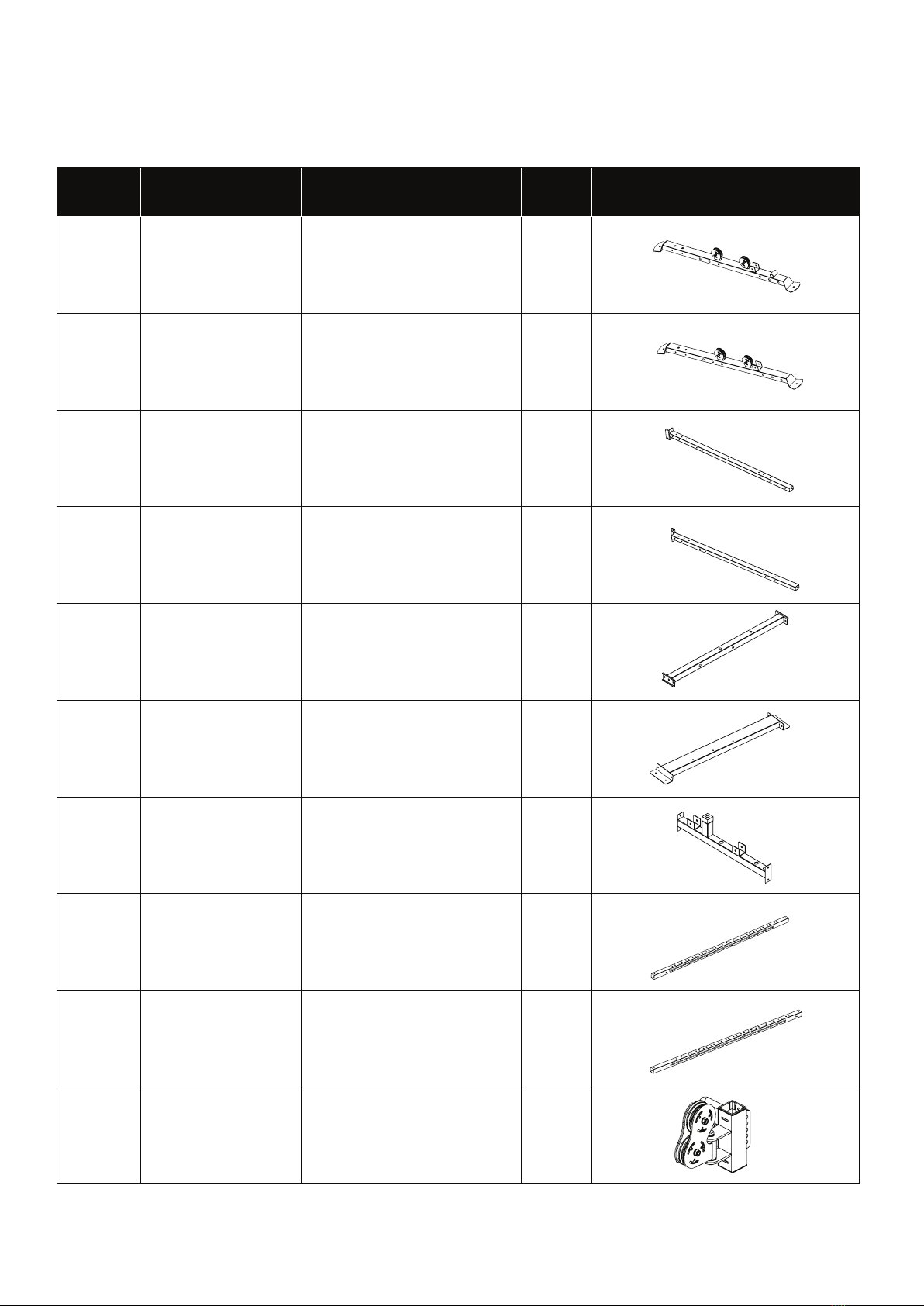

NUMBER NUMBER PART DESCRIPTION QTY PART PICTURE
18 BK-3102-11 Sliding Frame-Left
Assembly Part 1
19 BK-3103-10 Side Up Link Tube
Assembly Part 2
20 BK-3103-1100 Fixing Plate 4
21 BK-3103-12 Chin Up Frame
Assembly Part 1
23 BK-3103-1300 Middle Standing Tube 2
24 BK-3103-14 Standing Frame
Assembly Part 2
25 BK-3103-15 Lift Frame
Assembly Part 2
26 BK-3000-80 Safety Hook-Right
Assembly Part 1
27 JH-02004 Rubber Block 2
28 BK-3000-81 Sliding Sleeve
Assembly Part 2
PARTS DRAWING
9
NUMBER NUMBER PART DESCRIPTION QTY PART PICTURE

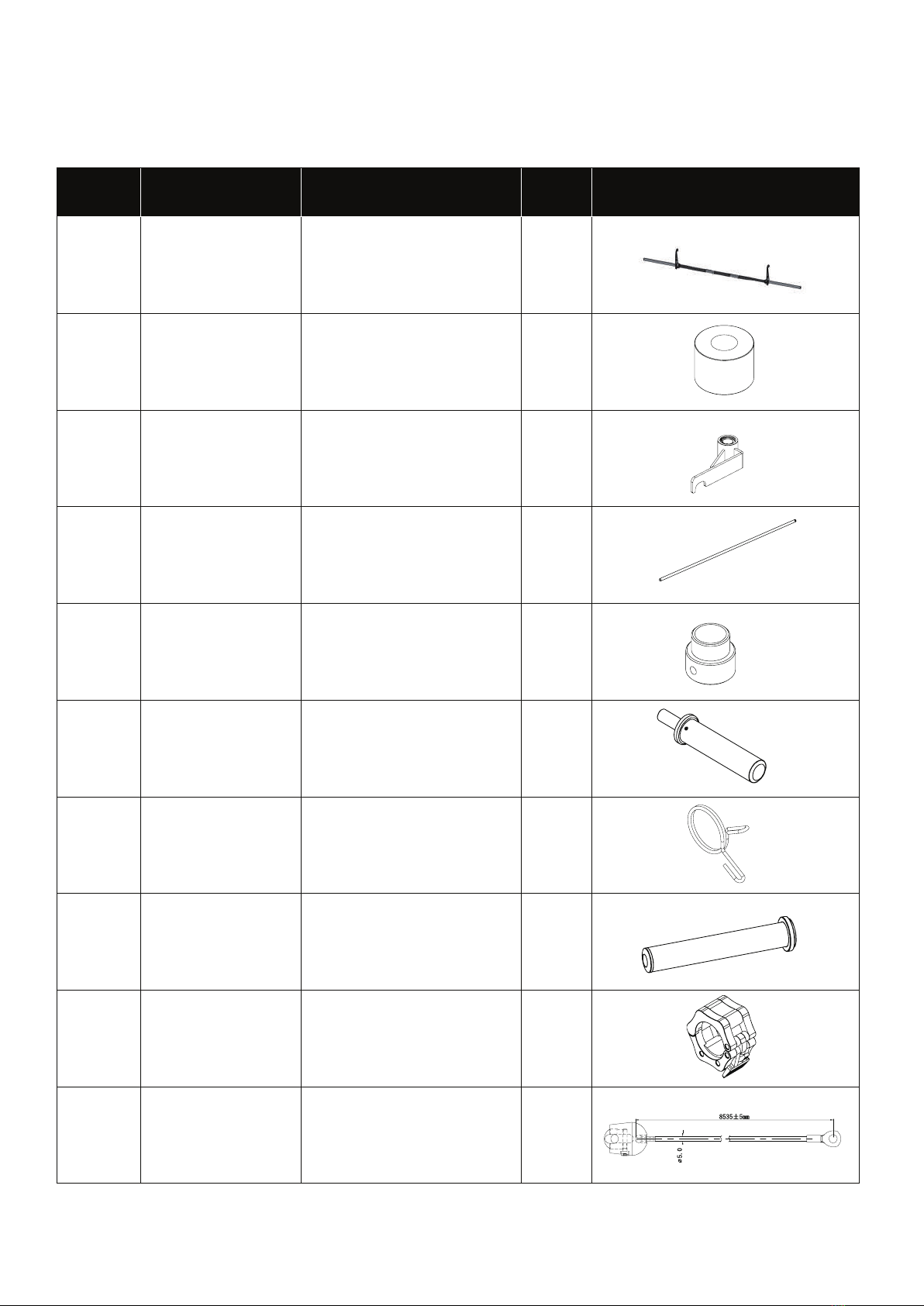

29 BK-3070-90 Barbell Bar
Assembly Part 1
30 JH-02006 Rubber Block 2
31 BK-3000-82 Safety Hook-Left
Assembly Part 1
32 BK-3000B-2501 Guide Rod 2
33 BK-3000B-0600 Guide Rod Lock Sleeve 2
35 BK-3102-15 Lift Rod Assembly Part 4
36 HDJ-01001 Snap Collar 10
37 BK-3000-83 Barbell Rod Sleeve 2
38 GLK-001 Clamp Collar 2
42 BK-3103-GSS GSS Cable 2
PARTS DRAWING
