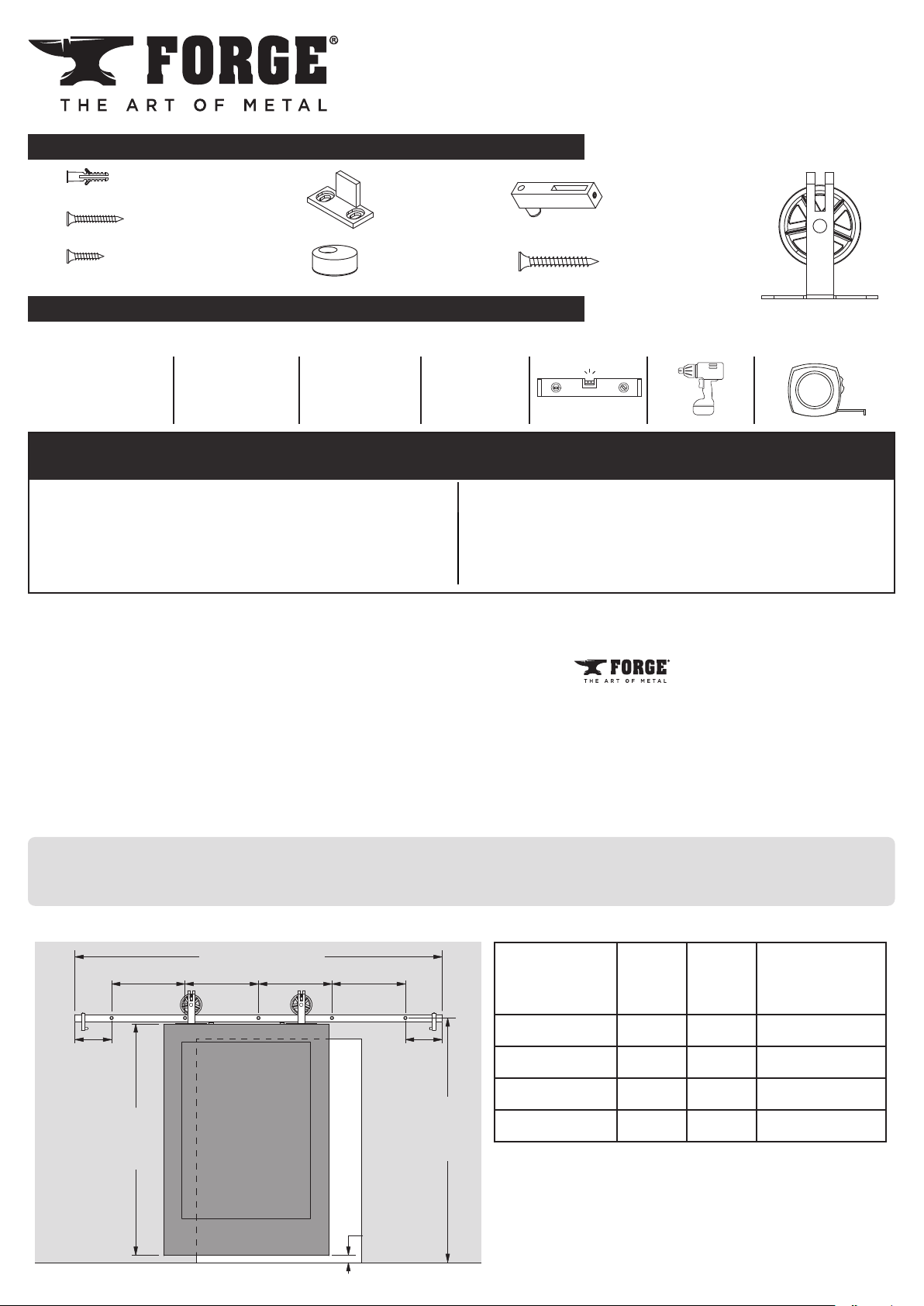

Front Edge
Door Front
5/16”
(Rail not shown for clarity)

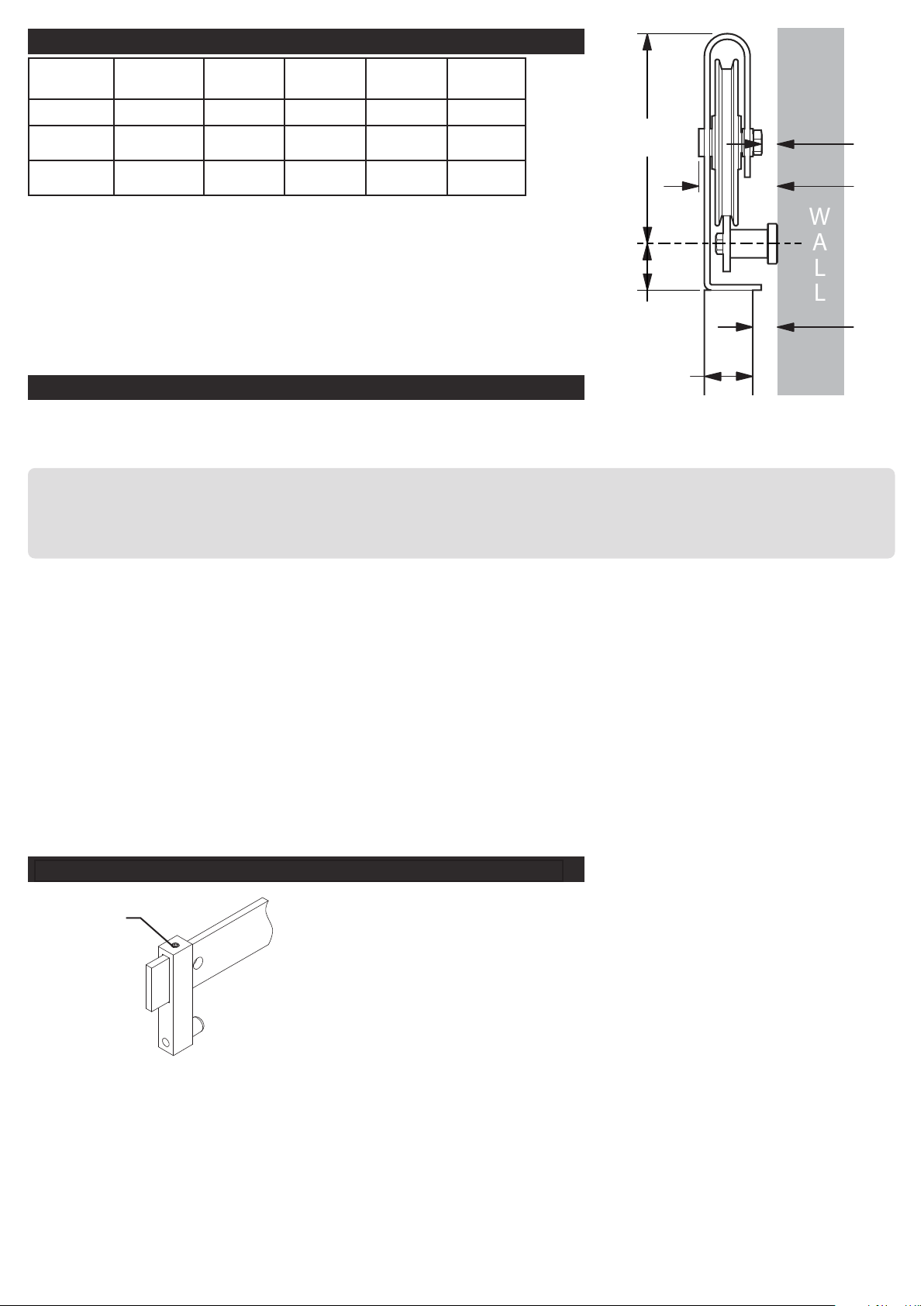

IMPORTANT
The widest part of the Spacer should be placed on the wall.

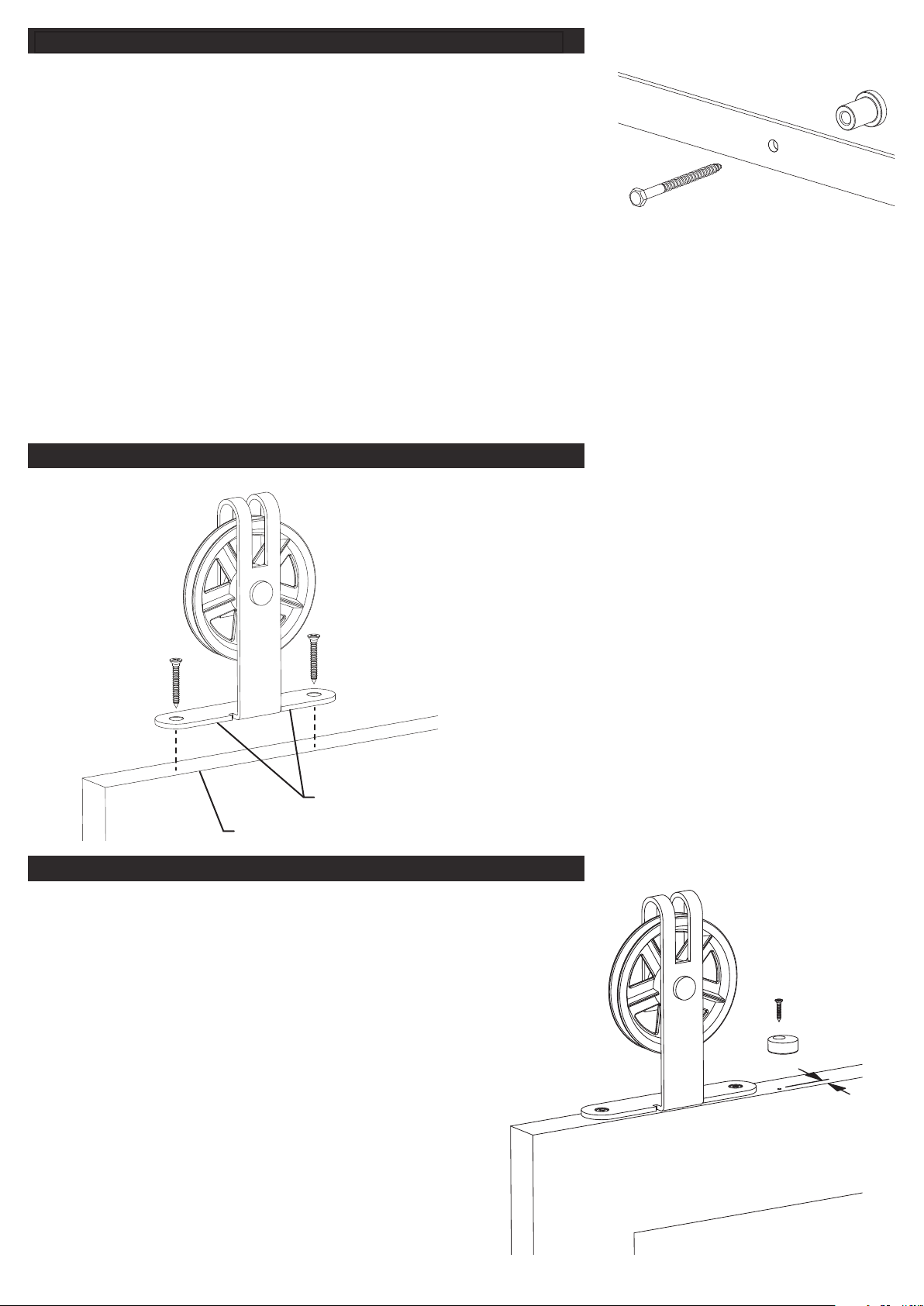

Place a Lag Screw through the hole in the Rail aligning with the
outermost pilot hole on one side, through a Spacer, and drive
the Lag Screw into the pilot hole. DO NOT fully tighten Lag
Screw.
2 - Mount the Rail
Repeat process for a Lag Screw on the opposite end of Rail. DO NOT fully tighten Lag Screw.
Insert remaining Lag Screws through Rail holes and Spacers, and drive into pilot holes. DO NOT
fully tighten Lag Screws.
After all Lag Screws and Spacers are in place, use a level on top of the Rail to make sure it is
properly level. While making sure the Rail is level, tighten all Lag Screws securely.
3 - Install Trolleys and Hang the Door
Place the Trolley on top of the door as shown and
mark the location of the holes for the Trolley
Screws. Align the front edge of the base ange
on each Trolley with the door front.
Drill pilot holes using a 3/32” bit and attach the
Trolleys to the door with the Trolley Screws.
Hang the door on the Rail. Make sure both rollers
are in contact with the Rail and that the door is
level.

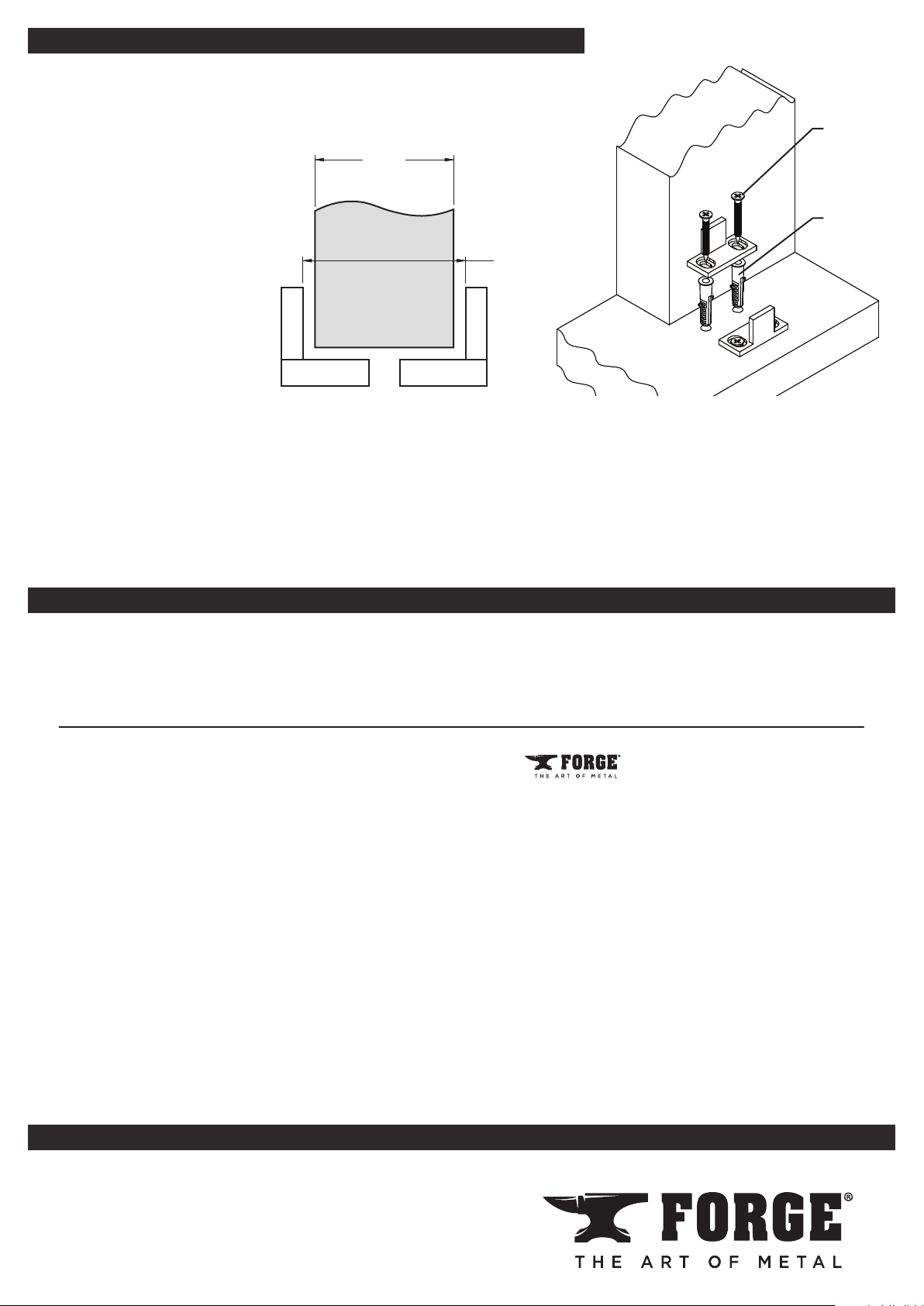

4 - Install Anti-Jump Pads
Drill two 3/32” pilot holes in the top of the door and
located between and near the Trolleys, as shown
in the diagram, in order to mount the Anti-Jump
Pads.
Place the Anti-Jump Pads on the top of the door
and attach with the 3/4” Phillips Screws.
Make sure the Anti-Jump Pad is positioned so that
the hole is towards the front side of the door and
the body of the Pad is underneath the Rail.
