FON-860i Telephone
Start Guide
FON-860i Telephone Start Guide
July 29, 2014
27-400-170922-20140729
Copyright © 2014Fortinet, Inc. All rights reserved. Fortinet®,
FortiGate®, and FortiGuard®, are registered trademarks of
Fortinet, Inc., and other Fortinet names herein may also be
trademarks of Fortinet. All other product or company names
may be trademarks of their respective owners. Performance
metrics contained herein were attained in internal lab tests
under ideal conditions, and performance may vary. Network
variables, different network environments and other conditions
may affect performance results. Nothing herein represents any
binding commitment by Fortinet, and Fortinet disclaims all
warranties, whether express or implied, except to the extent
Fortinet enters a binding written contract, signed by Fortinet’s
General Counsel, with a purchaser that expressly warrants that
the identified product will perform according to the
performance metrics herein. For absolute clarity, any such
warranty will be limited to performance in the same ideal
conditions as in Fortinet’s internal lab tests. Fortinet disclaims
in full any guarantees. Fortinet reserves the right to change,
modify, transfer, or otherwise revise this publication without
notice, and the most current version of the publication shall
be applicable.
Technical Documentation docs.fortinet.com
Knowledge Base kb.fortinet.com
Customer Service & Support support.fortinet.com
Training Services training.fortinet.com
FortiGuard fortiguard.com
Fortinet Technologies Inc. 1 FON-860i Telephone Start Guide
Introduction
Congratulations on your purchase of the FON-860i
Cordless DECT Phone!
This guide describes how to install and add your new
telephone handset to the FON-860i base. For more
information, please see the FON-860i Telephone User
Guide at docs.fortinet.com/ffone.html.
Fortinet Technologies Inc. 2 FON-860i Telephone Start Guide
Installation
Installing the handset charger
1. Place the handset charger within the signal range of
the base. The handset has an indoor signal range of
up to 150 feet (50 meters) from the base. Concrete
and metal objects might affect the signal range.
2. Connect the power adapter from the power outlet to
the power supply connector.
FON-860i charger
Fortinet Technologies Inc. 3 FON-860i Telephone Start Guide
Installing the battery
1. Release the battery cover from the bottom.
2. Insert the Li-ion cell battery in the handset, making
sure it is placed as shown in the illustration, and
then slide the battery cover shut.
FON-860i
handset
Fortinet Technologies Inc. 4 FON-860i Telephone Start Guide

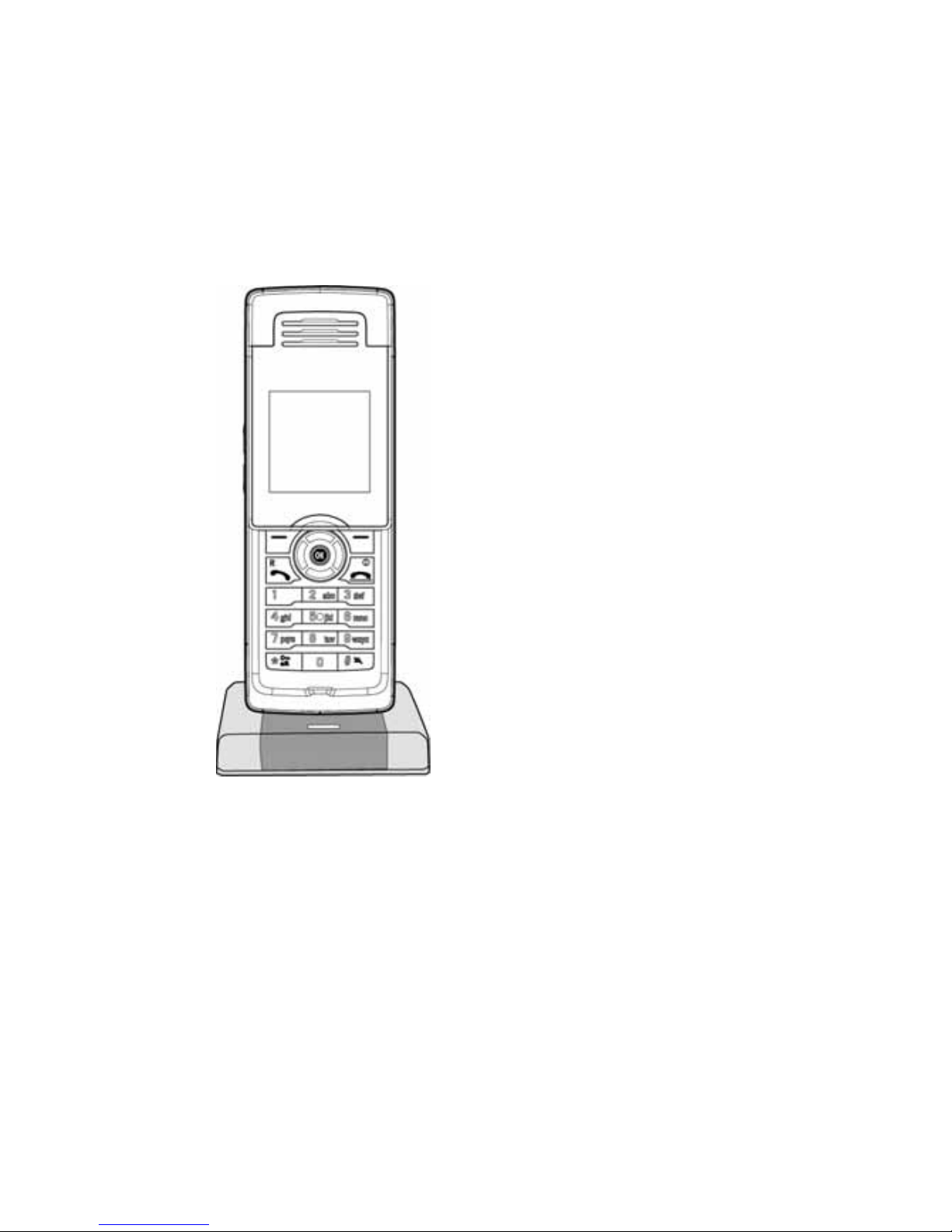

Charging the battery
1. Place the handset in the handset charger. The
handset turns on, and the battery charge indicator in
the display starts to flash.
2. Charge the battery for at least 10 hours before
first use.
Fortinet Technologies Inc. 5 FON-860i Telephone Start Guide
Registering handsets with the base
1. Press the Reset button on the back of the base. A
five-minute registration period starts, which allows
handsets to register with the base.
2. If the handset is turned off, press the Red Phone key
to turn it on.
A base can support up to three handsets with
three concurrent calls. It can support up to
eight handsets if they aren’t all used at once.
If you have more than three handsets and are
getting busy signals, add more bases to your
installation in order to handle more calls.
If you have multiple bases, only reset one base
at a time, and wait five minutes before resetting
the next base.
Fortinet Technologies Inc. 6 FON-860i Telephone Start Guide
3. Place the handset in the handset charger. The
handset automatically registers with the base, and
the Configure SIP Domain message appears on the
display. This message indicates that you must
configure the FON-860i as an IP extension, as
described in the FON-860i Telephone User Guide.
Once the handset is registered, the left connection
status indicator in the display will turn yellow.
4. Once the handset is registered, you can place
additional handsets in the handset charger for
registration. If the five-minute registration period has
expired, but the handsets aren’t all registered, press
the Reset button on the back of the base to start a
new registration period.
Handset name
Connection status indicators
Black/black – out of range of the base
Yellow/black – within range of the base,
but not ready for
Internet calls
Yellow/yellow – within range of
the base, and
ready for
Internet calls
Fortinet Technologies Inc. 7 FON-860i Telephone Start Guide
Configuration information
For information on configuring, using and troubleshooting
the phone, see the FON-860i Telephone User Guide. It is
included with the base of the FON-860i and is available at
http://docs.fortinet.com.
Limited warranty
This phone is covered by a one-year limited warranty
against manufacturing defects.
www.fortivoice.com/support
For warranty service:
•In North America, please call 1-866-648-4638 for
further information.
•Outside North America, contact your sales
representative for return instructions.
You will be responsible for shipping charges, if any.
When you return this telephone for warranty service,
you must present proof of purchase.
