Fortinet FortiCam MC51 Manuale utente
FortiCam MC51
QuickStart Guide
September 25, 2023
2nd Edition
Copyright © 2023 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain
other marks are registered trademarks of Fortinet, Inc., and other Fortinet names herein may also be registered and/
or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective
owners. Performance and other metrics contained herein were attained in internal lab tests under ideal conditions,
and actual performance and other results may vary. Network variables, different network environments and other
conditions may affect performance results. Nothing herein represents any binding commitment by Fortinet, and
Fortinet disclaims all warranties, whether express or implied, except to the extent Fortinet enters a binding written
contract, signed by Fortinet’s General Counsel, with a purchaser that expressly warrants that the identified product
will perform according to certain expressly-identified performance metrics and, in such event, only the specific
performance metrics expressly identified in such binding written contract shall be binding on Fortinet. For absolute
clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab
tests. Fortinet disclaims in full any covenants, representations, and guarantees pursuant hereto, whether express or
implied. Fortinet reserves the right to change, modify, transfer, or otherwise revise this publication without notice,
and the most current version of the publication shall be applicable.
Technical Documentation https://docs.fortinet.com
Knowledge Base https://kb.fortinet.com
Forums https://forum.fortinet.com
Customer Service & Support https://support.fortinet.com
Training Services https://training.fortinet.com
FortiGuard Threat Research & Response https://www.fortiguard.com
Product License Agreement/EULA &
Warranty Terms
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf
Package Contents 1
Hardware Installation 2
Status LEDs 5
Buttons 6
Camera Connection 7
Technical Specifications 9
Register for Support 11
Cautions and Warnings 12
Regulatory Notices 13
Table of Contents
Page 1
Package Contents
Accessory Box
• 4x screws and anchors
Camera Box
• FortiCam camera
• QuickStart Guide
• Mounting template
Page 2
Hardware Installation
Caution: Only remove the protective wrap from the lens once
installation is complete to avoid damage and scratches.
Before installing surveillance cameras, design your system
carefully. Verify location and coverage of each camera.
Decide whether to run cables through the wall/ceiling (drilling
required), or along the wall/ceiling through the notch on the
base.
Install the camera in a protected location that is not easily
accessible, and is away from impacts and heavy vibrations.
Hire qualified technicians to carry out maintenance and repairs.
Disconnect power from the unit when performing maintenance.
The camera can be mounted to a wall, ceiling, or put on a desk.
Page 3
To mount the camera to a wall or ceiling
1. Separate the base cover at the back notch using a coin or
a wide flathead screwdriver.
2. Push the rubber feet out with a screwdriver or with the
supplied screws to expose the mounting holes.
3. Place the mounting template on the ceiling or wall and
mark the drilling positions for each mounting screw.
4. Drill the marked holes and use the supplied plugs and
screws to attach the camera to the surface. Some building
Page 4
materials allow using the screws without plugs.
5. Connect the Ethernet cable and route it through the
opening at the back of the base or directly through a hole
in the wall or ceiling.
6. Click the base cover back into place.
7. Insert the SD card into the SD card slot at the bottom of
the camera head, if onboard storage is preferred. Press the
reset button on the camera after installation.
8. Adjust the camera direction and level it using the 3-axis
joint.
Page 5
Status LEDs
Note: Status LEDs can be disabled through software.
Operation
Color Solid Flashing
Green Connected via
Ethernet Firmware updating
Blue Connected via
Wi-Fi
Cyan Connected via
Bluetooth Bluetooth pairing mode
Amber Warning
Red Fatal error
Bootup Sequence
Red Hardware initialization
White Bootloader
Cyan Bluetooth pairing mode initialized (3 flashes)
Red/Green Blue Searching for connections (rotating)
Page 6
Buttons
Reset
Reset Button Operation
Press Time LED Action
No change in color Reboot
seconds Flashing Cyan Reboot +
Bluetooth pairing mode
seconds Alternating Green/Blue Factory reset+
Bluetooth pairing mode
Page 7
Camera Connection
Caution: This device complies with IEEE 802.3af PoE
specification. Do not use any PoE injectors that are not IEEE
802.3af compliant as they may damage your device.
Attention: Cet appareil est conforme à la spécification PoE
IEEE 802.3af. N’utilisez pas d’injecteurs PoE non conformes
à la norme IEEE 802.3af car ils pourraient endommager votre
appareil.

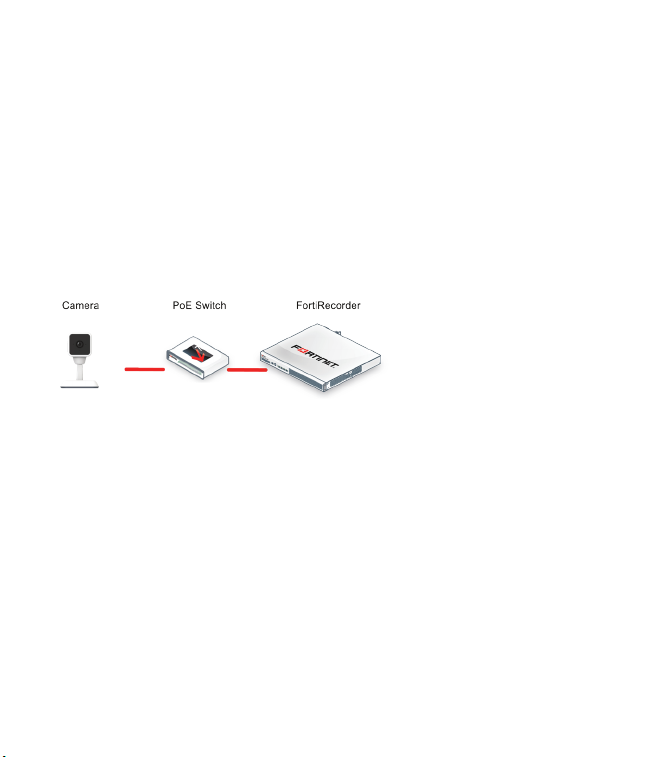

To use FortiRecorder to connect the camera
1. Connect the Ethernet port of the camera to the
FortiRecorder NVR via a PoE switch.
The camera automatically gets its IP address from the
DHCP server. The default IP address of the camera is
192.168.1.245.
2. Use the FortiRecorder GUI to configure the discovered
camera.
For details or connection troubleshooting, see the
FortiRecorder Administration Guide.
