Fortis 6000 RT Manuale
6000 RT
Remote Teller System
Installation and Service Manual
August 2016
Fortis Security Products
6000-RT Remote Teller System
Installation and Service Manual
Table Of Contents
6000RT Customer and Teller Dimensional Specifications Pg-1
Customer Service Door Removal Pg-2
Typical Installation Drawing Pg-3
6000RT Customer Island Detail Pg-4
Customer Mounting and Electrical Information Pg-5
Customer Turbine Installation Pg-7
Customer Audio Connections Pg-8
6000RT Teller Installation Drawings Pg-9
Teller Control Set-Up Pg-13
System Tubing Connections Pg-16
System Operational Sequence Pg-17
System Electrical Drawings Pg-18
Care and Maintenance Pg-22
Lane Station Installation Pg-23
Camera Installation Pg-24
Customer Part Breakdown Pg-25
Teller Part Breakdown Pg-29
13 5
16
"
46 13
16
"
13 1
16
"
12 3
4
"
7 15
16
"
20"
58 3
16
"
12 5
8
"

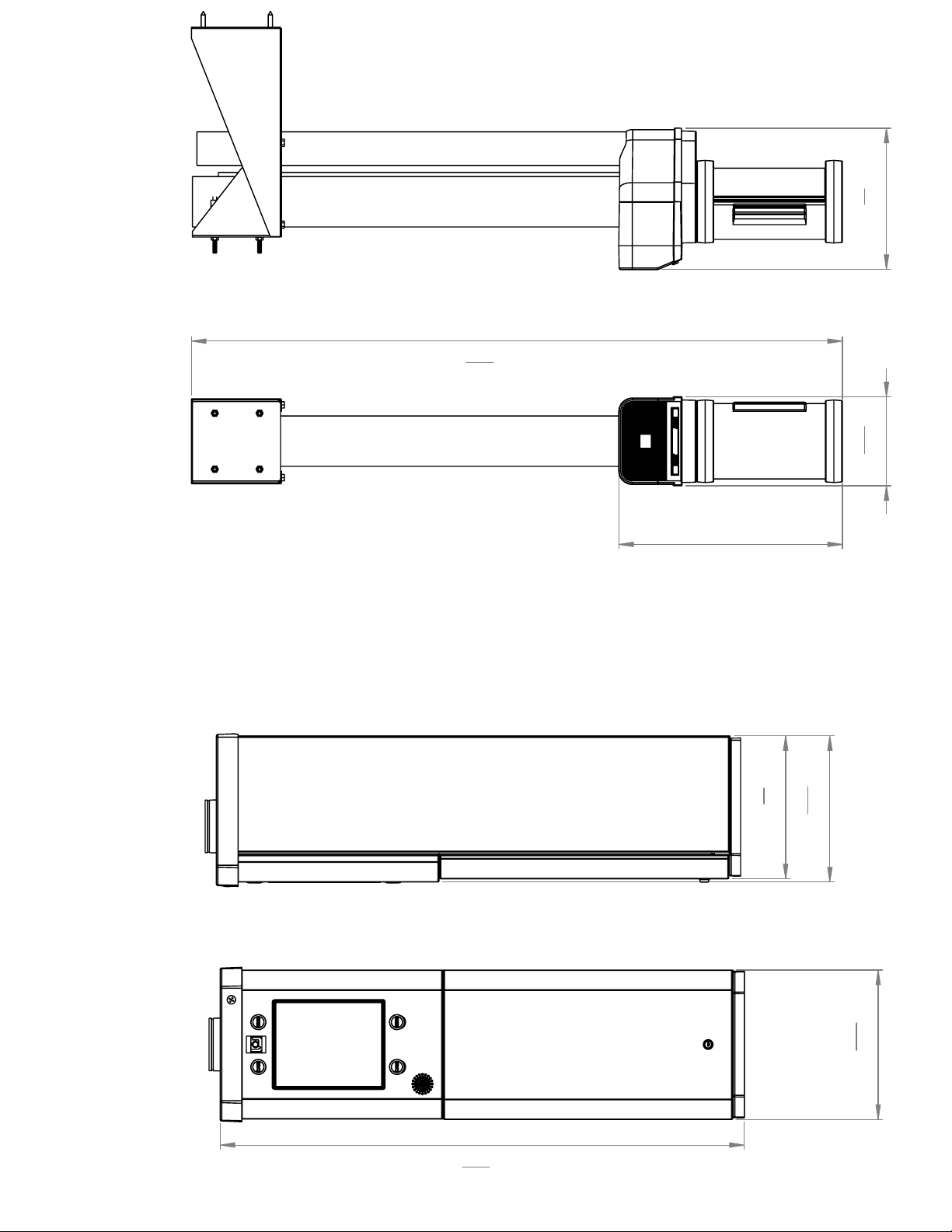

6000RT CUSTOMER UNIT
6000RT TELLER UNIT
1
REMOVE TWO
SCREWS
TURN CCW
TO UNLOCK
PULL OUT ON THE BOTTOM
OF PANEL AND THEN
DOWN TO REMOVE.
BECAREFUL OF THE WIRING
THAT IS ATTACHED TO THE
BACK OF THE PANEL
REMOVING SERVICE PANELS
PULL OUT ON THE BOTTOM
OF PANEL AND THEN
DOWN TO REMOVE.
BECAREFUL OF THE WIRING
THAT IS ATTACHED TO THE
BACK OF THE FRONT PANEL
LOCK VIEW
2
DRIVE-UP SYSTEM VERTICAL SECTION
3
6 1
2
"
16"
3 3
4
"
5 1
8
"
7 1
2
"
10 1
4
"
9 7
16
"
CARRIER TUBE CENTER LINE
1/4" DIAMETER CONCRETE
ANCHORS (4) PLCS.
26" 26"
6"
7 11
16
"
1 11
16
"
3 1
8
"
7 1
4
"
1 3
4
"
4" BOLLARD
(2) PLCS.
ELECTRICAL CONDUIT
LOCATION
IT IS RECOMMENDED THAT THE CONDUIT
THAT HAS THE 120 VOLT 20 AMP CIRCUIT
COME UP INTO THE BOTTOM OF A JUNCTION
BOX THAT IS MOUNTED FLAT ON THE ISLAND.
THEN A FLEXIBLE CONDUIT CAN BE RAN THRU
THE BASE OF THE UNIT TO THE JUNCTION BOX
WHICH IS TO BE MOUNTED TO THE INSIDE OF
THE RIGHT SIDE PANEL BELOW THE MOTOR ASSEMBLY.
MAKE SURE THE OUTLET DOES NOT INTERFERE WITH THE
REMOVAL AND INSTALLATION OF THE TURBINE ASSEMBLY.
TRAFFIC FLOW >>>>>>>>>
6000RT CUSTOMER
MOUNTING LOCATIONS
TRAFFIC FLOW >>>>>>>>>
CONDUIT AND BOLLARD LOCATIONS
CURB
4
Mounting the Customer Unit
Locate Customer Unit on Island per detailed drawing. The front of the
unit should be five inches from the front of the curb. Remove the turbine
box by removing the flex hoses and lift out of unit. Mark the location of
the four mounting holes. Using four 3/8 “ dia concrete anchors secure
customer unit to island. Before final tightening of base anchors check
level of unit front to back and left to right. Make sure unit is not twisted
once fully tighten down to island
Electrical Connections
The main power connection is a 120V 20A circuit using a Nema L5-20P
cord end. The electrician should install an outlet for this style cord end
in a junction box that is mounted to the inside of the right side of the
cabinet. Make sure that this junction box and outlet do not interfere with
the removal and installation of the Turbine Assembly.
Note – If you are connecting conduits to the top of the unit.
DO NOT CUT ANY HOLES IN THE TOP. REMOVE THE TWO PLUGS IN
THE TOP. THESE HOLES ARE TAPPED SO THAT A ½” CONDUIT
CONNECTOR CAN BE THREADED INTO PLACE.
IT IS IMPORTANT THAT YOU ONLY USE THESE HOLES. THE
UNDERNEATH OF THE TOP IS CONSTRUCTED WITH A HAS A AIR
MANIFOLD MADE INTO IT. CUUTING INTO THE TOP WILL MAKE
THE UNIT UN-USABLE!
Each unit is shipped with a field wiring harness. The harness has eight
color coded wires which are to be connected to the field wiring cable that
runs between each station.
Connect these wires color for color.
5
6000RT ELECTRICAL INFORMATION
THREADED CONDUIT PORTS
FOR OVERHEAD ELECTRICAL INSTALLATION.
THESE PORTS ARE THREADED FOR 1/2"
CONDUIT CONNECTORS.
DO NOT CUT HOLES OR TRY TO ENLARGE
THESE PORTS. THE UNDER SIDE OF THE
TOP HAS AN AIR MANIFOLD MOLDED
INTO IT. CUTTING THE TOP IN ANYWAY MAY
RESULT IN AN AIR LEAK
E
OUTLET BOX SHOULD BE MOUNTED
15 INCHES FROM THE INSIDE OF THE
BASE TO THE BOTTOM OF THE BOX.
BOX SHOULD BE MOUNTED AGAINST
THE INSIDE OF THE RIGHT-SIDE PANEL
WITH IT AGAINST THE INSIDE OF THE
FRONT FLANGE.
BOX CAN NOT BE ANY DEEPER THAN
1 3/4 INCHES. YOU WILL HAVE TROUBLE
GETTING THE TURBINE ASSY IN AND OUT
IF THE ELECTRICAL BOX IS INSTALLED
INCORRECTLY!
JUNCTION BOX
ELECTRICAL CIRCUIT - 120 VOLT 20AMP DEDICATED CIRCUIT.
REQUIRES AN L5-20 RECEPTACLE
6
F

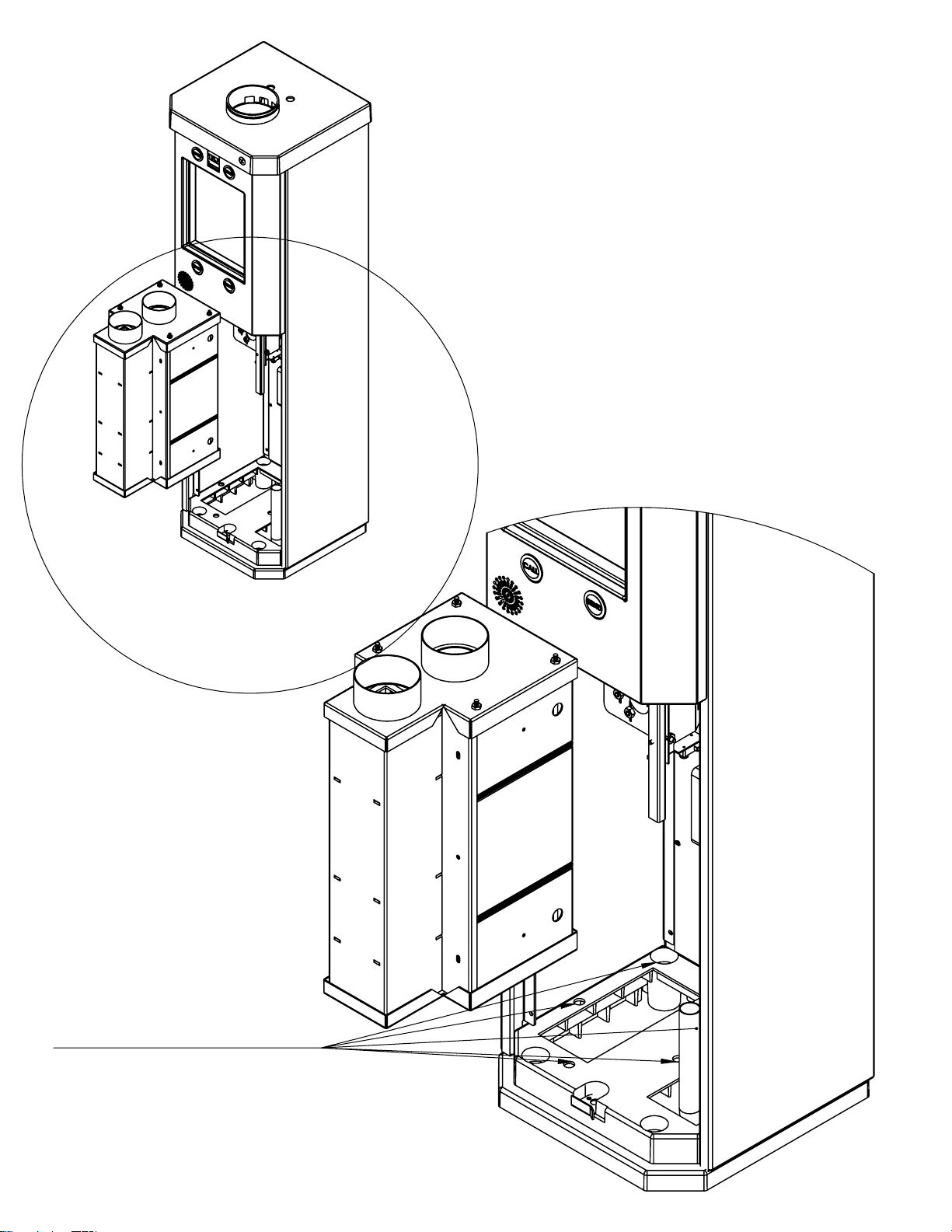

TURBINE INSTALLATION
ONCE THE TURBINE IS INSTALLED
THE HOSES WILL CONNECT AS
THEY LINE UP. THE BACK HOSE GOES
TO THE BACK PORT AND THE
FRONT HOSE GOES TO THE FRONT PORT
WHEN INSTALLING TURBINE
MAKE SURE THE FASTENERS
ON THE BOTTOM OF THE
TURBINE DROP DOWN INTO
THESE HOLES.
MAKE SURE THE BACK LEFT ANCHOR
DOES NOT KEEP THE TURBINE BOX
FROM SETTING FLAT ON THE BOTTOM
OF THE UNIT.
7
Audio System Connections
The microphones, speaker, and call buttons are wired into the main
harness and the pigtail is located near the electrical panel.
The microphone wires (two shielded cables):
Positive (red) negative (black) and common (bare)
The speaker wires ( red and black wires):
Positive (red) and negative (black)
The call button wires (blue and white):
Signal (blue) and common (white)
8
