Foscam FI8905E Manuale utente

V49.02

Model: FI8905E

Quick Installation Guide

Outdoor PoE Network Camera

For Windows OS ------- Page 1

For MAC OS ------- Page 14

ShenZhen Foscam Intelligent Technology Co., Ltd

FI8905E Quick Installation Guide

www.foscam.com

- 1 -

Quick Installation Guide - For Windows OS

POE Network Camera x 1

DC Power Adapter (5V-2.0A) .x 1

Network Cable x 1

Mounting Bracket .x 1

Quick Installation Guide x 1

CD-ROM with Setup Software .x 1

Warranty Card x 1

The Network Camera is POE-compliant, allowing transmission of power and data via a single

Ethernet cable. Such as the following picture: connect the Network Camera to a PoE-enabled router/

switch via Ethernet cable.

Package Contents

Power over Ethernet(PoE)

FI8905E Quick Installation Guide

www.foscam.com

- 2 -

When using a PoE-enabled router/switch

1) Open the package. Take the camera out of the box carefully.

2) Get the camera connected to the router.

Connect the Network Camera to a PoE-enabled router/ switch via Ethernet cable at your home or

your office. The small green light on RJ45 will turn on, the small orange light will blink.

Figure 1.1 Plug the network cable

Quick Installation Diagram

Remote Access Setup

Software Installation

Other Settings

Hardware Installation

1. Hardware Installation

Start Installation

FI8905E Quick Installation Guide

www.foscam.com

- 3 -

When using a non-PoE router/switch

1) Open the package. Take out the camera out of the box carefully.

2) Get the camera connected to the router and get it powered

Use the network cable to connect the camera to the router or the switch in the LAN network at your

home or your office. Plug in the power. The small green light on RJ45 will turn on, the small orange

light will blink.

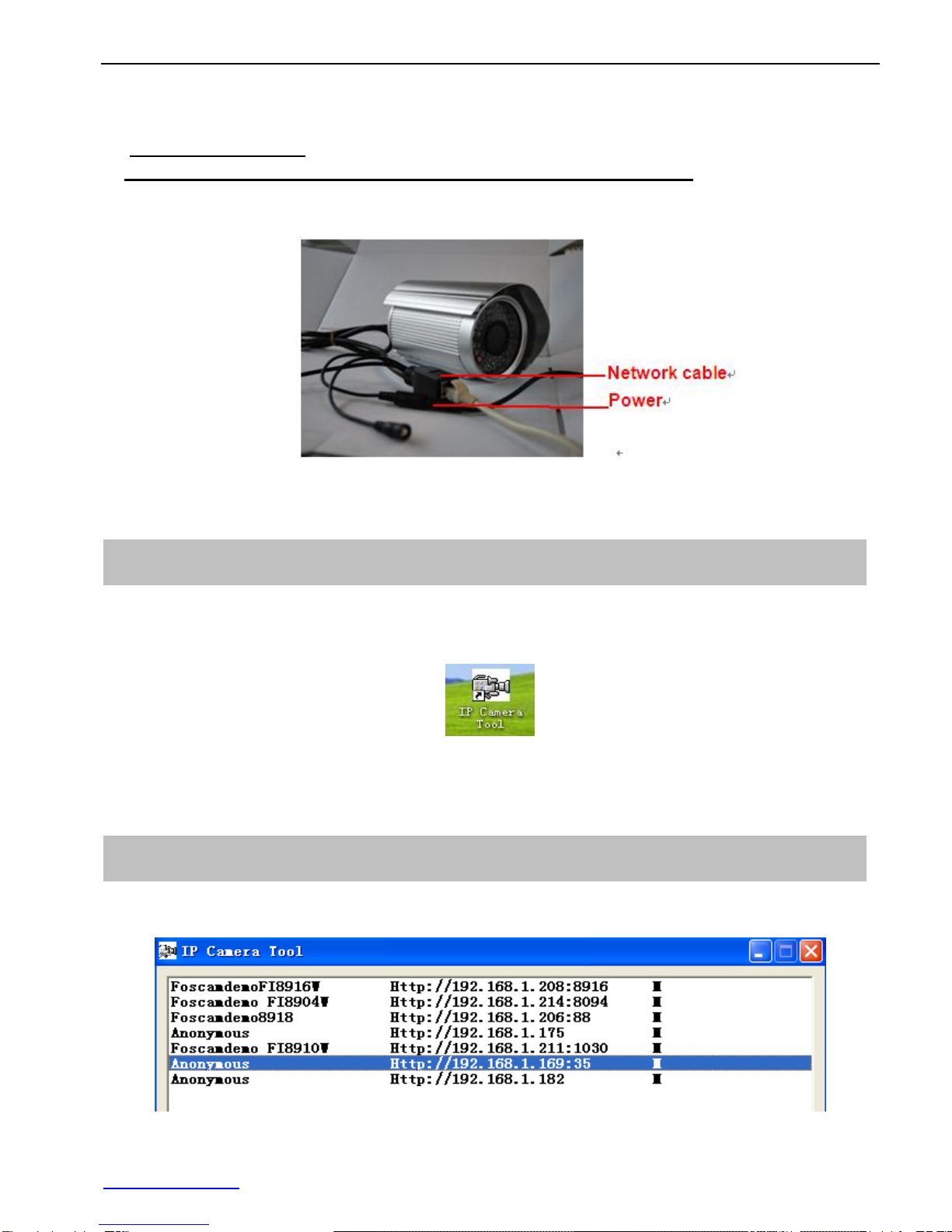

Figure 1.2 Plug the network cable and power

Insert the CD into the CD drive of your computer and go to the folder “For Windows OS”.

Copy the IP camera tool to your computer and start the program.

Figure 1.3 Shortcut icon

Double click the IP Camera Tool icon and the following screen should appear.

Figure 1.4 IP Camera Tool Windows

2. Software Installation

3. Login the Camera

FI8905E Quick Installation Guide

www.foscam.com

- 4 -

The IP camera tool should find the camera’s IP automatically after you plug in the network cable. If

not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls

and anti-virus are disabled temporarily until the camera is set up.

Double click the LAN IP address of the camera, it pops up a password dialog box.

Figure 1.5 Enter the username and password

Default user name is

admin with no password

FI8905E Quick Installation Guide

www.foscam.com

- 5 -

Figure 1.6 Login User Interface

There are three login methods. One is IE ActiveX Mode, the other is Server Push

Mode for Safari, Firefox, Google Chrome, the third mode is Mobile Phone for mobile phone.

Please choose IE ActiveX Mode if you are using IE browser now.

For the first time login the camera, please make sure to allowActiveX to run when prompted.

Note

If you use IE browser, select this

If you use Firefox, Google

Chrome, Safari, select this login

mode

If you use Mobile phone, select

this login mode

FI8905E Quick Installation Guide

www.foscam.com

- 6 -

Figure 1.7 Install the ActiveX

Figure 1.8 Run the ActiveX

Click Run button, and re-login the camera again, you can see the following surveillance window:

Select Run

Click this button and

install the ActiveX

FI8905E Quick Installation Guide

www.foscam.com

- 7 -

Figure 1.9 Surveillance Windows

Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave

all the menus alone before you finish the quick installation.

The default user name is admin with no password.

If you are unable to see a live video, please make sure to allowActiveX to run when prompted.

If you only see a black screen with a red cross in the center, please try another port number instead

of the default “port 80” .You may want to try port 85, 8005, etc.

If you are still unable to see a live video, try shutting down any firewall or anti-virus software on your

computer.

Note

FI8905E Quick Installation Guide

www.foscam.com

- 8 -

We have been able to access the camera within the LAN network, but how to access the camera via

WAN or via internet? We have to do Remote Access Settings before we want to access the

camera outside the LAN network.

What is the HTTP Port no. and How to change it ?

1) Default HTTP No.: 80

All the cameras’ default http no. is 80. For example, if the LAN IP link of the camera is

http://192.168.1.35, it says that the camera’s http port no. is 80, if the LAN IP link of the camera is

http://192.168.1.35:88, it says that the camera’s http port no. is 88. Port 80 could be blocked when

accessing via internet, we need to change port 80 to another one like 88, or 85 as you like, which will

not be conflict with other existing ports like 25, 21.

2) Change the default http no.80 to another one like 88, or 85 etc.

How to assign a different HTTP Port No. and fixed the LAN IP of the camera by the IP Camera

Tool？

Firstly Open the IP Camera Tool, select the camera you want to change the port no, right click on

the IP address link, and goes to Option ”Network Configuration”, it pops up another dialogue showed

as Fig2.0, Fig2.1.

Figure 2.0 Goes to Option Network Configuration

4. Remote Access Settings

Select the camera you

want to change the port

no, right click

FI8905E Quick Installation Guide

www.foscam.com

- 9 -

Figure 2.1 Change the http port no.

Secondly, enter User name & password of the Administrator (default user: admin, no password),

and click the button ”OK” to apply the modification. The Camera will restart one the modification is

done.

Thirdly, after the camera restart and get connected again, you will find the LAN IP link address has

been change to http://192.168.1.35:88, and the LAN IP address is fixed at http://192.168.1.35:88. It

won’t be changed no matter you re-power the camera or re-power the router.

Figure 2.2 IP Camera Tool Windows

First of all, please make sure whether your ISP (Internet Service Provider) provides a Static WAN IP

address service or a Dynamic WAN IP address service.

We divide two sections of Remote Access Settings by Static WAN IP Service and Dynamic WAN IP

Service.

Get Started Remote Access Settings

Modify the Http Port no.

Enter the User name and

password, click OK
