Foscam X4 Manuale utente

User

User Manual

Manual

2K/QHD Wireless IP Camera

Model: X4

V3.0

Table of Contents

1 Overview............................................................................................................................................................................. 3

1.1 Key Features...........................................................................................................................................................3

1.2 Read before Use.................................................................................................................................................... 3

1.3 Packing Contents................................................................................................................................................... 3

1.4 Physical Description.............................................................................................................................................. 4

1.5 SD Card Management...........................................................................................................................................5

1.6 Add Device: Connection via the Foscam App................................................................................................... 5

1.7 Installation............................................................................................................................................................... 5

2 Default Parameters........................................................................................................................................................... 7

3 Specification....................................................................................................................................................................... 7

1 Overview

1.1 Key Features

4.0 Mega-Pixel

H.264+/H.264 video Compression

Supports 2.4GHz and 5GHz network

Supports Human detection, Motion Detection and Sound Detection

Compatible with free Foscam Video Management Software

Compatible with free Foscam iOS and Android APP

Supports Full Duplex two-way Audio

Nightvision with 940nms LEDs, no light pollution

Supports voice prompt

Supports 256GB Micro SD Card storage(External)

IR Range up to 8m(26ft)

P2P Feature for Easy Remote Access

Supports image snapshot

Supports dual-stream

Supports remote viewing & record from anywhere anytime

Multi-level users management with password protection

Supports multiple network protocols: IP, TCP, UDP, SMTP, FTP, DHCP, RTSP

Supports Alexa

Supports Google Assistant

1.2 Read before Use

Please first verify that all contents received are complete according to the Package Contents listed below.

Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Setup

Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly

as intended.

1.3 Packing Contents

● IP Camera × 1

● AC Adapter × 1

● Quick Setup Guide × 1

● Power Line × 1

● mounting plate × 1

1.4 Physical Description

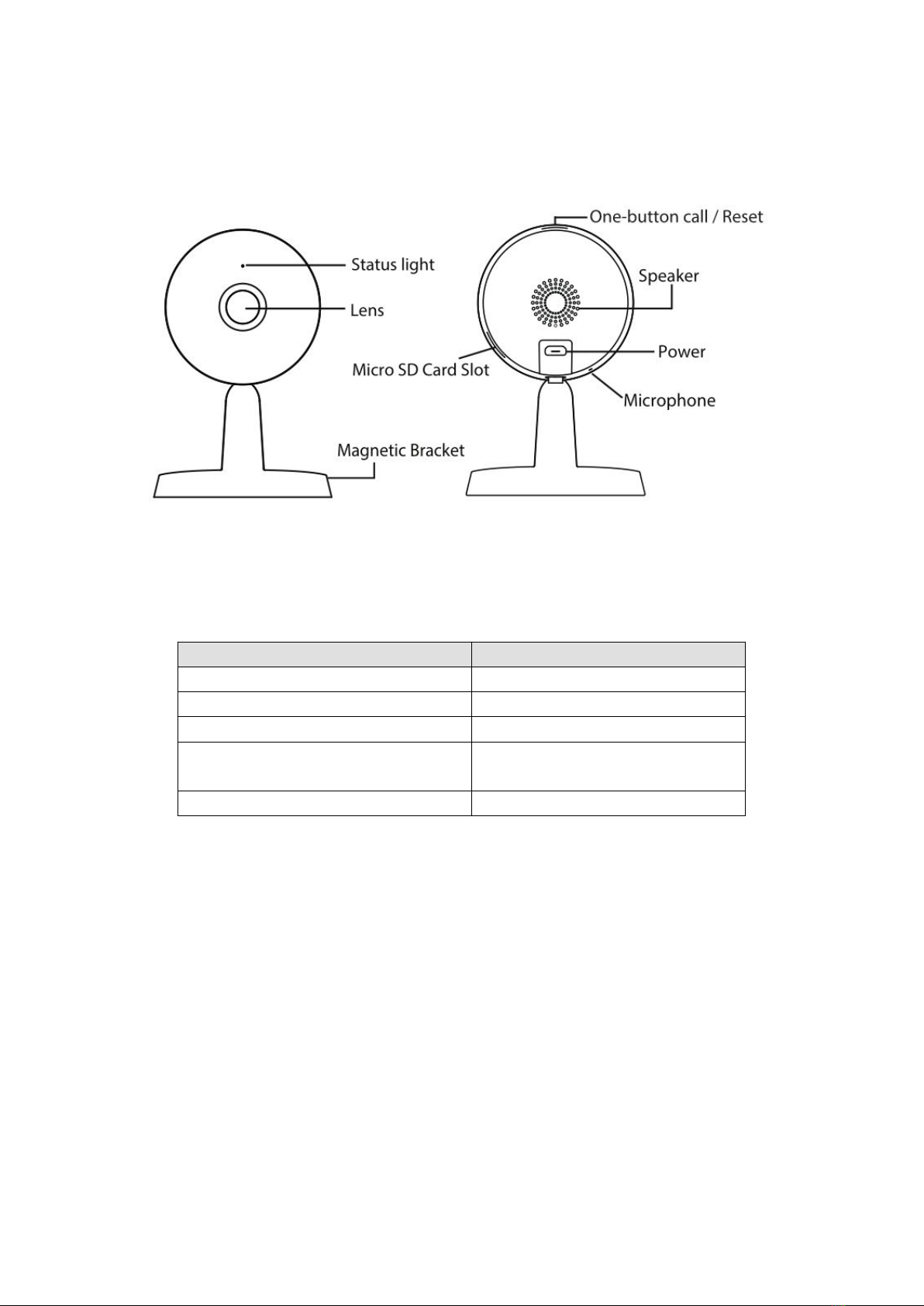

Front panel Rear panel

Front panel:

Status light: The flashing status of the Status light are shown in the following table.

Flashing Status

Description

Constantly bright (orange)

Powered on

Flashing(blue) every 0.4 seconds

Reset to take effect

Constantly bright (blue)

Wi-Fi connected

Flashing every(blue) 0.4 seconds and

keep on 3 seconds

One-button call

Flashing every(blue) 0.2 seconds

EZLink takes effect

Lens: Fixed focus lens.

Magnetic Bracket: Adsorbing on a ferromagnetic object using a magnet on the base

Rear panel:

One-button call /Reset

One-button call: Press and hold the button for 1 to 5 seconds to trigger One-button call, the status light will

blink every 0.4 seconds and keep on 3 seconds;

Reset: Press and hold the Reset button for more than 10 seconds to set the camera to factory default, the

Power light will blink every 0.4 seconds;

Speaker: Built-in speaker

Power: DC 5V/1A Power supply.

Microphone: Built-in microphone.

Micro SD Card slot: Supports up to 128GB SD card for storing the video.

1.5 SD Card Management

This camera supports Micro SD Card.

When you plug in the SD card during the camera work process, please reboot the camera again, or else the

SD card might not work well.

On Foscam app go to the SettingsDevice StatusDevice Status page, you can see the SD card status.

1.6 Add Device: Connection via the Foscam App

Scan the QR code below to download and install the Foscam APP.

Please refer to the Quick Setup Guide.

1.7 Installation

Please refer to the Quick Setup Guide.

1.7.1. Place Your Camera on a Flat Surface

You can place your camera on a flat surface (desk, shelf, Table, etc.).

1.7.2. Adsorbing on a ferromagnetic object using a magnet on the base

You can Adsorbing on a ferromagnetic object using a magnet on the base

1.7.3. Your Camera to the Wall

Install the mounting plate on a wall or ceiling with supplied fxing screws.

Note: Align points a and b to insert the camera base to the mounting plate. Rotate so that points a and b are

aligned, this attaches the camera securely to the base.

2 Default Parameters

Default network parameters

IP address: obtain dynamically

Subnet mask: obtain dynamically

Gateway: obtain dynamically

3 Specification

ITEMS

Image Sensor

Sensor Type

High Definition Color CMOS Sensor

Display Resolution

4.0Megapixels(2560*1440)

Min. Illumination

N/A (Without IR Illuminator)

Lens

Lens Type

f 3.14mm; F2.2

Angle of view

Diagonal: 116.6°, Horizontal: 97.2°, Vertical: 52.6°

Video

Image Compression

H.264+/H.264

Image Frame Rate

Max 25fps (2K)

Resolution

2K(2560*1440) 25fps,3MP(2304x1296)25fps,1080P(1920x1080)

25fps,720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240)

Stream

Dual stream

Image Adjustment

The hue, brightness, contrast, saturation, sharpness are adjustable

Flip Image

Flip and mirror

Infrared Mode

9pcs IR-LEDs (940nm)

Night Mode

Manual and automatic modes

Night Visibility

Audio

Input/Output

Build-in two-way audio

Audio Compression

PCM/ G.726

Network

Ethernet

N/A

Wireless Standard

2.4GHz&5GHz,IEEE802.11b/g/n/ac

Data

Rate

IEEE802.11b: 11Mbps(Max.);

IEEE802.11g: 54Mbps(Max.);

IEEE802.11n: 150Mbps(Max.).

IEEE802.11ac: 433Mbps(Max.).

Wireless Security

WPA, WPA2

Remote Access

P2P

Wifi Configuration Mode

Support scan QR code , sound wave to add camera

Network Protocol

IP, TCP, UDP, SMTP, FTP, DHCP, RTSP

System

Requirements

Operating System

Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android

(Foscam app), iOS (Foscam app)

Other Features

Motion Detection

Alarm via E-Mail, FTP and Foscam app when an event is detected

Sound Detection

Alarm via E-Mail, FTP and Foscam app when an event is detected

Human Detection

Alarm via E-Mail, FTP and Foscam app when an event is detected

Privacy Block

N/A

WDR

Improve image clarity in complex scenario

Zoom

6X digital zoom function

Storage

Support max. 256GB Micro SD card, local and FTP storage,Foscam

cloud storage

User Accounts

Three levels user role

One-button call

Press the button to call the mobile phone

Power

Power Supply

Micro USB 5V/1.0A

Power Consumption

5 Watts (Max.)

Physical

Dimension(LxWxH)

70(L)x70 (W)x120 (H)

Net Weight

165g

Environment

Waterproof

N/A

Operating Temperature

-10°C~ 40°C (14°F ~ 104°F)

Operating Humidity

20% ~ 85% non-condensing

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

Certification

CE, FCC, RoHS,WEEE

For other parts, please refer to the “FOSCAM Camera User Manual”
