F2303 EDGE DTU

USER MANUAL

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 2 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

Chapter 1 Brief Introduction of Product.........................................................................3

1.1 General..............................................................................................................3

1.2 Product Features...............................................................................................3

1.3 System Component...........................................................................................3

1.4 Working Principle.............................................................................................3

1.5 Technical Specification ...................................................................................4

Chapter 2 Installation Introduction.................................................................................5

2.1 General..............................................................................................................5

2.2 Encasement List................................................................................................5

2.3 Installation and Cable Connection....................................................................5

2.4 Power................................................................................................................7

2.5 Indicator Lights Introduction............................................................................7

Chapter 3 Configuration.................................................................................................8

3.1 Configuration Connection ................................................................................8

3.2 Configuration....................................................................................................8

3.3 Functions ........................................................................................................18

3.4 Work State Switch...........................................................................................19

Chapter 4 Appendix......................................................................................................20

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 3 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

Chapter 1 Brief Introduction of Product

1.1 General

F2303 EDGE DTU is based on public EDGE network, and it provides customers

with high speed, “always online”, transparent data transfer channel. It has been widely

used on finance, electric power, environment protection, transportation fields and so

on.It also supportsAPN to meet the need of customers.

1.2 Product Features

Industrial MCU, 100M

Design with standard TCP/IP protocol stack

Adopt smart online keeping technology to make sure that DTU is always

online.

Support double data centers, one main and another backup

Support multi data centers, It can support 5 data centers at the same time

Support dynamic domain name(DDNS) and IP access to data center

Support several work modes

Support hardware and software WDT

Easy to upgrade firmware

Support remote configure and control

Support RS232/RS485

Power range: DC 5~35V

1.3 System Component

The DTU is composed of the following parts mainly:

Industrial MCU, 100M

256KB Sram & 512KB Flash

Industrial EDGE module

1.4 Working Principle

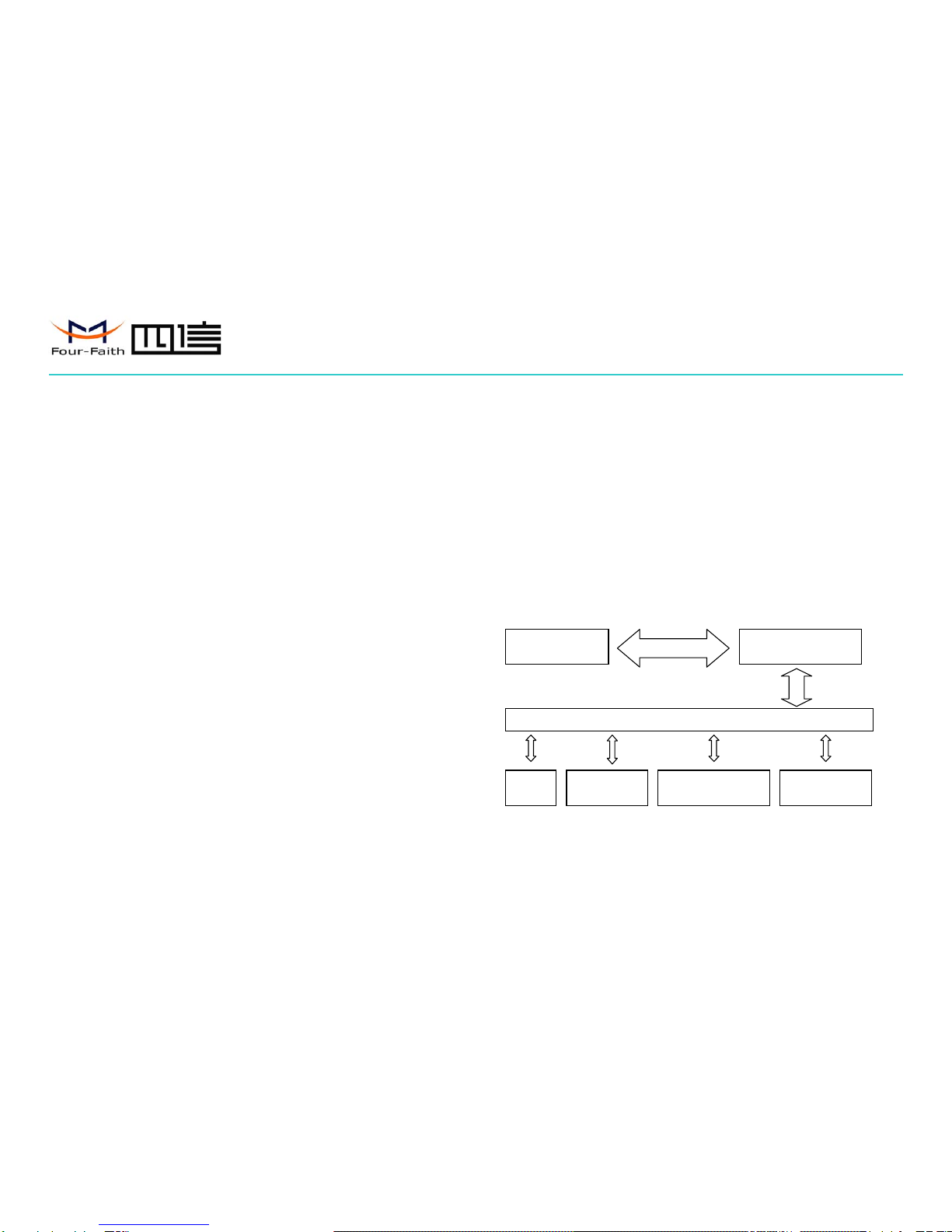

The principle chart of the DTU is as following:

Embedded processing

stem

EDGE Module

Power RS232 serial

Interface Indicator lights

DATA Interface

User interface

RS485 serial

Interface

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 4 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

1.5 Technical Specification

Wireless specification:

GSM850/900/1800/1900MHz

Multi-slot class 10

Compliant to GSM phase 2/2+

Support SMS and data function

Interface:

RS232/485 serial port, rates: 110~230400bits/s

Indicator lights: “Power”, “ACT”, “Online”

Antenna interface: standard SMA female interface, 50 ohm

SIM/UIM interface: standard user card interface

Power interface: standard 3-PIN power jack

Power supply:

Standard power: DC 12V/0.5A

Power range: DC 5~35V

Others:

Operation temperature:-25~+65ºC

Storage temperature: -40~+85ºC

Humidity: 95% (unfreezing)

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 5 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

Chapter 2 Installation Introduction

2.1 General

The DTU must be installed correctly to make it work properly.

Warning: Forbid to install the DTU when powered!

2.2 Encasement List

Name Quantity Remark

DTU host 1

Antenna 1

Power adapter 1

RS232 data cable 1 optional

RS485 data cable 1 optional

Manual CD 1

Certification card 1

Maintenance card 1

2.3 Installation and Cable Connection

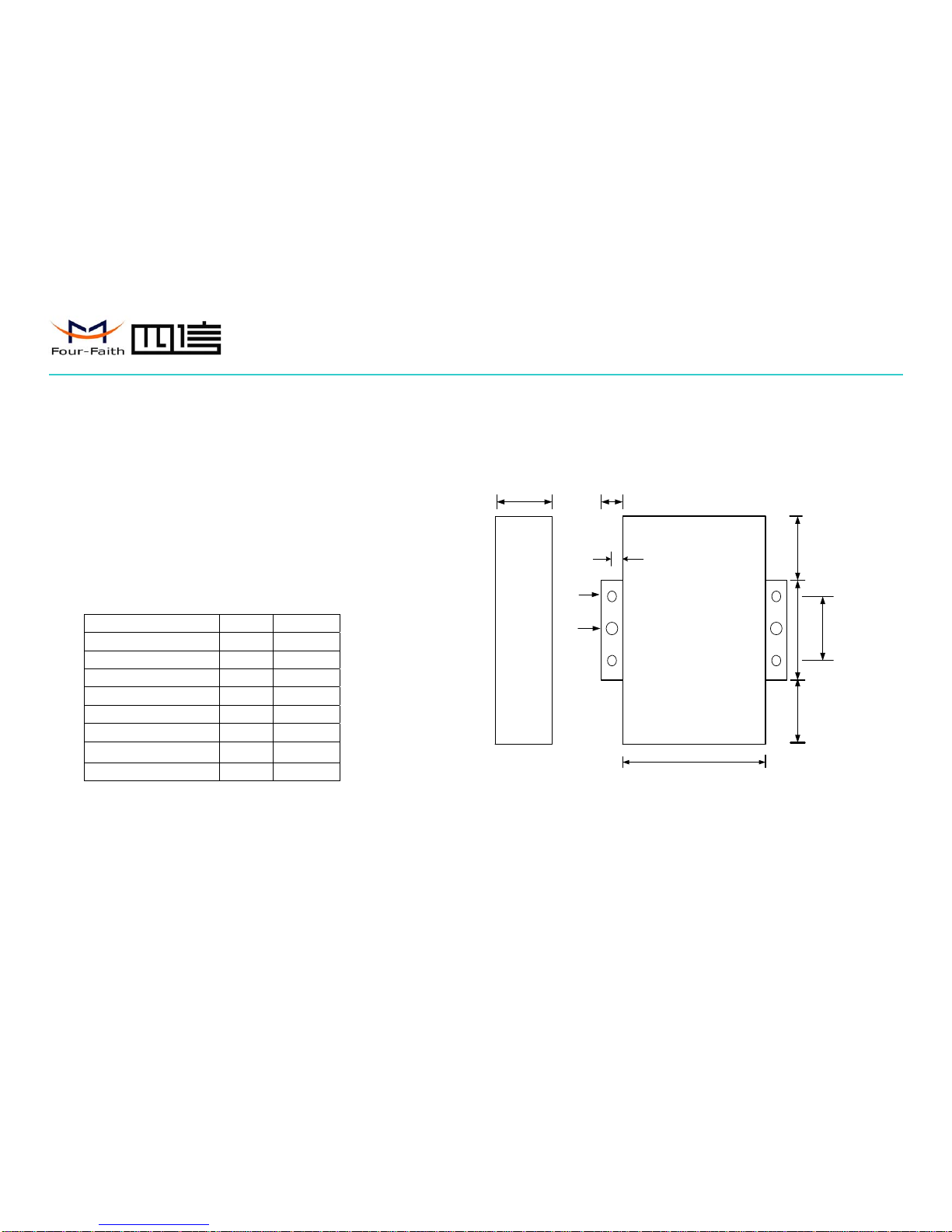

Dimension: (unit: mm)

58.5

22 8

Ф3

Ф5

Installation of SIM/UIM card:

Firstly power off the DTU, and press the out button of the SIM/UIM card outlet

with a needle object. Then the SIM/UIM card sheath will flick out at once. Put

SIM/UIM card into the card sheath (Pay attention to put the side which has metal point

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 6 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

outside), and insert card sheath back to the SIM/UIM card outlet.

Warning: Forbid to install SIM/UIM card when powered!

Installation of antenna:

Screw the SMA male pin of the antenna to the female SMA outlet of the DTU

tightly. Warning: The antenna must be screwed tightly, or the singal quality of antenna

will be influenced!

Installation of cable:

Insert DB9F end of the RS232/RS485 data cable into the DB9M interface of DTU,

and connect the other end with user’s device.

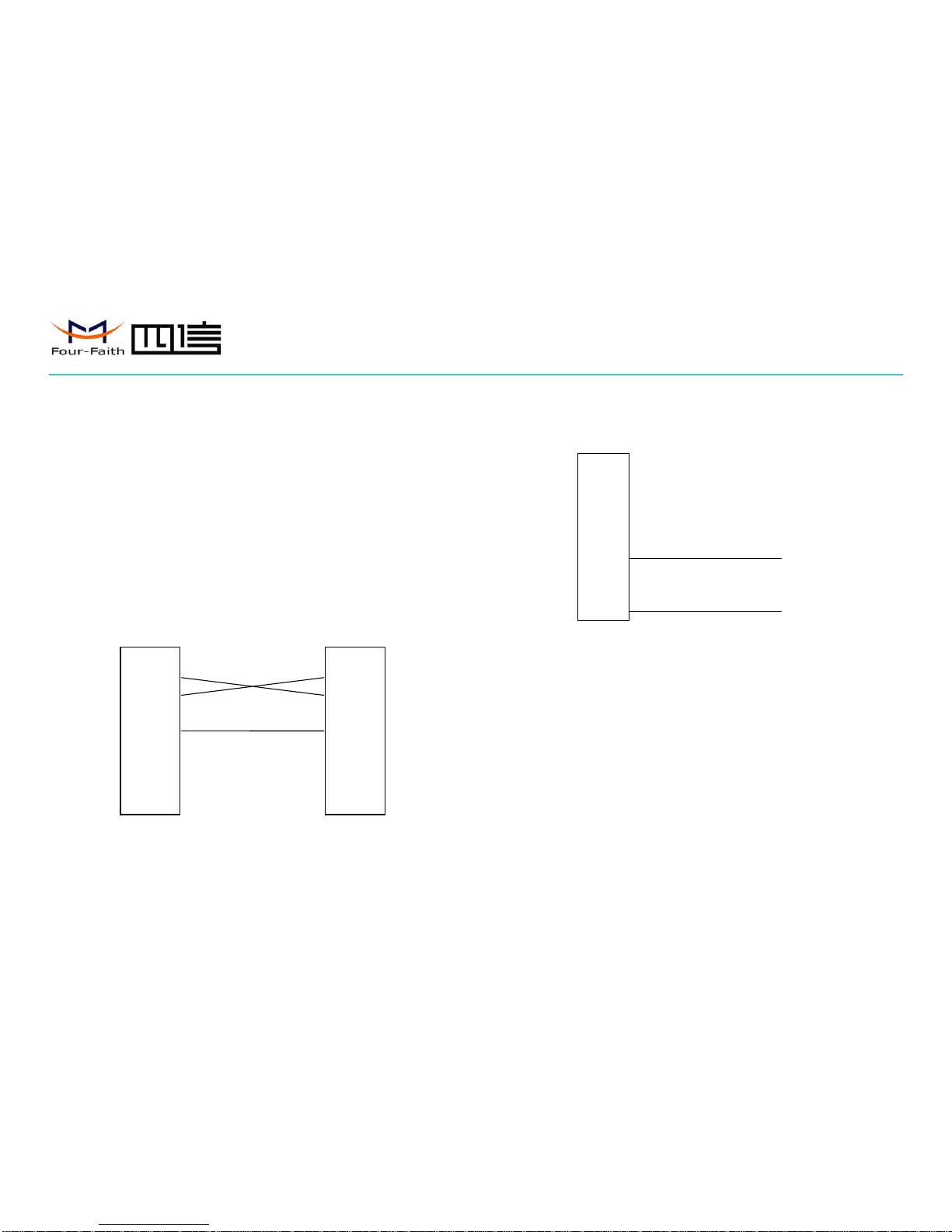

The signal connection of the RS232 data cable is as follows:

The signal connection of the RS485 data cable is as follows:

DB9FDB9F

RS232 data cable

RXD 2

TXD 3

GND 5

2 RXD

3 TXD

5GND

DB9F

RS485 data cable

A 6

B 9

A (RED)

B (BLACK)

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 7 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

2.4 Power

The power range of the DTU is DC 5~35V.

Warning: When we use other power, we should make sure that the power can

supply power above 4W.

We recommend user to use the standard DC 12V/0.5A power adaptor.

2.5 Indicator Lights Introduction

The DTU provides three indicator lights: “Power”, “ACT”, “Online”.

Indicator

Light

State Introduction

Power Bright DTU is powered on

Dark DTU is powered off

ACT Twinkle Data is communicating

Dark No data

Online Bright DTU has logged on network

Dark DTU hasn’t logged on network

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 8 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

Chapter 3 Configuration

3.1 Configuration Connection

Before configuration, It’s necessary to connect the DTU with the configure PC by

the shipped RS232 or RS232-485 conversion cable as following.

3.2 Configuration

There are two ways to configure the DTU:

Configuration software tool: All the settings are configured through the shipped

software tool. It’s necessary to have one PC to run this tool.

Extended AT command: All the settings are configured through AT command, so

any device with serial port can configure it. Before configuration with extended AT

command, you should make DTU enter configure state. The steps how to make DTU

enter configure state, please refer to appendix.

The following describes how to configure DTU with the configure software tool. At

the same time, it gives out the correspondingAT command of each configuration item.

3.2.1 Run the configure Tool FfDtuCfgTool-En.exe

The “Serial Parameters” column shows the current serial port settings. To configure

DTU, please choose the correct serial port which connects to DTU, and the baudrate is

115200 with no parity, then open the serial port. If the button text is “Close”, it shows

the serial port now has been opened. If the text is “Open”, you should open the port

first. When the port opened, the “Output Info” column will display

“Port(COM1) Has Opened，Please Re-Power the DTU,

Waitting DTU Enter Configure State...”

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 9 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

3.2.2 Re-power DTU

After Re-power DTU, The configure tool will make it enter configure state. At the

same time, the software will load current settings from DTU and displays on the right

configure columns. It’s now ready to configure.

3.2.3 Start Configuration

3.2.3.1 Data Service Center Settings

Settings on this page are the parameters related to Data Service Center(DSC).

◆Data Center Number

DTU support two Data Service Center methods to transmit data.

Main and Backup: DTU always tries to connect with the Main DSC. If fails to

connect with Main DSC, it will connect with Backup DSC at once

Note：If no Backup DSC exists, please configure the Backup DSC same as Main

DSC.

Multi Data Service Center: DTU can connect with at most five DSC at the same

time.All the multi DSC can receive the same application data .

If the Data Center Number is 1, DTU work in Main and Backup DSC method.

When “Data Center Number” is greater than 1, DTU works in Multi Data Service

Center method

AT command:

AT+SVRCNT=x

x: Data Service Center number

Note: every AT command is terminated with a enter character.

◆Main Center Addr+Port:

IPAddress and Port of the Main DSC, It’s better to set the port greater than 1024.

厦门四信通信科技有限公司

Xiamen Four-Faith Communication Technology Co., Ltd.

Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China 10 Zip Code：361008

Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http://www.four-faith.com www.fourfaith.com

AT command of the Main DSC IP address or domain name:

AT+IPAD=xxx

xxx: The IP address or domain name.

AT command of the Main DSC port:

AT+PORT=xxx

xxx: The port value

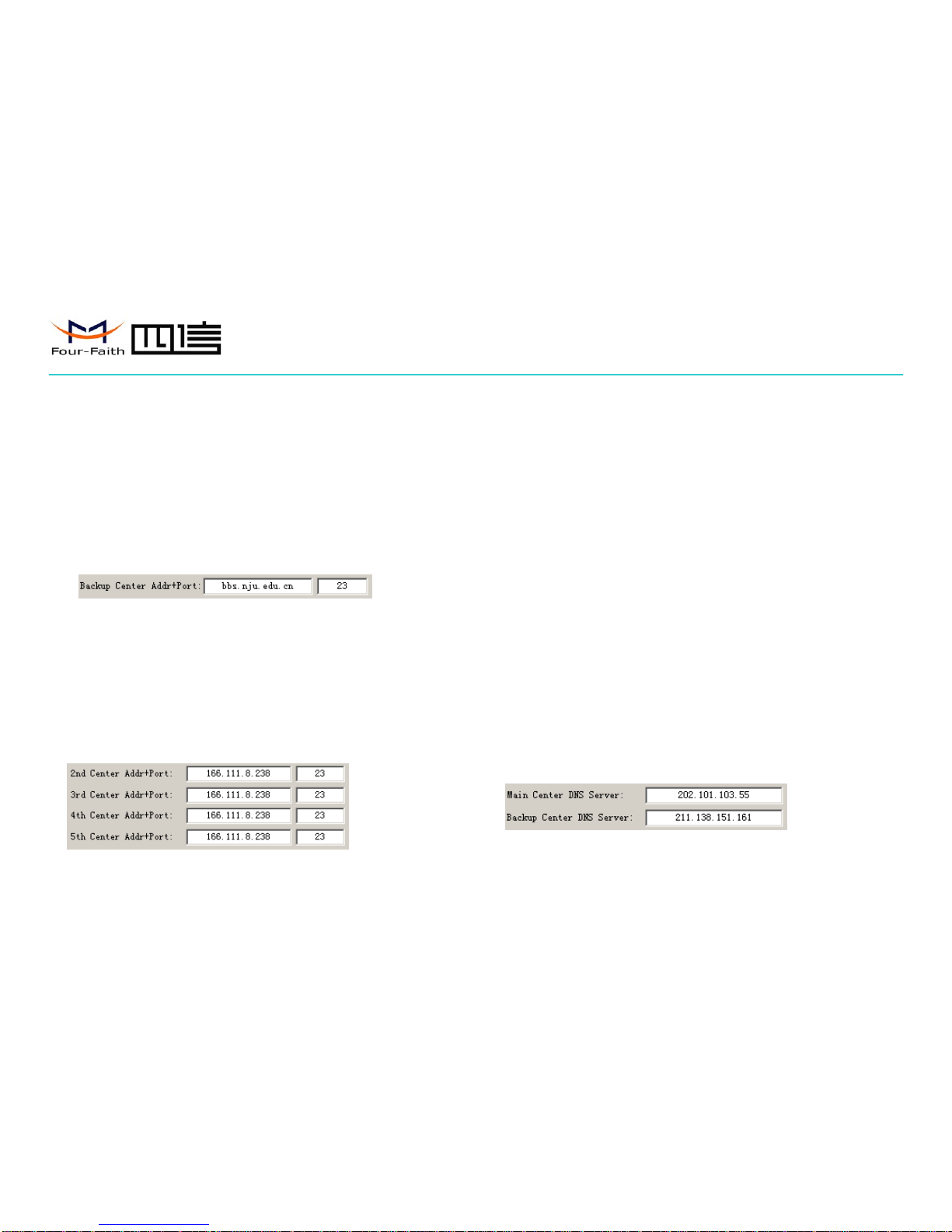

◆Backup Center Addr+Port:

IP address and port of the Backup DSC

AT command of the Backup DSC IP address or domain

AT+IPSEC=xxx

xxx: The IP address or domain name

AT command of the Backup DSC port

AT+PTSEC=xxx

xxx: The port value

◆Multi DSC Configuration

When “Data Center Number” is greater than 1, this setting is valid. For example，

setting the “Data Center Number” as 3, Main Center, 2nd Center, 3rd Center work as

these three DSC

AT Command of the 2~5 DSC IP address or domain name

AT+IPADn=xxx

n is 1~4 correspond to center 2~5

xxx: The IP address or domain name

AT Command of the 2~5 DSC port

AT+PORTn=xxx

n is 1~4 correspond to port of center 2~5

xxx: The port value

Example:

Set IP address of center 3 as 166.111.8.238, and port 5001, the AT command is as

following:

AT+IPAD2=166.111.8.238

AT+PORT2=5001

◆Main and Backup Center DNS Server

When the DSC Internet access uses domain name, It’s necessary to set DNS server

resolving the DSC domain name. When the Data Center Number is 1, Main and

Indice

Altri manuali Four-Faith Modem

Four-Faith

Four-Faith F2 14-D Series Manuale utente

Four-Faith

Four-Faith F-B200GLGL Guida

Four-Faith

Four-Faith F8X14 Series Manuale utente

Four-Faith

Four-Faith F8916-L-W Manuale utente

Four-Faith

Four-Faith F7916 Series Manuale utente

Four-Faith

Four-Faith F2203 Manuale utente

Four-Faith

Four-Faith F8916-L Series Manuale utente

Four-Faith

Four-Faith F1303 Manuale utente

Four-Faith

Four-Faith F214-E Series Manuale utente

Four-Faith

Four-Faith F2003 Series Manuale utente

Four-Faith

Four-Faith F2403 Manuale utente

Four-Faith

Four-Faith F1403 Manuale utente

Four-Faith

Four-Faith F1203 Manuale utente

Four-Faith

Four-Faith F8314 Manuale utente

Four-Faith

Four-Faith F2116 Manuale utente

Four-Faith

Four-Faith F2X46-DK Series Manuale utente

Four-Faith

Four-Faith F2114 Manuale utente

Four-Faith

Four-Faith F2103 Manuale utente

Four-Faith

Four-Faith F2 46-D Series Manuale utente

Four-Faith

Four-Faith F2 16 V4 Series Manuale utente

Four-Faith

Four-Faith F1203 Manuale utente

Four-Faith

Four-Faith F1003 Manuale utente

Four-Faith

Four-Faith F2X16 Series Manuale utente

Four-Faith

Four-Faith F2 14-DK Series Manuale utente

Manuali Modem popolari di altre marche

Davicom

Davicom DM562AP Manuale utente

EpiValley

EpiValley TATA indicom SXC-1080 Manuale utente

Zte

Zte WiMAX Manuale utente

Intelimax

Intelimax MA-2060 Manuale utente

SMC Networks

SMC Networks D3CM1604V Manuale per l'uso e la cura

Telstra

Telstra Wi-Fi 4G Advanced Pro X Manuale utente

Thrane&Thrane

Thrane&Thrane imarsat EXPLORER 300 Manuale utente

Samsung

Samsung AceLink SAM-335A Manuale utente

Enfora

Enfora Enabler-G Guida rapida alla configurazione

iRZ

iRZ ATM2-232 Manuale utente

Zhone

Zhone 6310 Manuale utente

Paradyne

Paradyne Hotwire 7976 Manuale utente

US Robotics

US Robotics 3453C Manuale utente

MaxTech

MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuale utente

Zte

Zte MF823 Manuale utente

Sierra Wireless

Sierra Wireless AIRLINK MP595W Manuale utente

Gemtek

Gemtek WiMAX WIXFBR-103 Manuale utente

Zoom

Zoom 1070 Series Manuale utente
