U S E R M A N U A L
4X4 HDMI Matrix
Model No:
FK
A07M1
Dear customer
INTRODUCTION
FEATURES
Thank you for purchasing this product. For optimum performance and safety, please
read these instructions carefully before connecting, operating or adjusting this
product. Please keep this manual for future reference.
Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed
to make your A/V device use more convenient, more comfortable, more productive
and more cost-efficient.
The 4x4 HDMI Matrix can connect four HD Sources with four HD Displays; it can easily
switch and distribute four HD Source signals to four HD displays at the same time.
Our devices offer solutions for noise, space and security concerns, data center control,
information distribution, conference room presentation, school and corporate training
environments.
● Four Input HD Source signals switch and distribute to four HD Displays
● Support 30/36 Bit Deep Color
● Support Blue-Ray DVD24/50/60fs/HD-DVD/xvYCC
● Support Audio Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
● Support Signal Retiming
● Input HDMI Cable length up to 10M if use the standard AWG26 HDMI Cable;
Output HDMI Cable length up to 15M if use the standard AWG26 HDMI Cable.
● Use12V1.5A Power Adaptor
www.FOURKAY.net
Package Content:
1. Main Unit
2. Power Adaptor
3. Remote
4. User Manual
5. CD （RS232 Control Software）
6. IR Extender Cable
7. RS232 Serial Port Cable
1- 4：HDMI Input Status Led Light
IR ：infrared sensor
Switch A ：HDMI A Port Switch Button
Switch B ：HDMI B Port Switch Button
Switch C ：HDMI C Port Switch Button
Switch D ：HDMI D Port Switch Button
Picture 1.0 Front Panel Picture
Pictures Showing Ports:
12V: Power Port
IR Extend：IR Extend Port
Picture 1.1 Rear Panel Picture
Output A-Output D：HDMI Output Port
Input 1- Input 4 ：HDMI Input Port
Picture 1.2 Side Panel Picture
RS232：RS232 Serial Port
OPERATION AND CONNECTION:
1. Use HDMI cables to connect four HD sources with the HDMI input ports of the matrix.
2. Use HDMI cables to connect four HD displays with the HDMI output ports of the matrix.
3. Connect the power adaptor with the matrix.
4. Use the RS232 cable to connect the RS232 port of the matrix with your control equip-
ment to control to the matrix.
IR E xt end
1234 A B CD
IN PU T OU T PU T
SPECIFICATIONS:
HDMI Input/Output Resolution……24/50/60fs/3D/1080p/1080i/720p/576p/5
76i/480p/480i
Deep Color…………………………………..……24bit/deep color 30bit,36bit
HDMI Audio Format……DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Max bandwidth………………………………………………………225MHz
HDMI Max baud rate…….…………………….…………………………6.75Gbps
Input/Output TMDS signal …………….…………………0.5~1.5Volts p-p（TTL）
Input/Output DDC signal…………….……………………………5Volts p-p (TTL)
HDMI Input cable distance.…... ………≤10m AWG26 HDMI standard cable
Output cable distance…………………≤15m AWG26 HDMI standard cable
Max working current……………………………….………………………...900mA
Power adapter format…………………..………………………….………12V/1.5A
Operating Temperature range……..…………….…….…………(-15 to +55℃)
Operating Humidity range……………………5 to 90%RH (No Condensation)
Product size (L x W x H)……………………………….…………308X151X36 (mm)
Weight…..………………………………………………………..……………1216g
COM Select : Choose your COM port; click the "Connect" button. The "Connect"
button will light up and matrix will be under control.
Message Receive ：Shows the information received from the device.
Status: Refresh current status info.
Clear ： Delete the print info at the window.
EDID Setting ： Preset the best EDID or copy the chosen output port EDID and
save it to the device.
Button A-D ：Represent the four output ports
Button 1-4 ： Represent the chosen Input sources. The bright number represents
the current chosen input source.
Matrix RS232 Control Software
Serial Port Protocol
Serial Port Protocol Format: Lenght+Start Code(0x55)+Instruciton Code+Parameter
(It can be without)+Finish Code(0x77)
Command (hex) feedback description
0x04 0x55 0x20 0x77 \r\n s1x s2x s3x s4x EEx
To get the output port working
status and the EDID status.
0x05 0x55 0x19 0x09 0x77 s10
0x05 0x55 0x19 0x1D 0x77
0x05 0x55 0x19 0x1F 0x77
0x05 0x55 0x19 0x0D 0x77
0x05 0x55 0x19 0x17 0x77
0x05 0x55 0x19 0x12 0x77
0x05 0x55 0x19 0x59 0x77
0x05 0x55 0x19 0x08 0x77
0x05 0x55 0x19 0x5E 0x77
0x05 0x55 0x19 0x06 0x77
0x05 0x55 0x19 0x05 0x77
0x05 0x55 0x19 0x03 0x77
0x05 0x55 0x19 0x18 0x77
0x05 0x55 0x19 0x44 0x77
0x05 0x55 0x19 0x0F 0x77
0x05 0x55 0x19 0x51 0x77
0x05 0x55 0x18 0x00 0x77
0x05 0x55 0x18 0x01 0x77
0x05 0x55 0x18 0x02 0x77
0x05 0x55 0x18 0x03 0x77
0x05 0x55 0x18 0x04 0x77
0x05 0x55 0x18 0x05 0x77
0x05 0x55 0x18 0x06 0x77
0x05 0x55 0x18 0x07 0x77
0x05 0x55 0x18 0x08 0x77
0x05 0x55 0x18 0x09 0x77
0x05 0x55 0x18 0x0a 0x77
s11
s12
s13
s20
s21
s22
s23
s30
s31
s32
s33
s40
s41
s42
s43
Ee0
Ee1
Ee2
Ee3
Ee4
Ee5
Ee6
Ee7
Ee8
Ee9
Eea
Output 1 chosen the input 1
EDID mix
EDID copy form output 1
EDID copy form output 2
EDID copy form output 3
EDID copy form output 4
EDID 2D 2CH
EDID 2D 5.1CH
EDID 2D 7.1CH
EDID 3D 2CH
EDID 3D 5.1CH
EDID 3D 7.1CH
Output 1 chosen the input 2
Output 1 chosen the input 3
Output 1 chosen the input 4
Output 2 chosen the input 1
Output 2 chosen the input 2
Output 2 chosen the input 3
Output 2 chosen the input 4
Output 3 chosen the input 1
Output 3 chosen the input 2
Output 3 chosen the input 3
Output 3 chosen the input 4
Output 4 chosen the input 1
Output 4 chosen the input 2
Output 4 chosen the input 3
Output 4 chosen the input 4
1. The machine should be placed far from damp, high-temperature, dusty,
and corrosive environments.
2. Do not shake, hit or drop the matrix.
3. Do not touch the power adaptor or matrix with the wet hands.
4. Do not pull the power adaptor from the electric socket by the cord.
5. Please turn the power off when the machine is not use for long time.
6. Do not open the cover and do not touch the internal parts.
7. Please use the original factory supplied power adaptor.
Notes:
Pls use the machine according to the instructions to ensure long use lifetime of
the matrix.
Before powering the device on, please check the connections line carefully.
Make sure that all interfaces are properly connected.
BAUD RATE 9600
DATA BITS = 8
PARITY = No
FLOW CONTROL = NONE
STOP BITS = 1

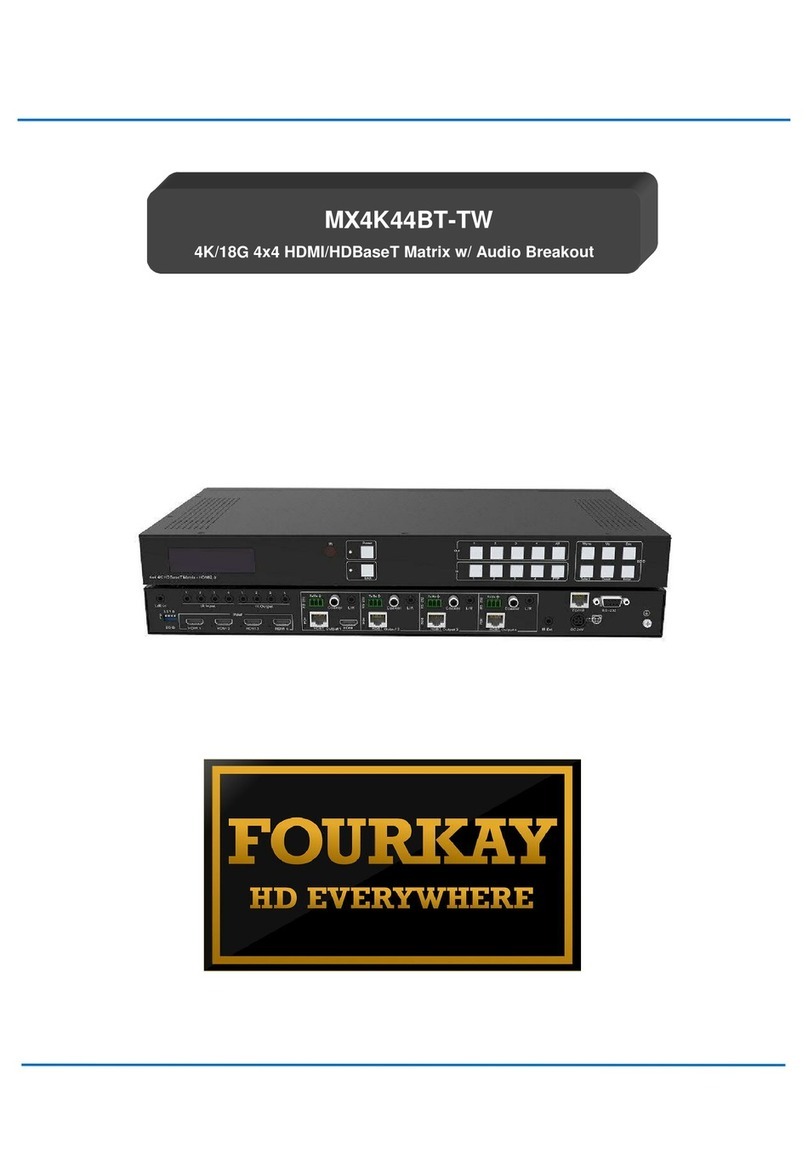

Altri manuali FOURKAY Commutatore a matrice
