FourStarGroup 11220856OL Manuale utente
MODEL: 11220856OL
4 BIN WOOD ORGANIZER

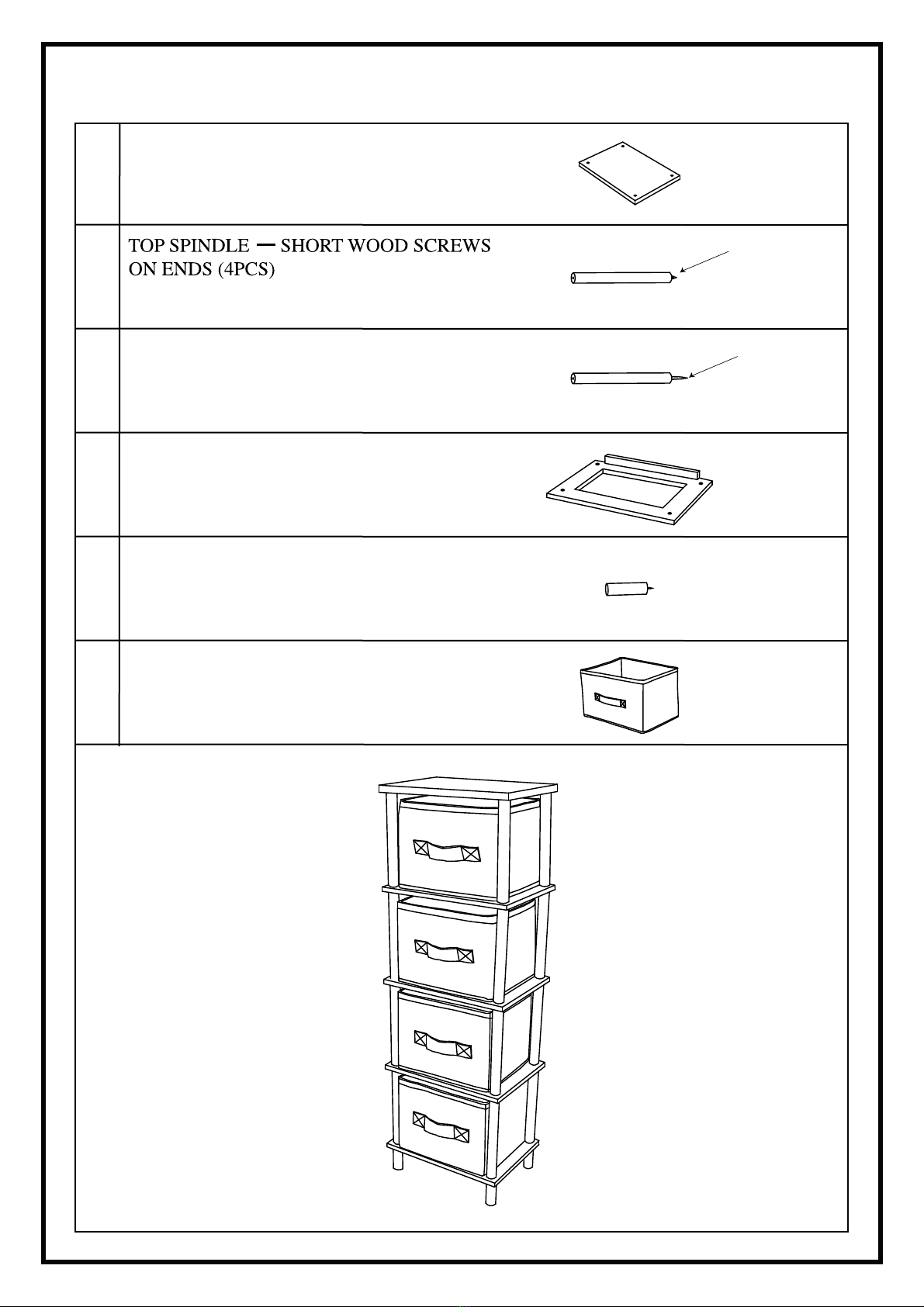

PARTS AND HARDWARE
A TOP PANEL (1PC)
SHORT SCREWS
B
C MIDDLE SPINDLE (12PCS)
D SHELF (4PCS)
E FOOT SPINDLE (4PCS)
F BIN (4PCS)
(*NOTE: IMPORTANT TO USE THESE WHERE
SHOWN OR SCREWS CAN GO THROUGH TOP OF ITEM.)
LONG SCREWS

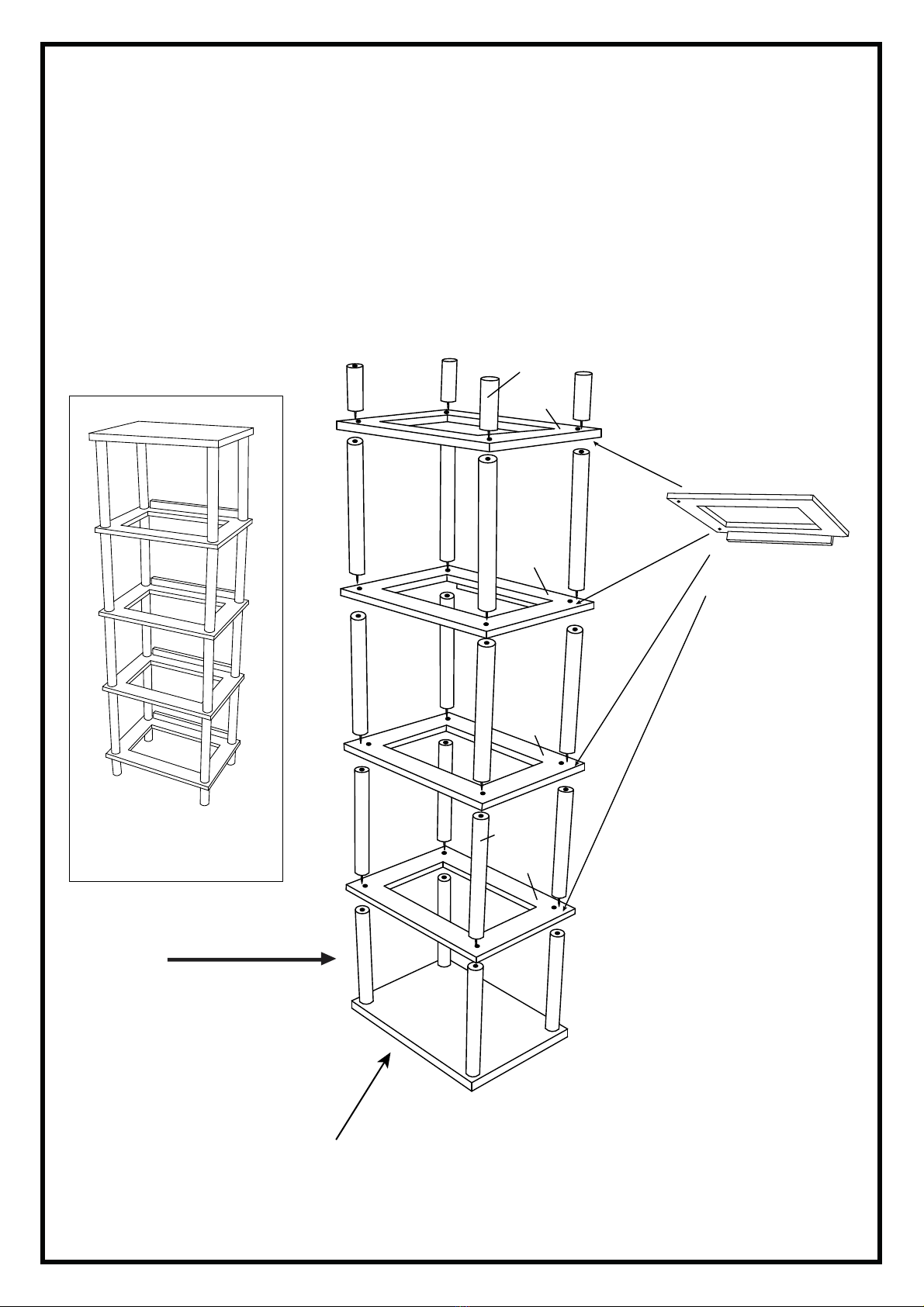

STEP 1:
1.1 PLACE TOP PANEL(A) ON SMOOTH SURFACE,SCREW TOP
SPINDLES(B) ON TOP PANEL(A) AS SHOWN.
1.2 ATTACH SHELVES(D) USING MIDDLE SPINDLES(C) AS SHOWN.
1.3 SCREW FOOT SPINDLES (E) ON SHELF(D) AS SHOWN.
A
BB
BB
D
D
D
D
C
C
CC
CC
C
C
CCC
C
EEE
E
*VERY IMPORTANT (PART B)
BE 100% SURE TO USE THE
SPINDLES "B" WITH SHORTER
WOOD SCREWS FOR THIS
SECTION SO WOOD SCREWS
DO NOT GO THROUGH TOP
OF YOUR NEW ORGANIZER
FRAME.
RIGHT-SIDE UP VIEW OF THE FRAME
ASSEMBLE SHELVES “D”WITH
BACK EDGE DOWNWARDS
ASSEMBLE “STEP2”WITH UNIT TOP UPSIDE DOWN ON SOFT SURFACE
Do you have any questions ? Missing small parts or hardware ?
If you need assistance with the assembly of your 4 BIN
WOOD ORGANIZER please e-mail our Customer Service
Department at:
or call us at (508) 435-4830
or (800) 639-3803
Please include the following information in your email:
• Where item was purchased
• Item, model, style or SKU number listed on instructions
or box
• Part number, description of the part and quantity needed
This information will help us get the proper part to you faster
STEP 2:
PUT BINS(F) ON EACH SHELF.
F
