QUICK START GUIDE
P/N 600-200-900 (FOR P/N 200-900, 200-900-TC, 200-9T32, 200-9T56)
NOMAD®360, T32 AND T56
BATTERY REPLACEMENT
Nomad®Replacement Battery is packaged in a black casing for safe air
transport. Once you receive the Nomad®Replacement Battery, remove the
Battery Tubes from the case for storage if Batteries are not replaced right
away.
HOW TO REMOVE THE NOMAD BATTERY TUBES FROM CASE
1. On the non-swich side, hold the head of a Hex Bolt using pliers or a
wrench.
2. Simultaneously, unscrew the Hex Nut until it comes loose, using a 5.5 mm
socket or wrench.
3. Repeat step 1 and 2 three more times to remove the remaining Hex Nuts.
4. Remove the two Metal Bars on the Switch side.
5. Remove the black Cover.
6. Remove all the Battery Tubes.
A A
B B
C C
D D
E E
F F
G G
H H
J J
K K
L L
M M
N N
P P
R R
T T
24
24
23
23
22
22
21
21
20
20
19
19
18
18
17
17
16
16
15
15
14
14
13
13
12
12
11
11
10
10
9
9
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
DRAWN
CHK'D
APPV'D
MFG
Q.A
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
FINISH:
DEBURR AND
BREAK SHARP
EDGES
NAME
SIGNATURE
DATE
MATERIAL:
DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:1
SHEET 1 OF 1
A0
WEIGHT:
battery_cartridge_20190410_asm
NOT SPECIFIED
1
2
3
4
5
6
HEX NUT
METAL BAR
(2 EACH)
COVER
BATTERY TUBE
(12 EACH)
HEX BOLT
(4 EACH)
HEX NUT
(4 EACH)
2
REMOVING THE BATTERY TUBES |30 MINS ESTIMATED
The Nomad®360, T32 and T56 use 12 Battery Tubes. Repeat the following
steps six (6) times in order to replace all 12 Battery Tubes.
1
3
BATTERY COVER(S) ON BATTERY COVER
REMOVED
BATTERY TUBES
REMOVED
2
4
3

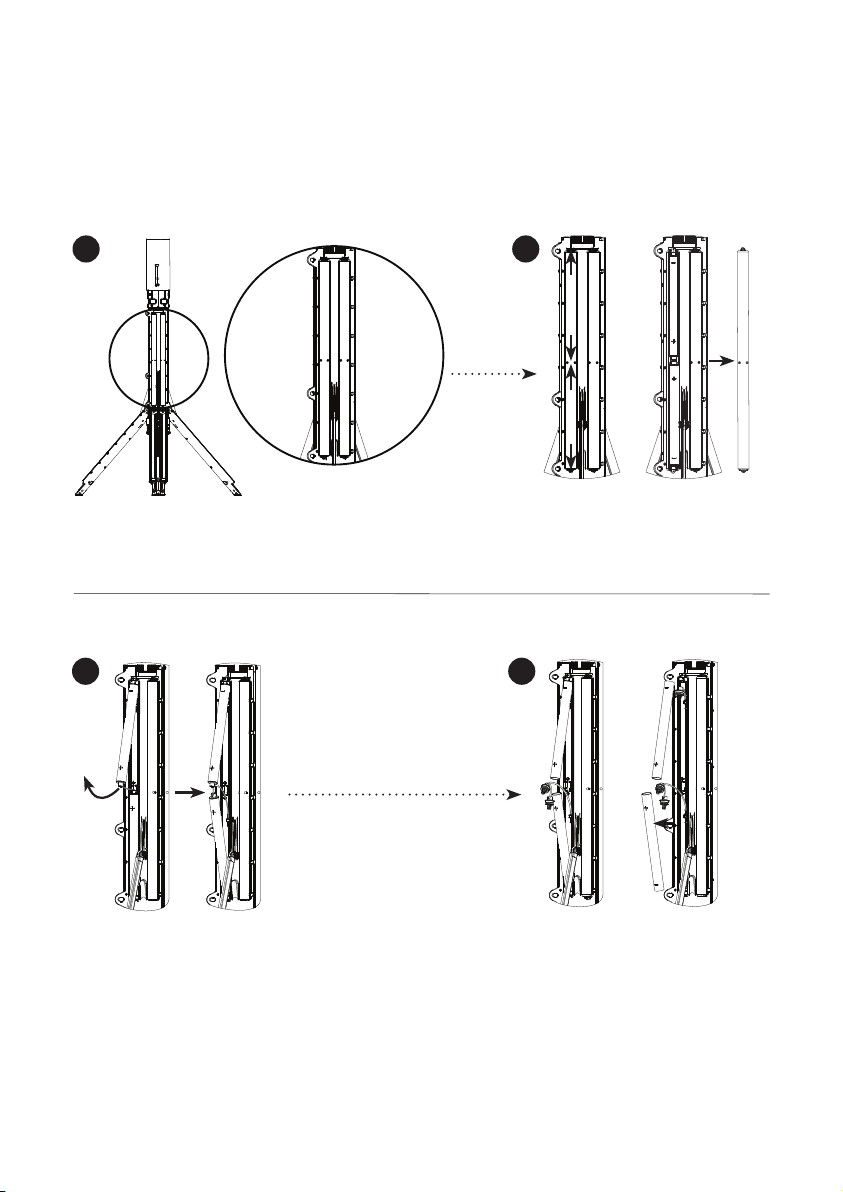

Make sure the Nomad®is OFF and UNPLUGGED before starting.
1. Open the folding Tripo-Scope®Legs so they are locked and deployed.
Then, locate a Battery Cover.
2. Use a Phillips Head (+) #1 Screwdriver to remove the four (4) screws that
hold the Battery Cover. Once the screws are removed, pull the Battery
Cover off and set it aside.
IMPORTANT: There are two (2) Battery Tubes (the UPPER and
LOWER) under each one (1) of the Battery Covers.
Once the Battery Cover is removed, the Battery Tube is accessible. Start with
the UPPER battery first.
3. At the BOTTOM of the UPPER Battery Tube, there will be a red (positive)
Battery Tube Cap. Place an index finger on it, push the red Cap up, and
pull it forward (this should help the top portion of the Battery Tube to
easily slide out of the Battery Compartment). This action is similar to
removing a AA battery from any generic battery holder.
To easily remove the Battery Tube from the Nomad®Body, it is best to
push the red Battery Tube Cap up and pull it out (at a 20º angle).
NOTE: The wiring for the positive (+) and negative (–) Caps will remain
attached to the Nomad®Body while the Battery Tube is pulled out of
the Battery Compartment.
Once the UPPER Battery Tube is removed, repeat steps 1–3 for the LOWER
Battery Tube. NOTE: While pulling the UPPER Battery Tube out, the LOWER
Battery Tube may come out at the same time.
4. Remove the Battery Tube Caps (red and black) from each end of the
Battery Tube. This can be done by simply popping the Battery Tube Cap
off with one thumb.
DO NOT pull the Battery Tube Caps by the wires.
REPEAT STEPS 2– 4 FOR THE REMAINING BATTERIES.
2
3
4
1
IMPORTANT!
Please follow applicable laws and regulations for transport and disposal
of batteries. For details on recycling please contact a government
recycling agency, a waste-disposal service, or visit reputable online
recycling sources such as www.batteryrecycling.com.
!
4
INSTALLING THE BATTERY TUBES |30 MINS ESTIMATED
Installing the Nomad®Battery Tubes follows the same procedures as removing
them, but in reverse order.
1. Start with the LOWER Battery Tube. Attach the black Cap to the
NEGATIVE end of the Battery Tube. While holding the Cap in place,
reinsert it into the Battery Compartment.
2. While still applying pressure to the bottom Cap, attach the red Cap to the
opposite end (POSITIVE end) of the Battery Tube. Once secure, push
down again and slide the Battery Tube back into place in the Battery
Compartment.
IMPORTANT: Be sure to place the red and black wires directly behind
the Battery Tube before re-installing it into the Battery Compartment.
This will prevent the wires from being damaged, and it will help the
Battery Tube go back into place easier.
3. Once the Battery Tubes are installed, test the Nomad®to make sure it
turns ON. If it does not, check the Battery Tubes for any connection
errors with the positive (+) and negative (–) ends. Then, place the Battery
Cover back over the Battery Tubes and tighten the four (4) screws into
place.
BATTERY TUBE PLACEMENT WHILE INSTALLED
(HORIZONTAL VIEW)
BOTTOM
LOWER BATTERY TUBE UPPER BATTERY TUBE
TOP
RED CAP
(POSITIVE +)
