Franke Flair
Parts Manual
5601 1st Ave S
Seattle, WA 98108
800-310-5710
www.esiespresso.com
Jan 2007
2
Flair Parts Manual ESI Parts Dept. 800-310-5710
TABLE OF CONTENTS
Special tools and accessories Page 3
Cleaning tools and accessories Page 4
Top panel and hoppers Pages 5-6
Brew Group Page 7
Foamer parts Page 8
Coffee outlet Page 9
Body panels and water tank Pages 10-11
Front body and display panel Pages 12-13
Geared motor and discharge valve Page 14
Grinder Assembly Page 15
Grounds container / drip tray Page 16
Main electrical components Page 17
Pumps and water feeding Page 18
Thermoblocks Page 19
Valves Pages 20-21
3
Flair Parts Manual ESI Parts Dept. 800-310-5710
800 Grinder key 315199
801 Paper roll for printer 315224
802 Gender Changer for printer 315223
803 Oval bit 315198
804 Net adapter 230V Terminal 2000
+ 3000 315222
805 Net adapter 230V for printer 315225
806 Printer 315226
3640 Service case 3000 Saphira + Flair 315421
SPECIAL TOOLS AND ACCESSORIES
Position # Description Part Number
4
Flair Parts Manual ESI Parts Dept. 800-310-5710
702 Cleaning tablets 315195
710 Decalcification agent 0.7l 315430
5401 Detergent for milksystems 301732
Position # Description Part Number
CLEANING TOOLS AND ACCESSORIES
5
Flair Parts Manual ESI Parts Dept. 800-310-5710

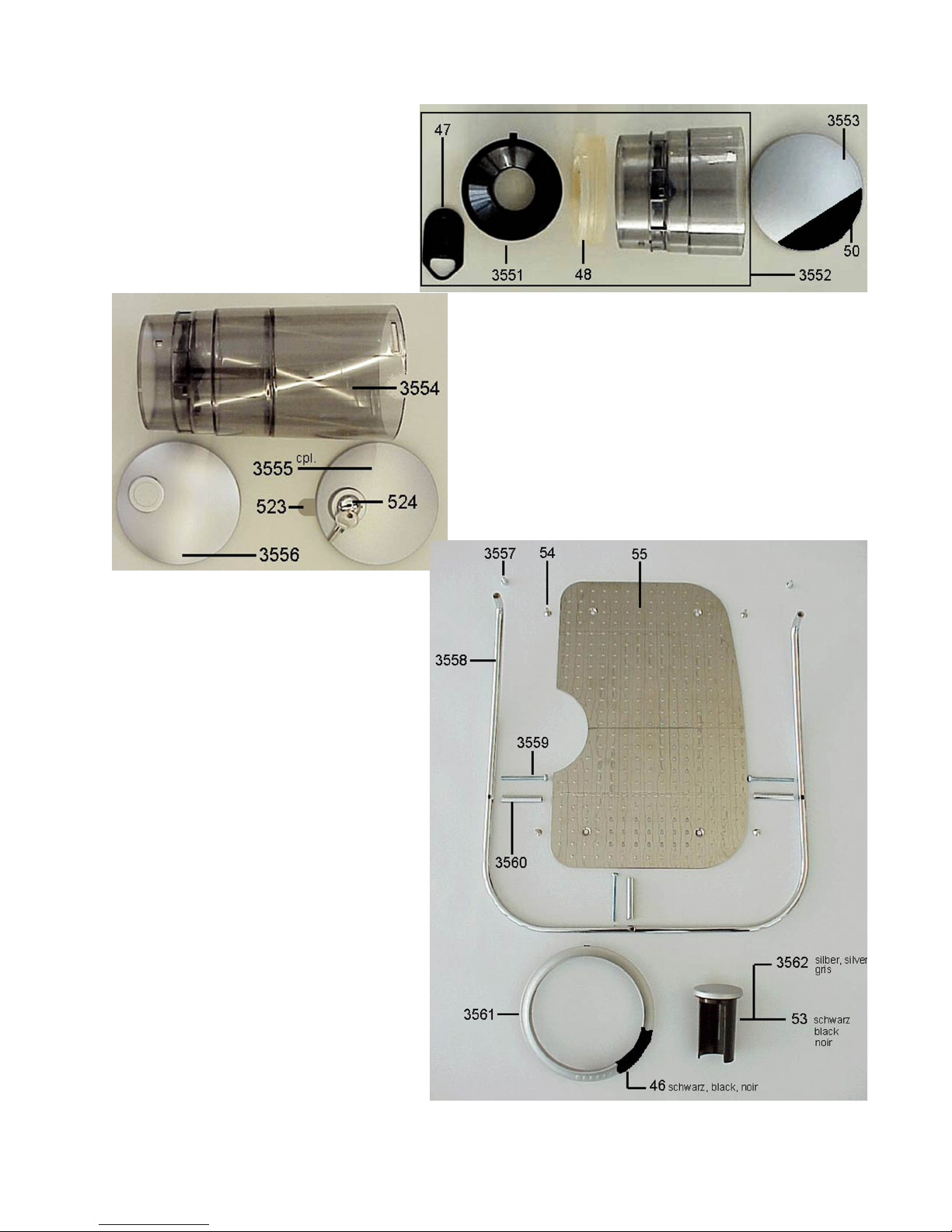

TOP PANEL AND HOPPERS
6
Flair Parts Manual ESI Parts Dept. 800-310-5710
3 Oval screw 3x16 315009
47 Slide bean container 315044
48 Bean container seal 315045
50 Bean container lid black 315047
54 Taptite screw 3.5x12 Inox 315051
55 Cup support 315052
523 Bean container-/Vending bolt 315205
524 Lock Bean container 315206
3551 Bottom bean container 315525
3552 Bean Container 250gr cpl.,no cover 315613
3553 Bean container cover 250gr silver 315575
3554 Bean container 500g 315606
3555 Bean container cover big, with lock 315560
3556 Bean container cover big no lock 315574
3557 Screw M4x10 315511
3558 Cup frame steel 315546
3559 Screw M4x40 315515
3560 Tube to cup frame 315547
3561 Regulating wheel silver 315576
3562 Funnel silver 315612
3563 Cover top Flair silver 315571
3564 Cover top Flair black 315608
3565 Sensor bean cont. left 0038121 315563
3566 Sensor bean cont. right 0038120 315562
Position # Description Part Number

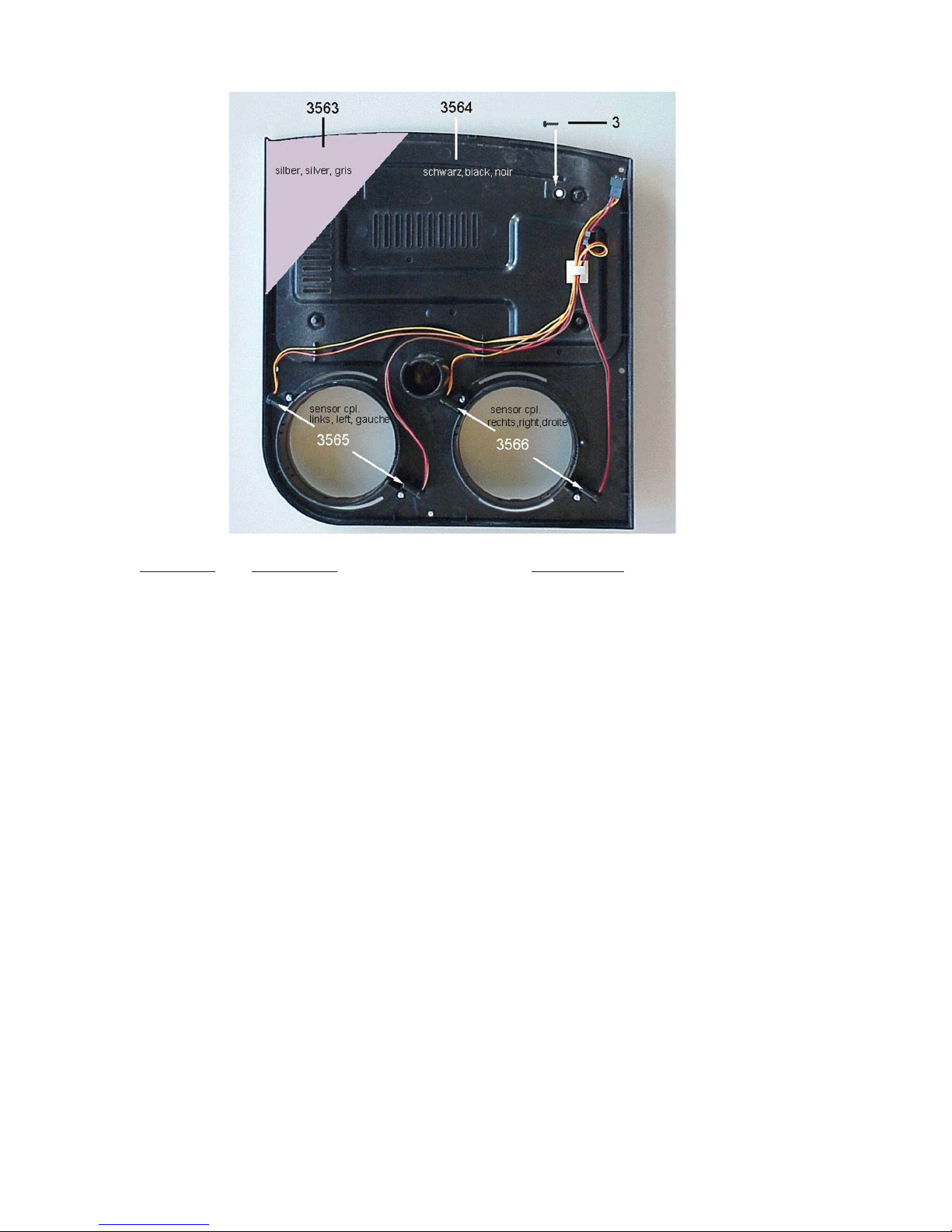

TOP PANEL AND HOPPERS
7
Flair Parts Manual ESI Parts Dept. 800-310-5710
40 O-Ring Silicon 36,09 x 3,53 310382
235 Brew unit assembled 315174
236 Guide assembled 315175
237 Used grounds blade brown 315176
240 Drainvalve complete 315415
BREW GROUP
Position # Description Part Number
8
Flair Parts Manual ESI Parts Dept. 800-310-5710
126 Cover cap black 315113
241 Silicone hose ID= 3 mm 296485
3542 O-Ring silicone 5x1.5mm 315569
3630 Sparepart kit Cappu 315603
3631 Sparepart kit Milk 315604
3632 O-Ring silicone 8.7x1.7mm 315602
3633 Holder to Milkoutlet 315539
FOAMER
Position # Description Part Number
9
Flair Parts Manual ESI Parts Dept. 800-310-5710
37 Screw 3x12 315038
140 Silicone hose 3x1x200mm 315125
199 Microswitch Cherry 301011
241 Silicone hose ID= 3 mm 296485
3536 Front CNS Outlet Flair 315628
3537 Outlet pipe coffee 315536
3538 Coffee outlet Flair 315568
3539 Support coffee outlet 315542
3540 Support Adapter 315530
3541 Guide to coffee outlet Flair cpl. 315599
3542 O-Ring silicone 5x1.5mm 315569
3543 Adapter Steam 315535
3544 Cover microswitch Flair 315554
3545 Circlip ring 8mm (Adapter Steam) 315627
COFFEE OUTLET
Position # Description Part Number
10
Flair Parts Manual ESI Parts Dept. 800-310-5710
BODY PANELS AND WATER TANK
