Franklin 88907 Manuale utente

ITEM NUMBER:

-- Toy contains small

balls and small parts. Not for children under 3 yrs.

Adult assembly required.

AGES 6+

Made In China

Franklin Sports Inc.

Stoughton, MA 02072

For all your replacement part needs, please visit:

www.franklinsports.com/88907

88907

FOOSBALL TABLE

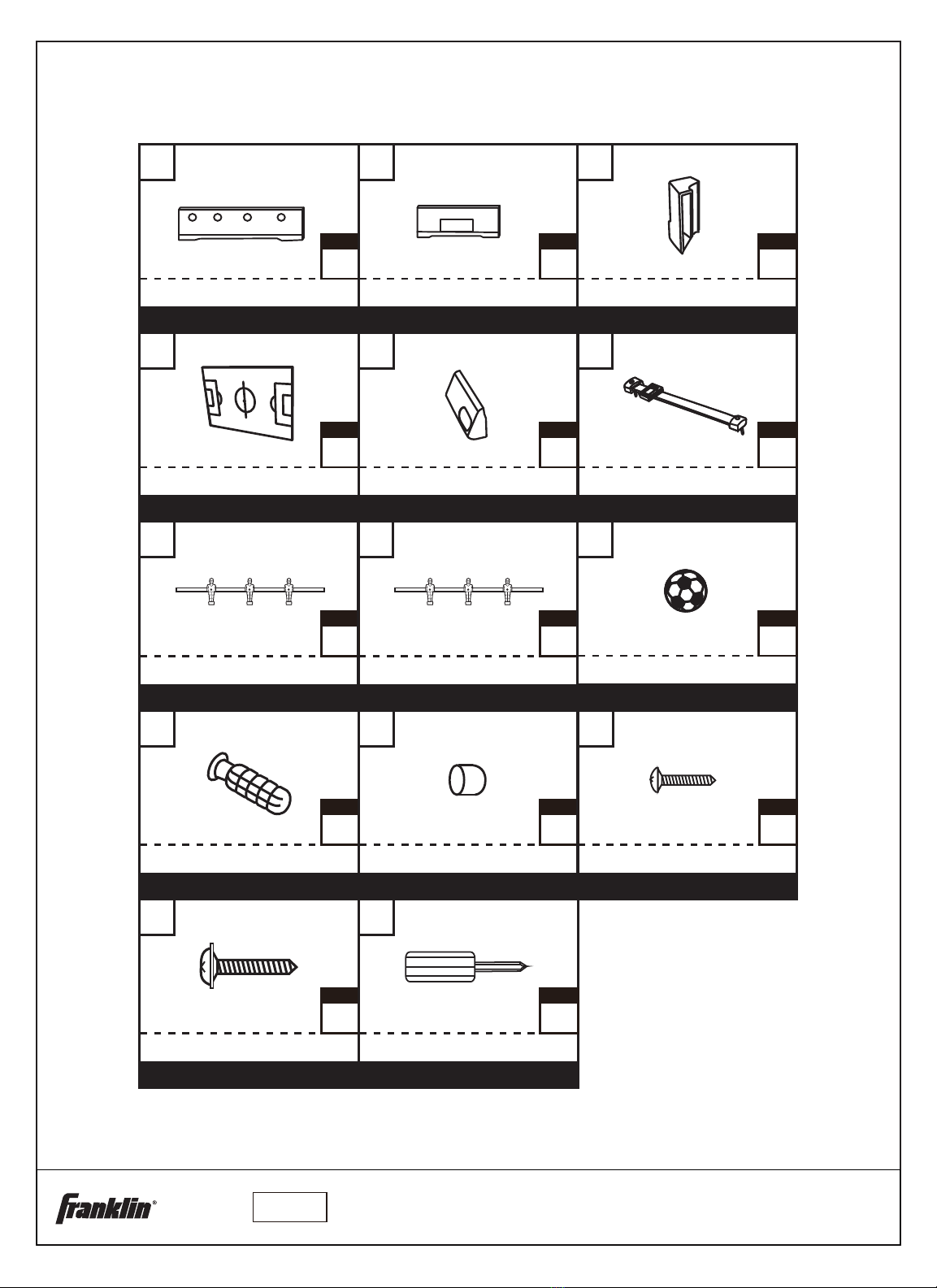

PARTS LIST

Side Aprons

Rep. Part: 88907-R1

QTY

Scorers

Rep. Part: 88907-R6

QTY

End Aprons

Rep. Part: 88907-R2

QTY

Support Braces

Rep. Part: 88907-R3

QTY

Soccer Field

Rep. Part: 88907-R4

QTY

Ball Returns

Rep. Part: 88907-R5

QTY

Black Player Rods

Rep. Part: 88907-R7

QTY

Blue Player Rods

Rep. Part: 88907-R8

QTY

Foosballs

Rep. Part: 88907-R9

QTY

Handles

Rep. Part: 88907-R10

QTY

Caps

Rep. Part: 88907-R11

QTY

x20

Small Screws

Rep. Part: 88907-R12

QTY

Large Screws

Rep. Part: 88907-R13

QTY

Screwdriver

Rep. Part: 88907-R14

QTY

For replacement parts:

Visit: www.franklinsports.com/88907

Email: [email protected]

Call: 1-800-225-8649

ITEM#: 88907

ASSEMBLY INSTRUCTIONS

PARTS NOTESTEP 1

A1 x1

A2 x2

A3 x2

Slide the Side Apron

(A1) and End Aprons

(A2) into the Support

Braces (A3).

PARTS NOTESTEP 2

B4 x8 Use Small Screws (B4)

to secure the aprons to

the Support Braces

(A3).

For replacement parts:

Visit: www.franklinsports.com/88907

Email: [email protected]

Call: 1-800-225-8649

ITEM#:

1. Find a clean place to begin the assembly of

your 20in (50.8cm) Foosball Table.

2. Remove all the parts from the box and verify

that you have all of the listed parts as shown

on the parts list page.

GENERAL NOTE

88907

PARTS NOTESTEP 3

Slide the Soccer Field

(A4) into the grooves.

PARTS NOTESTEP 4

Slide the Black Player

Rods (A7) and the

Blue Player Rods (A8)

into the holes in the

Side Apron (A1).

PARTS NOTESTEP 5

A1 x1 Slide the remaining

Side Apron (A1) into

the remaining Support

Braces (A3).

A7 x2

A8 x2

A4 x1

A3 x2

For replacement parts:

Visit: www.franklinsports.com/88907

Email: [email protected]

Call: 1-800-225-8649

ITEM#: 88907

NOTESTEP 6

Slide the End Aprons

(A2) into the Support

Braces (A3).

Use Small Screws (B4)

to secure the aprons to

the Support Braces

(A3).

B2 x4

B3 x4

PARTS NOTESTEP 7

Slip the Handles (B2)

and the Caps (B3)

onto the ends of the

player rods.

PARTS NOTESTEP 8

B5 x4 Use Large Screws (B5)

to secure the Handles

(B2) to the rods.

PARTS

B4 x8

For replacement parts:

Visit: www.franklinsports.com/88907

Email: [email protected]

Call: 1-800-225-8649

ITEM#: 88907

YOU ARE NOW READY TO PLAY!

PARTS NOTESTEP 9

A5 x2

B4 x4

Use Small Screws (B4)

to secure the Ball

Returns (A5) to the

End Aprons (A2).

A6 x2

PARTS NOTESTEP 10

Insert the Scorers (A6)

into the holes on top of

the Ball Returns (A5).

For replacement parts:

Visit: www.franklinsports.com/88907

Email: [email protected]

Call: 1-800-225-8649

ITEM#: 88907
