FII-PRA006/010 Hardware Reference Guide
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
1 / 38
Version Control
Version
Date
Description
V1.0
06/25/2019
Initial Release
V1.1
07/15/2019
Add Description About PCF8591
V1.2
07/19/2019
Add Description About Oscillator and IIC
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
2 / 38
Copyright Notice:
© 2019 Fraser Innovation Inc ALL RIGHTS RESERVED
Without written permission of Fraser Innovation Inc, no unit or individual may
extract or modify part of or all the contents of this manual. Offenders will be held
liable for their legal responsibility.
Thank you for purchasing the FPGA development board. Please read the manual
carefully before using the product and make sure that you know how to use the
product correctly. Improper operation may damage the development board. This
manual is constantly updated, and it is recommended that you download the
latest version when using.
Official Shopping Website:
https://fpgamarketing.com/FII-PRA040-Altera-risc-v-Cyclone10-FPGA-Boards-FII-
PRA040.htm
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
3 / 38
Contents
1. Introduction..................................................................................................................................... 5
2. Basic Features................................................................................................................................. 9
1）FPGA................................................................................................................................................. 9
2）USB Interface................................................................................................................................ 9
3）Oscillator ......................................................................................................................................12
4) Segment LED Display...........................................................................................................13
5）VGA Interface............................................................................................................................. 16
6）EEPROM AT24C02................................................................................................................... 20
7）Gigabit Ethernet Interface...................................................................................................22
8）Push Button ................................................................................................................................25
9）AD/DA Thermistor, Photoresistor and Potentiometer........................................26
10）DIP Switch.................................................................................................................................28
11）LED................................................................................................................................................ 30
12）FLASH Configuration Chip...............................................................................................32
13）GPIO Expansion Bus ............................................................................................................32
14）JTAG Interface.........................................................................................................................35
3. References .........................................................................................................................37
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
4 / 38
Fraser Innovation Inc develops FII-PRA006/010 based on Intel Cyclone10
development board. It was initial released in 2019. The model is PRA006/010.
Although it is designed for FPGA beginners, this development board has been
spent a lot on the schematics design, PCB design, and function creation. It can be
described as “simple but powerful”.
PRA006/010 Full View Picture
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
5 / 38
1. Introduction
This development board uses Intel's Cyclone10 series chip, model
10CL006YE144C8G or 10CL010YE144C8G.
The Cyclone10 series is Intel's latest generation of FPGAs for the data torrent
of the future and the rapidly growing IoT application market. This series provides
fast, power-saving processing and is suitable for automotive, industrial
automation, professional audio and visual systems and a variety of applications.
Compared to previous generations of Cyclone FPGAs, the 10 Series saves more
power while delivering twice the performance.
PRA006/010 system block diagram：
FPGA
Cyclone10
VGA
Gigabit
Ethernet
JTAG
6 Digit 7-segment Decoders
4 Push Buttons
Reset
Potentiometer
Photoresistor
FLASH
128Mbit
8 DIP Switches
8 LEDs
EEPROM
AT24C02
50M Oscillator
Thermistor
GPIO
Interface
USB to
Serial Chip
AD/DA
(Back)
USB Power
Supply and
Download
Interface
GPIO
Interface
External I2C Interface
External A/D
Interface
Figure 1.1 PRA006/100 System Block Diagram
Ethernet
Chip
RTL8211E
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
6 / 38
Chip resource：
Figure 1.2 Chip Resource
Other parameters：
Working temperature：0~85℃
Core voltage：1.15~1.25V（Recommended voltage 1.2V）
Hardware resources:
•The USB interface provides power interface, program download, and can
be used as a USB to serial port. Achieved the function of one wire to
complete the power supply, download functions, and serial
communication;
•A 50 MHz oscillator, a 32.768 kHz oscillator, provides a stable clock source
for the development board;
•6-digit common anode 7-segment LED display, through dynamic scanning
10CL006 10CL010
6,272 10,320
Block 30 46
Capacity(Kb) 270 414
15 23
2 2
20 20
176 176
65 65
Clock
Maximum I/O
Maximum LVDS
Resource
Logic Elements (LE)
M9K
Memory
18 x 18 Multiplier
PLL
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
7 / 38
to achieve data display;
•1-channel VGA interface to display colorful pictures or camera video;
•1 EEPROM chip with I2C interface, model AT24C02;
•1 adaptive 10M/100M/Gigabit Ethernet interface;
•5 push buttons, 4 for programmable buttons, 1 for reset button;
•1 photoresistor, through which it can simulate light control; 1 thermistor,
which can collect temperature or analog temperature alarm function; 1
potentiometer, which can simulate voltage change etc;
•1 PCF8591 AD/DA conversion chip;
•On-board 50MHz oscillator, through which provides a stable clock signal to
the development board;
•8-digit DIP switch;
•8-bit LED;
•1-piece 128Mbit Flash chip;
•2 GPIO external signal expansion interfaces;
•One JTAG interface, which makes PRA006/010 a full-featured JTAG adapter,
which can download programs for FPGAs from Intel, Xilinx and other
vendors;
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
8 / 38
Before using the development board, it is necessary to check whether the
power supply and jtag mode jumpers are correct. J9 is the selection jumper for
either internal or external program download (when this development board is
used as the downloader). For the internal download program, connect "INT".
When using it as a downloader, connect "EXT". J6 is used to select FPGA BANK
power supply, generally 3.3V and 5V . And J8 will be used to select bank IO
voltage. Its jumper description is silk screen printed on the development board, as
shown below.
Figure 1.3 Power Selection Jumper
FII-PRA006/010 Hardware Reference Guide
Fraser Innovation Inc
9 / 38
2. Basic Features
1）FPGA

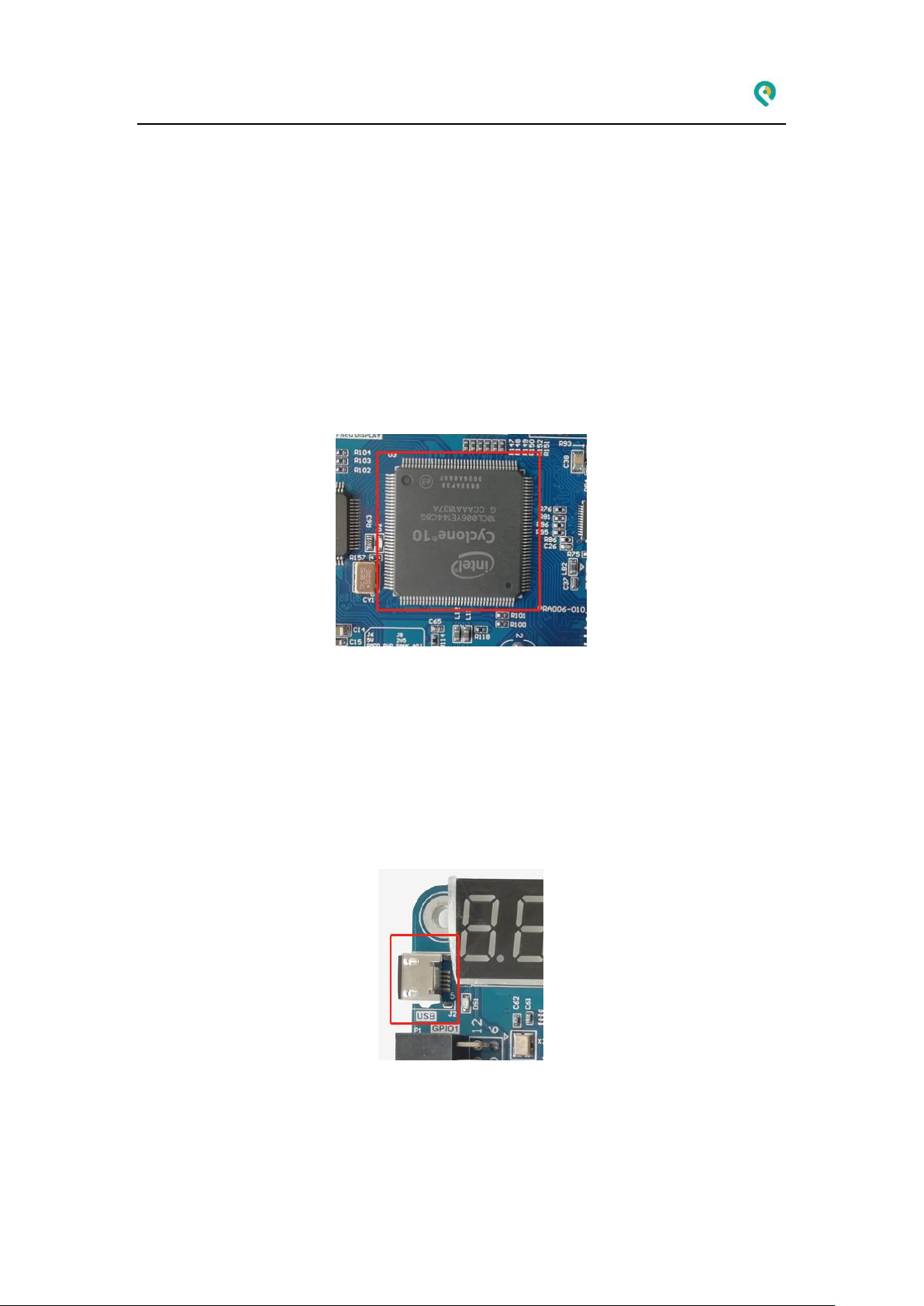

As mentioned above, this development board FPGA model is
10CL006YE144C8G (PRA010 uses 10CL010YE144C8G), which is Intel's latest
generation of low-power high-performance FPGA.
Figure 2.1 FPGA Physical Picture
2）USB Interface
It is a micro USB interface onboard that integrates power supply, program
download and serial communication functions.
Figure 2.2 USB Interface Physical Picture
By the way to mention the power supply circuit of the development board and
