FreeWave WC45i-GW-P Manuale utente

WC45i-GW-P Ethernet Gateway Quick Start

Guide

Thank you for purchasing the WC45i-GW-P.

This Quick Start Guide provides brief procedures for the hardware installation

and configuration of the WC45i-GW-P.

Note: For more detailed installation, connection, and configuration

procedures, download the WC45i-GW-P User Manual from the

http://support.freewave.com/ website.

Registration is required to use this website.

The basic steps are:

A. Power and Gateway Connections (on page 1)

B. WC Toolkit Installation (on page 1)

C. WC Toolkit Update (on page 3)

D. Setup the Computer IP Address Configuration (on page 3)

E. Change the WC45i-GW-P Password (on page 4)

Included Equipment

Included Equipment - WC45i-GW-P

Qty Description

1 WC45i-GW - Gateway with Modbus Interface

1 WC45i-GW-P - Ethernet Interface Module with Modbus TCP

connection

1 WC45i-GW-P Ethernet Gateway Quick Start Guide

User-supplied Equipment

lSmall, flathead screwdriver

lMounting equipment for the WC45i-GW-P.

lCAT5e / CAT6 Ethernet cable

lDC Adapter Power Supply (+6 to +30VDC)

lBarrel connector with Ground and Power flying leads

lOptional: WC45i-GW or WC45i-GW-DIN

lComputer for WAVECONTACT device configuration.

Power and Gateway Connections

Important!: Verify the items listed in Included and User-supplied

Equipment section are available before starting this procedure.

1. All wiring should be neat and orderly.

2. On the WC45i-GW-P terminal blocks:

a. Connect the configuration wires of the Gateway to their respective color-

designated screw terminal connections.

b. Use the screw terminal connection to connect the Power Source from an

external power supply of +6 to +30VDC.

c. Use the GND screw terminal connection to connect the External power

ground.

3. Connect the CAT5e / CAT6 Ethernet cable to the WC45i-GW-P RJ-45 port

and the Ethernet connection on the computer.

The WC45i-GW-P connections are similar to and Figure 1:

Figure 1: WC45i-GW-P Ethernet Gateway Connected to a

WC45i-GW - close-up

4. If this is the first time the WC45i-GW-P is installed, wait for the drivers to

install.

Important!: Depending on the computer and connection, the driver

installation can take 3-6 minutes.

5. Continue with WC Toolkit Installation (on page 1).

WC Toolkit Installation

Note: The images in this procedure are for Windows® 7 and/or Firefox®.

The dialog boxes and windows appear differently on each computer.

1. Open the FreeWave Support site at http://support.freewave.com/.

Important!: Registration is required to use this website.

2. Enter the User Name and Password.

3. Click .

A successful Login message briefly appears.

The Help Topics window opens.

4. Click the Software link.

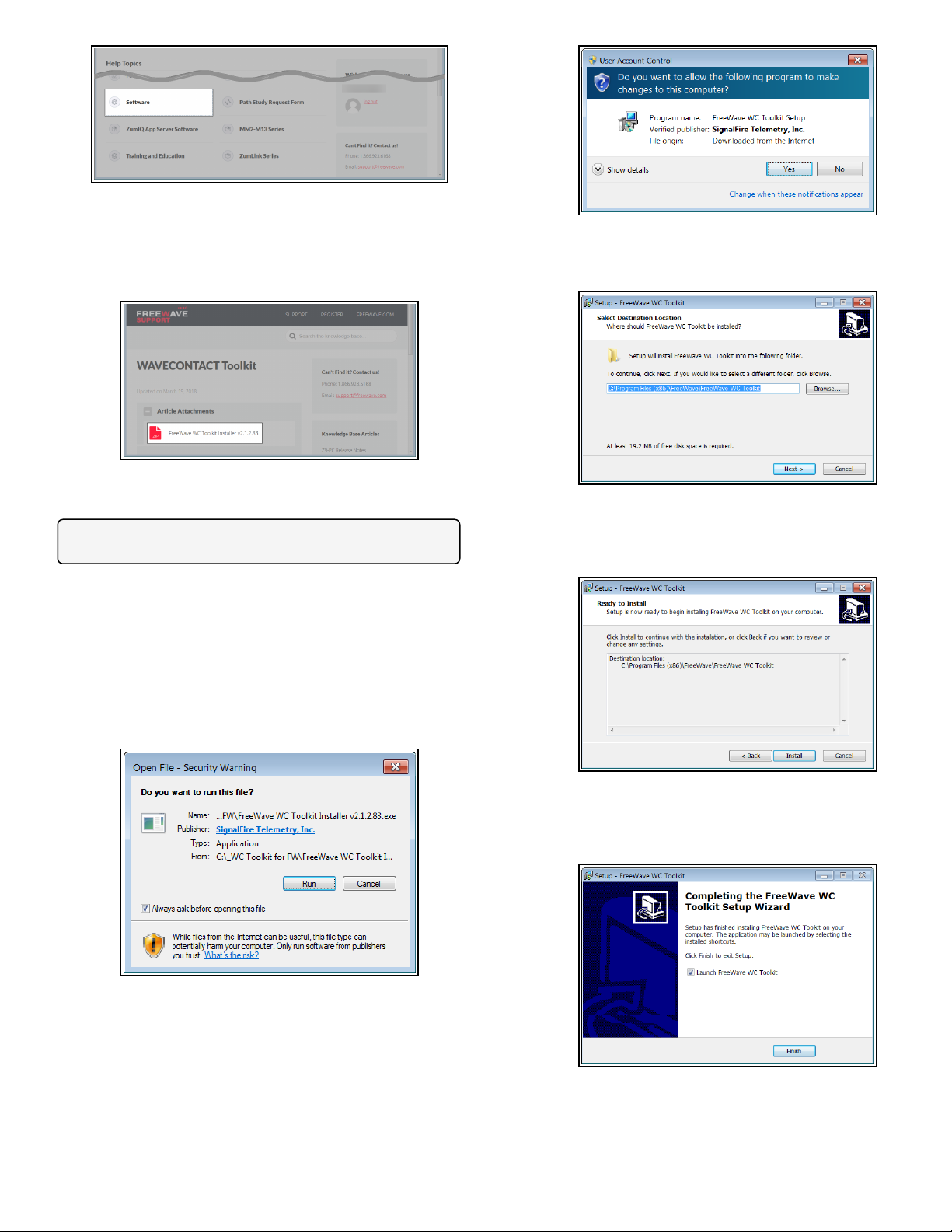

Figure 2: Help Topics window

The Software window opens.

5. Click the WAVECONTACT Toolkit link.

The available software appears in the window.

6. Select and click the attachment.

Figure 3: WAVECONTACT Toolkit window

The Opening dialog box opens.

Note: This procedure shows Firefox® dialog boxes. Other browsers will

have different dialog boxes and procedures.

7. Click OK.

The Enter name of file to save to dialog box opens.

8. Search for and select a location to save the .zip file to and click Save.

The Enter name of file to save to dialog box closes.

9. Open a Windows® Explorer window and find the location where the .zip file

was saved.

10. Double-click the .zip file.

11. Extract the .exe file from the .zip file into a parent location.

12. Double-click the .exe file to run the WC Toolkit installer.

The Open File - Security Warning dialog box opens.

Figure 4: Open File - Security Warning dialog box

13. Click Run.

The User Account Control dialog box opens.

Figure 5: User Account Control dialog box

14. Click Yes.

The WC Toolkit Setup Wizard starts.

Figure 6: WC Toolkit Setup Wizard - Select Destination

Location window

15. Click Next to continue.

The Ready to Install window opens.

Figure 7: WC Toolkit Setup Wizard - Ready to Install window

16. Click Install.

The install process is very quick.

The Installation Complete window opens.

Figure 8: WC Toolkit Setup Wizard - Installation Complete

window

17. Click Finish to open WC Toolkit.

An Update message appears in the WC Toolkit window is an update is

available.

Figure 9: WC Toolkit - Update Available message

18. Continue with the WC Toolkit Update (on page 3) procedure.

WC Toolkit Update

If the WAVECONTACT device is connected to the internet, WC Toolkit

automatically searches for an update for either the WC Toolkit itself or the

connected device's firmware.

An Update Available message appears if an update is available.

Note: An Update Available message also appears in the Device

Configuration window for any connected WAVECONTACT device when an

update is available for that device.

The update procedure is the same for the device and WC Toolkit.

1. Open the WC Toolkit software.

The Update Available message appears in the window.

2. Click the Update Available message link.

Figure 10: Click the Update Available message link

The Open File - Security Warning dialog box opens.

Figure 11: Open File - Security Warning dialog box

3. Click Run.

The User Account Control dialog box opens.

Figure 12: User Account Control dialog box

4. Click Yes.

The WC Toolkit update process is very quick.

When the update is completed, WC Toolkit re-opens the Select Device

window showing the updated software version in the WC Toolkit window.

(Figure 13)

Figure 13: Select Device window

5. Continue with Setup the Computer IP Address Configuration (on page 3).

Setup the Computer IP Address Configuration

The IP address of the computer used for configuration needs to be set so the

computer appears in the same network as the Gateway before configuration

can continue.

Note: The images in this procedure are for Windows® 7 and/or Firefox®.

The dialog boxes and windows appear differently on each computer.

1. On the computer, click the Windows® Start button and select Control

Panel.

2. View the Control Panel window by Category and click Network and

Internet > View Network Status and Tasks.

3. Click the Change Adapter Settings link.

Figure 14: Change Adapter Settings Link

4. Double-click the Local Area Connection link.

Figure 15: Local Area Connection Link

The Local Area Connection Status dialog box opens.

Figure 16: Local Area Connection Status dialog box

5. Click Properties.

The Local Area Connection Properties dialog box opens.

6. Select the Internet Protocol Version 4 (TCP/IPv4) option.

Figure 17: Local Area Connection Properties dialog box

7. Click Properties.

The Internet Protocol Version 4 (TCP/IPv4) Properties dialog box

opens.

8. Make a note of the current settings (to reverse this procedure later).

9. Select the Use the following IP address option button.

10. In the IP Address text box, enter an IP Address that is in the same

subnet range but a DIFFERENT IP Address than the device.

Example: Enter an IP Address from 192.168.1.101 to

192.168.111.254 (but NOT 192.168.1.100) and the Subnet Mask to

255.255.255.0.

Note: The default WAVECONTACT IP Address is 192.168.1.100. The

default subnet mask is 255.255.255.0.

Figure 18: Local Area Connection Properties dialog box

Note: An IP Address is NOT required in the Default Gateway text box.

11. Click to save the changes and close the dialog box.

12. Click Close twice to close the Local Area Connection Properties and

Local Area Connection Status dialog boxes.

13. Continue with Change the WC45i-GW-P Password (on page 4).

Change the WC45i-GW-P Password

Warning! If the default password is changed, be careful to type the

new password correctly and remember it.

If password is lost the device must be returned to FreeWave to be

reset.

Procedure

1. Complete the Power and Gateway Connections (on page 1).

2. On the computer, complete the Setup the Computer IP Address

Configuration (on page 3) procedure.

3. Open a web browser.

4. In the address bar, enter the Gateway IP Address.

Note: The default WAVECONTACT IP Address is 192.168.1.100.

5. Refresh the browser window (press <F5>).

The Authentication Required window opens.

Figure 19: Authentication Required window

6. Enter the User Name and Password.

Note: The default User Name is admin and the default Password is

freewave.

If the User Name or Password were changed, enter the applicable

information in the appropriate text box.

7. Click OK.

The FreeWave WC45i Ethernet Module software opens.

The Device Status window is active.

8. Click the HTTP tab.

9. Click the Authentication button.

The HTTP Authentication window opens.

10. In the URI text box, enter a forward slash (/).

11. In the Auth Type area, select the Digest option button.

12. In the Username text box, type admin.

13. In the Password text box, type the new password.

Note: If the User Name or Password were changed, enter the

applicable information in the appropriate text box.

The HTTP Authentication window is similar to Figure 20.

Figure 20: HTTP Authentication window with Changed

Password

14. Click the Submit button.

The window refreshes with a confirmation message.

Figure 21: Updated Confirmation Message

The Authentication Required window opens.

Figure 22: Authentication Required window

15. Enter the User Name and the new Password.

16. Click OK.

The FreeWave WC45i Ethernet Module software opens.

The Device Status window is active.

17. Optional: Continue with other configuration WC45i-GW-P procedures.

18. Logout and close the FreeWave WC45i Ethernet Module software.

19. Remove the CAT5e / CAT6 Ethernet cable from the WC45i-GW-P and the

computer.

20. As applicable, replace the Endpoint cover.

21. Mount the Gateway device.

Learn More

For additional product information about the , visit www.freewave.com.

For additional product information or assistance, contact a local reseller, or contact FreeWave Technologies,

Inc. at 303-381-9200 or 1-866-923-6168, or by email at moreinfo@freewave.com.

FreeWave Technologies, Inc. reserves the right to make changes to this document or the product described

within it without notice. FreeWave assumes no responsibility or liability for the use of this document or the

infringement of any copyright or other proprietary right.

The WC45i-GW-P complies with FCC Part 15 rules. Operation is subject to the following two conditions: 1)

This device may not cause harmful interference and 2) this device must accept any interference received,

including interference that may cause undesired operation.

The WC45i-GW-P must be professionally installed and is only approved for use when installed in devices

produced by FreeWave or third party OEMs with the express written approval of FreeWave Technologies,

Inc. Changes or modifications should not be made to the device.

FreeWave Technologies, Inc.

5395 Pearl Parkway, Suite 100

Boulder CO 80301

www.freewave.com

Local: 303-381-9200

Toll Free: 1-866-923-6168

Fax: 303-786-9948

Indice

Altri manuali FreeWave Portale

FreeWave

FreeWave WC45i-GW-485 Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
