Installation & Operation Guide

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

920-136-01 (01/03)

Thru-the-Wall Series

115 Volts UE08 US08 US10 US12

230 Volts US10 UE10 US12 UE12

Model information can be found on the name plate on the front of the unit.

To register your application, complete and mail the enclosed registration card, or

For your future convenience, record the model information here.

Safety PrecautionsElectrical Data

About the Controls on

the Air Conditioner

Features and Installation

Before you call for service...

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

CAUTION

• Contact an authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children or invalids without supervision.

• Young children should be supervised to ensure that they

do not play with the air conditioner.

Safety Precautions

Safety Precautions.............3

About the Controls on

the Air Conditioner

Controls..............................6

Ventilation Control..............8

Air Direction........................8

Care and Maintenance

Air Filter Cleaning...............9

How to Attach Front Grille

to Cabinet...........................9

Electrical Data

Electrical Data....................5

Features

and Installation

Features..............................10

Installation .............................

How to Install ......................11

Procedure.........................

13-17

Warranty

...........................19

Before you call

for service...

Normal Operation..............18

Abnormal Operation ..........18

Safety Precautions

WARNING

Safety Precautions

To prevent injury and property damage, the following instructions must be followed.

■Incorrect operation due to ignoring of instruction can cause harm or damage.

The seriousness is classified by the following indications.

WARNING : This symbol indicates the possibility of death or serious injury.

CAUTION :This symbol indicates the possibility of injury or damage to

properties only.

■Meanings of symbols used in this manual are as shown below.

Never do this.

Always do this.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• It will cause electric shock or fire

due to heat generation.

• It will cause electric shock or fire.

•

If the power cord is damaged, it

must be replaced by the

manufacturer or an authorized

service center.

Plug in the power plug

properly. Do not operate or stop the

unit by inserting or pulling

out the power plug.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire

due to heat generation. • It will cause electric shock. • This could damage your health.

Do not modify power cord

length or share the outlet

with other appliances.

Do not operate with wet

hands or in damp

environment.

Do not airflow directly at

room occupants only.

Safety Precautions

CAUTION

• They are sharp and may cause

an injury. • Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

• Since the fan rotates at high

speed during operation, it may

cause an injury.

When the air filter is to be

removed, do not touch the

metal parts of the unit.

Do not clean the air

conditioner with water. When the unit is to be

cleaned, switch off, and turn

off the breaker.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

Do not use for special

purposes. Do not operate switches

with wet hands

• This could harm the pets

or plants. • Do not use this air conditioner to

preserve precision devices,

food, pets, plants, and art

objects.

It may cause deterioration of

quality, etc.

• It may cause an electric shock.

• It may cause a fire or

deformation of the cabinet.

Do not apply an insecticide

or flammable spray.

Electrical Data

Do not under any

circumstances cut

or remove the

grounding prong

from the plug.

Line Cord Plug Use Wall Receptacle Power Supply

Power supply cord with

3-prong grounding plug

Do not under any

circumstances cut

or remove the

grounding prong

from the plug.

Power supply cord with

3-prong grounding plug

Standard 125V, 3-wire grounding

receptacle rated 15A, 125V AC

Parallel

type

Tandem

type

Perpendicular

type

Standard 250V, 3-wire grounding

receptacle rated 15A, 250V AC

Use 15 AMP time

delay fuse or 15 AMP

circuit breaker.

Use 15 AMP

time delay fuse or

circuit breaker.

Use 20 AMP

time delay fuse or

circuit breaker.

Refer to the nameplate

for correct fusing.

Do not under any

circumstances cut

or remove the

grounding prong

from the plug.

Power supply cord with

3-prong grounding plug Standard 250V, 3-wire grounding

receptacle rated 20A, 250V AC

Electrical Data

USE OF EXTENSION CORDS

Because of potential safety hazards, do not use an extension cord.

Electrical Data(For 115V model)

Electrical Data(For 230/208V model)

■ELECTRICAL SAFETY

All wiring should be made in accordance with local electrical codes and regulations.

NOTE :

Aluminum house wiring may pose special problems. Consult a qualified electrician.

IMPORTANT GROUNDING INSTRUCTIONS

Air conditioner has a three-prong grounding plug

on its power supply cord, which must be plugged

into properly grounded three-prong wall

receptacle for your protection against possible

shock hazard.

FUSE –Use a time-delay fuse or circuit breaker.

Refer to the nameplate for proper power supply

requirements.

208, 230, and 208/230 VOLT UNITS

These units are equipped with a three-prong

grounding plug on the power supply cord, which

must be plugged into a matching, properly

grounded three-prong wall receptacle for your

protection against possible shock hazard. If such

an outlet is not present, one must be installed by a

qualified electrician in accordance with the National

Electrical Code and local codes and ordinances.

About the Controls on

the Air Conditioner

• FOR NORMAL COOLING

1. Turn the MODE Knob to the Med Cool setting.

2. Set the Temperature Knob to the desired temperature (the mid-point is a good starting position).

If the room temperature is not satisfactory after a reasonable time, adjust the control to a cooler or warmer

setting, as appropriate.

• FOR MAXIMUM COOLING

1. Turn the MODE Knob to the High Cool setting.

2. Set the Temperature Knob to the coolest temperature setting all the way to the right.

• FOR QUIETER OPERATION

1. Turn the Operation Knob to the Low Cool setting.

2. Set the Temperature Knob as needed.

About the Controls on the Air Conditioner

The controls will look like one of the following:

Controls – Cooling Only Models

Off - Turns air conditioner off.

Med Fan Only - Med speed fan operation without cooling.

Low Fan Only - Low speed fan operation without cooling.

High Cool - Cooling with high speed fan operation.

Med Cool - Cooling with med speed fan operation.

Low Cool - Cooling with low speed fan operation.

This automatically controls the temperature of the indoor air.

Turn the knob clockwise for greater cooling.

Turn the knob counter-clockwise for more moderate cooling.

About the Controls on

the Air Conditioner

The controls will look like one of the following:

Controls – Cooling & Heating

Off - Turns the air conditioner off.

Fan Only - The low fan speed operation without cooling/heating.

Low Cool -

Cooling with the low speed fan operation.

High Cool -

Cooling with the high

speed fan

operation.

Low Heat -

Heating with the low

speed fan

operation.

High Heat -

Heating with the high

speed fan

operation.

Turn the Temperature Knob to the desired setting. The central position

is a normal setting for average conditions. You can change this setting,

if necessary, in accordance with your temperature preference.

The thermostat automatically controls cooling or heating, but the fan

runs continuously whenever the air conditioner is in operation. If the

room is too warm, turn the thermostat control clockwise. If the room is

too cool, turn the thermostat control counterclockwise.

The compressor will turn on and off to keep the room at the set temperature.

In the heating operation, the electric heater will turn on and off to keep the room at the set temperature.

When the air conditioner has been operated in

the cooling or heating mode and is turned off or

set to the fan position, wait at least 3 minutes

before resetting to the cooling operation again.

CAUTION A slight burning odor may come from the

unit when first switching to HEAT after the

cooling season is over. This odor, caused

by fine dust particles on the heater, will

disappear quickly. This is normal operation.

About the Controls on

the Air Conditioner

PULL OPEN / PUSH CLOSE

Additional controls and important information.

Ventilation Control

Push the lever to the "CLOSE" position to cool, heat or recirculate

room air only.

Pull the lever to the "OPEN" position to exhaust smoke or stale air

from the room.

This feature is best used in conjunction with the FAN ONLY position.

Air Direction

The direction of air can be controlled by adjusting the horizontal and

vertical louvers.

• HORIZONTAL AIR-DIRECTION CONTROL

The horizontal air direction is adjusted by moving the vertical louver.

The lever for the vertical louver is located in the right and left side of

the air discharge.

• VERTICAL AIR-DIRECTION CONTROL

The vertical air direction is adjusted by moving the horizontal louver.

About the Controls on

the Air Conditioner

Air Filter Cleaning

The air filter should be checked at least twice a month to see if cleaning is necessary.

Trapped particles in the filter will build up and block the airflow. This reduces the cooling

capacity and can also cause an accumulation of frost on the cooling coils.

If the filter becomes torn or damaged you should replace

immediately. Replacement filters are available from your

salesperson, dealer, and the authorized customer service

centers.

1. Open the inlet grille downward by grasping the top outside

edges of the inlet grille and pulling it towards you.

2. Remove the air filter from the front grille assembly by pulling

the air filter up slightly.

3. Wash the filter using lukewarm water and a mild detergent.

4. Gently shake all excess water from the filter.

Make sure the filter is completely dry and replace the filter

back into the unit.

How to Attach Front Grille to Cabinet

The front grille can be removed for cleaning or to check the model and serial numbers.

For your safety, you should attach the front grille using the following procedures.

Care and Maintenance

1. Pull down front grille from the cabinet

top.

2. Push front grille’s tips toward the cabinet

in order to insert front grille’s tabs into

the cabinet.

3. Open the inlet grille.

4. Tighten the screw through the front grille

into the plate of control box.

5. Close inlet grille.

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

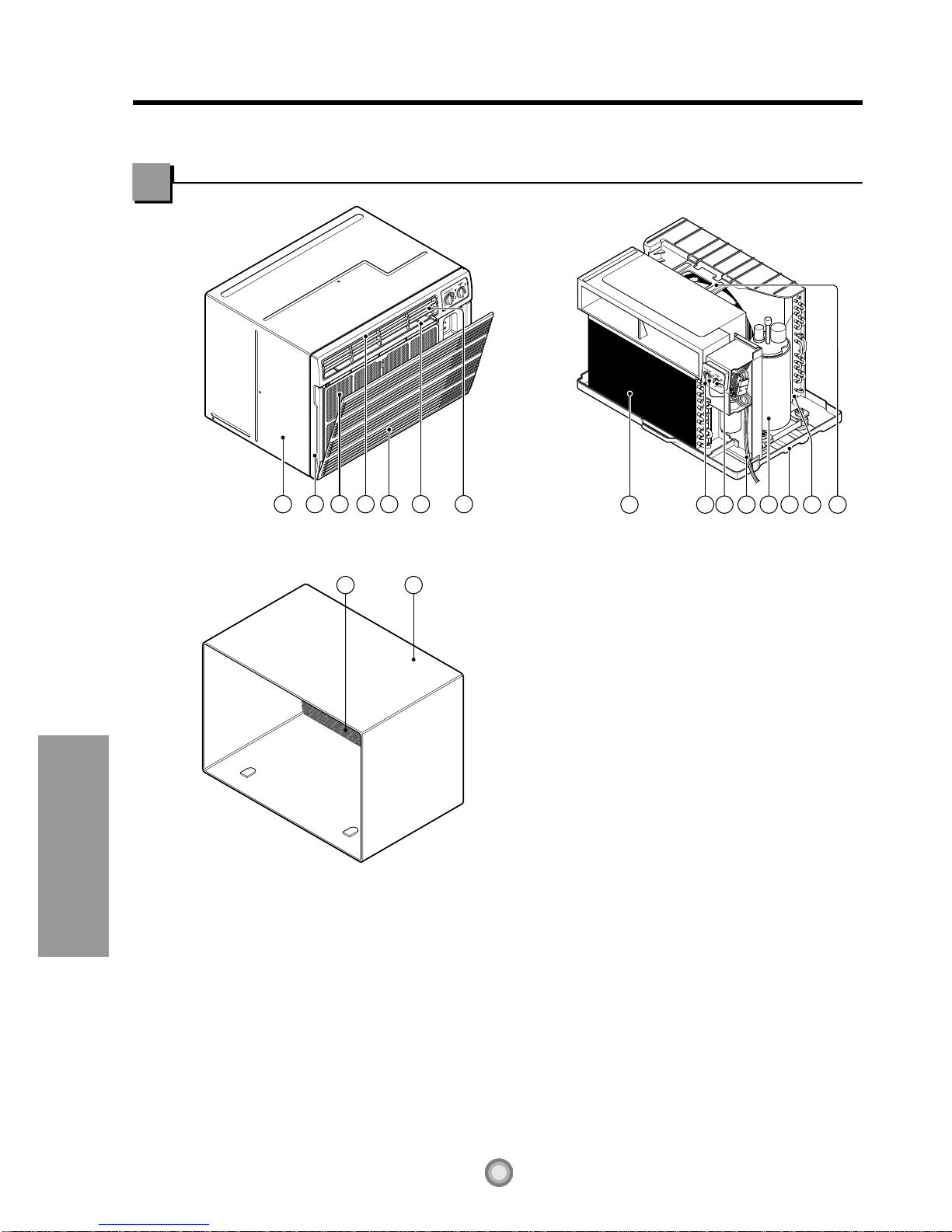

Features

Features and Installation

11 13 14 12 1510

1 67 23 45 9

Learning part name prior to installation will help you understand the installation procedure.

Features

The Unit

The Sleeve with the Rear Grille (sold separately)

1. CABINET

2. HORIZONTAL AIR DEFLECTOR

(Vertical Louver)

3. VERTICAL AIR DEFLECTOR

(Horizontal Louver)

4. AIR DISCHARGE

5. FRONT GRILLE

6. INLET GRILLE (Air Intake)

7. AIR FILTER

8. CONTROL BOARD

9. KNOBS

10. POWER CORD

11. EVAPORATOR

12. CONDENSER

13. COMPRESSOR

14. BASE PAN

15. BRACE

16. SLEEVE ASSEMBLY

(Including Expanded Aluminum Rear grille)

17. REAR GRILLE

Altri manuali per 115 Volts US08

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Friedrich Condizionatore d'aria

Friedrich

Friedrich MS24Y3F Manuale utente

Friedrich

Friedrich PDH07K3SF Manuale utente

Friedrich

Friedrich MR18Y3H Istruzioni per la costruzione

Friedrich

Friedrich Uni-Fit Thru-the-Wall Series Manuale utente

Friedrich

Friedrich Chill CP05 Manuale utente

Friedrich

Friedrich MWM18Y3J Manuale utente

Friedrich

Friedrich The Insider Manuale utente

Friedrich

Friedrich MW09Y3G Manuale utente

Friedrich

Friedrich TEC12K34 Guida

Friedrich

Friedrich CP06C10 Istruzioni per la costruzione

Friedrich

Friedrich MC24Y3F Manuale utente

Friedrich

Friedrich WallMaster WS10 Manuale utente

Friedrich

Friedrich Chill Premier Inverter Series Manuale utente

Friedrich

Friedrich MW30C3G Manuale utente

Friedrich

Friedrich VERT-I-PAK VEA09 Istruzioni operative originali

Friedrich

Friedrich MW18Y3H Manuale utente

Friedrich

Friedrich The Insider Manuale utente

Friedrich

Friedrich FPHFC36A3B Wi-Fi Guida

Friedrich

Friedrich ZStar ZQ05B10 Istruzioni per la costruzione

Friedrich

Friedrich 9368987053 Manuale utente

Friedrich

Friedrich X-Star XQ05 Manuale utente

Friedrich

Friedrich 115 Volts US12 Istruzioni operative originali

Friedrich

Friedrich MR09Y1F Manuale utente

Friedrich

Friedrich KUHL R-410A Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
