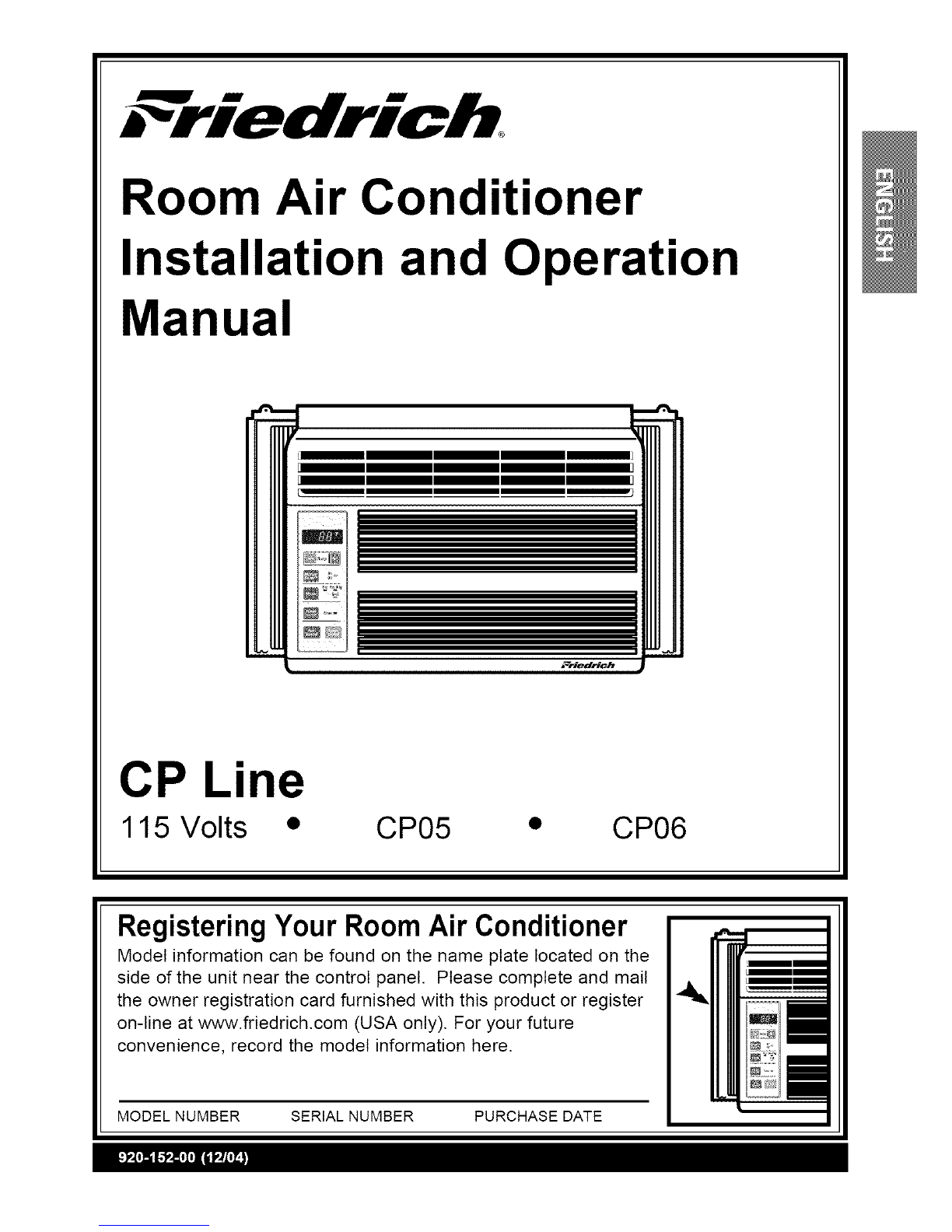

Room Air Conditioner

Installation and Operation

Manual

CP Line

115Volts • CP05 • CP06

Registering Your Room Air Conditioner

Model information can be found on the name plate located on the

side of the unit near the control panel. Please complete and mail

the owner registration card furnished with this product or register

on-line at www.friedrich.com (USA only). For your future

convenience, record the model information here.

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

m m m m

P,Y#ed 7v#cno

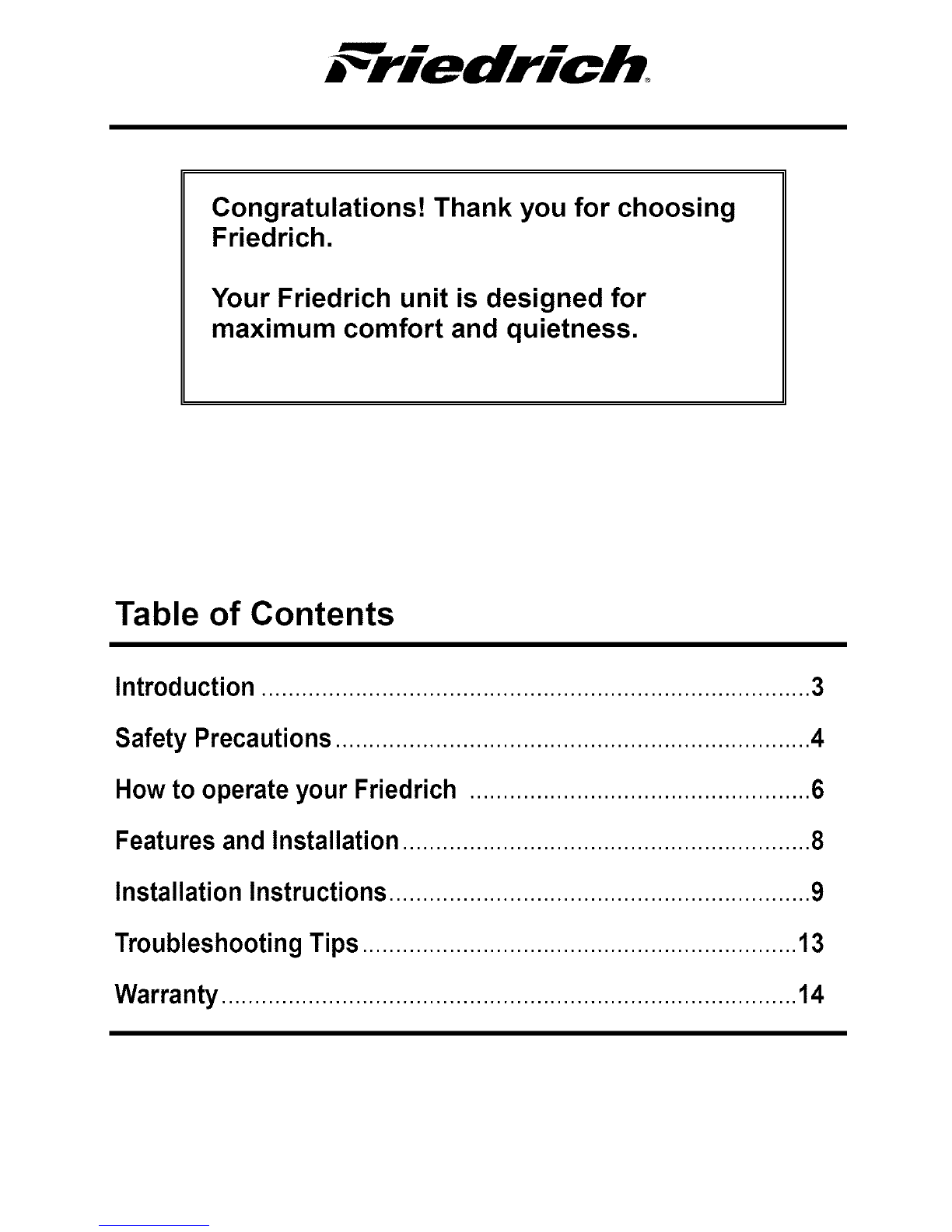

Congratulations! Thank you for choosing

Friedrich.

Your Friedrich unit is designed for

maximum comfort and quietness.

Table of Contents

Introduction .................................................................................. 3

Safety Precautions ....................................................................... 4

How to operate your Friedrich ................................................... 6

Features and Installation ............................................................. 8

Installation Instructions ............................................................... 9

Troubleshooting Tips ................................................................. 13

Warranty ...................................................................................... 14

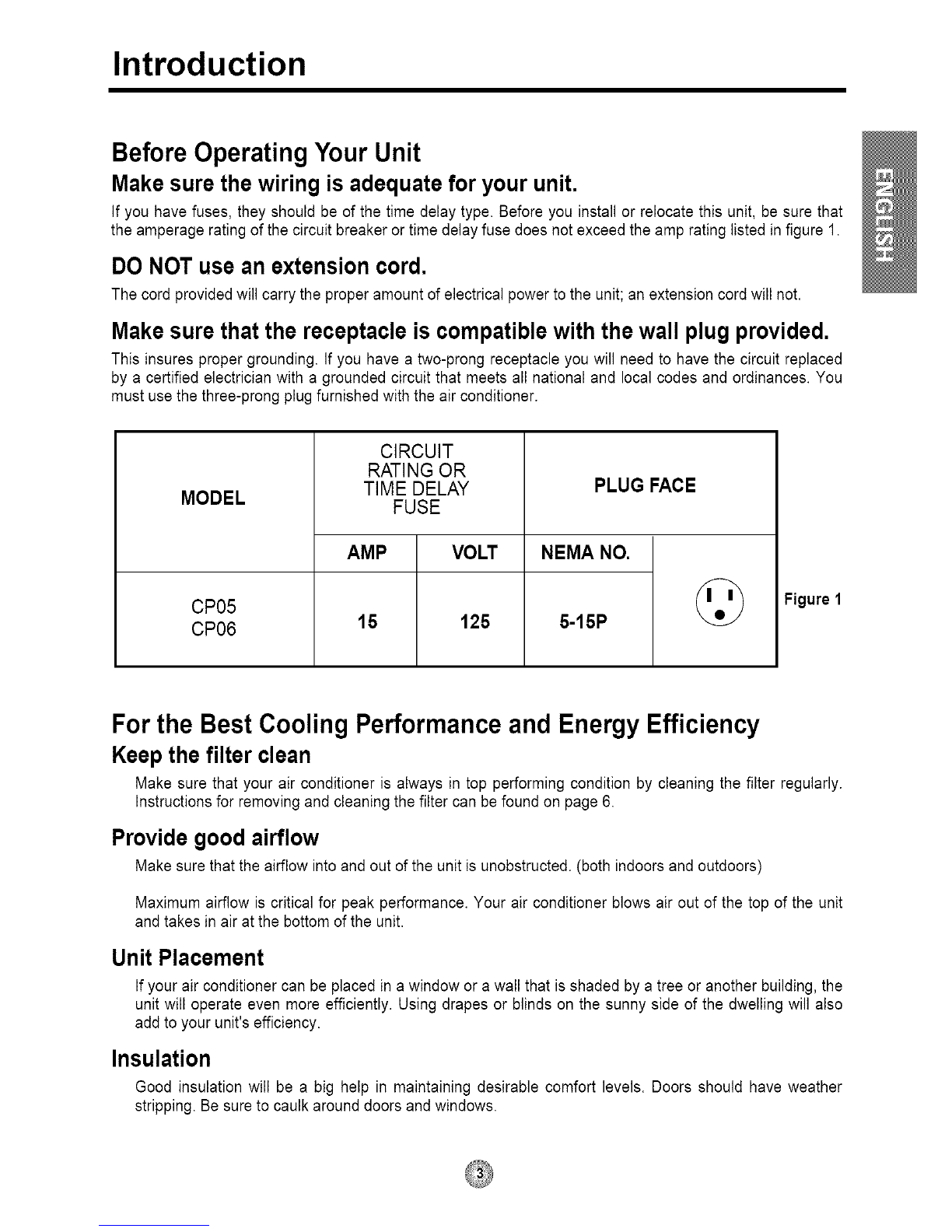

Introduction

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that

the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided wincarry the proper amount of electrical power to the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insuresproper grounding. If you have a two-prong receptacle you will need to have the circuit replaced

by a certified electrician with a grounded circuit that meets all national and local codes and ordinances. You

must use the three-prong plug furnished with the air conditioner.

MODEL

CP05

CP06

CIRCUIT

RATING OR

TIME DELAY

FUSE

AMP VOLT

15 125

PLUG FACE

NEMA NO.

5-15P ©Figure 1

For the Best Cooling Performance and Energy Efficiency

Keep the filter clean

Make sure that your air conditioner is always in top performing condition by cleaning the filter regularly.

Instructions for removing and cleaning the filter can be found on page 6.

Provide good airflow

Make sure that the airflow into and out ofthe unit is unobstructed. (both indoors and outdoors)

Maximum airflow is critical for peak performance. Your air conditioner blows air out of the top of the unit

and takes in air at the bottom of the unit.

Unit Placement

If your air conditioner can be placed in a window or a wall that is shaded by a tree or another building, the

unit will operate even more efficiently. Using drapes or blinds on the sunny side of the dwelling will also

add to your unit's efficiency.

Insulation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should have weather

stripping. Be sure to caulk around doors and windows.

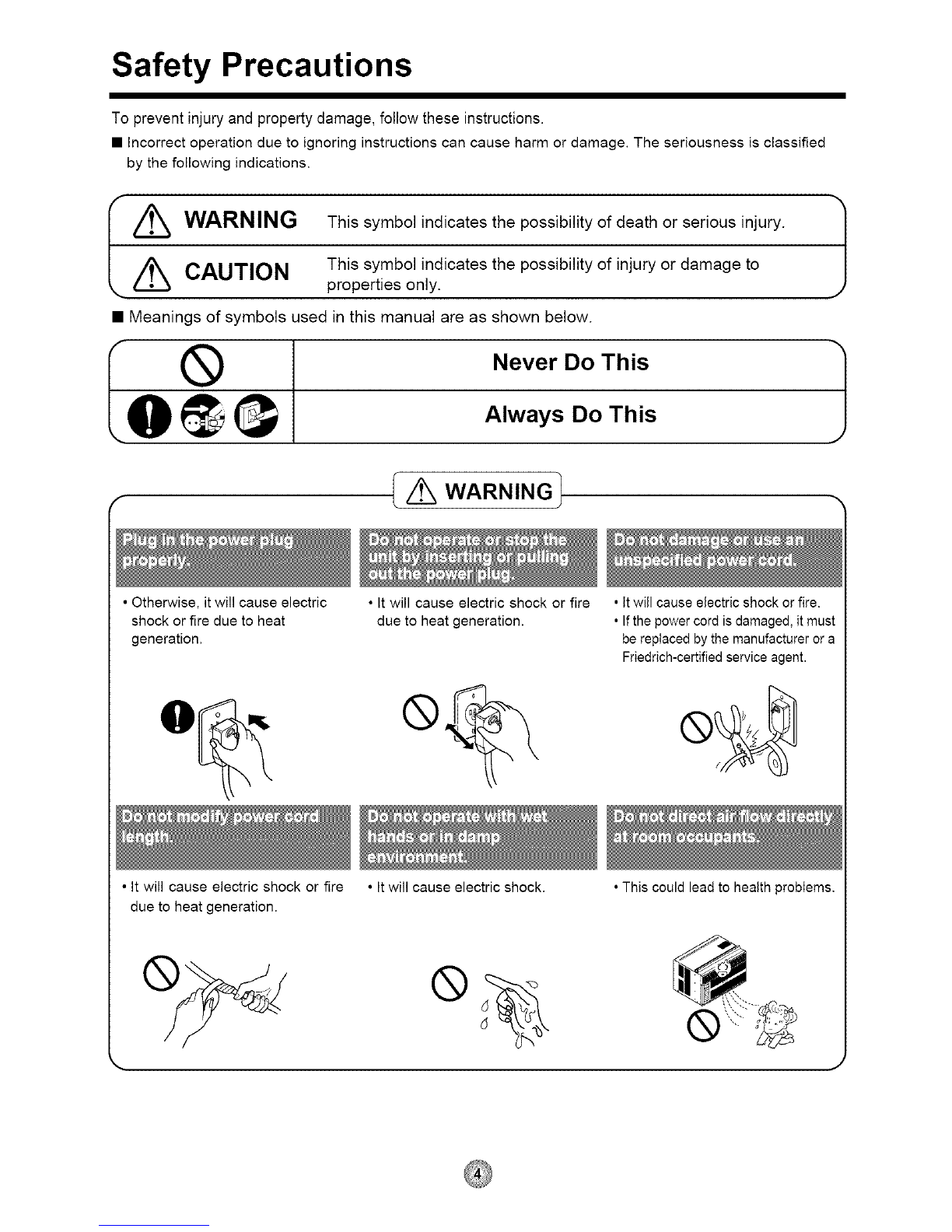

Safety Precautions

To prevent injury and property damage, follow these instructions.

• incorrect operation due to ignoring instructions can cause harm or damage. The seriousness is classified

by the following indications.

r_ WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to

properties only.

• Meanings of symbols used in this manual are as shown below.

Never Do This

Always Do This

[Z_ WARNING}

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• it will cause electric shock or fire

due to heat generation.

• It wi(I cause e(ectric shock or fire.

• If the power cord is damaged, it must

be reptaced by the manufacturer or a

Friedrich-certified service agent.

• It will cause electric shock or fire • It will cause electric shock.

due to heat generation.

• This could lead to hea(th probiems.

• They are sharp and may cause

an injury.

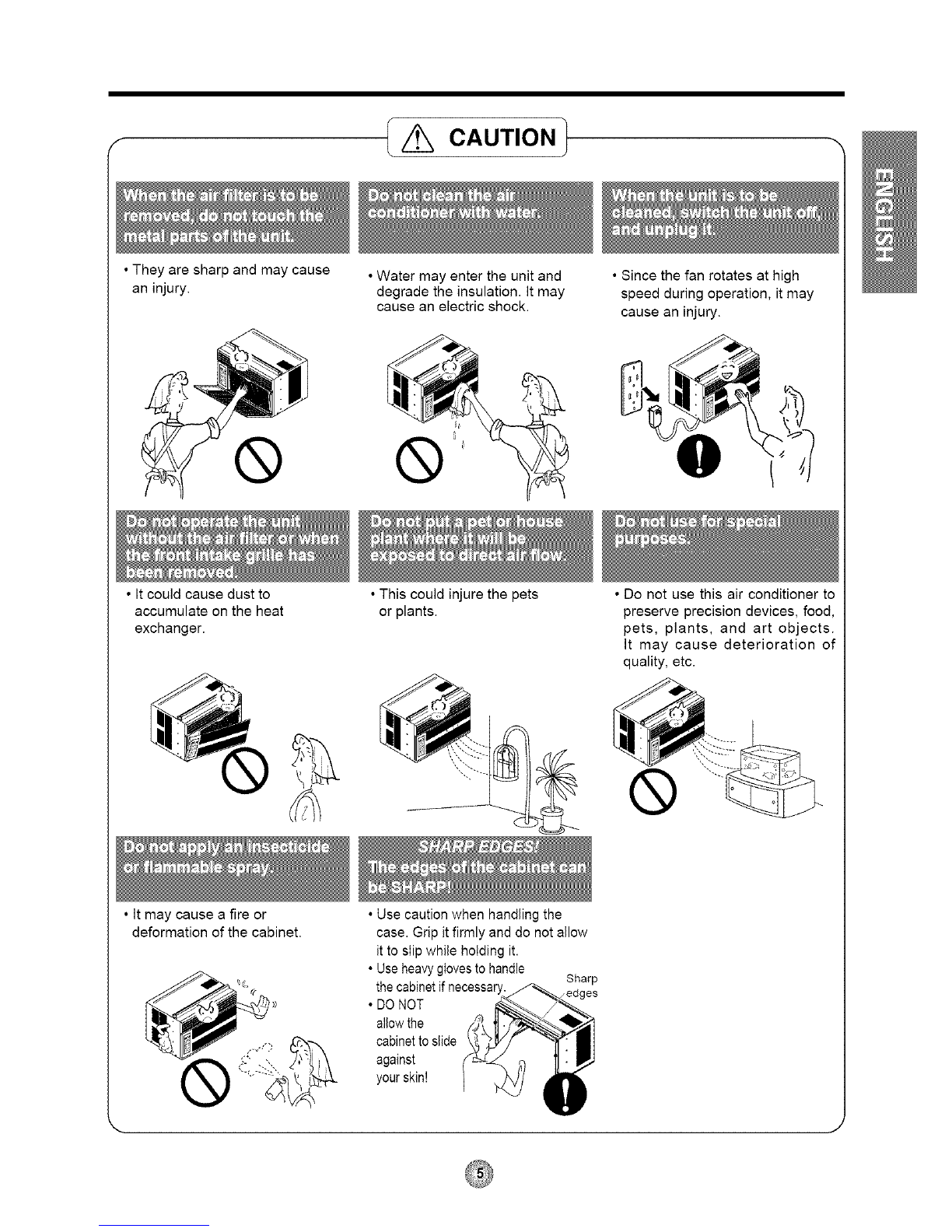

CAUTION t

• Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

• Since the fan rotates at high

speed during operation, it may

cause an injury.

• It could cause dust to

accumulate on the heat

exchanger.

• This could injure the pets

or plants.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

• It may cause a fire or

deformation of the cabinet.

(-,. i i

• Use caution when handling the

case. Grip it firmly and do not allow

it to slip while hoiding it.

• Use heavy gIoves to handle Sharp

the cabinet if necessary, edges

• DO NOT

allow the

cabinet to slide

against

your skin!

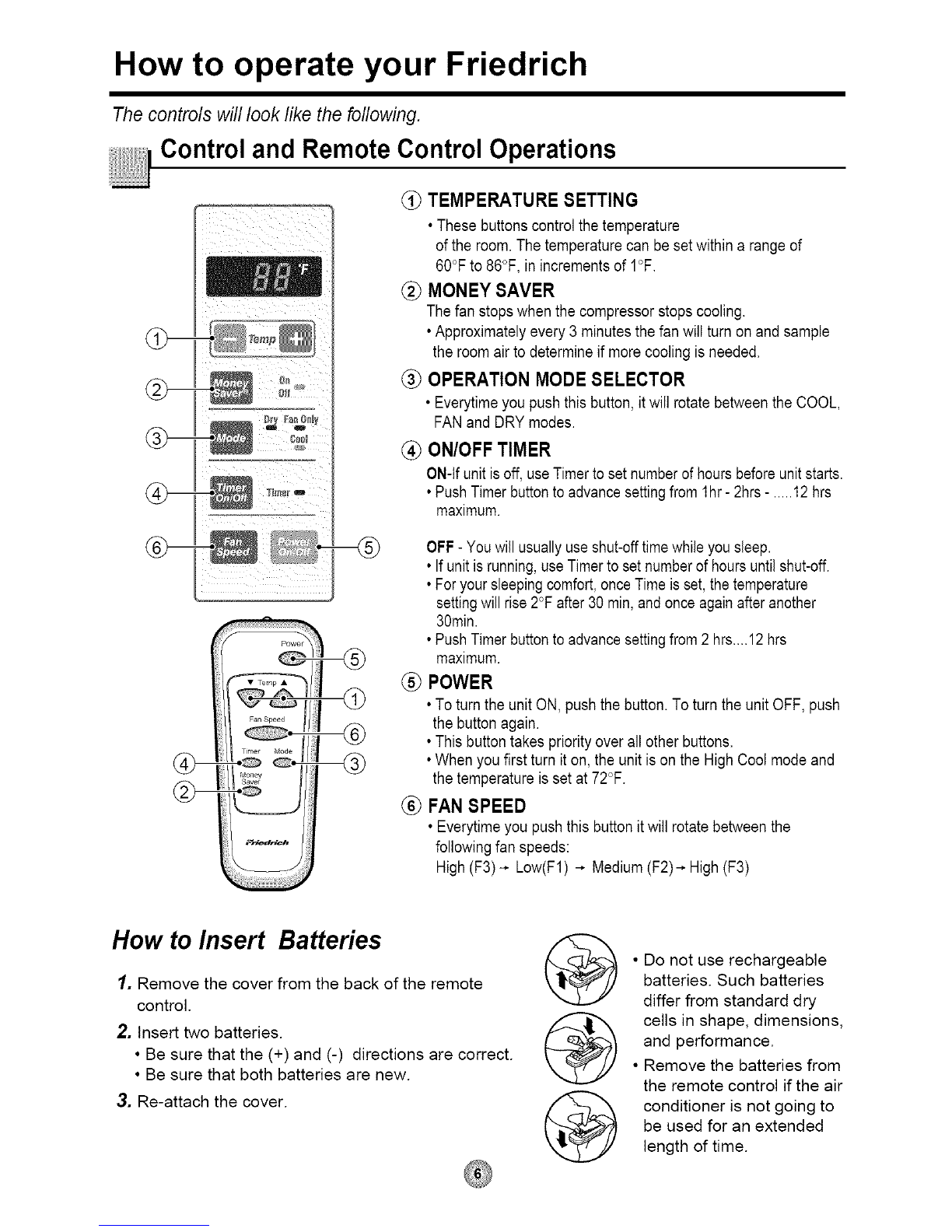

How to operate your Friedrich

The controls will look like the following.

Control and Remote Control Operations

TEMPERATURE SETTING

• These buttonscontrolthetemperature

ofthe room.Thetemperaturecan beset withina rangeof

60°Fto 86°F,in incrementsof I°F.

MONEY SAVER

Thefanstopswhenthecompressorstopscooling.

• Approximatelyevery3 minutesthe fanwillturn onand sample

theroomair to determineif morecoolingis needed.

OPERATION MODE SELECTOR

• Everytimeyoupushthis button,it will rotatebetweenthe COOL,

FANand DRYmodes.

ON/OFF TIMER

ON-Ifunitisoff,useTimertoset numberof hoursbeforeunitstarts.

• PushTimerbuttonto advancesettingfromlhr - 2hrs- .....12hrs

maximum.

• Temp •

Fan Speed

(2>-

OFF- Youwillusuallyuseshut-offtimewhileyousleep.

• Ifunitisrunning,useTimerto set numberofhoursuntilshut-off.

• Foryoursleepingcomfort,onceTimeisset,thetemperature

settingwillrise2°Fafter30min,andonceagainafteranother

30min.

• PushTimerbuttonto advancesettingfrom2 hrs....12hrs

maximum.

POWER

•To turntheunitON, pushthebutton.To turntheunit OFF,push

thebuttonagain.

• This buttontakespriorityoverall otherbuttons.

•Whenyoufirstturn iton,the unitison the HighCoolmodeand

thetemperatureisset at 72°F.

FAN SPEED

• Everytimeyou pushthis buttonitwill rotatebetweenthe

followingfan speeds:

High(F3)-_ Low(F1) _ Medium(F2)_ High(F3)

How to Insert Batteries

1. Remove the cover from the back of the remote

control.

2. Insert two batteries.

• Be sure that the (+) and (-) directions are correct.

• Be sure that both batteries are new.

3. Re-attach the cover.

@• Do not use rechargeable

batteries. Such batteries

differ from standard dry

cells in shape, dimensions,

and performance.

• Remove the batteries from

the remote control if the air

conditioner is not going to

be used for an extended

length of time.

Additional controls and important information.

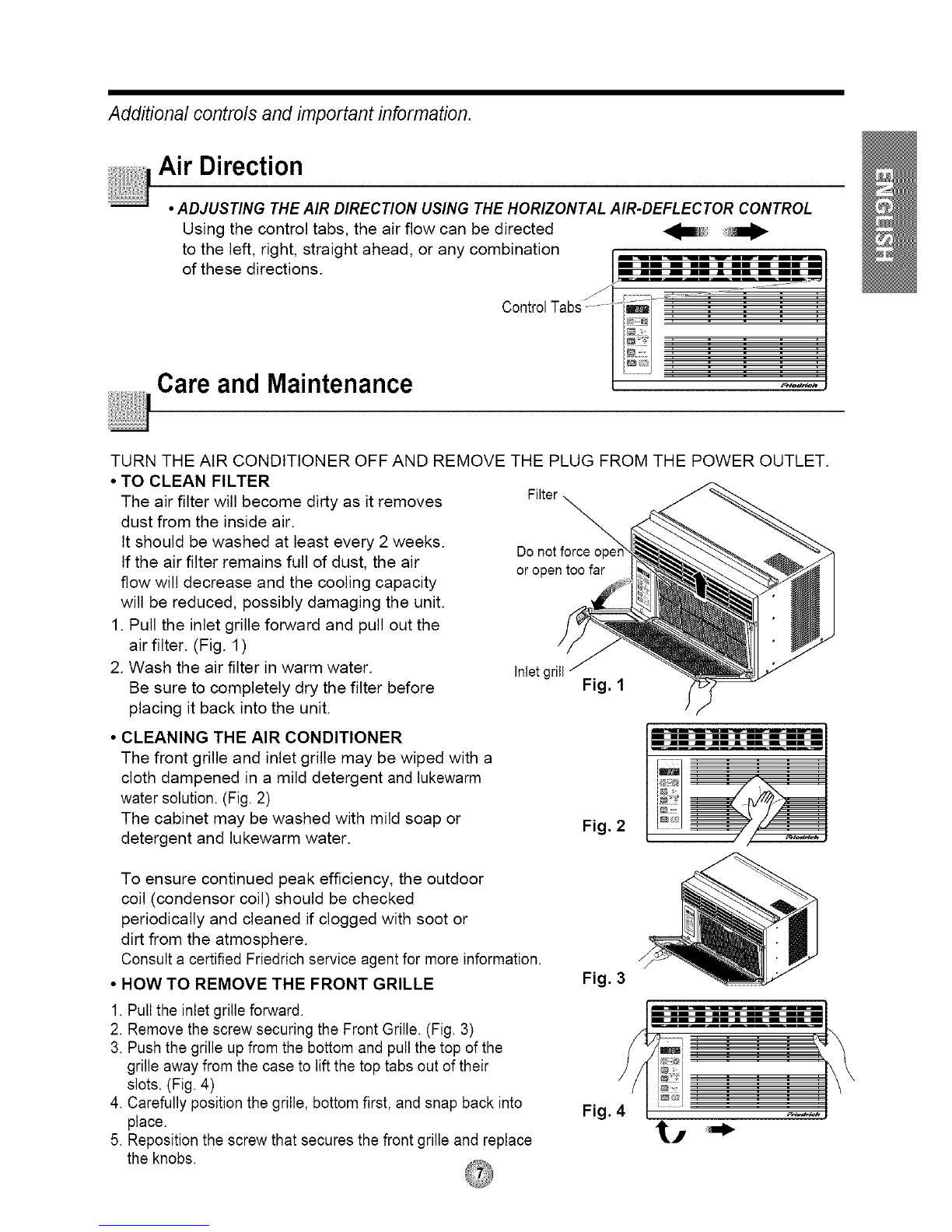

Air Direction

•ADJUSTING THEAIR DIRECTION USING THEHORIZONTAL AIR-DEFLECTOR CONTROL

Using the control tabs, the air flow can be directed _

to the left, right, straight ahead, or any combination

of these directions.

ControlTabs_

Care and Maintenance

......... 77_

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

•TO CLEAN FILTER

The air filter will become dirty as it removes

dust from the inside air.

It should be washed at least every 2 weeks.

If the air filter remains full of dust, the air

flow will decrease and the cooling capacity

will be reduced, possibly damaging the unit.

1. Pull the inlet grille forward and pull out the

air filter. (Fig. 1)

2. Wash the air filter in warm water.

Be sure to completely dry the filter before

placing it back into the unit.

•CLEANING THE AIR CONDITIONER

The front grille and inlet grille may be wiped with a

cloth dampened in a mild detergent and lukewarm

water solution. (Fig. 2)

The cabinet may be washed with mild soap or

detergent and lukewarm water.

Do not force o

or open too far

Inlet grill Fig. 1

Fig. 2

To ensure continued peak efficiency, the outdoor

coil (condensor coil) should be checked

periodically and cleaned if clogged with soot or

dirt from the atmosphere.

Consult a certified Friedrich service agent for more information.

•HOW TO REMOVE THE FRONT GRILLE

1. Pull the inletgrille forward.

2. Remove the screw securing the Front Grille. (Fig. 3)

3. Push the grille up from the bottom and pull the top of the

grille away from the case to lift the top tabs out of their

slots. (Fig. 4)

4. Carefully position the grille, bottom first, and snap back into

place.

5. Reposition the screw that secures the front grille and replace

the knobs.

Fig. 3

Fig. 4

Features and Installation

Learning the key components will help you properly install the unit.

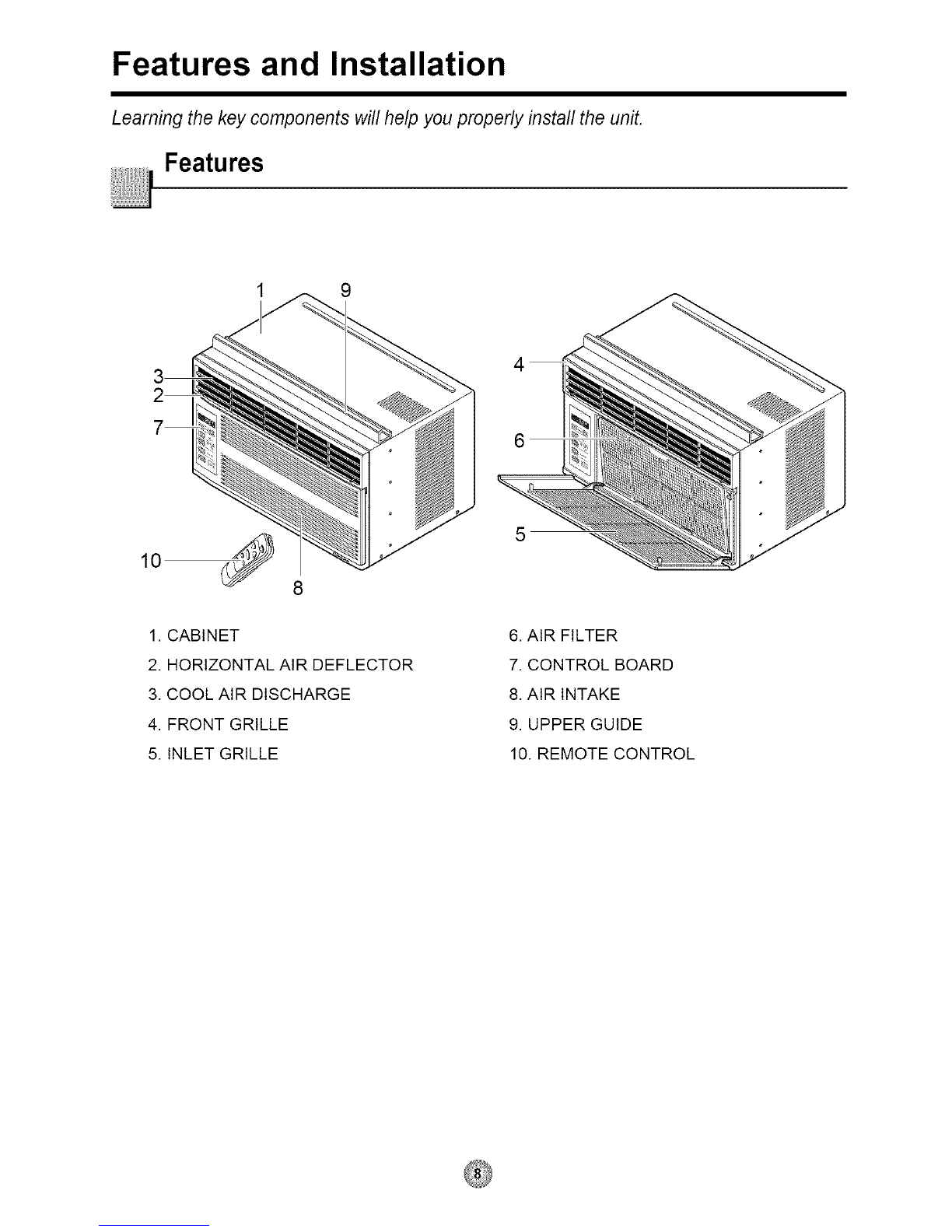

Features

1 9

1. CABINET

2. HORIZONTAL AIR DEFLECTOR

3. COOL AIR DISCHARGE

4. FRONT GRILLE

5. INLET GRILLE

6. AIR FILTER

7. CONTROL BOARD

8. AIR INTAKE

9. UPPER GUIDE

10. REMOTE CONTROL

Installation Instructions

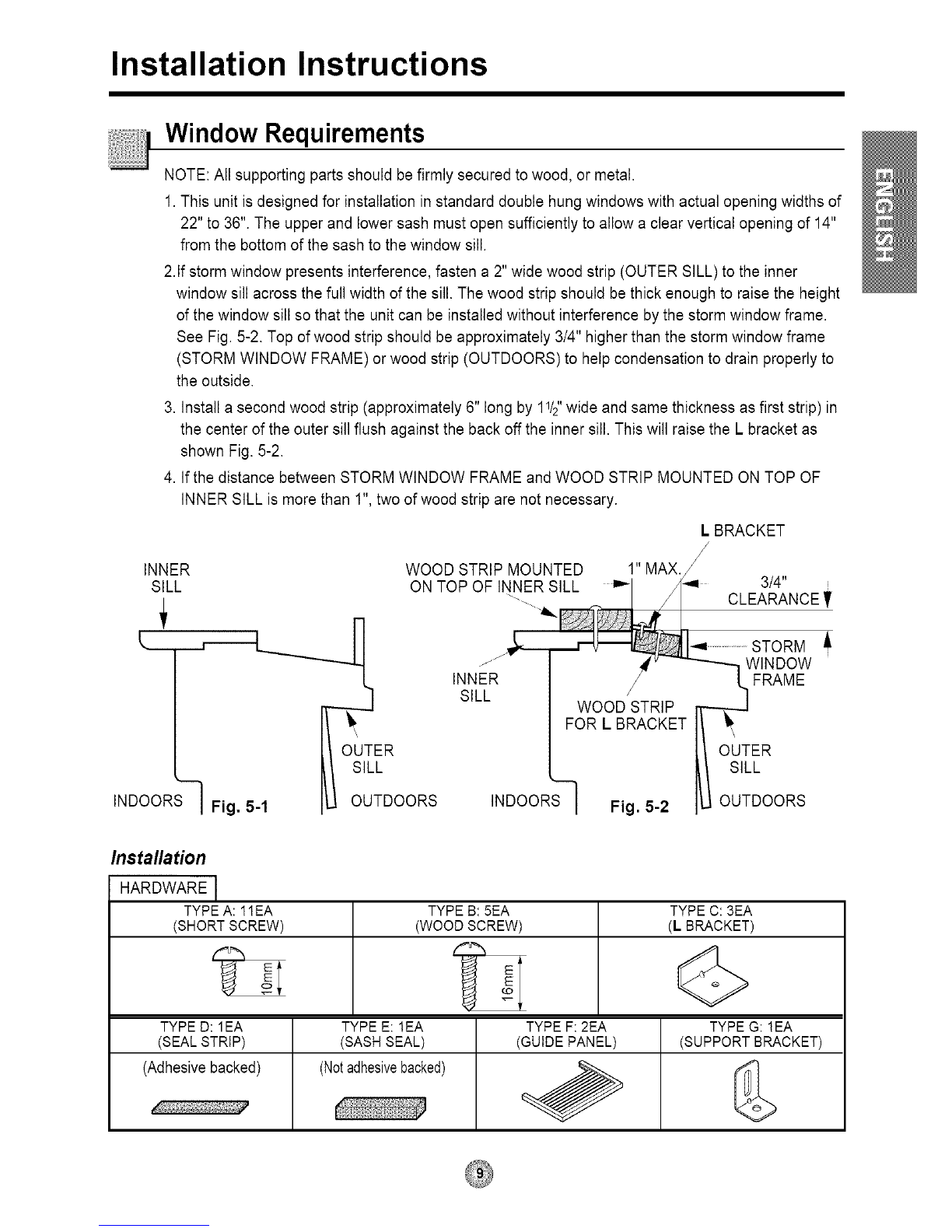

Window Requirements

NOTE:All supporting parts should be firmly secured to wood, or metal.

1.This unit is designed for installation in standard double hung windows with actual opening widths of

22"to 36". The upperand lowersash must open sufficiently to allow a clear verticalopening of 14"

from the bottom of the sash to the window sill.

2.If stormwindow presents interference, fasten a 2" wide wood strip (OUTER SILL)to the inner

window sill acrossthe full width of the sill. The wood strip should be thick enough to raisethe height

of the window sill so that the unitcan be installed without interference by the storm window frame.

See Fig. 5-2. Top of wood strip should be approximately 3/4" higherthan the stormwindow frame

(STORM WINDOW FRAME)or wood strip (OUTDOORS) to help condensation to drain properly to

the outside.

3. Install a second wood strip (approximately 6" long by 11/2"wide and same thickness asfirst strip) in

the center of the outer sill flush against the back off the inner sill. This will raise the L bracket as

shown Fig. 5-2.

4. If the distance between STORM WINDOW FRAME and WOOD STRIP MOUNTED ON TOP OF

INNER SILL is morethan 1",two of wood strip are not necessary.

LBRACKET

INNER WOOD STRIP MOUNTED 1" MAX. J

SILL ON TOP OF INNER SILL _ 3/4" i

CLEARANCE

INDOORSq Fig. 5-1

lU OUTDOORS

INNER

SILL

INDOORS

WOOD STRIP

FOR L BRACKET

Fig. 5-2

...............STORM

WINDOW

FRAME

OUTER

SILL

OUTDOORS

Installation

HARDWARE I

TYPEA:1lEA

(SHORT SCREW)

TYPE D: 1EA TYPE F: 2EA

(SEAL STRIP) (GUIDE PANEL)

(Adhesive backed)

TYPE B: 5EA

(WOOD SCREW)

TYPE E: lEA

(SASH SEAL)

(Notadhesivebacked)

TYPE C: 3EA

(L BRACKET)

TYPE G: ! EA

(SUPPORT BRACKET)

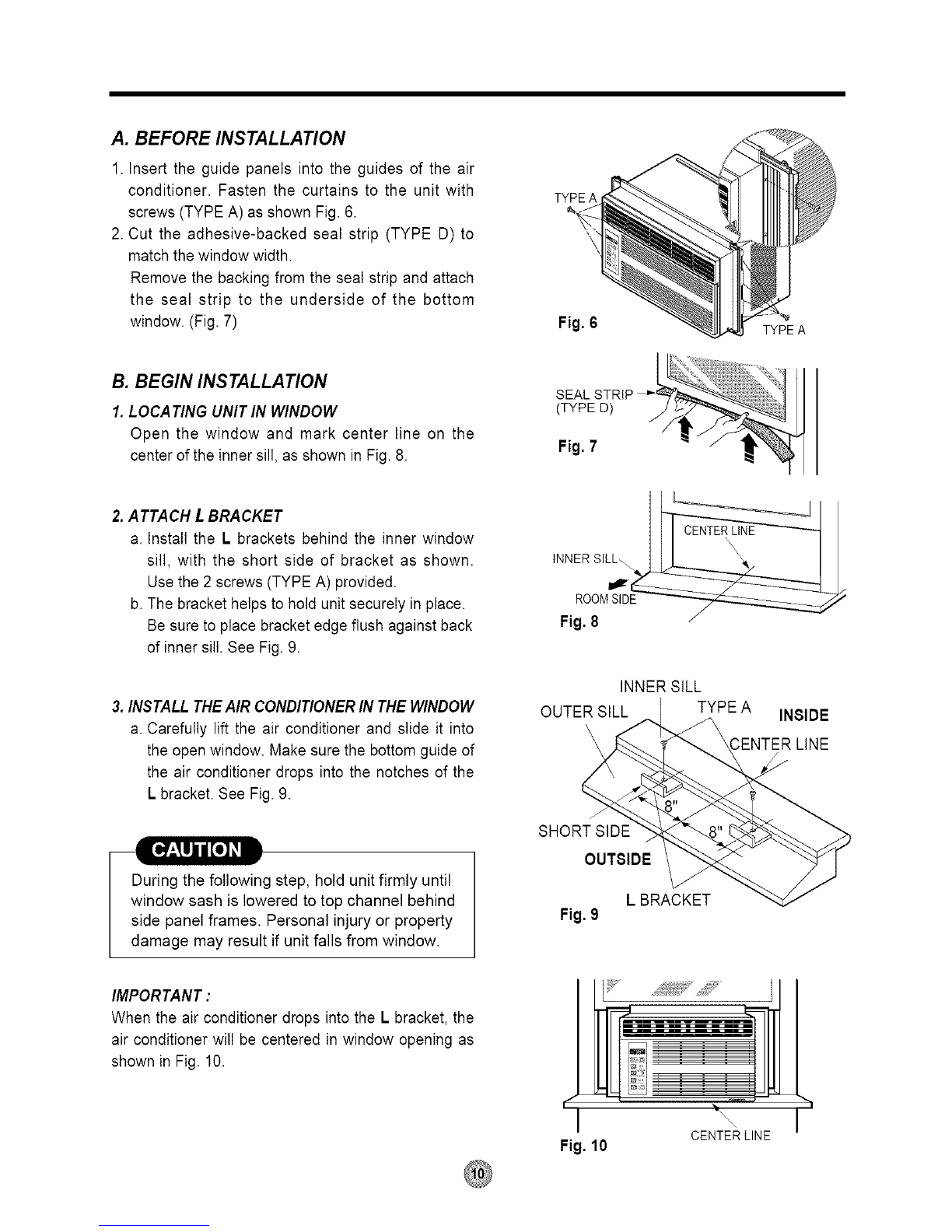

A. BEFORE INSTALLATION

1. Insert the guide panels into the guides of the air

conditioner. Fasten the curtains to the unit with

screws (TYPE A) as shown Fig. 6.

2. Cut the adhesive-backed seal strip (TYPE D) to

matchthe window width.

Remove the backing from the seal strip and attach

the seal strip to the underside of the bottom

window. (Fig. 7)

B. BEGIN INSTALLATION

1. LOCATING UNIT IN WINDOW

Open the window and mark center line on the

center of the inner sill, as shown in Fig. 8.

2.ATTACH L BRACKET

a. Install the Lbrackets behind the inner window

sill, with the short side of bracket as shown.

Use the 2 screws (TYPE A) provided.

b. The bracket helps to hold unit securely in place.

Be sure to place bracket edge flush against back

of inner sill. See Fig. 9.

3.INSTALL THEAIR CONDITIONERIN THE WINDOW

a. Carefully lift the air conditioner and slide it into

the open window. Make sure the bottomguide of

the air conditioner drops into the notches of the

Lbracket. See Fig. 9.

During the following step, hold unit firmly until

window sash is lowered to top channel behind

side panel frames. Personal injury or property

damage may result if unit falls from window.

IMPORTANT :

When the air conditioner drops into the Lbracket, the

air conditioner will be centered in window opening as

shown in Fig. 10.

TYPE A

Fig. 6

iNNER SILL-

ROOMSIDE

Fig. 8

TYPE A

INNER SILL

OUTER SILL TYPE A INSIDE

'\\ LINE

SHORT SIDE

OUTSIDE

LBRACKET

Fig. 9

CENTER LINE

Fig. 10

Altri manuali per Chill CP05

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Friedrich Condizionatore d'aria

Friedrich

Friedrich UE08 Istruzioni per la costruzione

Friedrich

Friedrich ZoneAire P09B Manuale utente

Friedrich

Friedrich MR09C1H Manuale utente

Friedrich

Friedrich Uni-Fit UE10C33 Thru-the-Wall Series Istruzioni per la costruzione

Friedrich

Friedrich Kuhl SM21M30 Manuale utente

Friedrich

Friedrich TWINTEMP EQ08L11A Manuale utente

Friedrich

Friedrich MR09C1F Manuale utente

Friedrich

Friedrich MRM36Y3J Manuale utente

Friedrich

Friedrich QuietMaster SL28L30 Manuale utente

Friedrich

Friedrich LC6000 Manuale utente

Friedrich

Friedrich PTAC Series Istruzioni operative originali

Friedrich

Friedrich MR18DC3E Manuale utente

Friedrich

Friedrich WallMaster WE10 Manuale utente

Friedrich

Friedrich VERT-I-PAK B-SERIES Istruzioni operative originali

Friedrich

Friedrich Breeze BR1224W3A Manuale utente

Friedrich

Friedrich PDXDAA Manuale utente

Friedrich

Friedrich MR09Y1F Manuale utente

Friedrich

Friedrich Climate Master 702 Series Manuale utente

Friedrich

Friedrich M30CF Manuale utente

Friedrich

Friedrich Kuhl SS08M10 Manuale utente

Friedrich

Friedrich WallMaster PE Series s Manuale utente

Friedrich

Friedrich MW09C1H Manuale utente

Friedrich

Friedrich 115 Volts US12 Istruzioni operative originali

Friedrich

Friedrich 2001 Hazardgard SH14J30A-1 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
