Friedrich MR36UY3J Manuale utente

Single Zone Air Conditioner

SVC MANUAL (Exploded View)

CAUTION

Before Servicing the unit, read the safety

precautions in General SVC manual.

Only for authorized service personnel.

MODEL: MR36UY3J

960-920-10

1. Specification

Indoor Unit

MD36Y3J

MC36Y3J

Capacity

Cooling

Min. ~ Rated ~ Max.

4.7~10.5~12.1

4.10 ~ 10.5 ~ 12.3

Min. ~ Rated ~ Max.

Btu/h

16,200 ~ 36,000 ~ 41,400

14,000 ~ 36,000 ~ 42,000

Heating

Min. ~ Rated ~ Max.

5.2 ~ 11.7 ~ 13.4

4.25 ~ 11.7 ~ 13.1

Min. ~ Rated ~ Max.

Btu/h

18,000 ~ 40,000 ~ 46,000

14,500 ~ 40,000 ~ 45,000

Power Input

Cooling

Rated

2.97

Heating

Rated

3.36

3.2

EER / COP

Btu/h·W

12.1/-

13.5 / -

SEER / HSPF

Btu/h·W

17.6 / 9.2

19.0 / 9.5

Model Name

MR36UY3J

Power Supply

V ,

, Hz

208-230 / 1 / 60

Starting Current

Cooling

Max.

Heating

Max.

Wiring Connections

Power Supply Cable (included Earth)

No. x mm

(AWG)

3C x 5.0 (10)

Casing Color

Warm Gray

Dimensions

W x H x D

950 × 1,380 × 330

W x H x D

inch

37-13/32 × 54-11/32 × 13

Net Weight

kg (lbs)

92.0 (202.8)

Compressor

Type

Twin Rotary

Model

Model x No.

GPT442MBA x 1

Motor type

BLDC

Motor Output

W x No.

4,000 x 1

Refrigerant

Type

R410A

Precharged Amount

g (oz)

3,400 (119.9)

Chargeless-Pipe Length

m (ft)

7.5 (24.6)

Additional Charging Volume

g/m (oz/ft)

40 (0.43)

Control

Electronic Expansion Valve

Refrigerant Oil

Type

FVC68D

Charged volume

cc x No.

1,300 x 1

Heat Exchanger

(Row x Column x Fins per inch) x No.

(2 x 32 x 14) x 2

Fan

Type

Propeller

Air Flow Rate

/min(ft

/min) x No.

55(1942)×2

Fan Motor

Type

BLDC

Output

W x No.

124.0 x 2

Sound Pressure Level

Cooling

Rated

dB(A)

Heating

Rated

dB(A)

Sound Power Level

Rated

dB(A)

Piping Connections

Liquid

Outer Dia.

mm(inch)

9.52 (3/8)

Gas

Outer Dia.

mm(inch)

15.88 (5/8)

Piping Length

Max.

m (ft)

75 (246.1)

Maximum Height Difference

Outdoor Unit ~ Indoor

Unit

Max.

m (ft)

30 (98.4)

Operation Range (Outdoor Temperature)

Cooling

Min. ~ Max.

℃DB (℉DB)

-15 (5.0) ~ 48 (118.4)

Heating

Min. ~ Max.

℃WB (℉WB)

-18 (-0.4) ~ 18 (64.4)

Note:

All data are based on the following conditions:

-Cooling Temperature : Indoor 26.7℃(80℉) DB / 19.4℃(67℉) WB

Outdoor 35℃(95℉) DB / 23.9℃(75℉) WB

-Heating Temperature : Indoor 21.1℃(70℉) DB / 15.6℃(60℉) WB

Outdoor 8.33℃(47℉) DB / 6.11℃(43℉) WB

-Piping Length : Interconnected Pipe Length = 7.5m

-Difference Limit of Elevation (Outdoor ~ Indoor Unit) is Zero.

Wiring cable size must comply with the applicable local and national code.

Due to our policy of innovation some specifications may be changed without notification.

Sound Level Values are measured at Anechoic chamber.

Therefore, these values can be increased (maximum 3dB(A)) owing to ambient conditions during operation.

- 2 -

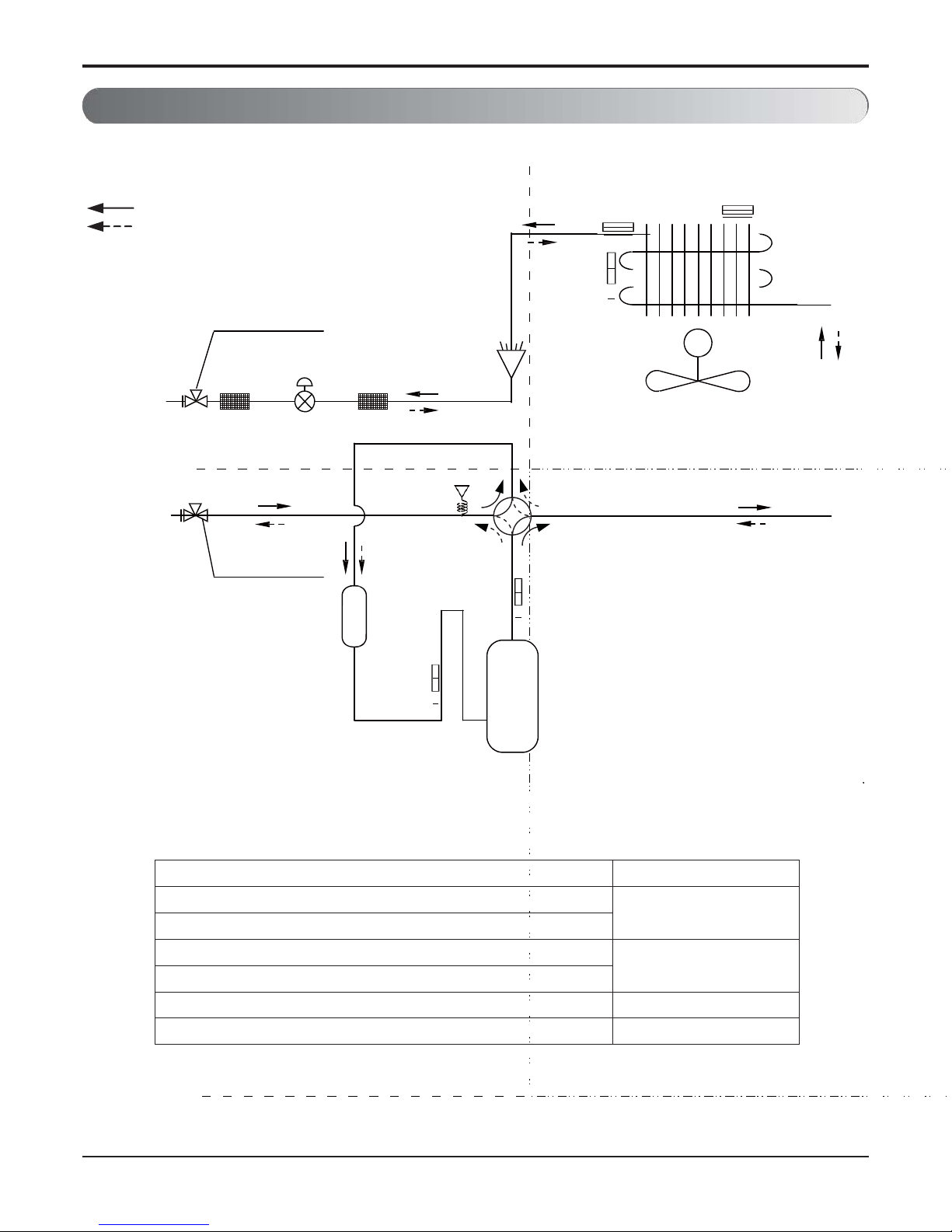

2. Piping Diagrams

Refrigerant Flow

Cooling

Heating

Outdoor Unit

Ø9.52

Flare Connection

Sensor for

Heat exchanger

Outlet temperature

Sensor for

Heat exchanger

temperature

Sensor for

Heat exchanger

inlet air temperature

Strainer Strainer

Electronic

Expansion Valve

Pressure

Sensor

Ø15.88

Flare Connection

Accumulator

4 way

Valve

Sensor for

discharge

temperature

Sensorfor

suction

temperature

Inverter

Compressor

Description

PCB Connector

Sensor for suction temperature

CN_TH3

Sensor for discharge temperature

Sensor for Heat exchanger inlet air temperature

CN_TH2

Sen for Heat exchanger inlet air temperature

Sensor for Heat exchanger temperature

CN_TH4

Pressure Sensor

P-SENSOR(H)

- 3 -

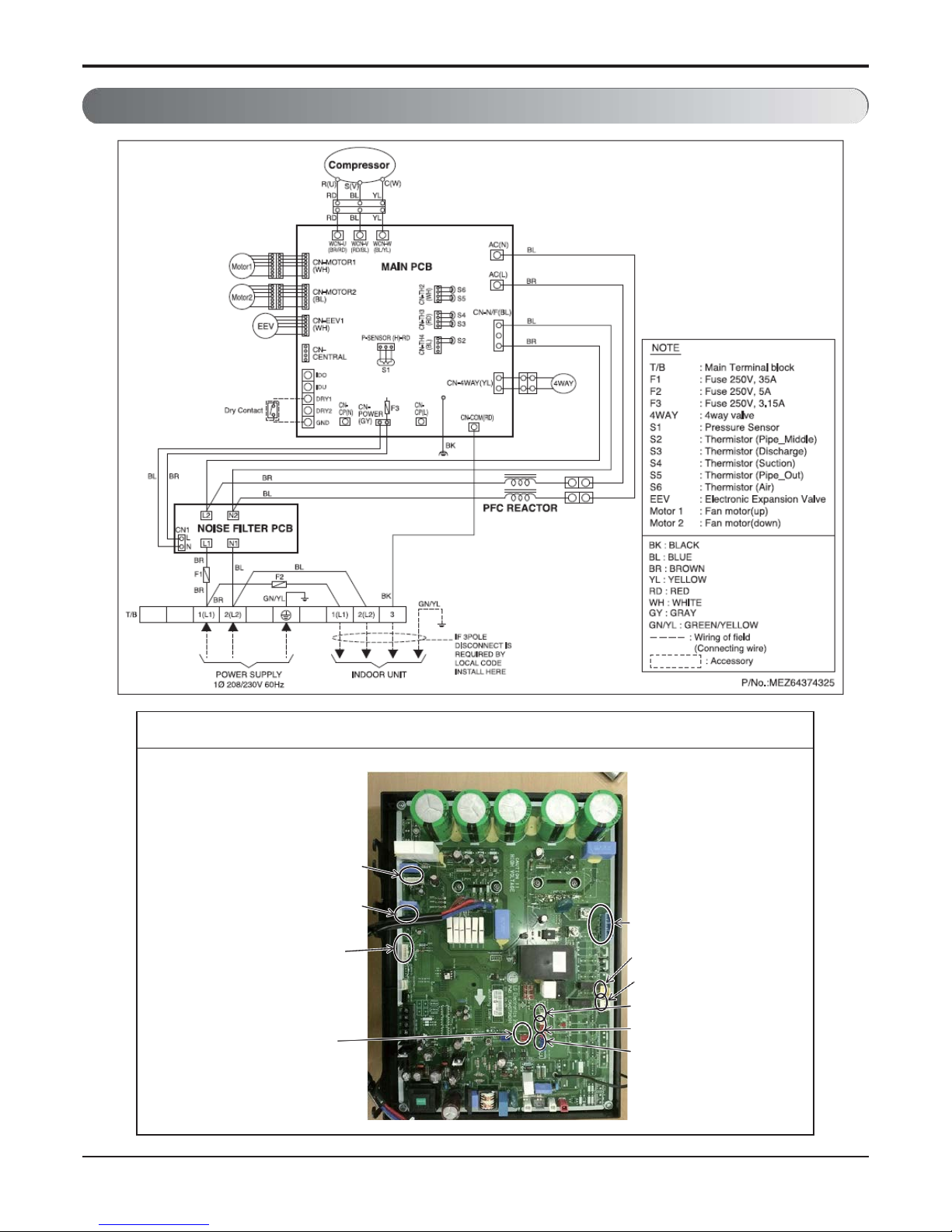

3. Wiring Diagrams

MAINPCB

CN_MOTOR1

CN_MOTOR2

CN_N/F

CN_EEV1 CN_4WAY

CN_COOLING

CN_TH2

P_SENSOR (H)-RD

CN_TH3

CN_TH4

- 4 -

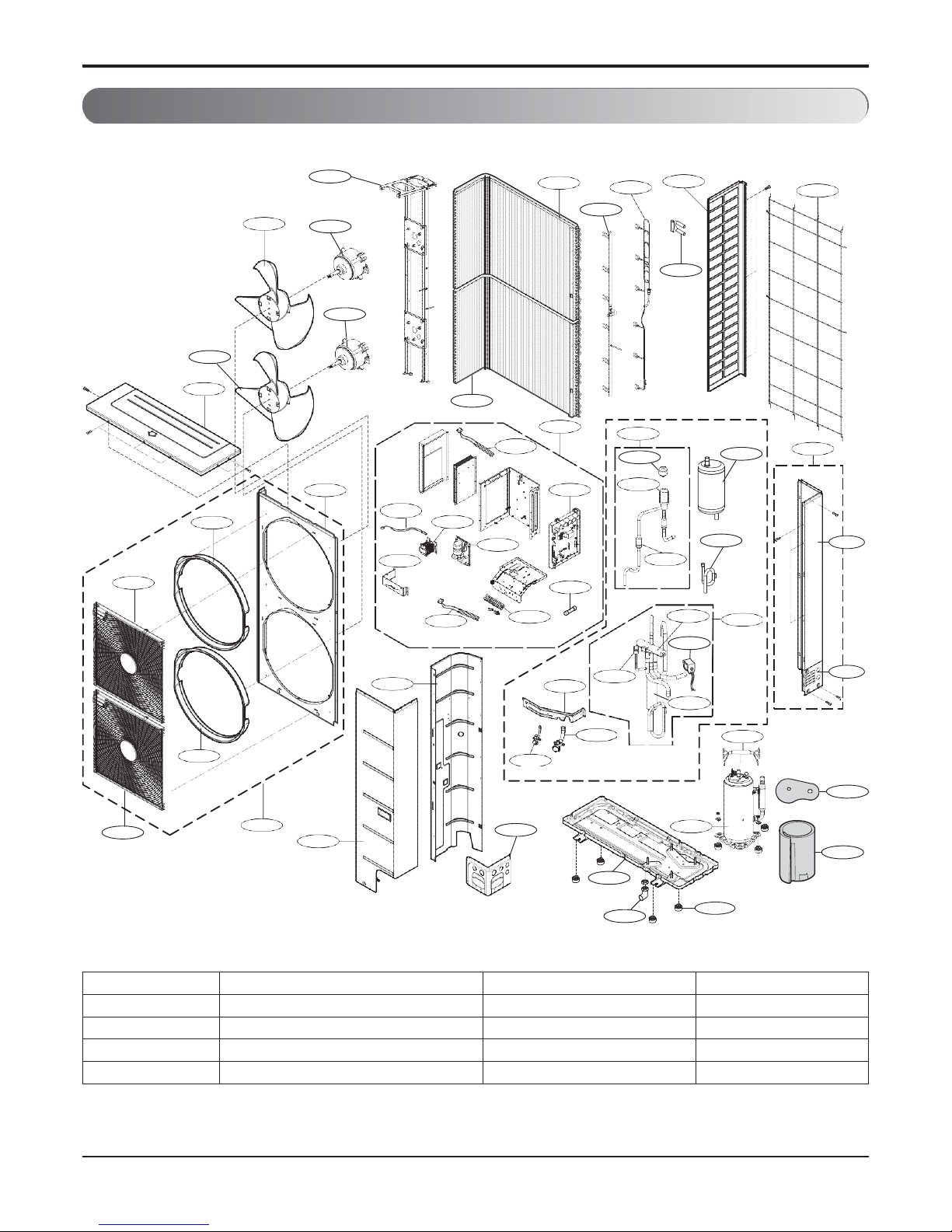

4. Exploded View

559010

549610

546810A

554030A

552115

552111

237204

435300

352111

546810B

559010

435512

349480

237202

Cond-Mid

263230A

554030B

261704

263230C

Air/ Cond-Out

649950

268711A

55211G

661400

552200

548490

437212

435301

W4810

263230B

W620

W6640

W0FZZ

W52240

552202

552117

552116

237205

Suction / Dischargepipe

561410

447910

148000

165010

Pressure

sensor

552560

135500

349480

552203B

552203A

W6631

W4986A

435301

437211

137213

435513

554160

W4986B

430410

152503

550140B

Location No.

Description

Sensor Information

Housing Color

263230A

Thermistor S2(CN-TH4)

Cond-Mid

Blue

263230B

Thermistor S4/S3(CN-TH3)

Suction /Discharge pipe

Red

263230C

Thermistor S6/S5(CN-TH2)

Air / Cond-Out

White

165010

Pressure sensor(P-SENSOR (H)-RD)

Pressure Sensor

Red

- 5 -

Model: MR36UY3J

Loc No. Description Friedrich Part #

548490

Accumulator Assembly

67600102

447910

Barrier Assembly, Outdoor

67600303

430410

Base Assembly, Outdoor

67600600

W4810

Bracket Assembly

67600706

549610

Bracket Assembly, Motor(Outdoor)

67600709

649950

Case Assembly, Control(Outdoor)

67600927

661400

Coil

67601100

554160

Compressor Set, Korea

67601203

554030A

Condenser Assembly, First

67601309

554030B

Condenser Assembly, First

67601310

W6640

Connector, Terminal Block

67601400

135500

Cover

67601503

435512

Cover Assembly, Top(Outdoor)

67601612

435513

Cover Assembly, Tubing

67601615

550140B

Damper, Compressor

67601701

561410

Drawing, Assembly

67601904

559010

Fan, Propeller

67602117

W6200

Filter, AC Line

67602203

W0FZZ

Fuse, Time Delay

67602301

W4986A

Gasket

67602409

W4986B

Gasket

67602410

435301

Grille, Discharge

67602511

435300

Grille, Rear

67602516

W6631

Harness, Multi

67602600

546810B

Motor Assembly, DC

67603303

546810A

Motor Assembly, DC, Indoor

67603308

546810A

Motor Assembly, DC, Outdoor

67603314

552560

Muffler

67603401

152503

Nipple, Drain

67603500

349480

Orifice

67603602

437211

Panel Assembly, Front(Outdoor)

67603805

437212

Panel Assembly, Rear(Outdoor)

67603817

137213

Panel Assembly, Side

67603843

237202

Panel, Front

67603834

237205

Panel, Rear

67603839

237204

Panel, Side

67603841

268711A

PCB Assembly

67603902

165010

Sensor, Pressure

67607400

W52240

Strainer

67607500

148000

Supporter

67604602

263230C

Thermistor Assembly, NTC

67604804

263230A

Thermistor Assembly, NTC

67604812

263230B

Thermistor Assembly, NTC

67604814

261704

Transformer,Linear

67604900

352111

Tube Assembly

67605000

552111

Tube Assembly,Capillary

67605102

55211G

Tube Assembly,Expansion

67605900

552115

Tube Assembly,Menifold(Outdoor)

67606011

552116

Tube Assembly,Reverse

67606109

552117

Tube Assembly,Suction(Outdoor)

67606200

552200

Valve,Expansion Body

67606303

552202

Valve,Reverse

67606400

552203A

Valve,Service

67606514

552203B

Valve,Service

67606511

FriedrichAirConditioningCo. I10001ReunionPlace,Suite500 ISanAntonio,TX78216 I877.599.5665

www.friedrich.com
