Y our air conditioner will install into standard

double hung windows with actual clear opening

widths of 22 to 36 inches (559 mm to 914 mm)

(FIG. 1)

Lower sash must open sufficiently to allow a

clear vertical opening of 14-1/4 inches (337 mm).

Side louvers and the rear of the AC must have clear

air space to allow enough airflow through the

condenser, for heat removal. The rear of the unit

must be outdoors, not inside a building

or garage.

Electrical Service

Check your available electrical service. The

power supply available must be the same as that

shown on the unit nameplate (found on right side

of AC cabinet). Be sure you have an outlet

nearby.

All models are equipped with appropriate 3-

prong service plug to provide proper service and

safe positive grounding. Do not change plug in

any way. Do not use an adapter plug. If your

present wall outlet does not match your plug, call

a qualified electrician to make the necessary

corrections. SAV E C A R T ON and these

INSTALLATION INSTRUCTIONS for future

reference. The carton is the best way to store

unit during winter , or when not in use. 1

Installation Instructions

READ BEFORE INSTALLING UNIT

Compact Window Mounting

Hardware (in plastic bag)

Qty.

3/4 screws 2

frame/stool

3/4 screw 1

safety lock

Safety lock 1

1/2 screws 2

frame/sash

CAUTION

When handling unit, be careful to avoid

cuts from sharp metal edges and

aluminum fins on front and rear coils.

How to Install

NOTE: Top ail and Sliding Panels at each side

are offset to provide the proper pitch to the rear of

(5/16”). This is necessary for proper condensed

water utilization. If you are not using the Side

Panels for any reason, this pitch to the rear must be

maintained!

Place unit on floor , a bench or a table.

There is a Left and Right W indow Filler

Panel - be sure to use the proper panel

for each side. When installed the flange for

securing the panel in place to the window sill

will be facing into the room.

(continued)

309000914 (0011)

Avoid fire hazard or

electric shock. Do not use an extension

cord or an adapter plug. Do not remove

any prong from the power cord.

Power supply

cord with 3-prong

grouding plug

Do not under

any circumstances

cut, remove,

or bypass

the grouding prong

from this plug.

Grouding type

wall receptacle

C. Once the panel has been

installed on the side of

the cabinet pull the frame

back around the

accordian so it fits into

the frame channel, then

slide the top and bottom

of the frame into the rails

of the cabinet. Figure 5.

D. Slide the panel all the

way in and repeat on the

other side.

NOTE: If storm window

blocks AC, see FIG. 12.

Keeping a firm

grip on the air

conditioner ,

carefully place unit into

window opening so

bottom of air conditioner

frame is against window

sill (FIG. 6). Carefully

close window behind top

rail on unit

Extend sliding side panels out from

sides of unit and against window frame

(FIG. 7).

A. Holding

W indow Filler

Panel in one

hand gently

pull the

accordian

center back

to free the

open end.

See Figure 2.

B. W ith the free end

slide the I

section of the

panel into the

cabinet as shown

in Figures

3A, 3B & 4. Slide

panel all the way

down leaving

enough space at

the bottom to slip

the frame top and

bottom into the

rails on the

cabinet.

FIG. 7

FIG. 4

FIG. 5

FIG. 3A

FIG. 6

FIG. 3B

FIG. 2

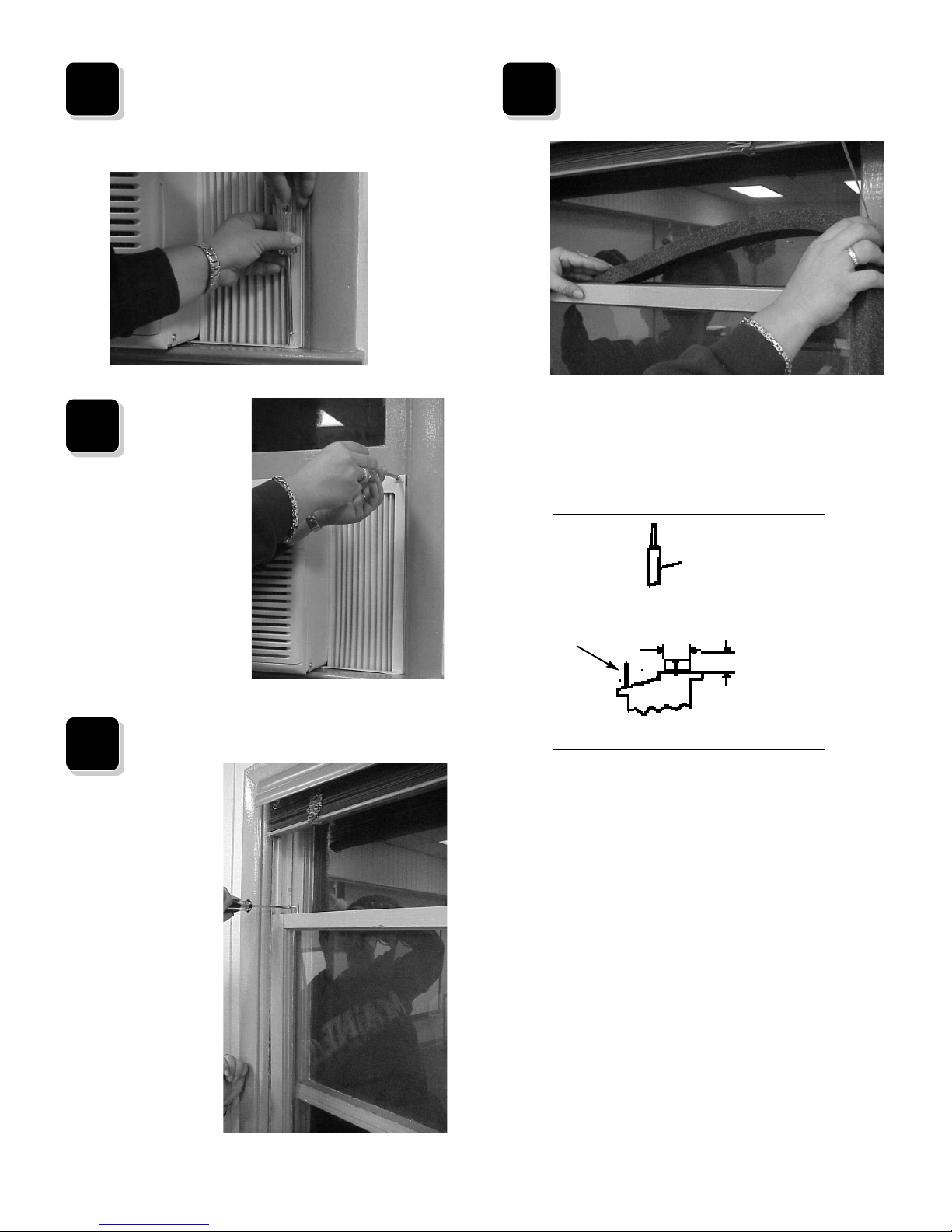

Drive 3/4 (19 mm) locking screws

through frame holes and into sill

(FIG. 8). NOTE: To prevent window

sill from possible splitting, drill 1/8 (3 mm)

pilot holes before driving screws.

Drive 1/2

(13 mm)

locking

screws

through frame holes

into window sash

(FIG. 9).

To secure lower sash in place, attach

right

angle safety lock onto side frame of top

window

with 3/4 (19 mm)

screw as shown

(FIG. 10).

Cut foam sash seal to window width and

place into space between upper and

lower sashes to seal out air infiltration

(FIG. 11).

FIG. 10

FIG. 8 FIG. 11

If AC is Blocked by Storm

Window

Add wood as shown in FIG. 12, or remove storm

window before air conditioner is installed.

If Storm W indow Frame must remain, be sure

the drain holes or slots are not caulked or

painted shut. Accumulated Rain Water or

Condensation must be allowed to drain out.

Removing AC From

Window

*T urn AC of f, and disconnect power cord.

*Remove sash seal from between windows,

and unscrew safety locks.

*Remove screws installed through AC frame.

*Close (slide) side panels into frame.

*Keeping a firm grip on air conditioner , raise

sash and carefully rock air conditioner

backward to drain any condensate water in

base of unit. Be careful not to spill any

remaining water while lifting unit from

window. Store parts WITH air conditioner .

FIG. 9

SASH

1 1/2” MIN

(38 mm)

STORM WINDOW

FRAME

OR OTHER

OBSTRUCTION

BOARD

THICKNESS

AS REQUIRED,

FOR PROPER

PITCH TO

REAR, ALONG

ENTIRE SILL.

FASTEN WITH

TWO NAILS OR

SCREWS.

FIG. 12
