Frigidaire FAA082P7A Manuale utente

M40L0001.eps M40C0001.eps M40M0001.eps 2202049172.eps

Product No. FAA082P7A1 FAA082P7A2 FAA082P7A3 FAA082P7A4

Series MS II MS II MS II MS II

Color N/A N/A N/A N/A

Volts 115 115 115 115

BTU-Cooling 8000 8000 8000 8000

Owner's Guide 220204d031 220204d031 220204d031 220204d031

Installation Instructions msinstalleng msinstalleng msinstalleng msinstalleng

Market North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995438636

05/06/06

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAA082P7A

Publication No: 5995438636 FAA082P7A

06/05 2

CABINET, FRONT, CONTROLS

FAA082P7A Publication No: 5995438636

# Functional Parts 3 06/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAA082P7A (FAA082P7A1)

BFAA082P7A (FAA082P7A2)

CFAA082P7A (FAA082P7A3)

DFAA082P7A (FAA082P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446365 A - - D Base, unit chassis

1 5304446380 - B C - Base, unit chassis

2 5304437068 A B C D Rail, shutter track, bottom

3 5304437055 A B C D Frame, shutter panel, LH

4 5304437052 A B C D Retainer, shutter lock

5 5304437053 A B C D Shutter, accordion panel

6 5304437057 A B C D Retainer, shutter mount, cabinet sides

7 5304446348 A B C D Cabinet, wrapper/sleeve

8 5304437069 A B C D Rail, shutter track, top

9 5304437054 A B C D Frame, shutter panel, RH

10 5304437065 A B C D Front Assembly, complete panel, includes

11 5304437059 A B C D Panel, front grille, tilt-out

12 5304437062 A B C D Filter, air, plastic frame

13 5304437058 A B C D Frame, front assembly

14 5304437061 A B C D Louver, horizontal

15 5304437060 A B C D Louver, vertical

16 5304437050 A B C D Knob, rotary control

17 5304437051 A B C D Enclosure, control, switch box

17* 5304446347 A B C D Dial Plate, display panel

18 5304446345 A B C D Switch, selector, main

19 5304446346 A B C D Panel, ctrl mtg board

20 # 5304437106 A B C D Control, temperature

23 5304436530 A B C D Strap, capacitor mtg.

24 # 5304436528 A B C D Capacitor

25 5304437070 A B C D Control Box

Publication No: 5995438636 FAA082P7A

06/05 4

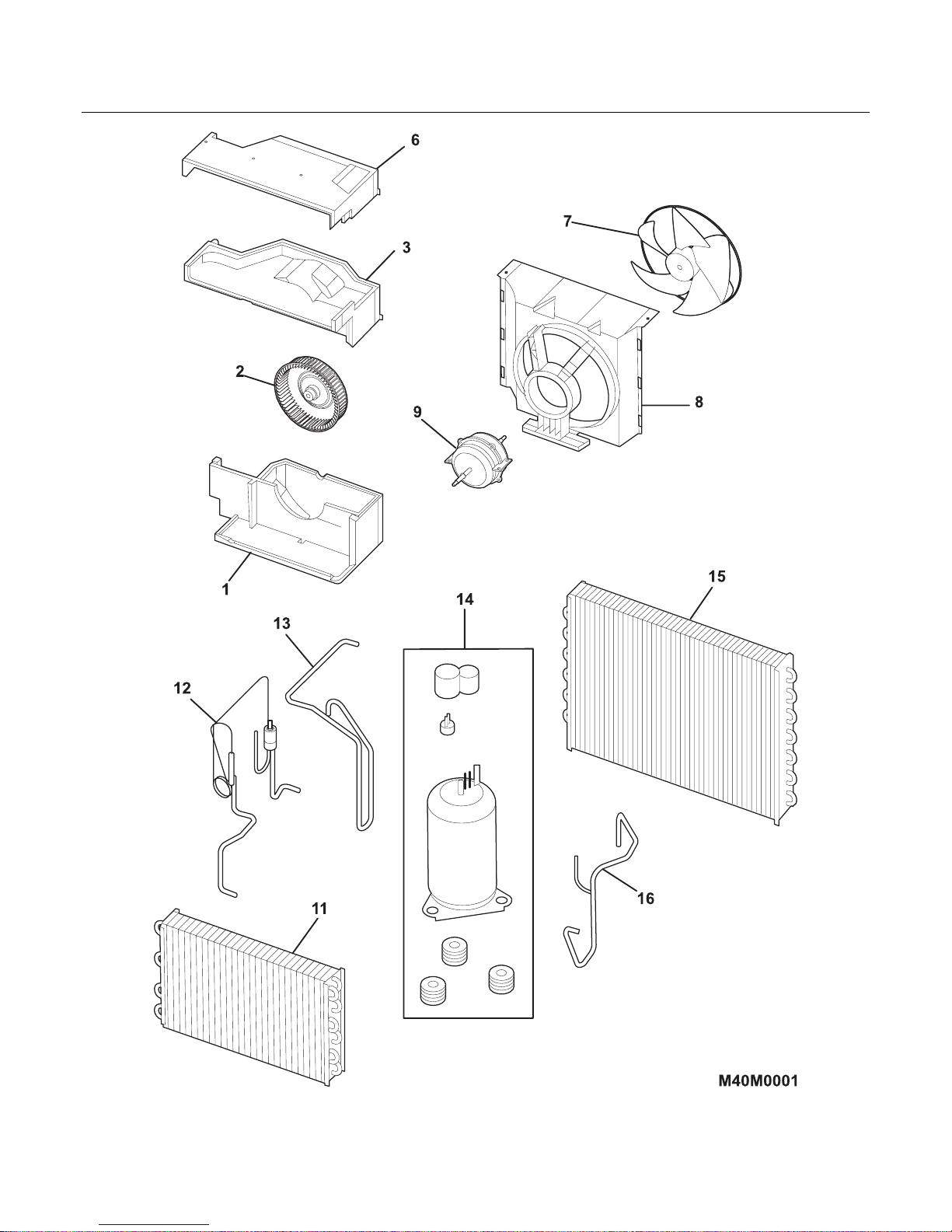

COOLING & AIR FLOW SYSTEMS

FAA082P7A Publication No: 5995438636

# Functional Parts 5 06/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAA082P7A (FAA082P7A1)

BFAA082P7A (FAA082P7A2)

CFAA082P7A (FAA082P7A3)

DFAA082P7A (FAA082P7A4)

POS. NO PART NO. DESCRIPTION

1 5304446349 A B C D Scroll, blower housing, bottom

2 # 5304446350 A B C D Blower Wheel, centrifugal fan

3 5304446351 A B C D Scroll, blower housing, top

6 5304446355 A B C D Cover, blower scroll, top

7 # 5304437049 A B C D Fan Blade, propeller, axial flow

8 # 5304447863 A B C D Shroud, fan housing

9 # 5304446372 A - C - Motor, fan

9 # 5304446379 - B - D Motor, fan

11 # 5304446373 A B C D Evaporator

12 # 5304446378 A - - D Capillary Tube

12 # 5304446385 - B C - Capillary Tube

13 # 5304446377 A - - D Discharge Tube

13 # 5304446384 - B C - Discharge Tube

14 # 5304446376 A - - D CompressorAssy

14 # 5304446383 - B C - Compressor Assy

15 # 5304446375 A - - D Condenser

15 # 5304446382 - B C - Condenser

16 # 5304446374 A - - D Suction Tube

16 # 5304446381 - B C - Suction Tube

* # 5304446361 A B C D Power Cord, electric, 115 V

* 5304458022 A B C D Hardware Kit, installation

Publication No: 5995438636 FAA082P7A

06/05 6

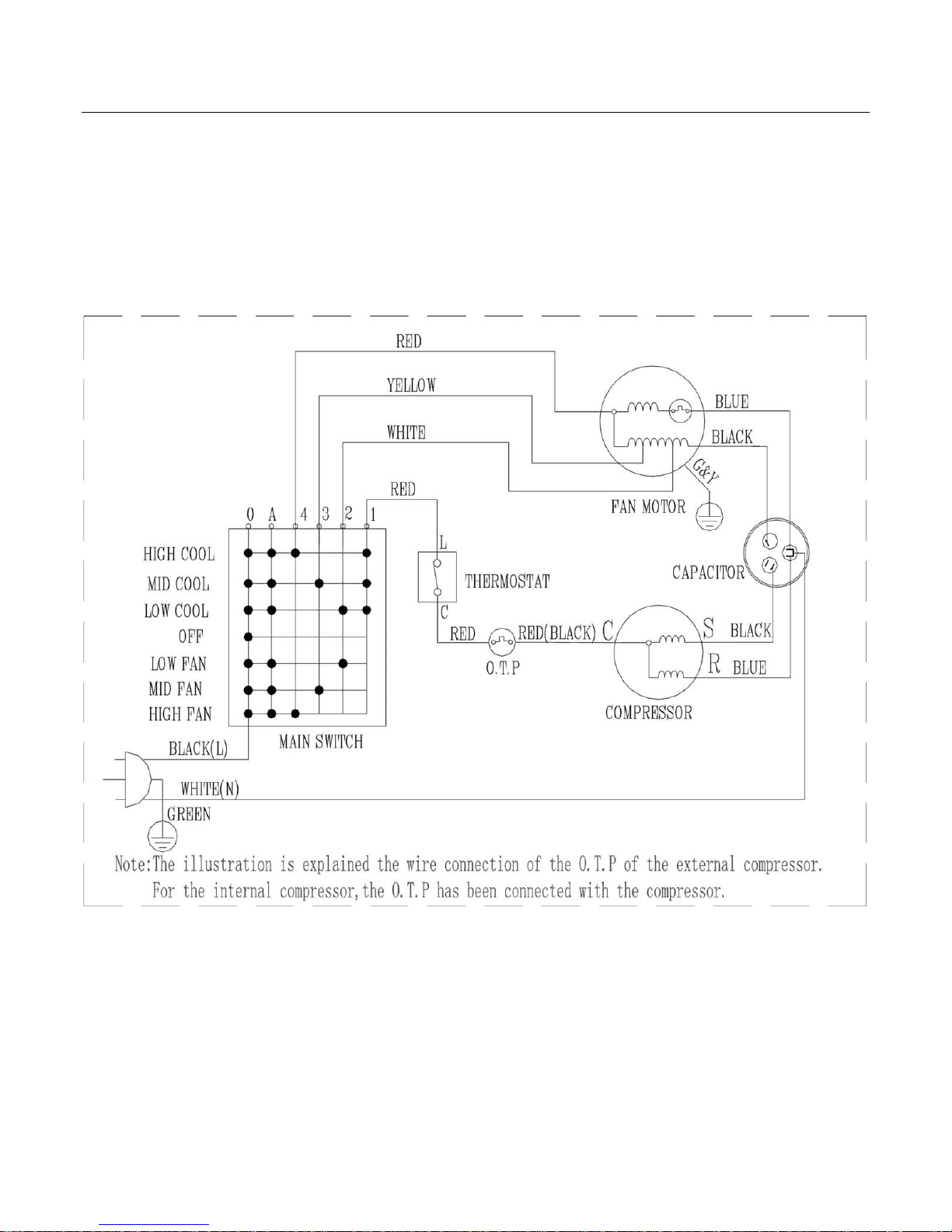

WIRING DIAGRAM

2202019172
