Frigidaire FAC052K7A10 Manuale utente

ROOM AIR CONDITIONER

Model No.

FAC052K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107301

OWNER’S GUIDE - # 309000823

ENERGY GUIDE - # 309369912

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAC052K7A10 FAC052K7A Compact 115 5000 BTU

MARKET

USA

Publication No.

5995374435

020617

-EN/SERVICE /KC

345

06/02 2

Publication No. FAC052K7A

5995374435

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/02

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995374435

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

8 309640204 Louver Assy,Includes8&9

8 309639302 * Louver,horizontal

9 309647201 * Louver,vertical ,with link

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309342902 Dial Plate

20 309364102 Knob,rotary control

22 5303001775 Spacer,dial plate

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

* 309369912 Energy Guide,FAC052K7A10

06/02 4

Publication No. FAC052K7A

5995374435

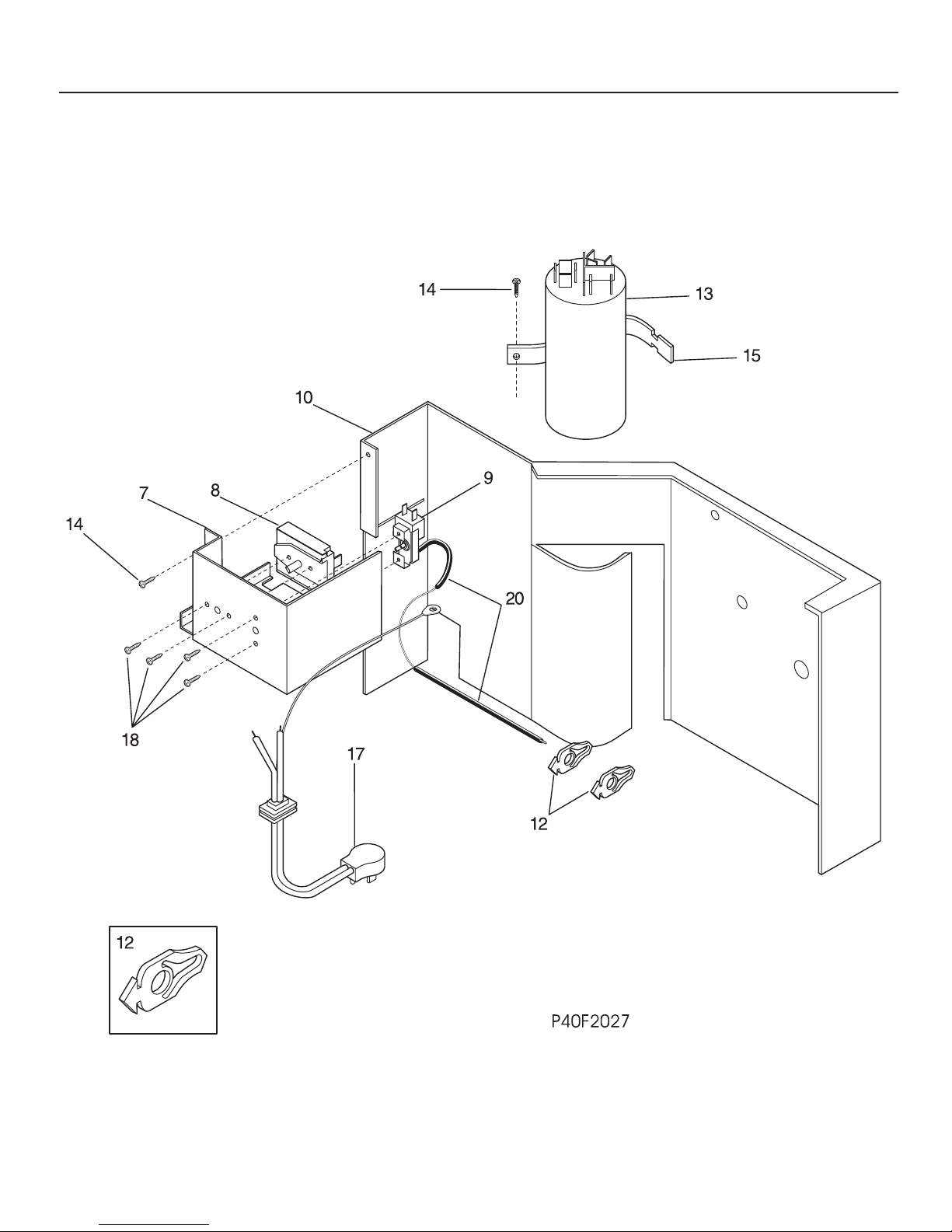

CONTROLS

# = Fast-moving Parts 5 06/02

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995374435

CONTROLS

POS. NO PART NO DESCRIPTION

7 309643802 Control Box

8 # 5304410837 Switch,selector ,5 position,2 sp

9 # 5304402838 Control,temperature

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

12 309101202 Clip,retainer ,temp sensor ,(2)

13 # 5304423280 Capacitor,35+6/250 vac

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343101 Cord-electric power,18 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

18 5303007754 Screw,6-32 x 0.188

20 5304417582 Sleeve,temp sensor ,6 in.

06/02 6

Publication No. FAC052K7A

5995374435

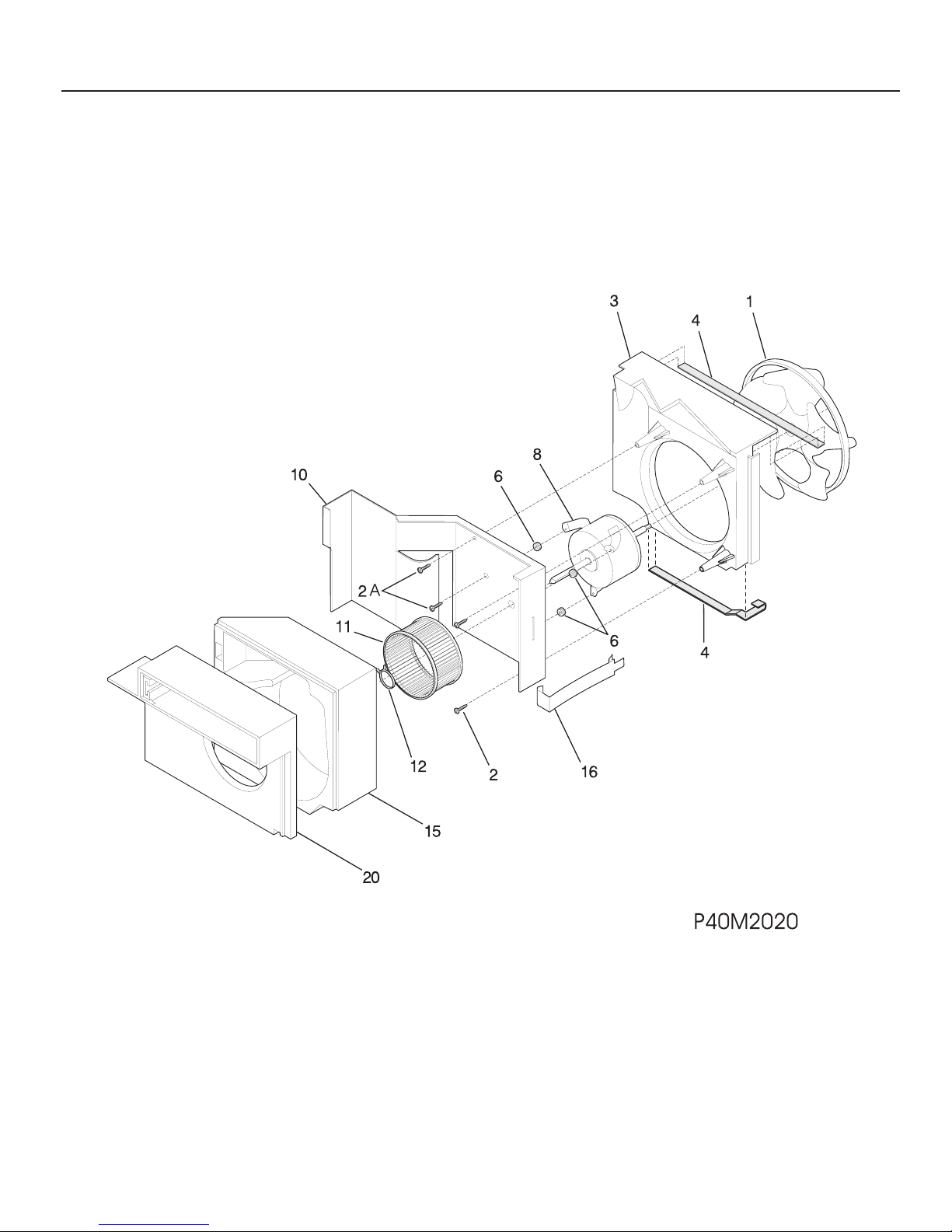

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/02

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995374435

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309646204 Fan Blade,0.500 in. bore ,w/clamp & screw

2 3202975 Screw,10-16AB x 0.72 ,square drive

2A 5303317224 Screw,indt hex head ,10-16 ,(3)

3 309643901 Housing,fan shroud

4 5304421913 Seal,top

4 5303303759 Seal,bottom

6 5300105402 Grommet,motor ,(3)

8 # 309642405 Motor,fan

* 3015312 Screw,8-18AB x 0.500

10 309643702 Bulkhead

11 # 309643301 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643003 Plate,scroll cover

06/02 8

Publication number FAC052K7A

5995374435

COMPRESSOR PARTS

06/02 9

FAC052K7A Publication No.

5995374435

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 5304426656 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 # 5304417320 Overload Protector

9 5303294292 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309637403 Evaporator

12 # 309637605 Condenser

13 # 309642801 Tray,evap drip

14 309644001 Base,compressor mt. ,with studs

16 # 5304423363 Capillary Tube,43 inch long ,cut-to-length

17 # 5300265301 Drier-filter,service kit

19* 309112501 Washer,metallic

21 5303293809 Washer,terminal cover

06/02 10

Publication No. FAC052K7A

5995374435

WINDOW MOUNTING PARTS
