Frigidaire FAC052K7A3 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING

FAC052K7A3 FAC052K7A USA 5000

FAC052K7A4 FAC052K7A USA 5000

FAC052K7A5 FAC052K7A USA 5000

FAC052K7A6 FAC052K7A USA 5000

FAC052K7A8 FAC052K7A USA 5000

Publication No.

5995355228

010625

-EN/SERVICE /DJH

345

ROOM AIR

CONDITIONER

Model No.

FAC052K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107301

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC052K7A

59953455228

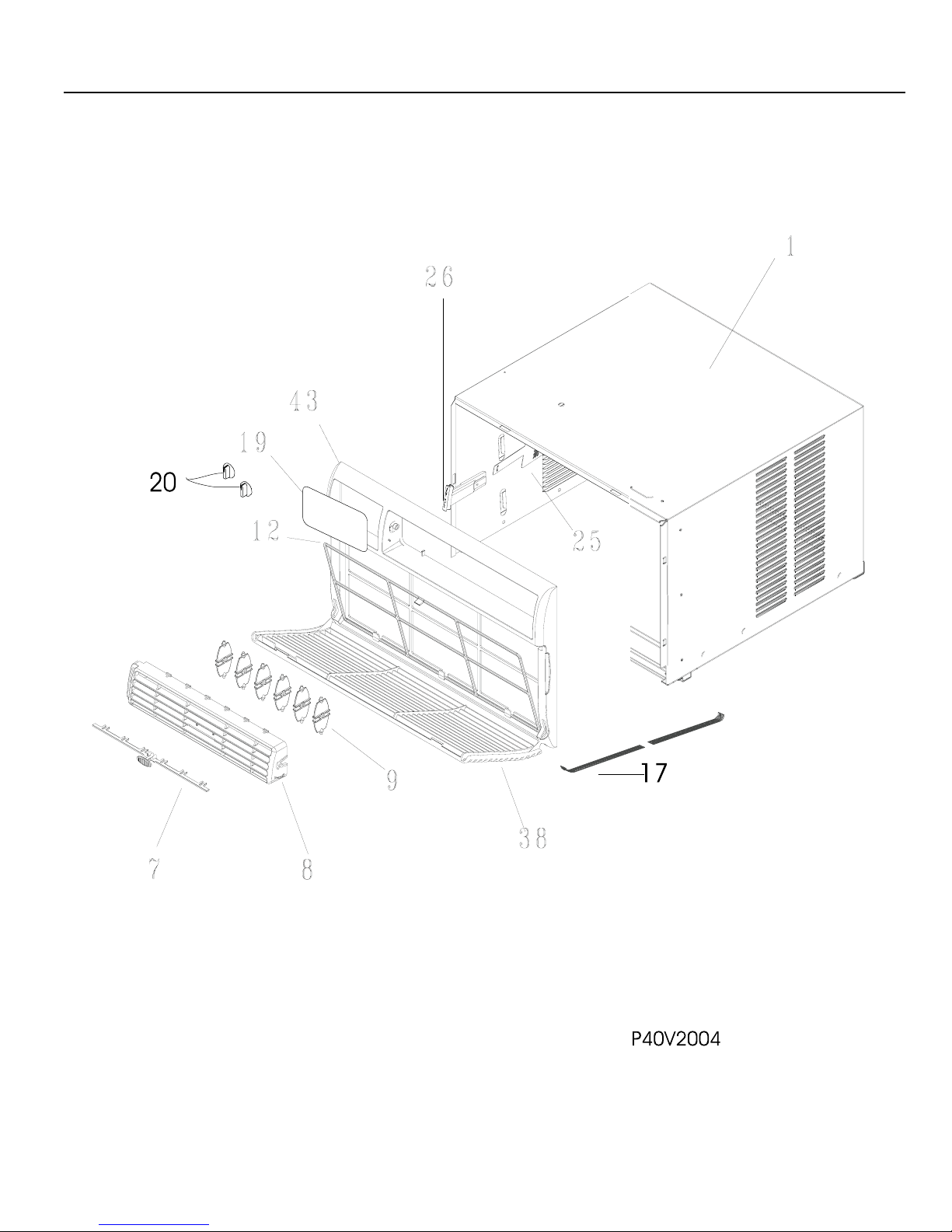

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995355228

CABINET FRONT AND WRAPPER

A = FAC052K7A (FAC052K7A3)

B = FAC052K7A (FAC052K7A4)

C = FAC052K7A (FAC052K7A5)

D = FAC052K7A (FAC052K7A6)

E = FAC052K7A (FAC052K7A8)

POS. NO PART NO DESCRIPTION

1 5304413783 A B - - - Cabinet

1 309643602 - - C D E Cabinet

7 309638001 A B C D E Link,vertical louver ,with handle

8 309639301 A B C D E Louver,horizontal

8* 309640202 A B C D E Louver Assy,horizontal ,Incl-7,8,9

9 309342001 A B C D E Louver,vertical ,(6)

12 309343501 A B C D E Filter-air,7.12 x 17.31 ,no frame

17 309640102 A B C D E Front-cabinet,4 way ,complete assy

19 309342902 A B C D E Dial Plate

20 309306811 A B C D E Knob-control,rotary

38 309639201 A B C D E Panel,cabinet front

43 309639101 A B C D E Frame,cabinet front

06/01 4

Publication No. FAC052K7A

59953455228

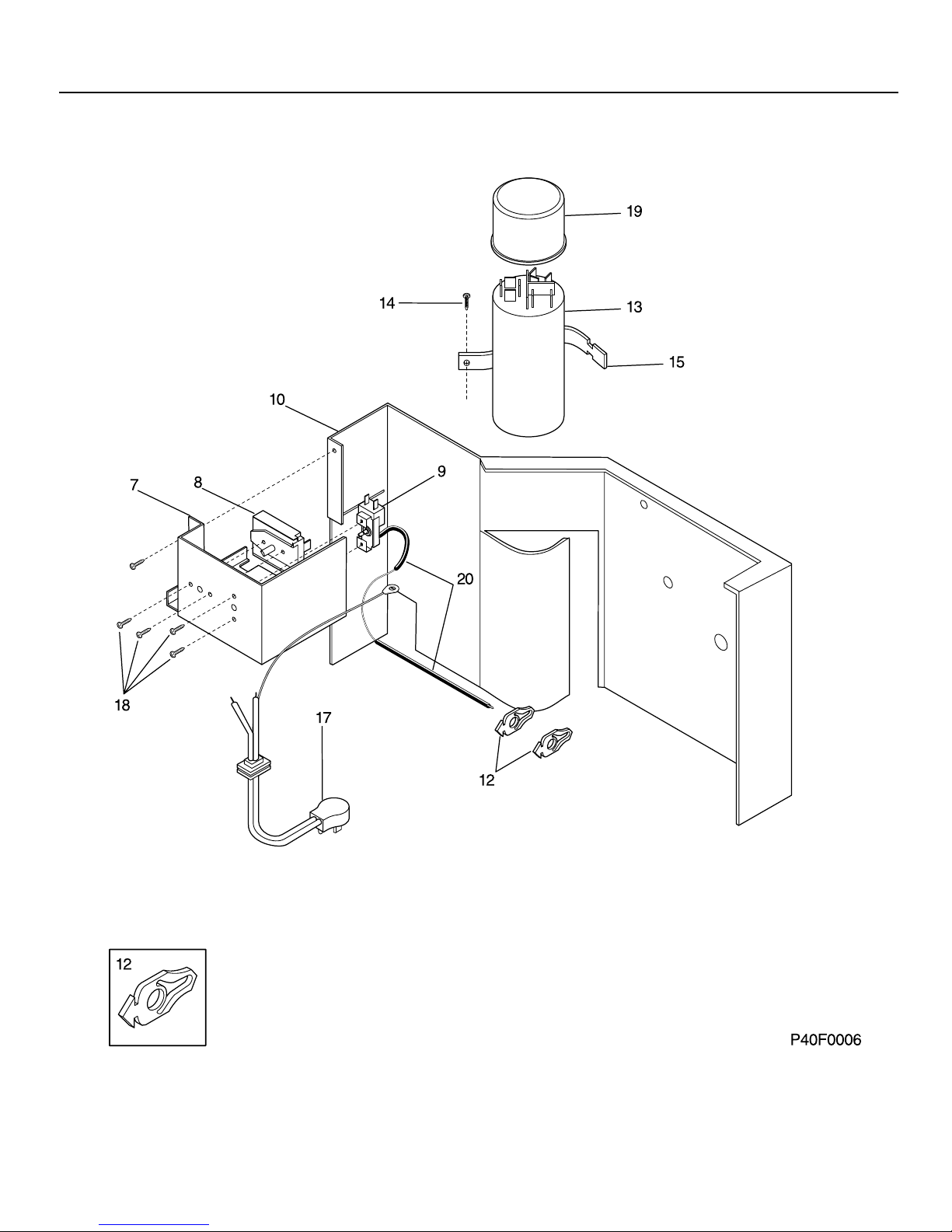

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995355228

CONTROLS

A = FAC052K7A (FAC052K7A3)

B = FAC052K7A (FAC052K7A4)

C = FAC052K7A (FAC052K7A5)

D = FAC052K7A (FAC052K7A6)

E = FAC052K7A (FAC052K7A8)

POS. NO PART NO DESCRIPTION

7 309350302 A B - - - Control Box

7 309643802 - - C D E Box-control

8 # 5304410837 A B C D E Switch-selector,5 position

9 # 5304402838 A B C D E Control-temperature

10 309602404 A B - - - Bulkhead

10 309643701 - - C D E Bulkhead

10* 309111201 A B C D E Grommet,wire protector

12 309113201 A ---- Clip,retaining ,thermostat

12 309101202 - B C D E Clip-control bulb,(2)

13 # 5304423358 A ---E Capacitor

13 # 5304413779 - B - - - Capacitor

13 # 5304423280 - - C D - Capacitor,35+6/250 vac

14 3015312 A B C D E Screw,8-18AB x 0.500

15 5303303086 A B - - - Strap-capacitor

15 309351901 - - C D E Strap-capacitor

17 # 309343101 A B C D E Cord-electric power,18 AWG ,115 V

18 5303007754 A B C D E Screw,6-32 x 0.188

19 5303302855 A B - - - Cover,capacitor

20 5303002600 A B C D E Sleeve,control

06/01 6

Publication No. FAC052K7A

59953455228

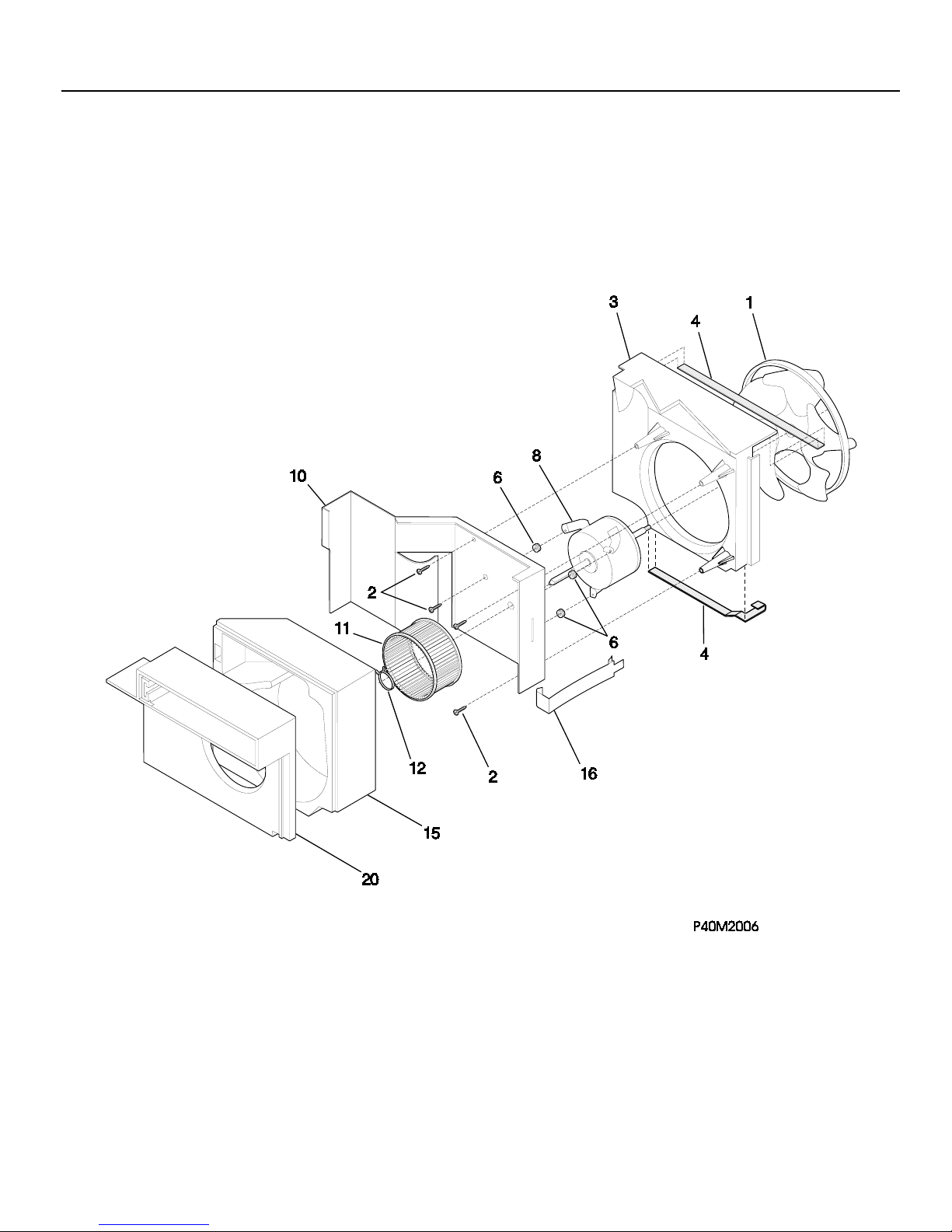

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995355228

AIR HANDLING PARTS

A = FAC052K7A (FAC052K7A3)

B = FAC052K7A (FAC052K7A4)

C = FAC052K7A (FAC052K7A5)

D = FAC052K7A (FAC052K7A6)

E = FAC052K7A (FAC052K7A8)

POS. NO PART NO DESCRIPTION

1 # 309624506 A B - - E Fan Blade,with clamp

1 # 309624502 - - C D - Fan Blade,with clamp

2 3202975 A B C D E Screw,10-16 x 0.72 ,square drive

3 309624201 A B - - - Housing-fan

3 309643901 - - C D E Housing-fan

4 5304421913 A B C D E Seal-condenser top

4 5304423359 A B C D E Seal,condenser ,bottom

6 08007481 A B - - E Nut,keps ,motor mtg

6 5300105402 - - C D - Grommet,motor ,(3)

7 3015312 A B C D E Screw,8-18AB x 0.500

8 # 309642701 A B - - - Motor-fan

8 # 309642405 - - C D - Motor fan,6PLGEHI

8 # 309645002 ----E Motor-fan

10 309602404 A B - - - Bulkhead

10 309643701 - - C D E Bulkhead

11 # 309631702 A B - - - Blower Wheel

11 # 309643301 - - C D - Blower Wheel,5"Hub

11 # 309643302 ----E Blower Wheel,8mm hub

12 327161302 A B - - E Clamp-blower

12 309112101 - - C D - Clamp-blower

12* 5303012110 - - C D - Clamp-blower

15 5304407653 A B - - - Housing-blower

15 309642901 - - C D E Housing-blower,Extended

16 309100201 A B C D E Clip

18 5303007754 A B C D E Screw,6-32 x 0.188

20 5303303573 A B - - - Plate-blower housing

20 309643003 - - C D E Plate-blower housing

06/01 8

Publication No. FAC052K7A

59953455228

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC052K7A Publication No.

5995355228

COMPRESSOR PARTS

A = FAC052K7A (FAC052K7A3)

B = FAC052K7A (FAC052K7A4)

C = FAC052K7A (FAC052K7A5)

D = FAC052K7A (FAC052K7A6)

E = FAC052K7A (FAC052K7A8)

POS. NO PART NO DESCRIPTION

1 # 5304417319 A B C D E Compressor

2 5303283877 A B C D E Grommet,compressor mtg ,(3)

3 5308006948 A B C D E Nut,compressor mtg ,(3)

6 5303291330 A B C D E Gasket,terminal cover

7 3015312 A B C D E Screw,8-18AB x 0.500

7 5304416126 A B C D E Cover-terminal,compressor

7* 5303293809 A B C D E Washer

8 # 5304417320 A B C D E Overload Protector

9 5303294292 A B C D E Nut-terminal cover

10 # 5303317601 A B C D E Start Assist Kit,compressor

11 # 309355101 A ---- Evaporator assy,1R/21FPI 7MM

11 # 309637401 - B - - - Evaporator

11 # 309637403 - - C D E Evaporator,1R/21FPI

12 # 309355002 A ---- condenser assy,7MM;2ROW/21FPI

12 # 5303307226 - B - - - Condenser

12 # 309637603 - - C D - Condenser

12 # 309637605 ----E Condenser

13 5303302849 A B - - - Tray-evaporator

13 # 309642801 - - C D E Tray-evaporator

14 5304413780 A B - - - Base-compressor

14 309644001 - - C D E Base-compressor assy

16 5308017120 A B - - - Capillary Tube,45 inch long ,cut to length

16 5304423363 - - C D E TUBE-cappillary

17 # 309113401 A ---- Tube-process

17 # 5304413857 - B C D E Tube-process

19 5303002664 A B C D E Washer,compressor mtg

19* 309112501 A B C D E Washer,metallic

06/01 10

Publication No. FAC052K7A

59953455228

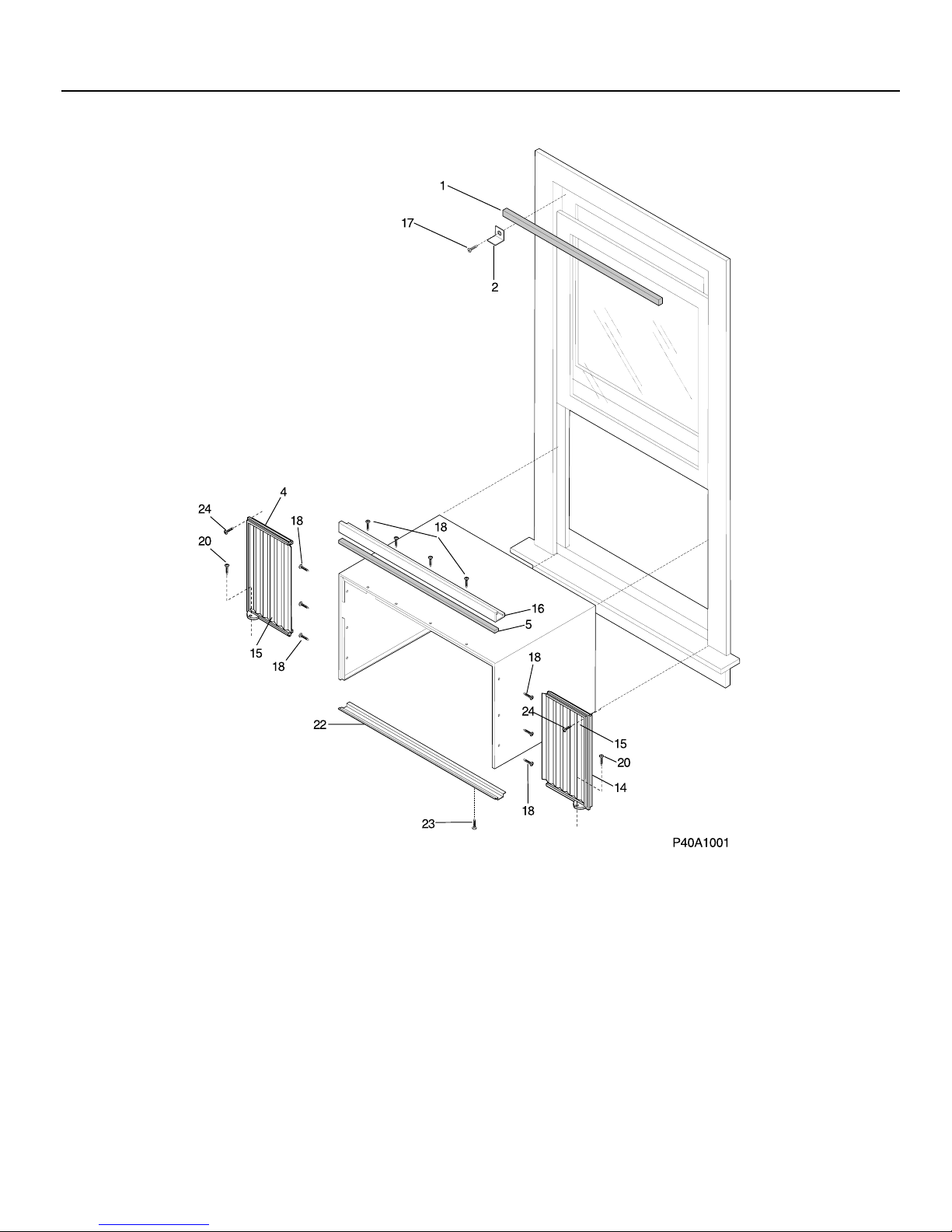

WINDOW MOUNTING PARTS
