Frigidaire FAC053J7A3 Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES VOLTS

FAC053J7A3 FAC053J7A Frigidaire 115

BTU-COOLING

5200

Publication No.

5995344982

001016

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC053J7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309103901

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

06/01 2

Publication No. FAC053J7A

5995344982

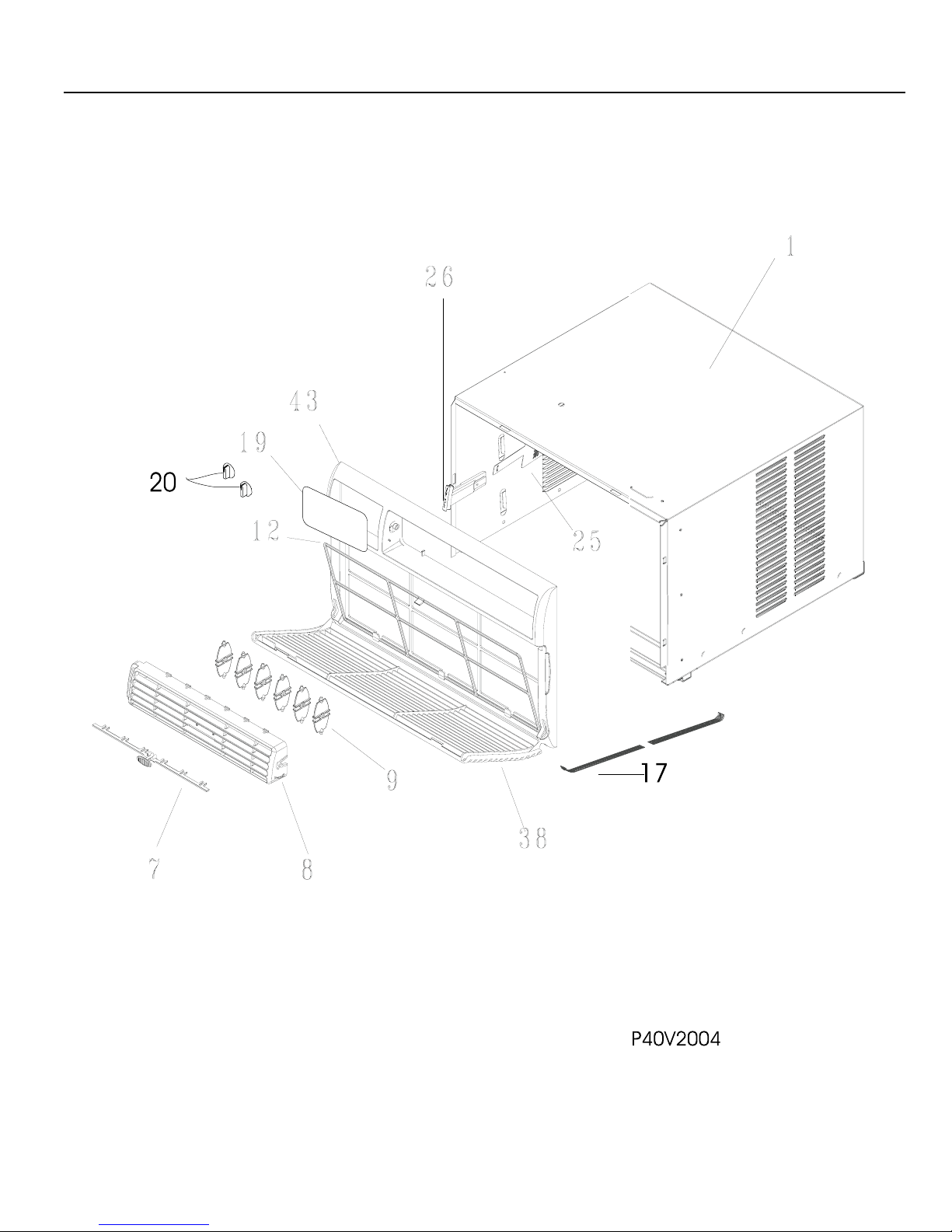

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995344982

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304413783 Cabinet

7 309638001 Link,vertical louver ,with handle

8 309639301 Louver,horizontal

9 309342001 Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640102 Front-cabinet,4 way ,complete assy

19 309342904 Dial Plate

20 309306810 Knob-control,rotary

22 5303001775 Spacer,plate

25 309328601 Door-vent,fresh air

26 309639401 Handle,vent door

26* 309330201 Detent-vent

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

06/01 4

Publication No. FAC053J7A

5995344982

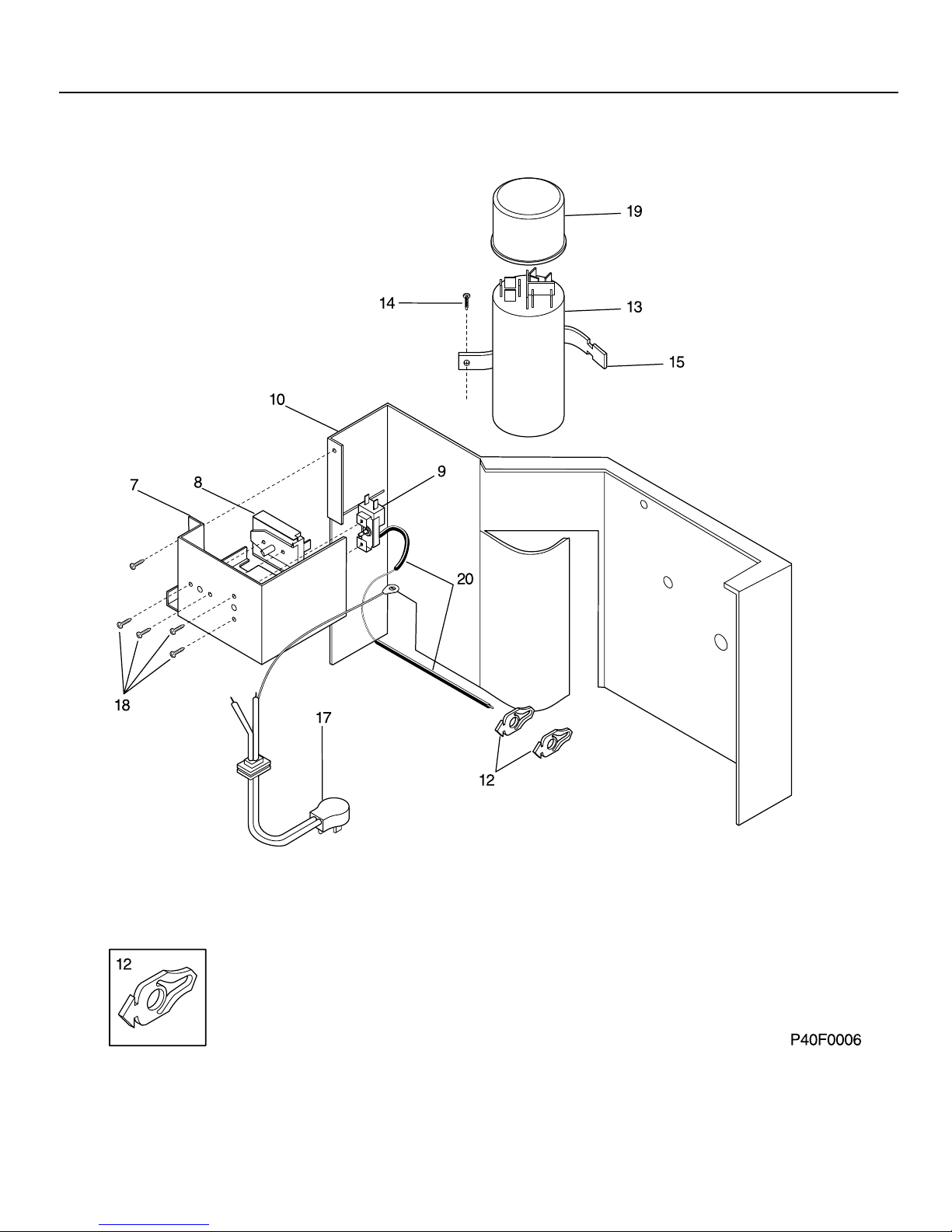

CONTROLS

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995344982

CONTROLS

POS. NO PART NO DESCRIPTION

7 309350302 Control Box

8 # 5303323284 Switch-selector

9 # 5304402838 Control-temperature

10 309602403 Bulkhead

12 309101202 Clip-control bulb,(2)

13 # 5303302854 Capacitor,370 V ,5+25 mfd

14 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

15 5303303086 Strap-capacitor

17# 309343101 Cord-electric power,18 AWG ,115 V

18 5303007754 Screw,6-32 x 0.188

19 5303302855 Cover,capacitor

20 5303002600 Sleeve,control

* 309111201 Grommet,wire protector

06/01 6

Publication No. FAC053J7A

5995344982

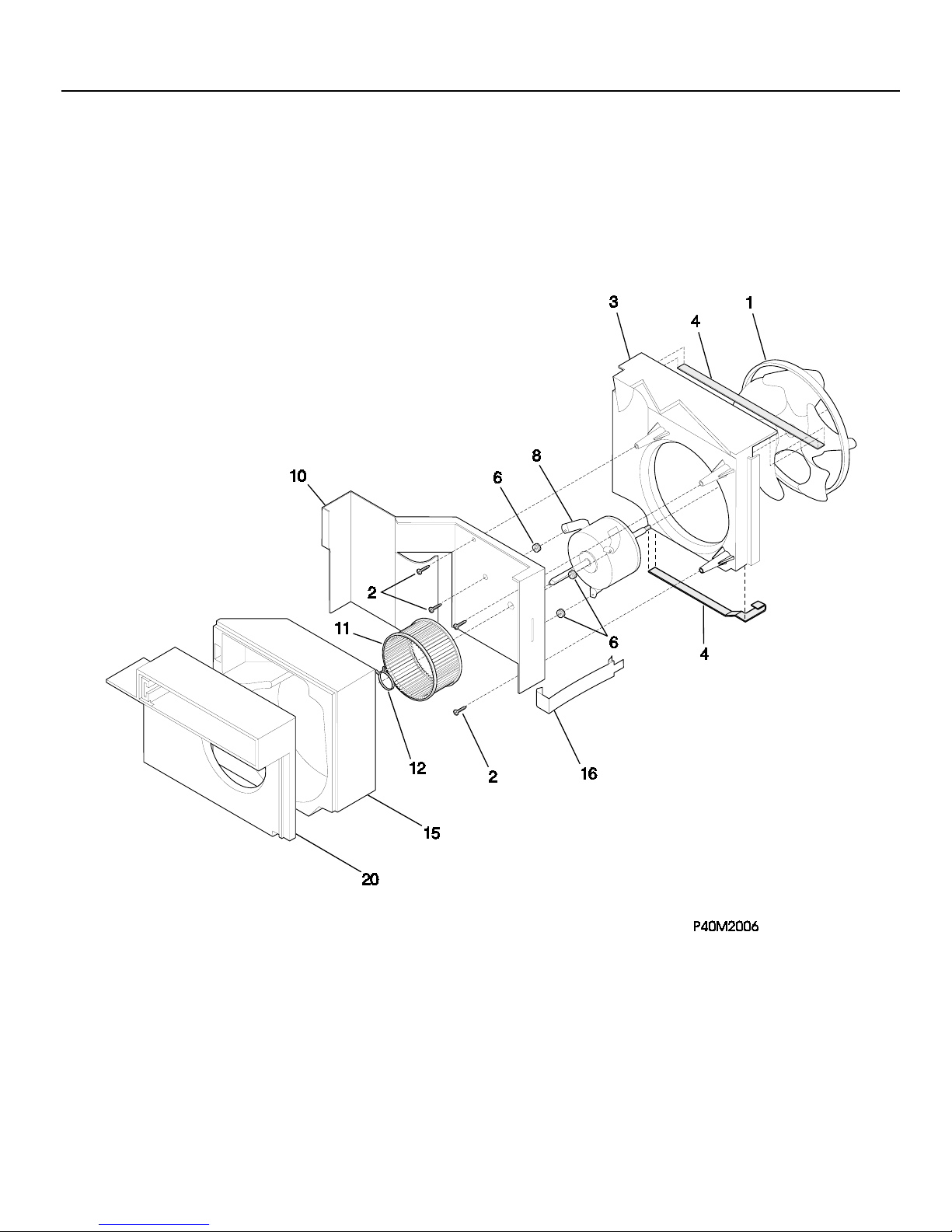

AIR HANDLING PARTS

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995344982

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal,condenser

6 5300105402 Grommet,motor ,(3)

8 309627302 Motor-fan,3 speed

10 309602403 Bulkhead

11 # 309603301 Blower Wheel

12 309112101 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 5304407654 Plate-blower housing,scroll plate

06/01 8

Publication No. FAC053J7A

5995344982

COMPRESSOR PARTS

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FAC053J7A Publication No.

5995344982

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304410678 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover-terminal,compressor

8 # 5303209085 Overload Protector

9 5303294292 Nut-terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309604215 Evaporator

12 # 5303307226 Condenser

13 5303302849 Tray-evaporator

14 5304413780 Base-compressor

16 # 5308017120 Capillary Tube,45 inch long ,cut to length

17 5304413857 Process Tube

19 5303293809 Washer

19* 5303002664 Washer,compressor mtg

20 5303291328 Spring-overload

06/01 10

Publication No. FAC053J7A

5995344982

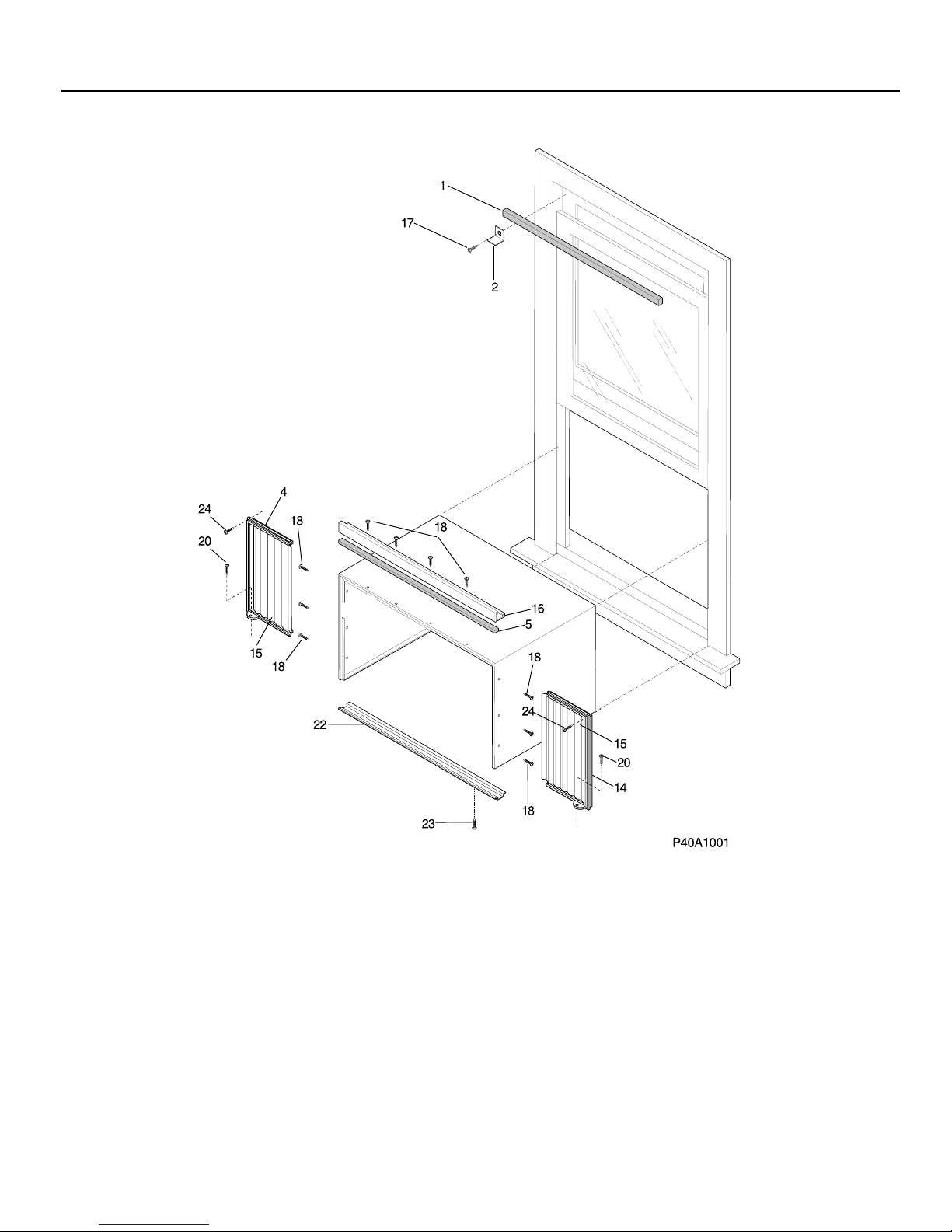

WINDOW MOUNTING PARTS
