Frigidaire FAC064K7A2 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING PRODUC DATE

FAC064K7A2 FAC064K7A USA 6000 btu 06/14/01

Publication No.

5995356341

010719

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAC064K7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

07/01 2

Publication No. FAC064K7A

5995356341

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 07/01

* = Non-Illustrated Parts

FAC064K7A Publication No.

5995356341

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 5304413783 Cabinet

7 309638001 Link,vertical louver ,with handle

8 309639301 Louver,horizontal

9 309342001 Louver,vertical ,(6)

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640102 Front-cabinet,4 way ,complete assy

19 309340803 Overlay

25 309328601 Door-vent,fresh air

26 309638201 Handle vent door

26* 309330201 Detent-vent

38 309639201 Panel,cabinet front

43 309639101 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309350502 Remote Control,transmitter with batteries

07/01 4

Publication No. FAC064K7A

5995356341

CONTROLS

# = Fast-moving Parts 5 07/01

* = Non-Illustrated Parts

FAC064K7A Publication No.

5995356341

CONTROLS

POS. NO PART NO DESCRIPTION

7 309350301 #Control Box

10 309602404 Bulkhead

10* 309111201 Grommet,wire protector

13 # 5304419792 Capacitor,40+5/370

13* 5303302855 Cover,capacitor

14 3015312 Screw,8-18AB x 0.500

15 5303303086 Strap-capacitor

17 # 309343101 Cord-electric power,18 AWG ,115 V

70 309342201 Enclosure,elec control mt

71 # 309350401 PC Board,power,Sagem

72 # 309350402 PC Board,input

72* 5304417643 Ribbon Protector

74 5303301590 Screw-bracket

75 5304413781 Support-pc board

76 309111601 Transformer,120/12 Volt

* 309341601 Wiring diagram

07/01 6

Publication No. FAC064K7A

5995356341

AIR HANDLING PARTS

# = Fast-moving Parts 7 07/01

* = Non-Illustrated Parts

FAC064K7A Publication No.

5995356341

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309624502 Fan Blade,with clamp

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309624201 Housing-fan

4 5303270043 Seal,condenser

6 5300105402 Grommet,motor ,(3)

10 309602404 Bulkhead

11 # 309603301 Blower Wheel

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

15 5304407653 Housing-blower

16 309100201 Clip

20 5304407654 Plate-blower housing,scroll plate

07/01 8

Publication No. FAC064K7A

5995356341

COMPRESSOR PARTS

# = Fast-moving Parts 9 07/01

* = Non-Illustrated Parts

FAC064K7A Publication No.

5995356341

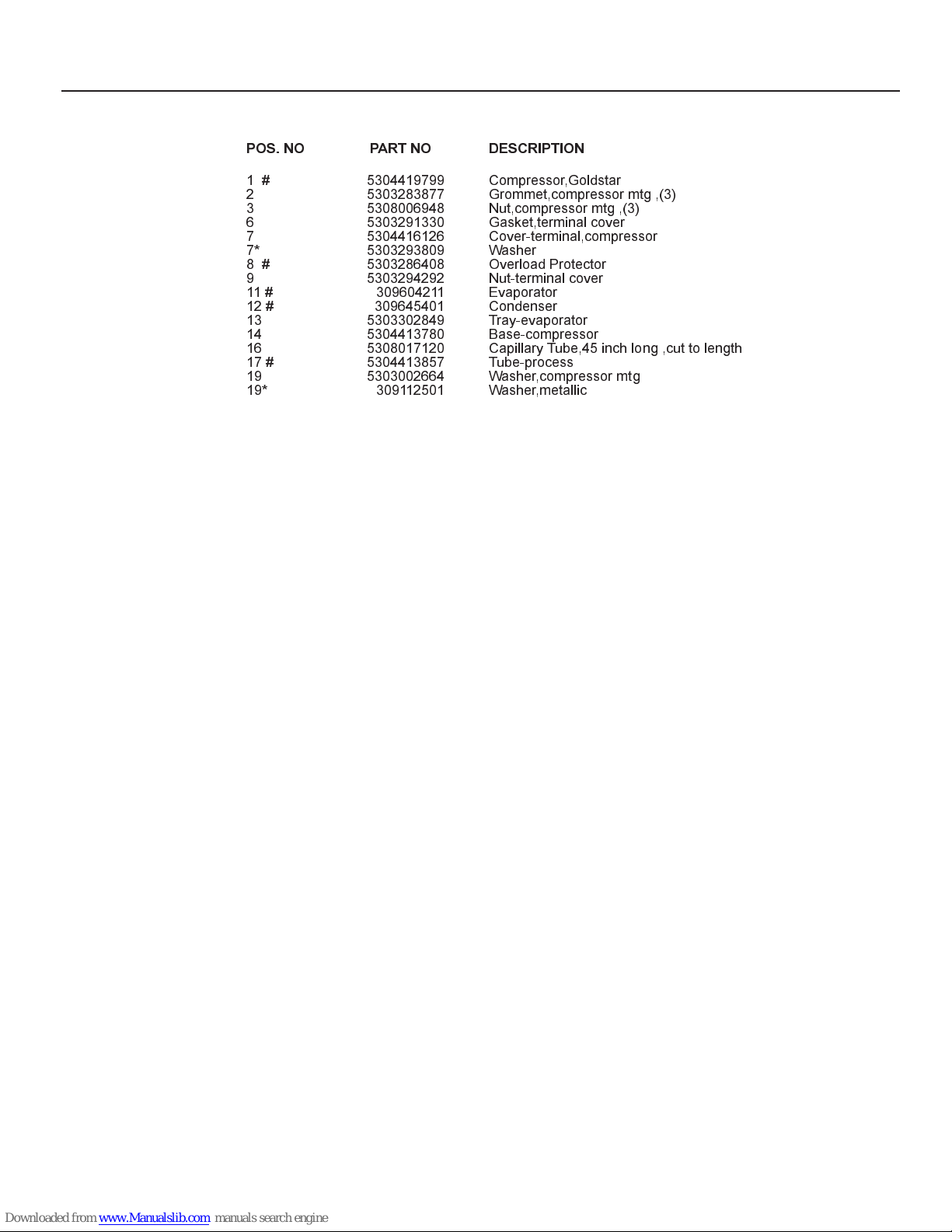

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304419799 Compressor,Goldstar

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover-terminal,compressor

7* 5303293809 Washer

8 # 5303286408 Overload Protector

9 5303294292 Nut-terminal cover

11 # 309604211 Evaporator

12 # 309645401 Condenser

13 5303302849 Tray-evaporator

14 5304413780 Base-compressor

16 5308017120 Capillary Tube,45 inch long ,cut to length

17 # 5304413857 Tube-process

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

07/01 10

Publication No. FAC064K7A

5995356341

WINDOW MOUNTING PARTS
